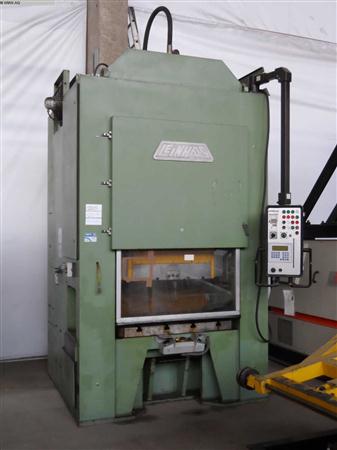

Double Column Drawing Press - Hydraulic
Offer
- stock-no.:
- 0700382
- type of machine:
- Double Column Drawing Press - Hydraulic
- make:
- LEINHAAS
- model:
- NDDP-UR 11-1600,S1 NE 6
- year of manufacture:
- 1996
- type of control:
- konventionell
- country of origin:
- Germany
- freight basis:
- free loaded EX Location
- storage location:
- Leipzig 2
- delivery time:
- immediately
- price:
- on request
technical details
- pressure:
- 160 t
- dayligth:
- max.400 mm
- no. of strokes:
- 70 Hub/min
- ram - range of adjustment:
- bis 100 mm
- quantity of oil:
- 1200 l
- table-size:
- L:1100 x B:700 mm
- distance between columns:
- 1180 x 400 mm
- ram surface:
- 900x400 mm
- slide stroke:
- 130 mm
- ram stroke speed:
- 3-9 Stufen-Step
- Number of working hours:
- 12671 h
- tracking travel:
- 10 mm
- lateral throat gap:
- B:550xT:240 mm
- total power requirement:
- 38 kW
- weight of the machine ca.:
- 10 t
- dimensions of the machine ca.:
- L:1,8xB:1,8xH:3,7 m
additional information
Hydraulic DOUBLE COLUMN PRESS
DIFFERENCE WAY-PRESS; DOUBLE COLUMN TOGGLE LEVER PRESS
slide adjustment -motor driven : precision +/- 0,01mm
slide speed: 3 - 9 steps adjustable
stroke speeds of the machine depends on the slide stroke
Documentation
i.D.
Sorry the machine has been sold already! Here you will find more machines referring to your required category.
