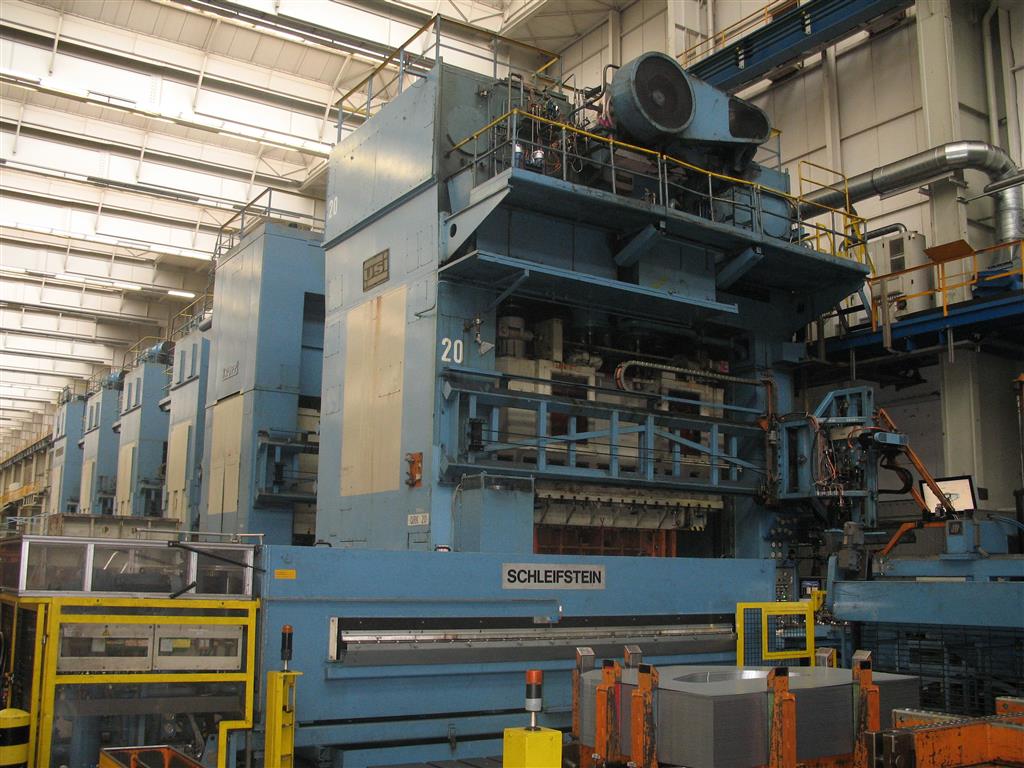

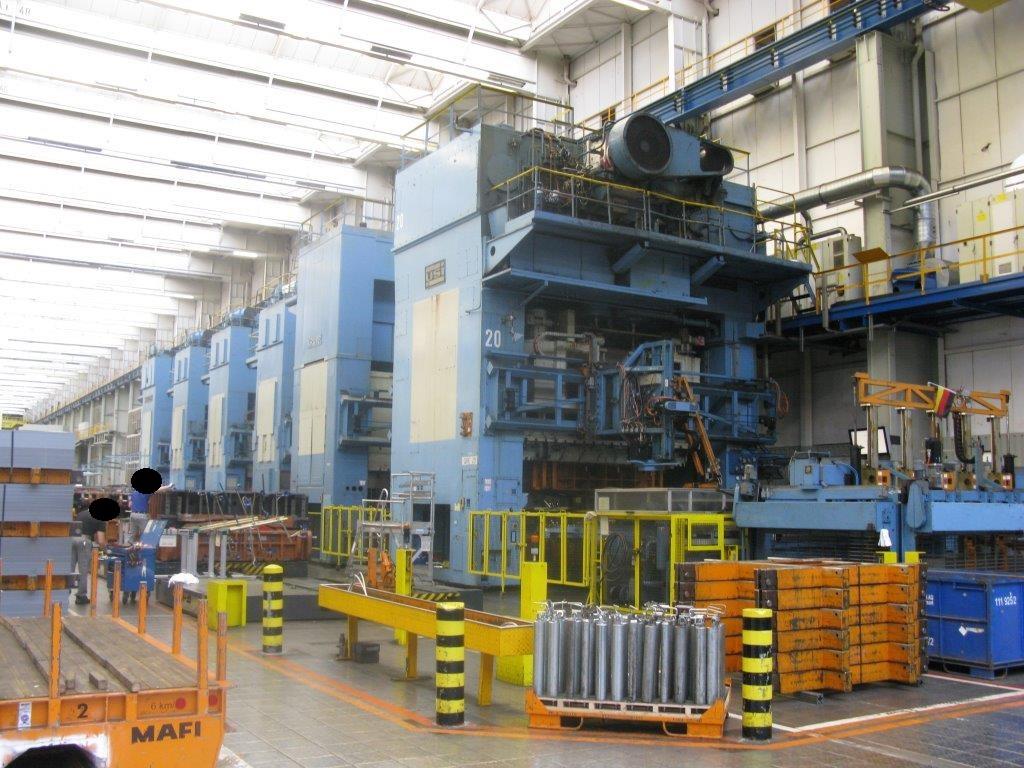

Eccentric Press - Double Column USI-Clearing, Chicago 38 D 4-1250-800-204-108

Offer

stock-no.:

0700230

type of machine:

Eccentric Press - Double Column

make:

USI-Clearing, Chicago 38

model:

D 4-1250-800-204-108

year of manufacture:

1972/ 2007-2008

type of control:

conventional

country of origin:

USA

freight basis:

Ex-Location

storage location:

Lower Saxony

delivery time:

on request

price:

on request

technical details

pressure:

1250 t

distance between columns:

mm

stroke:

mm

pressure of blank holder:

800 t

Pressure of drive over bottom dead center ram:

25,4 mm

Pressure of drive over bottom dead center holder:

12,7 mm

ram stroke:

1120mm mm

stroke of blank holder:

915 mm

Ram-, blank holder adjustment of motor:

355 mm

table clamping surface::

5180 x 2745 mm

ram surface:

4570 x 2130 mm

daylight, stroke down,adj.up, over table to ram:

2235 mm

daylight, stroke down,adj.up,over table-bl.holder:

1930 mm

strokes / minute continous:

14 bis 7

total power requirement:

kW

weight of the machine ca.:

360 t

dimensions of the machine ca.:

m

additional information

last overhaul of the Press was 2007-2008!
typ of clutch DUAL-TORC-PAC
opening in the side columns WxH: 1800x1300mm
Air cushion inside table pressure force 230t
cushion stroke adjustable, dimensions from floor up to upper edge clamping plate 400mm
fixed table
i.D.
