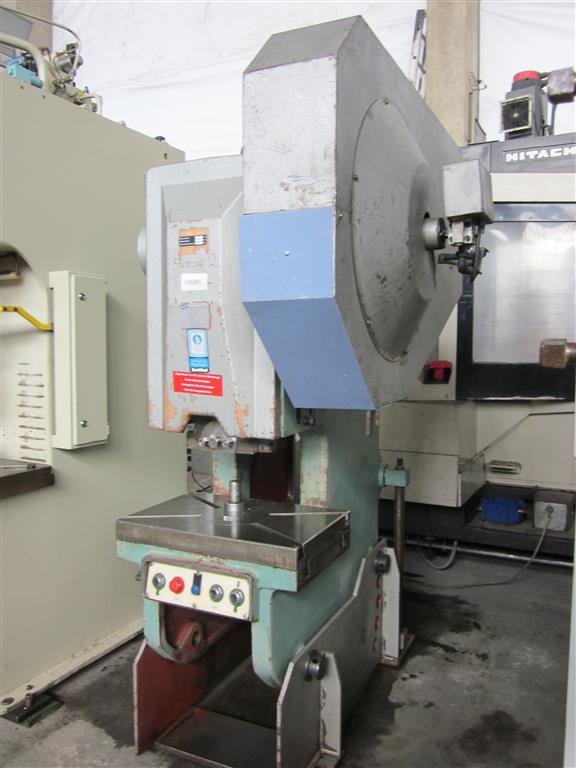

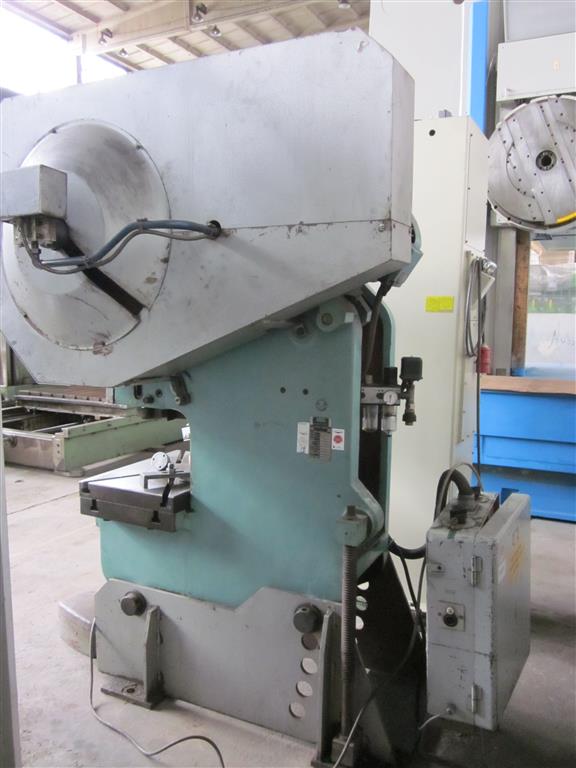

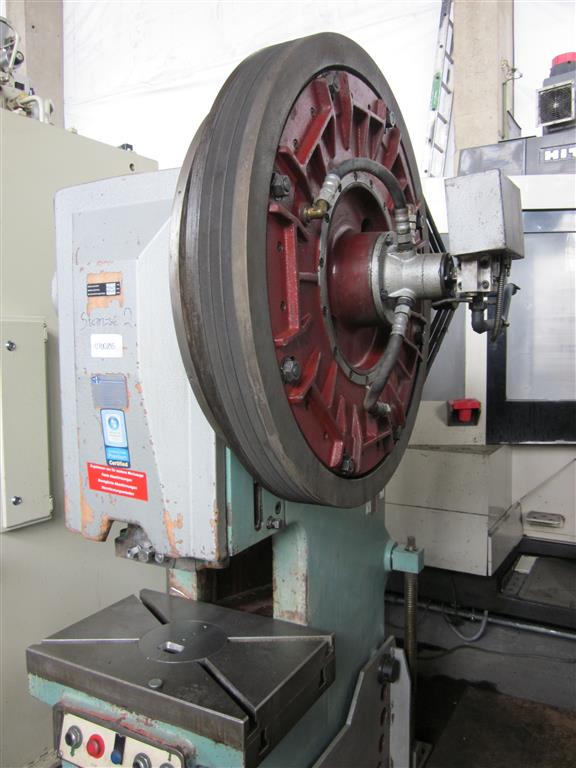

SMERAL LENR 40A
Eccentric Press - Single Column | Stock number: 0700195
Unfortunately, the machine has already been sold.
Machine data
- Machine type
- Eccentric Press - Single Column
- Manufacturer
- SMERAL
- Type
- LENR 40A
- Year of manufacture
- 1970 UVV
- Control type
- conventional
- Country of origin
- Germany
Technical data
- pressure
- 40 t
- slide stroke
- 8-90 mm
- no. of strokes
- 110 Hub/min
- distance between table / ram
- 355 mm
- throat
- 220 mm
- distance between columns
- 250 mm
- passage inside table
- ca. 200 mm
- table surface area
- 630 x 430 mm
- ram adjustment
- 60 mm
- ram surface area
- 220x240 mm
- total power requirement
- 4 kW
- weight of the machine ca.
- 2,4 t
- dimensions electric cabinet LxWxH
- 0,6x0,2x1,0 m
- dimension machine approx.LxWxH
- 1,5x1,2x2,2 m
Additional description
Control via foot pedal
Terms of storage and delivery
- Freight base
- EXW, free on truck
- Storage location
- Leipzig 2
- Delivery time
- 5 days
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
