Offer
- stock-no.:
- 0700342
- type of machine:

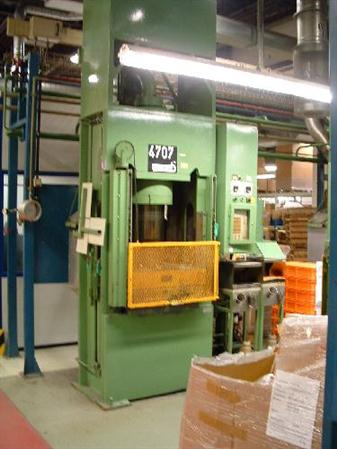

- Hydraulic Double-Column (Drawing) Press
- make:
- DIEFFENBACHER
- model:
- P0 63
- year of manufacture:
- 1980 UVV bis 2007
- type of control:
- conventional
- country of origin:
- Germany
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 4
- delivery time:
- immediately
- price:
- on request
technical details
- pressure:
- 63 t
- distance between columns:
- 560 mm
- stroke:
- 500 mm
- table surface area:
- 500 x 500 mm
- die cushion:
- 5 Mp
- die-cushion pressure:
- 2,6 kp
- diameter of piston:
- 200 mm
- dayligth:
- 500 mm
- return force :
- 5 t
- total power requirement:
- ca. 15 kW
- weight of the machine ca.:
- 2,6 t
- space requirements of the machine approx.:
- L:1,5x B:1,0x H:3,3 m
additional information
On sale as is, as package price on offer
- DOCUMENTS available

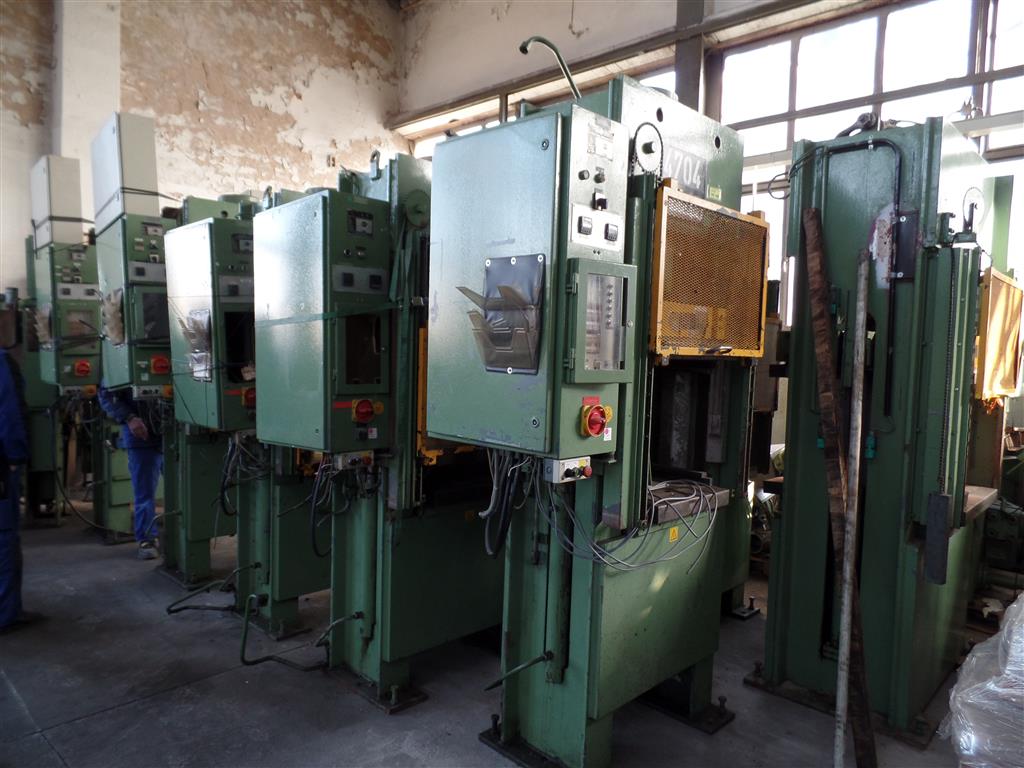

- 10 machines available
- 5 pieces: year of manufactury: 1980
- 5 pieces: year of manufactury: 1978

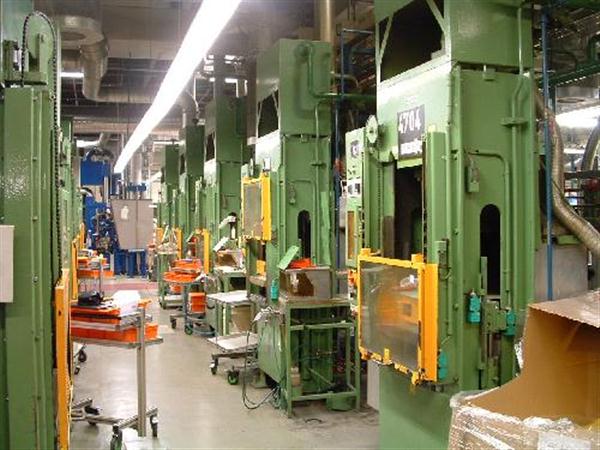

Presses were used together as a press line with stock No. 0700349 and 0700353.
All the presses were connected to a central oil pump which supplies lubricant.
Price basis as is, without accessories.
Perfect for re-construction!
