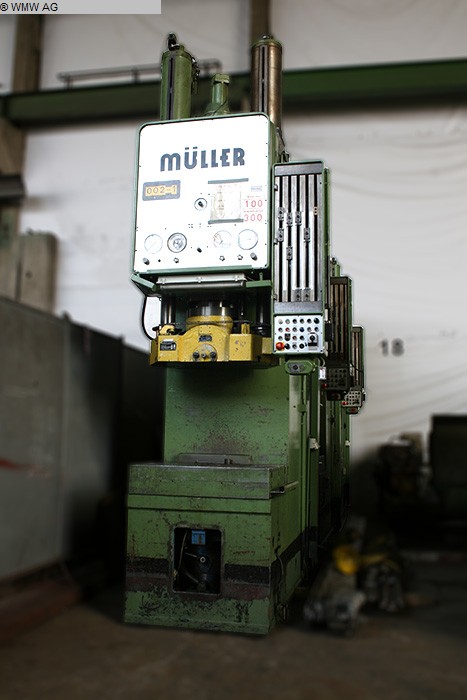

Single Column Press - HydraulicSingle Column Press - HydraulicMÜLLER CAZ 200

Single Column Press - Hydraulic MÜLLER CAZ 200Single Column Press - Hydraulic MÜLLER CAZ 200Single Column Press - Hydraulic MÜLLER CAZ 200Single Column Press - Hydraulic MÜLLER CAZ 200Single Column Press - Hydraulic MÜLLER CAZ 200Single Column Press - Hydraulic MÜLLER CAZ 200

Offer

stock-no.:
0700306
type of machine:
Single Column Press - Hydraulic
make:
MÜLLER
type:
CAZ 200
year of manufacture:
1967
type of control:
conventional
country of origin:
Germany
freight basis:
EXW, free on truck
storage location:
Leipzig 2
delivery time:
immediately
price:
on request

technical details

pressure:
200 t
stroke:
500 mm
throat:
420 mm
daylight dimension with clamping plate Slide/ up:
720 mm
daylight dimension with clamping plate Slide/ low:
220 mm

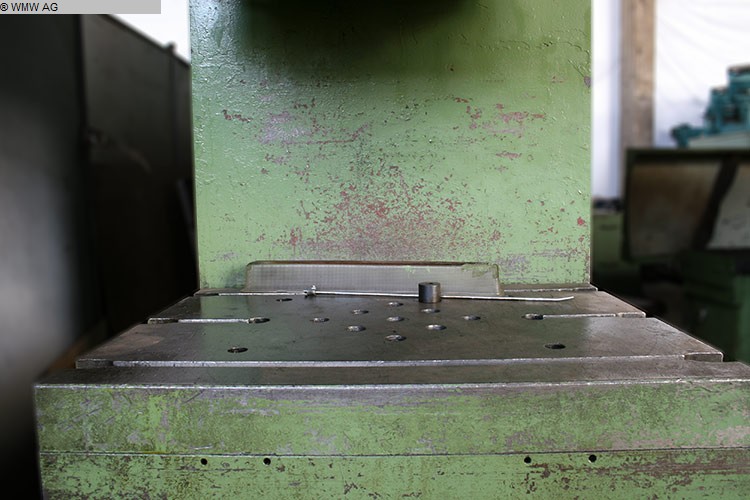

table surface area:
1050 x 800 mm
die cushion hydr. pressure/stroke:
63t / 120mm
clamping plate on table:
1030 x 800 x 100 mm

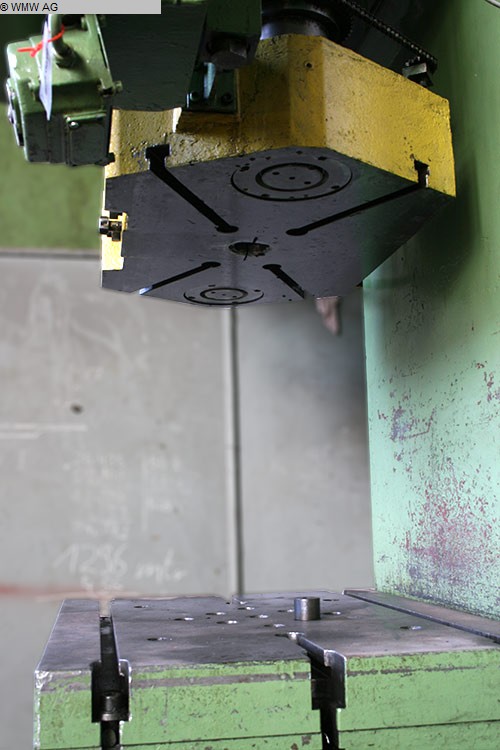

surface area of ram:
1030x630 mm
total power requirement:
59 kW
weight of the machine ca.:
ca. 22 t
space requirements of the machine approx.:
L:2,77 x B:1,48 x H:4,72 m
dimensions electric cabinet LxWxH:
ca. 1,5x0,5x2,3 m

additional information

E-cabinet 002-1 Nr.244 17
maschine does has a technical error !
on sale as is!
