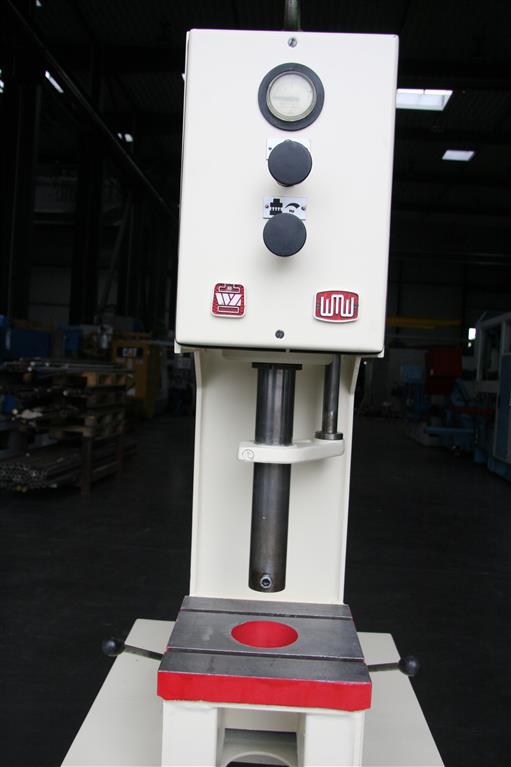

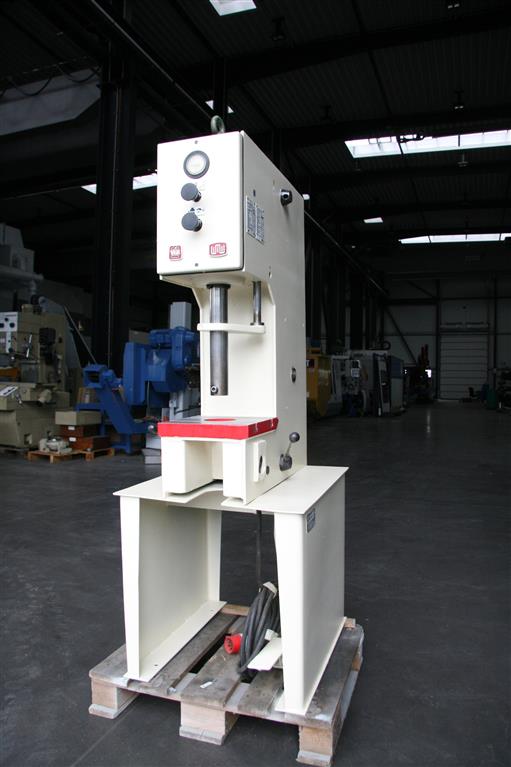

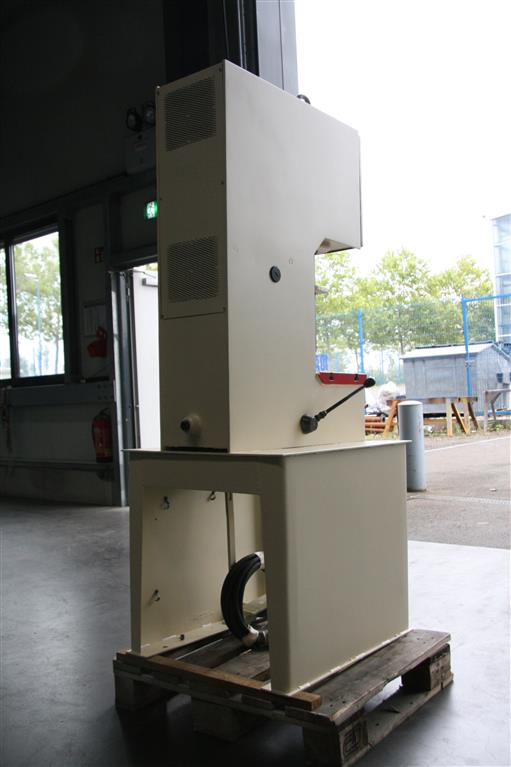

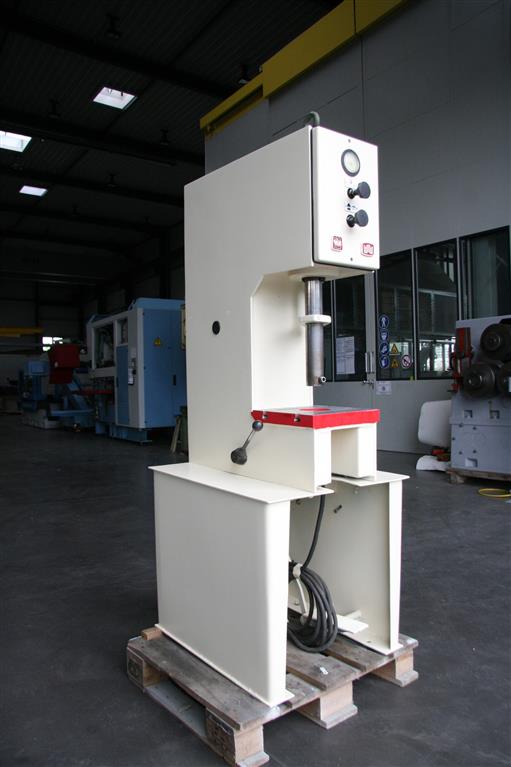

WMW Zeulenroda PYTE 3.15
Single Column Press - Hydraulic | Stock number: 0703018
Unfortunately, the machine has already been sold.
Machine data
- Machine type
- Single Column Press - Hydraulic
- Manufacturer
- WMW Zeulenroda
- Type
- PYTE 3.15
- Year of manufacture
- ca. 1970
- Control type
- conventional
- Country of origin
- Germany
Technical data
- Pressure
- 3 t
- stroke
- Stößel:280 mm
- throat
- 160 mm
- height over floor
- 840 mm
- daylight dimension with clamping plate Slide/ up
- max:355 mm
- clamping plate on table
- 290x280 mm
- passage opening in table
- 100 mm
- ram speed - forward
- 0,1 m/s
- ram speed - reverse
- 0,3 m/s
- total power requirement
- 1,5 kW
- weight of the machine ca.
- 370 kg
- space requirement approx.:
- 1,5x0,46x2,03 m
- dimension machine approx.LxWxH
- 0,8x0,6x1,9 m
Additional description
Hydr. Table Press
- 2-hand operation
- hole in ram cylindrical depth=40mm, dia 20mmx56mm depth
- nominal capacity adjustable
Last accident prevention inspection 11/2001
Machine can be demonstrated under power.
Terms of storage and delivery
- Freight base
- EXW, free on truck unpacked
- Storage location
- Leipzig 2
- Delivery time
- immediately
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
