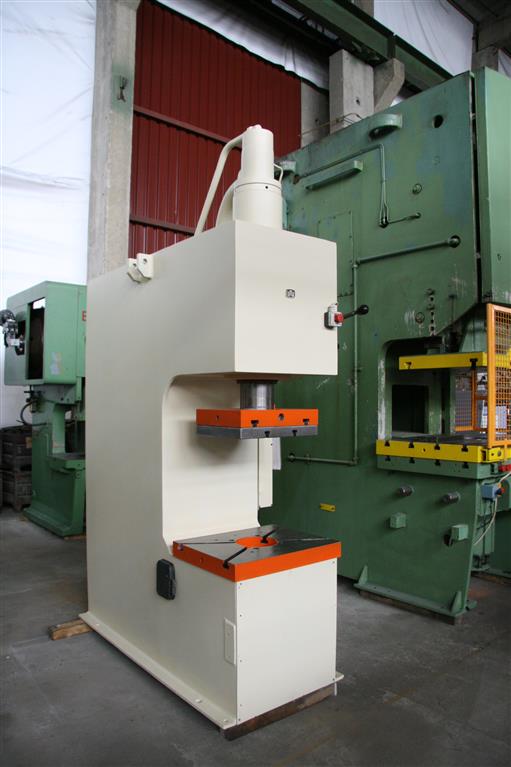

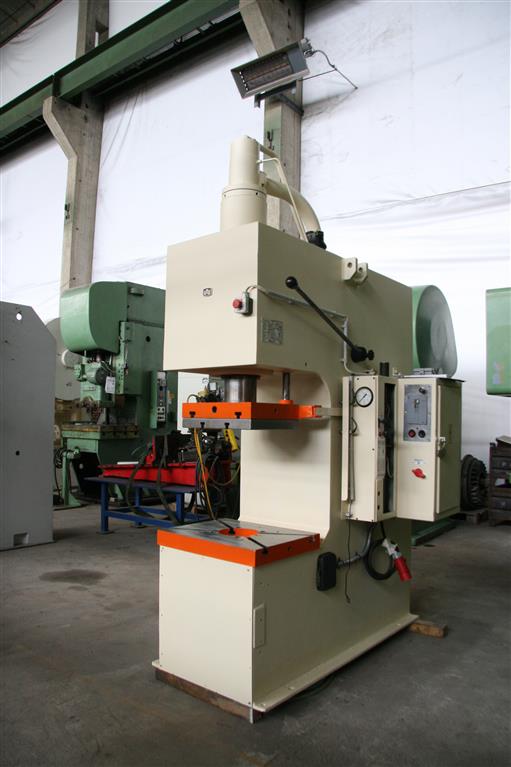

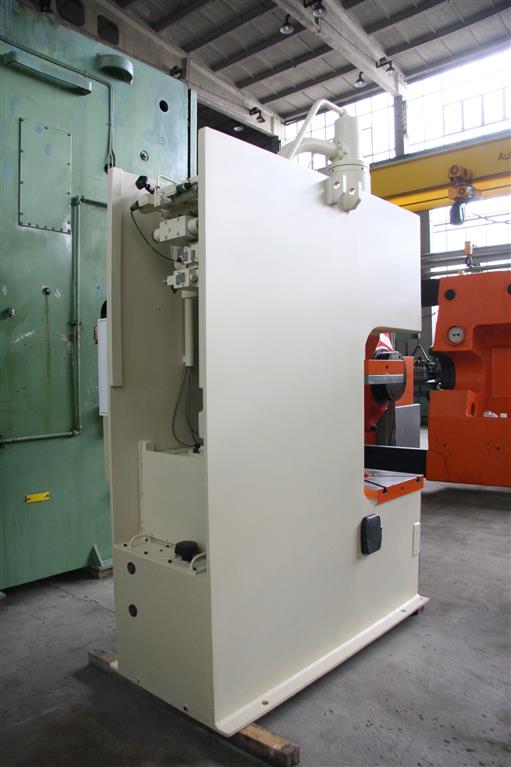

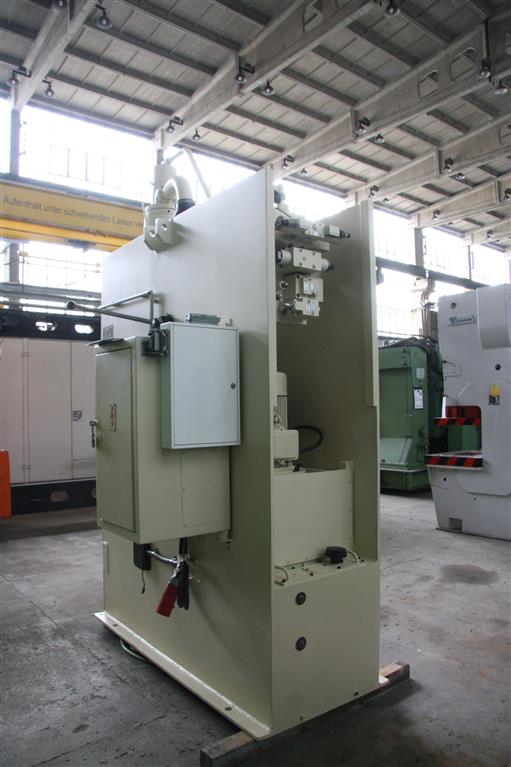

Single Column Press - HydraulicSingle Column Press - Hydraulic WMW ZEULENRODA PYE 40 S 1

Single Column Press - Hydraulic WMW ZEULENRODA PYE 40 S 1Single Column Press - Hydraulic WMW ZEULENRODA PYE 40 S 1Single Column Press - Hydraulic WMW ZEULENRODA PYE 40 S 1Single Column Press - Hydraulic WMW ZEULENRODA PYE 40 S 1Single Column Press - Hydraulic WMW ZEULENRODA PYE 40 S 1Single Column Press - Hydraulic WMW ZEULENRODA PYE 40 S 1Single Column Press - Hydraulic WMW ZEULENRODA PYE 40 S 1Single Column Press - Hydraulic WMW ZEULENRODA PYE 40 S 1

Offer

stock-no.:
0703046
type of machine:
Single Column Press - Hydraulic
make:
WMW ZEULENRODA
model:
PYE 40 S 1
year of manufacture:
nicht bekannt
type of control:
conventional
country of origin:
Germany
freight basis:
EXW, free on truck unpacked
storage location:
Leipzig 2
delivery time:
on request
price:
on request

technical details

pressure:
40 t
throat:
360 mm
distance table/ram:
630 mm
max. ram stroke:
500 mm
ram speed - reverse:
0,45 m/sec. m/sec
ram speed - forward:
0,100 m/sec m/sec
ram stroke:
500 mm

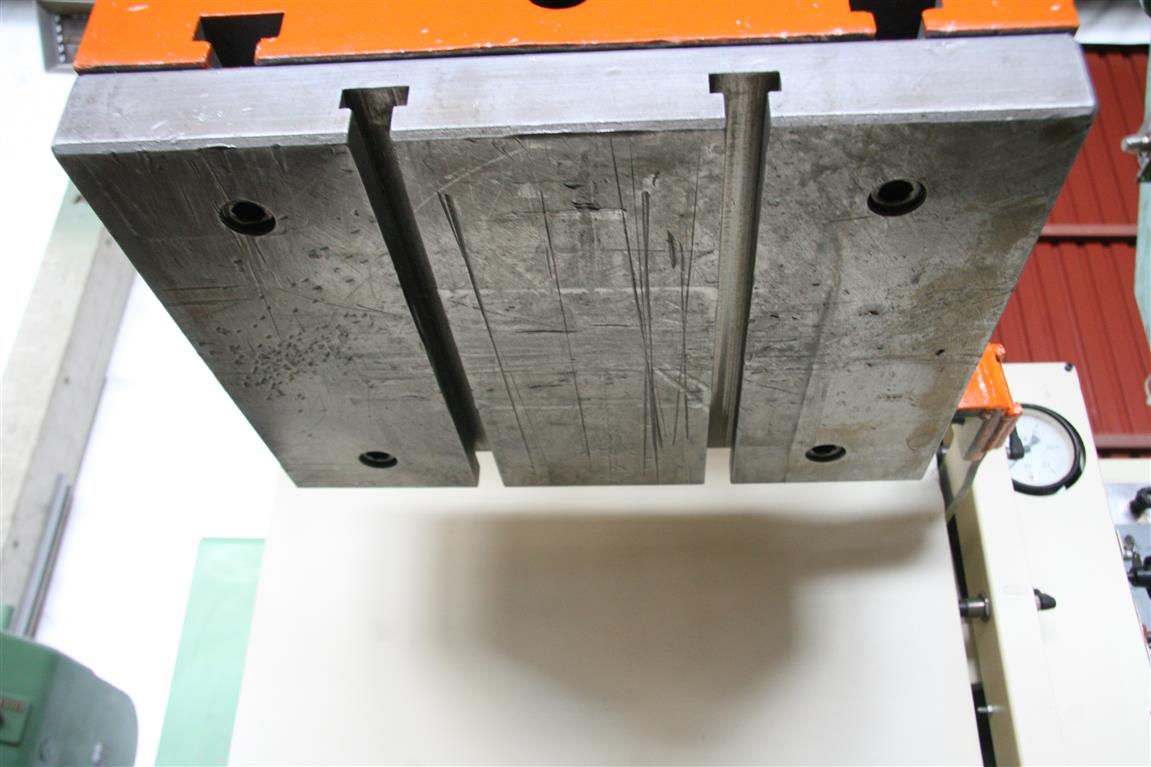

ram surface area:
360 x 450 x 72 mm
mortise hole in ram:
Ø 40 x 75 mm
dayligth:
630 mm

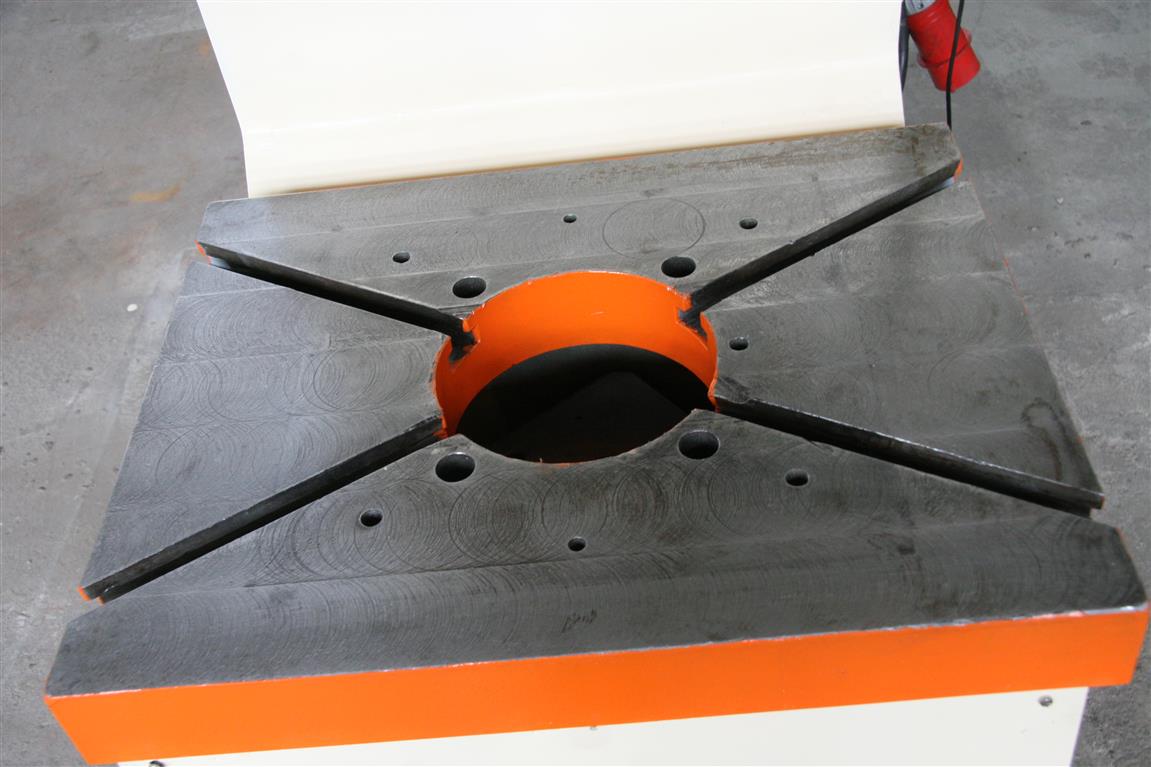

table surface area:
LxB: 500 x630 mm
passage opening in table:
Ø 200 mm
table height over floor:
700 mm
two hand operation:
Ja/Yes/Si
total power requirement:
13 kW
weight of the machine ca.:
3,2 t
dimension machine approx.LxWxH:
1,75 x 1,15 x 2,95 m

additional information


Hydraulic press with deep drawing device
