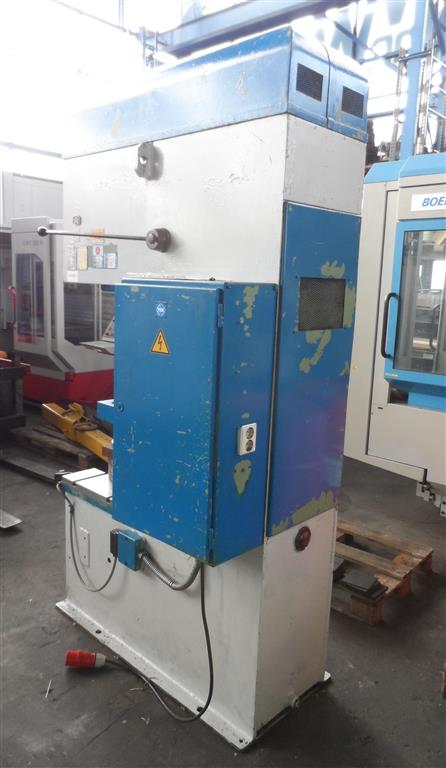

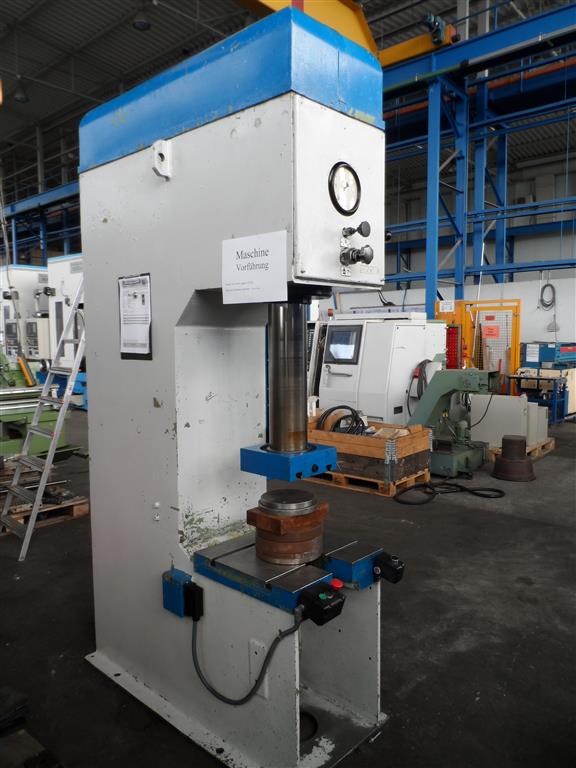

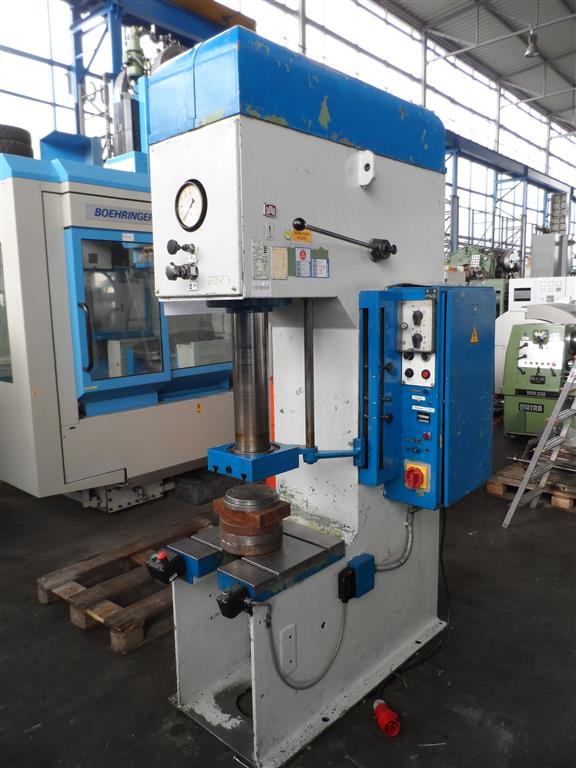

Single Column Press - Hydraulic WMW ZEULENRODA PYE 25 S

Offer

stock-no.:

0703047

type of machine:

Single Column Press - Hydraulic

make:

WMW ZEULENRODA

model:

PYE 25 S

year of manufacture:

1968

type of control:

conventional

country of origin:

Germany

freight basis:

EXW, free on truck

storage location:

Leipzig 1

delivery time:

immediately

price:

on request

technical details

pressure:

25 t

throat:

355 mm

distance table/ram:

630 mm

max. ram stroke:

500 mm

ram speed - reverse:

0,32 m/sec

ram speed - forward:

0,1 m/sec

ram surface area:

250 x 250 mm

dayligth:

800 mm

distance table/ram:

800 mm

table surface area:

500 x 500 mm

passage opening in table:

nein mm

table height over floor:

700 mm

ram surface area:

TxB: 250 x 250 mm

two hand operation:

ja

total power requirement:

8,0 kW

weight of the machine ca.:

2,0 t

dimension machine approx.LxWxH:

1,4 x 0,8 x 2,5 m

additional information

Hubbegrenzung einstellbar bis 500mm
Die Presse steht in einem guten Zustand zum Verkauf.
Druckprobe mittels Druckdose erfolgreich durchgeführt.
