Offer
- stock-no.:
- 0703050
- type of machine:

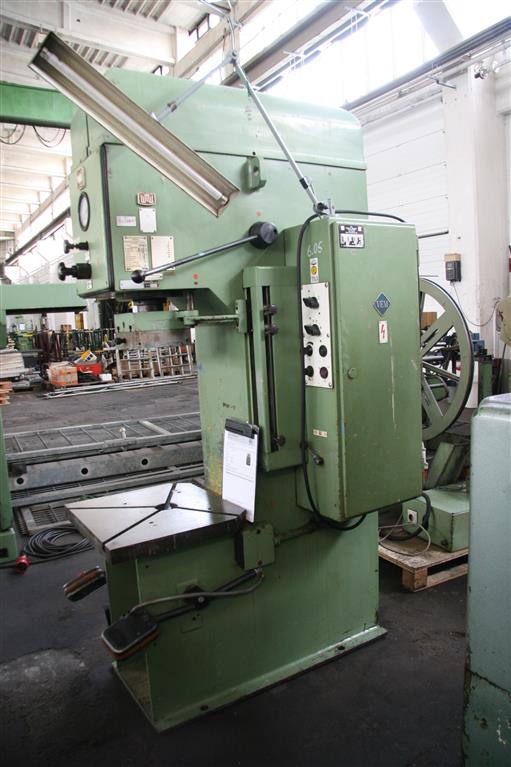

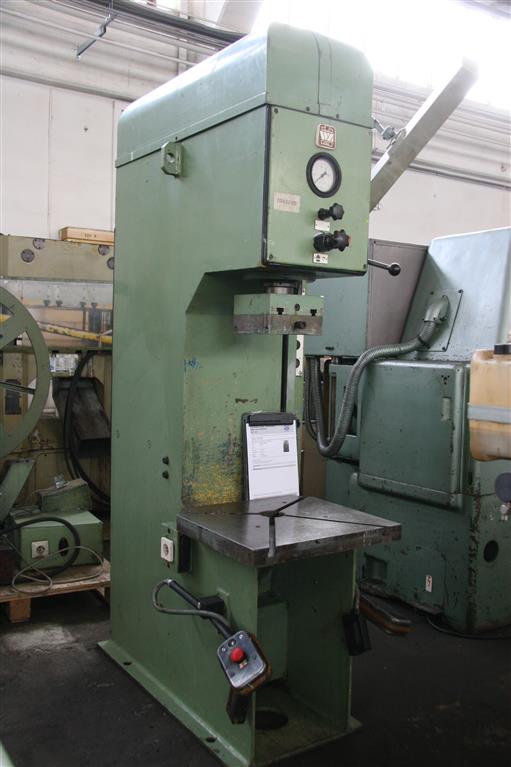

- Single Column Press - Hydraulic
- make:
- WMW ZEULENRODA
- model:
- PYE 10 S
- year of manufacture:
- -
- type of control:
- conventional
- country of origin:
- Germany
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 2
- delivery time:
- immediately
- price:
- on request
technical details
- pressure:
- 10 t
- throat:
- 255 mm
- distance table/ram:
- 630 mm
- max. ram stroke:
- 400 mm
- ram speed - reverse:
- 0,400 m/sec
- ram speed - forward:
- 0,100 m/sec

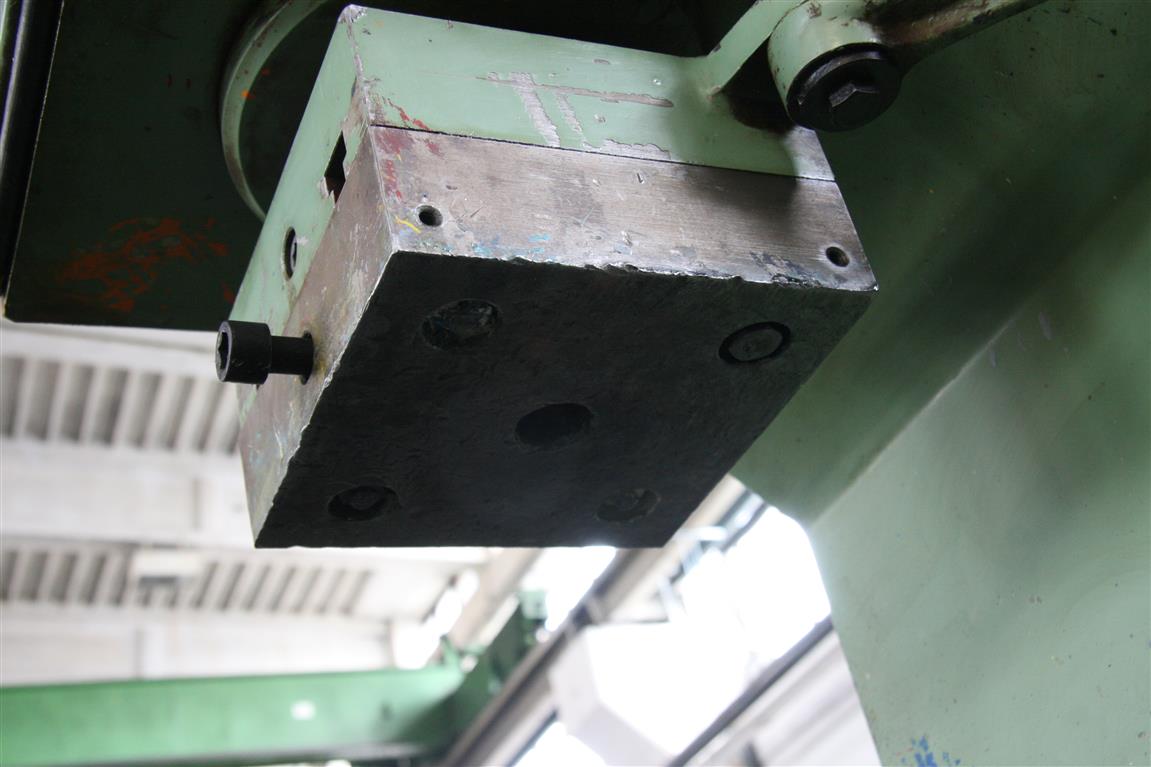

- ram surface area:
- 200 x 200 mm

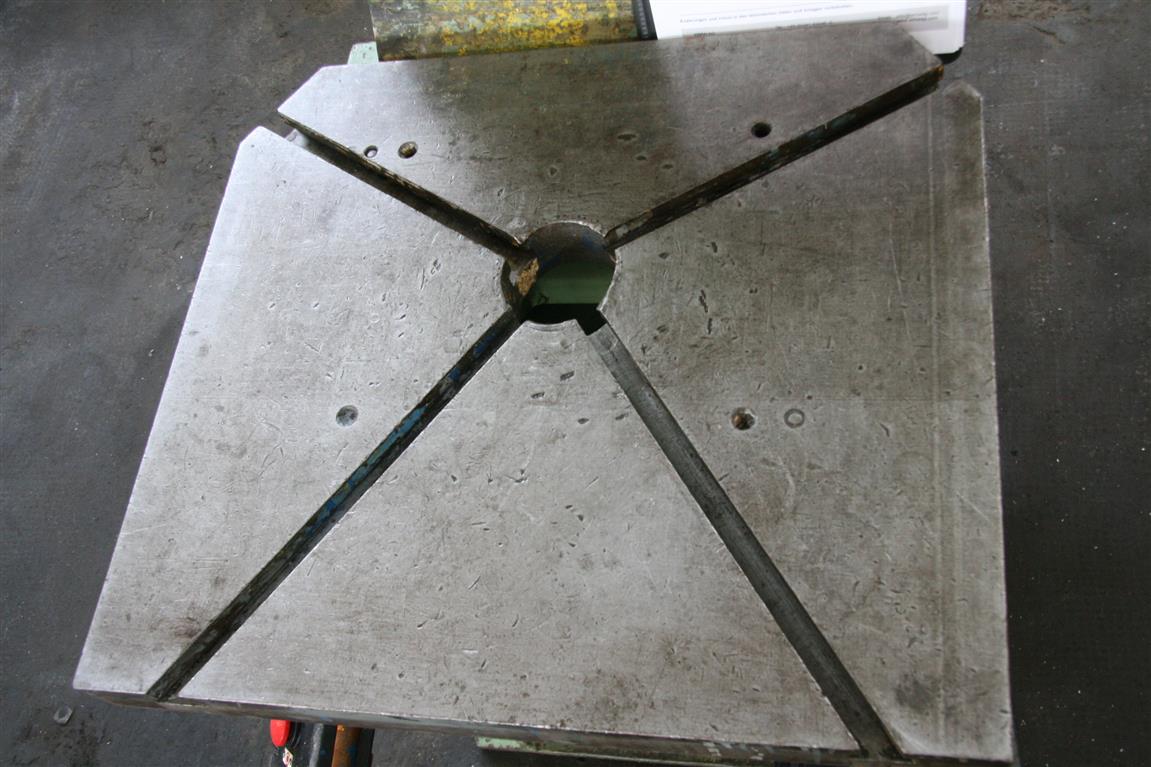

- table surface area:
- 500 x 500 mm
- passage opening in table:
- Ø 75 mm
- table height over floor:
- 700 mm
- total power requirement:
- 4,5 kW
- weight of the machine ca.:
- 1,1 t
- dimension machine approx.LxWxH:
- 1,3 x 0,9 x 2,15 m
additional information
two hand control
Sorry the machine has been sold already! Here you will find more machines referring to your required category.
