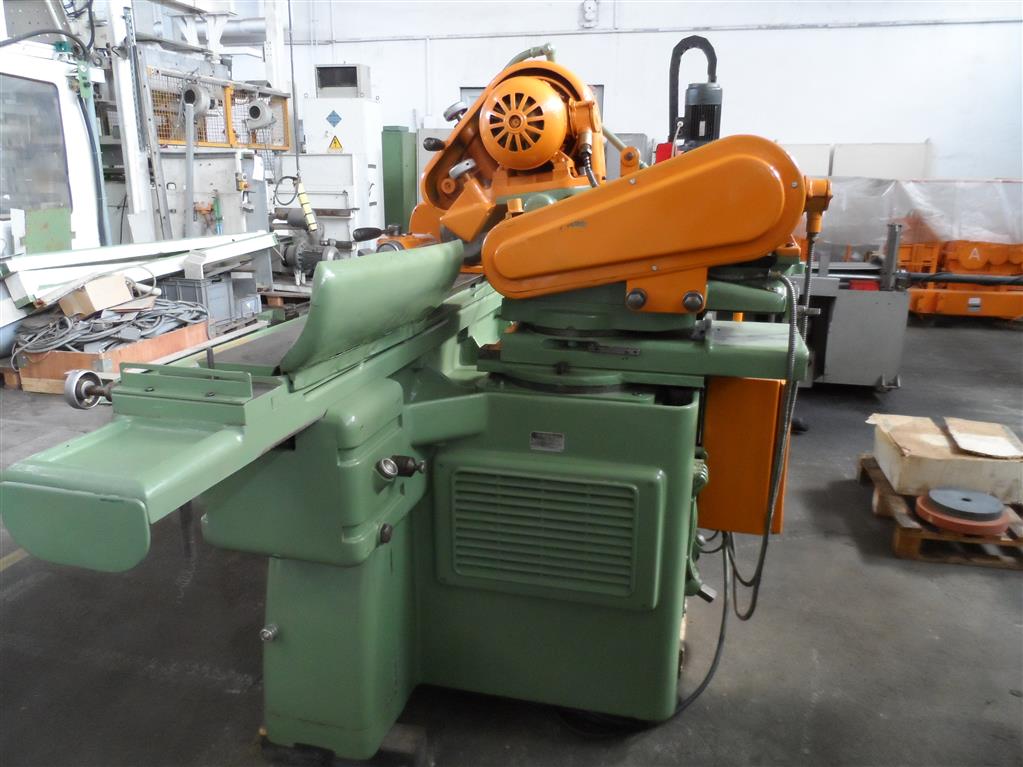

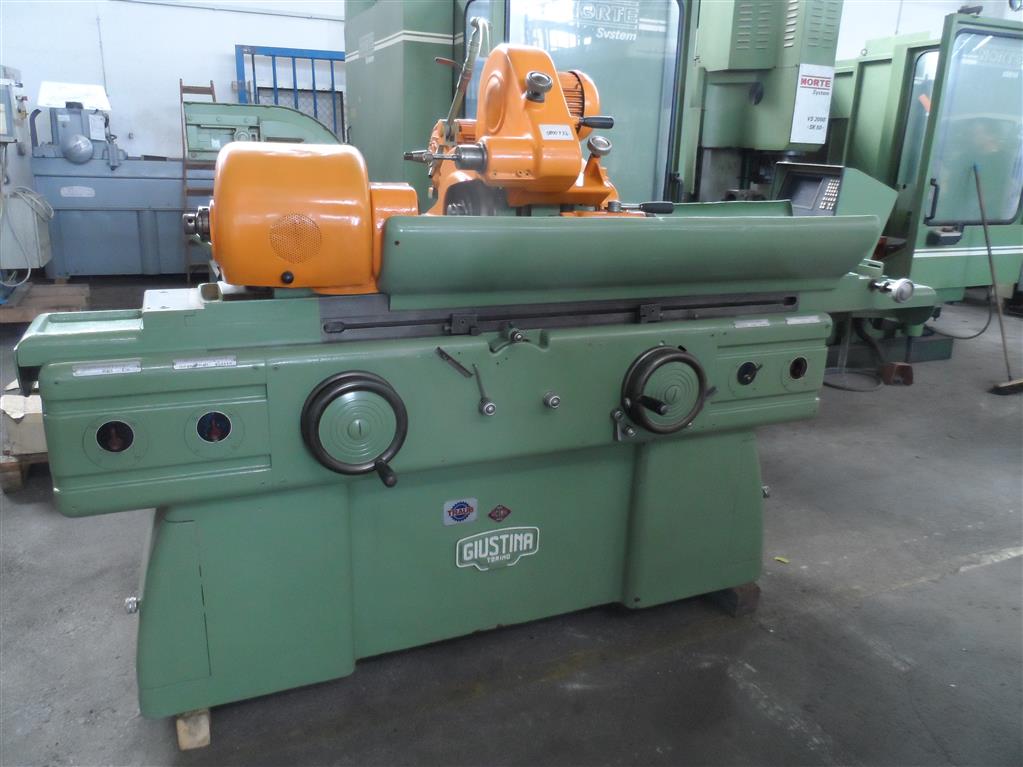

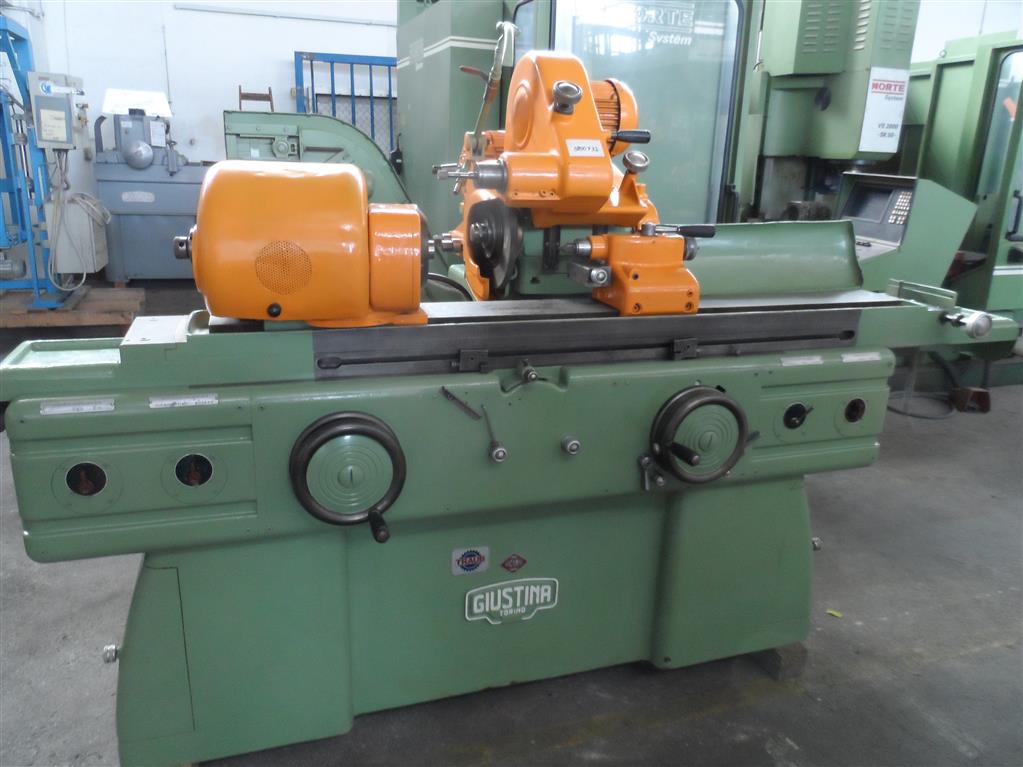

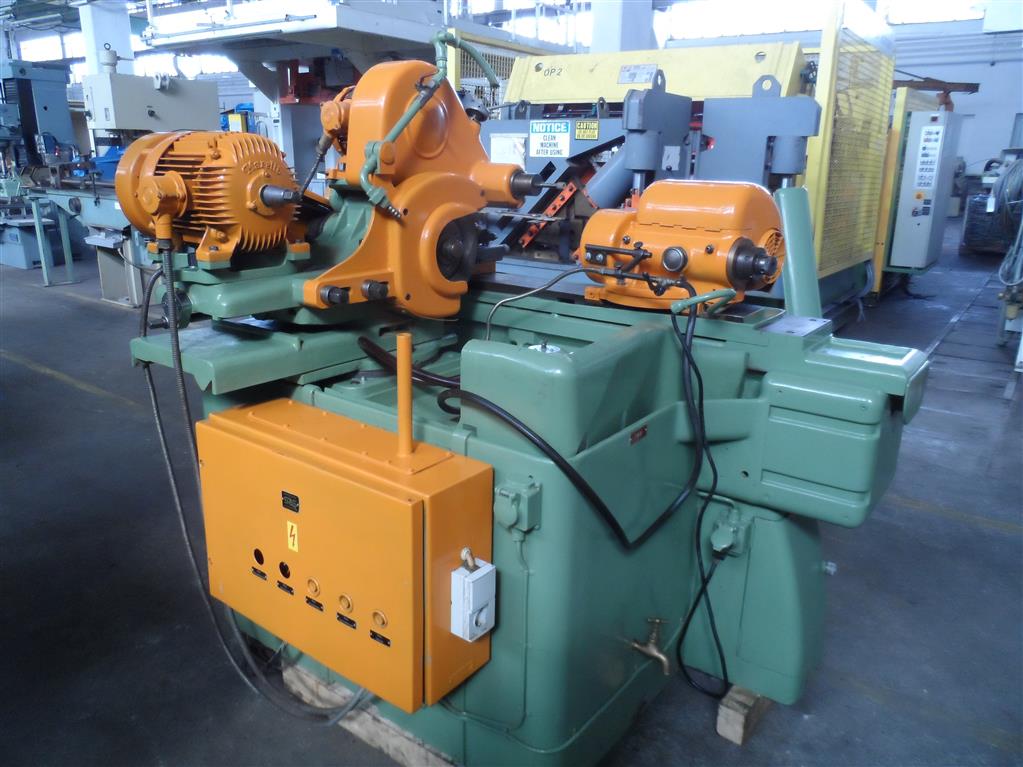

Cylindrical Grinding Machine - Universal
Offer
- stock-no.:
- 0800732
- type of machine:
- Cylindrical Grinding Machine - Universal
- make:
- GIUSTINA
- model:
- GT 1126
- year of manufacture:
- ca. 1960
- type of control:
- conventional
- country of origin:
- Italy
- freight basis:
- ex location Bitterfeld, free truck
- storage location:
- Wolfen-Bitterfeld
- delivery time:
- immediately
- price:
- on request
technical details
- grinding diameter:
- 260 mm
- grinding length:
- 1000 mm
- centre height:
- 130 mm
- clamping length:
- 1000 mm
- feed::
- per Hand
- headstock adjustment:
- 280 manuell mm
- total power requirement:
- ca. 6,0 kW
- weight of the machine ca.:
- 1,5 t
- dimension machine approx.LxWxH:
- 2580 x 1750 x 1630 mm
additional information
Non-circular grinding machine - (crankshaft grinding machine)
Used for grinding crankshafts, camshafts, etc.
Machine table:

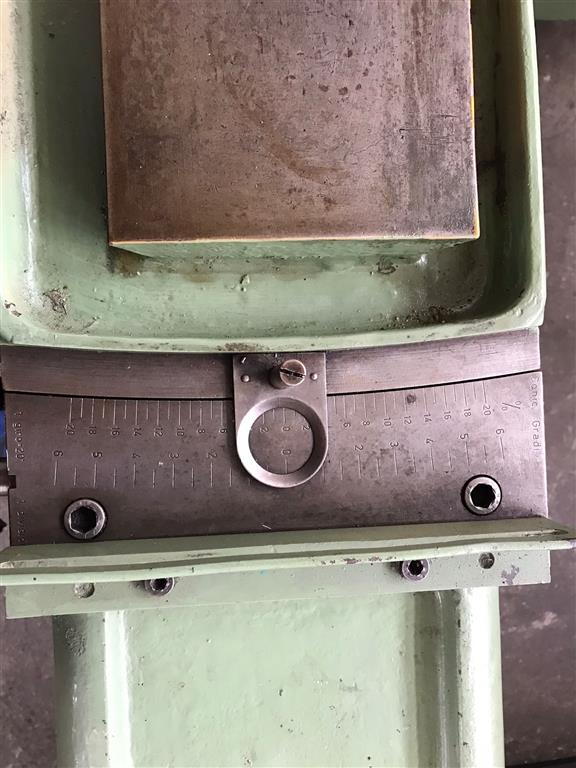

- rotatable right/left: 6° each
- clamping surface workpiece 1240 x156mm

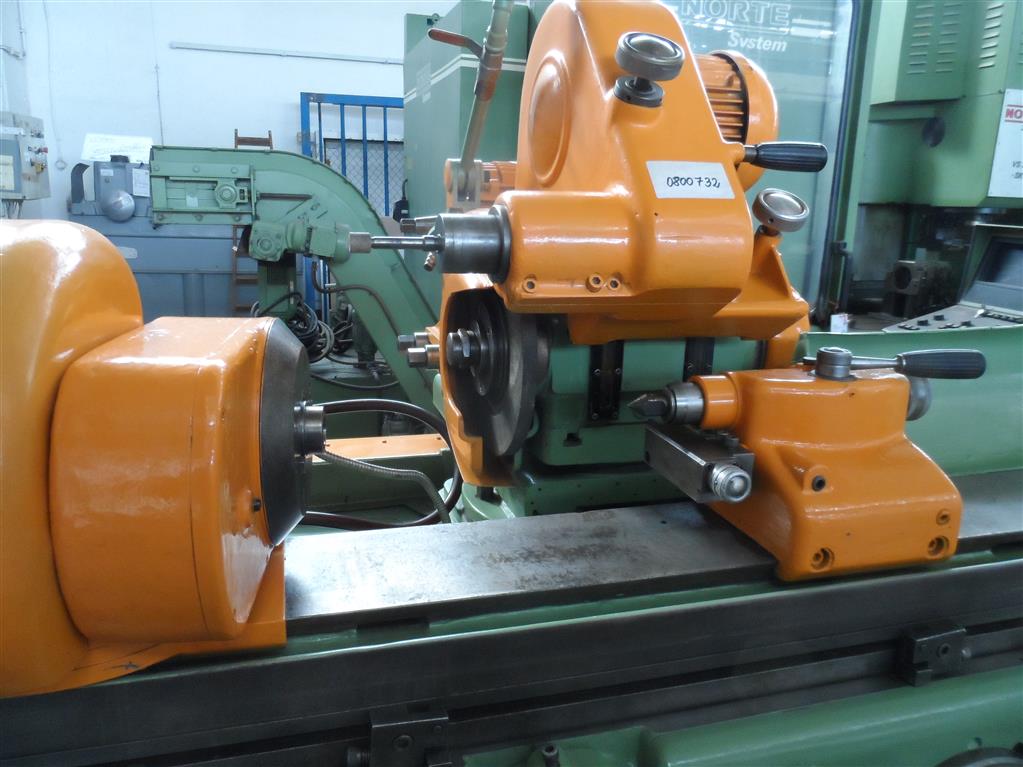

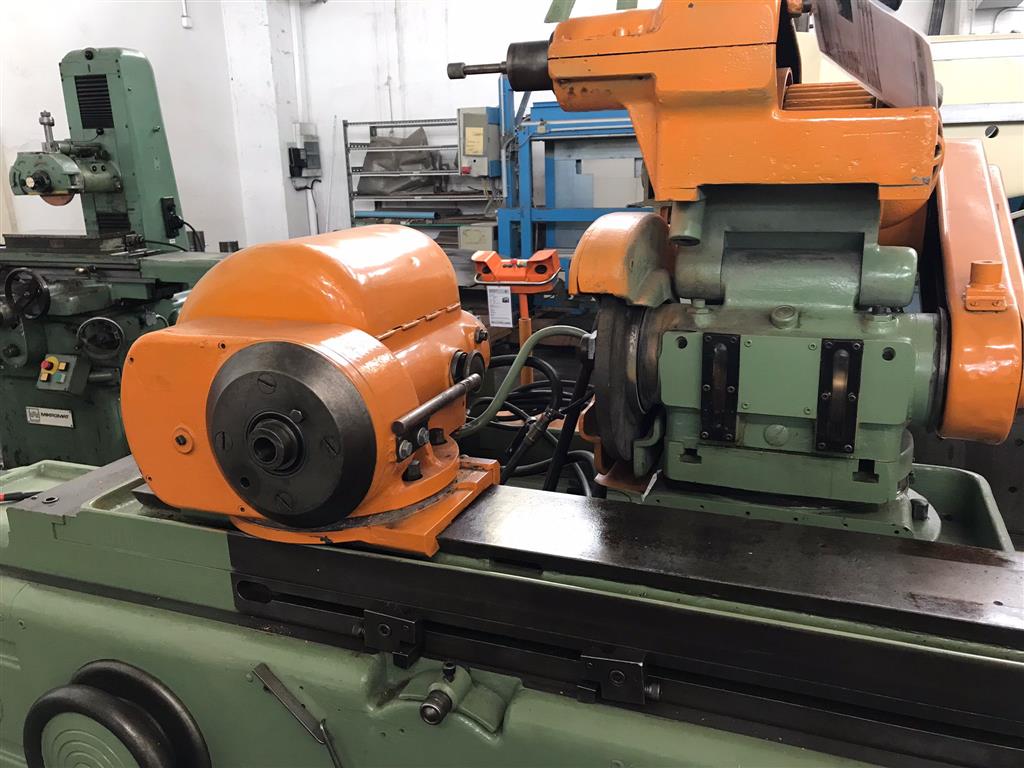

Grinding headstock:
- headstock adjustment 150mm to workpiece axis

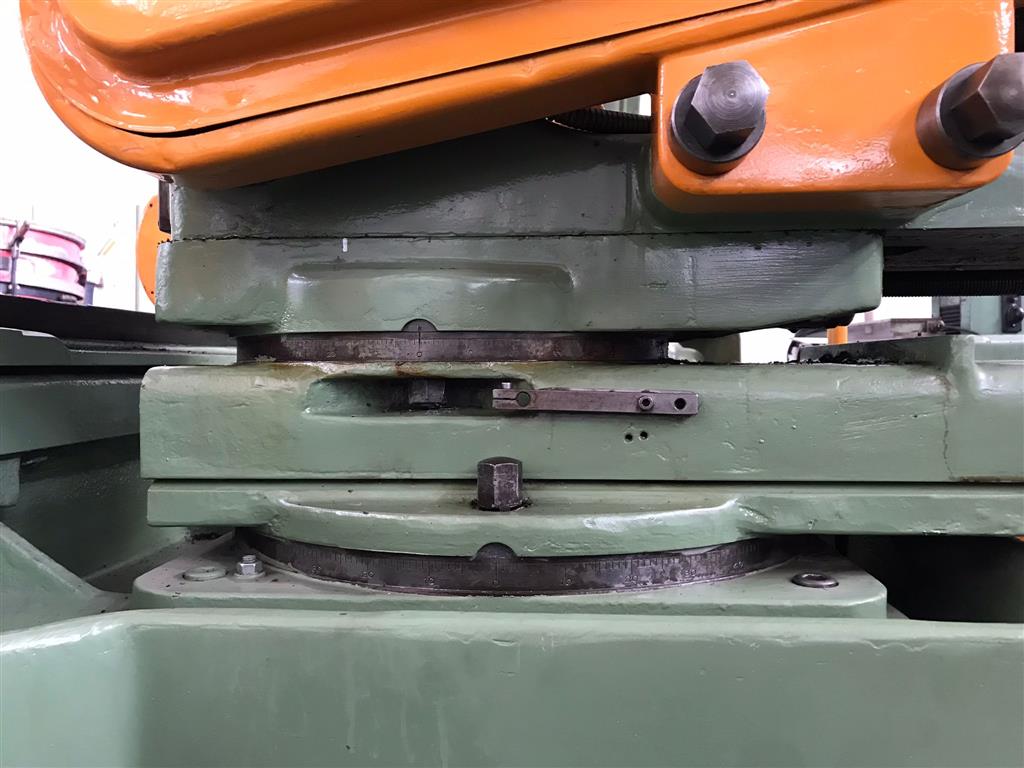

- rotatable right/left 90° in two planes
- feed by hand manual 280mm
- grinding wheel/grinding wheel = 350x32x127mm
internal grinding spindle type Fortuna SJ 60 x 250L
Workpiece headstock:
- speed 25 - 65 - 155 - 400 rpm
- rotatable by hand adjustment, +/- 90°.
- center height 130mm
Equipment:
Tailstock equipped with dressing device, quill quick clamp with center point.
Machine is available for demonstration.
