Offer
- stock-no.:
- 0800739
- type of machine:
- Cylindrical Grinding Machine - Universal
- make:
- TOS
- model:
- BHU 32-1500
- year of manufacture:
- 1977
- type of control:
- conventional
- country of origin:
- Czech Republic
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 4
- delivery time:
- on request
- price:
- on request
technical details
- grinding diameter:
- 500 mm
- grinding length:
- mm
- centre height:
- 160 mm
- swing diameter:
- 315 mm
- centre distance:
- 1500 mm
- max. workpiece weight:
- zwischen Spitzen: 250 kg
- revolution per minute of spindle head:
- 1.230 U/min
- grinding spindle head - swivable:
- rechts/links - right / left °
- tailstock quill taper ISO:
- MK 4
- spindle headstock:
- dimensions of grinding wheel:
- mm
- workpiece grinding head swivelling:
- nein / no / nao Grad
- table-size:
- 2540 x 230 mm
- table swivable approx.:
- rechts/links: 5°
- table speed:
- 0,005 - 5 m/min.
- longitudinal feed of the table:
- 1790 mm
- height over floor:
- 900 mm
- total power requirement:
- ca. 14 kW
- weight of the machine ca.:
- 4,9 t
- dimension machine approx.LxWxH:
- 4,5 x 1,0 x 1,75 m
- dimension coolant device LxWxH:
- 1,0 x 0,5 x 0,7 m
- transport measurements machine:
- 4,5 x 2,2 x 1,8 m
additional information

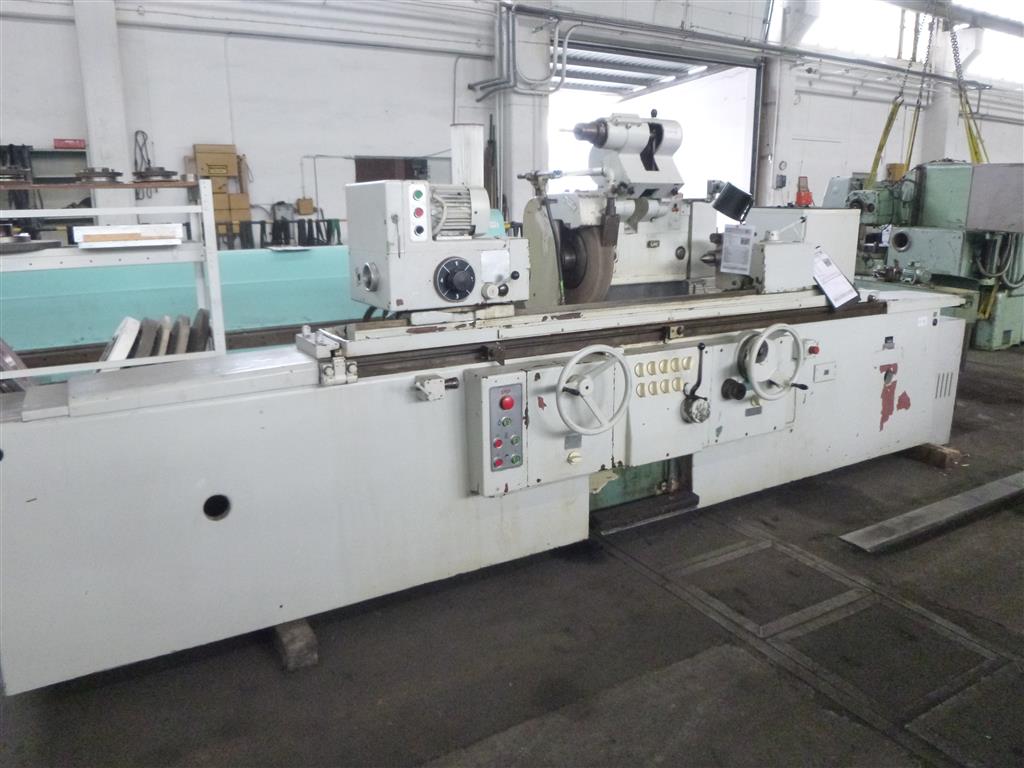

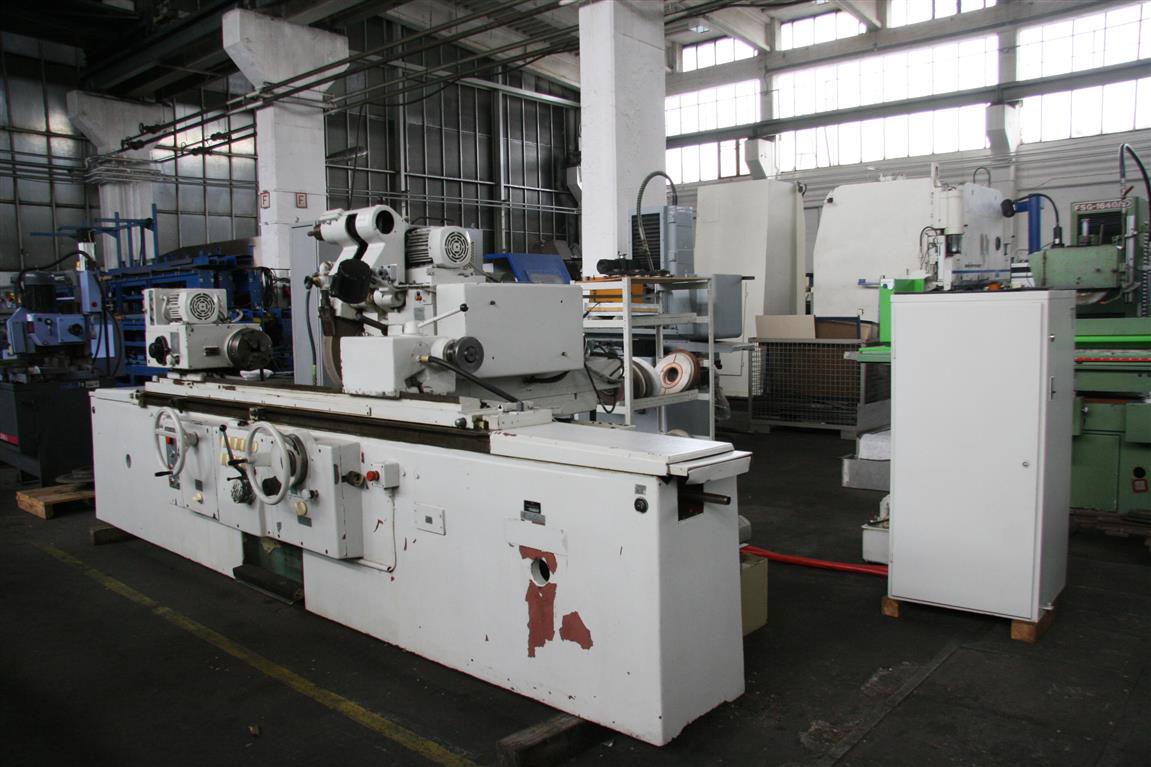

UNIVERSAL CYLINDRICAL GRINDING MACHINE
Application: face internal as well as plunge external cylindrical grinding between centers.

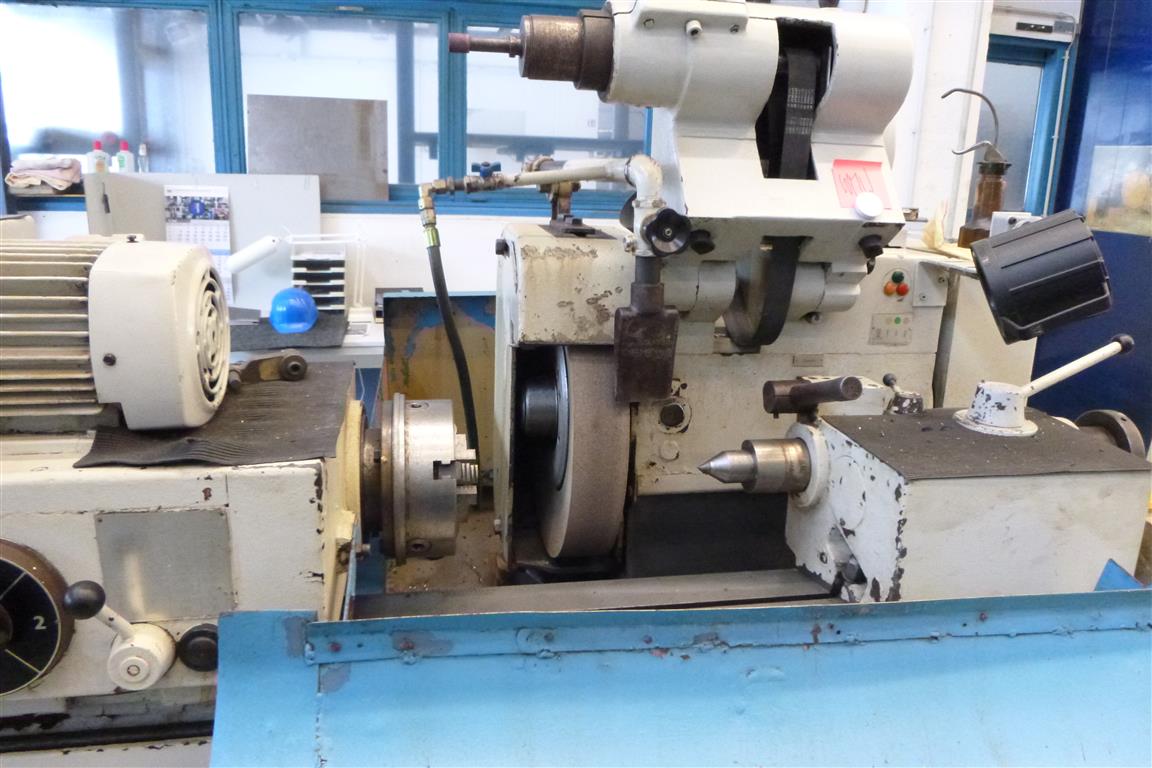

Workpiece headstock:
- Workpiece pick-up via 3-jaw chuck Ø 200mm.
- spindle bore Ø 25mm
- not swiveling
- spindle speed 12 - 400 rpm on 16 steps
grinding headstock:
- swiveling left/right
- travel manual feed 415mm and rapid feed 60mm
- feed: stepless (during grooving 0,1 - 5 mm/min.)
- speed 1.230 rpm with 2 steps
- Internal grinding stand: speed approx. 16,000 rpm.
Equipment:

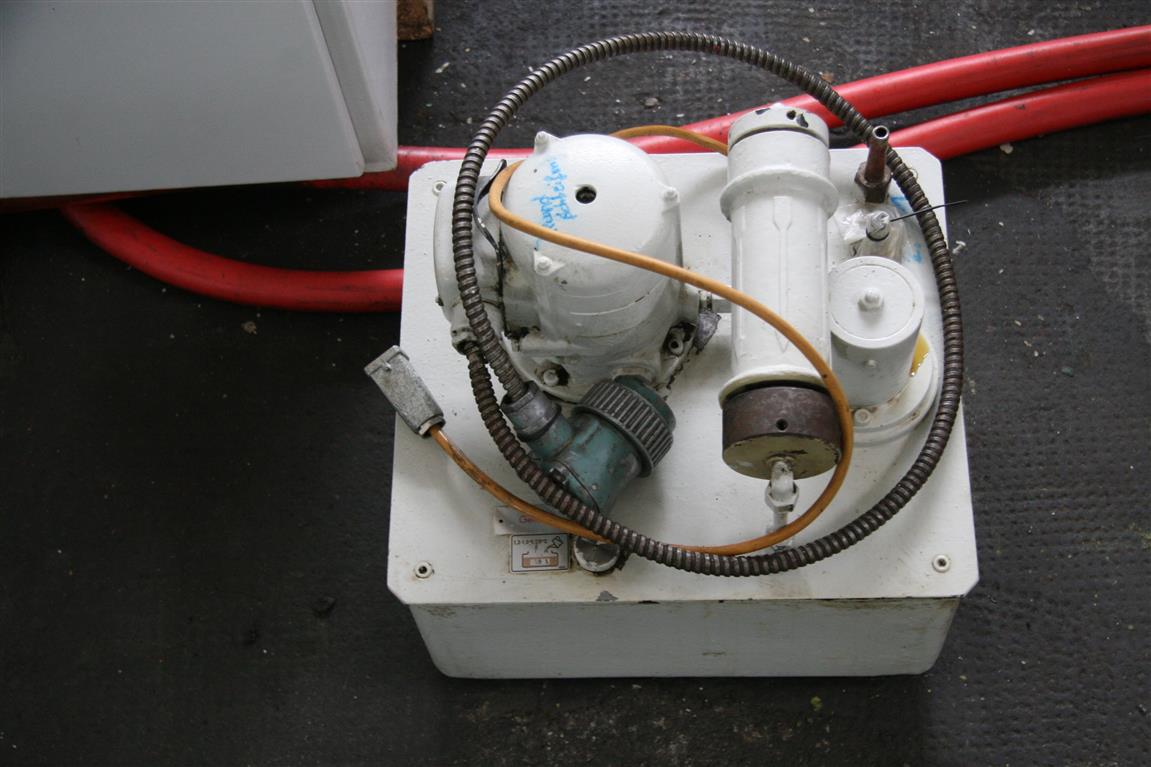

- hydraulic unit
- oil lubrication unit
accessories:
- div. grinding wheels
