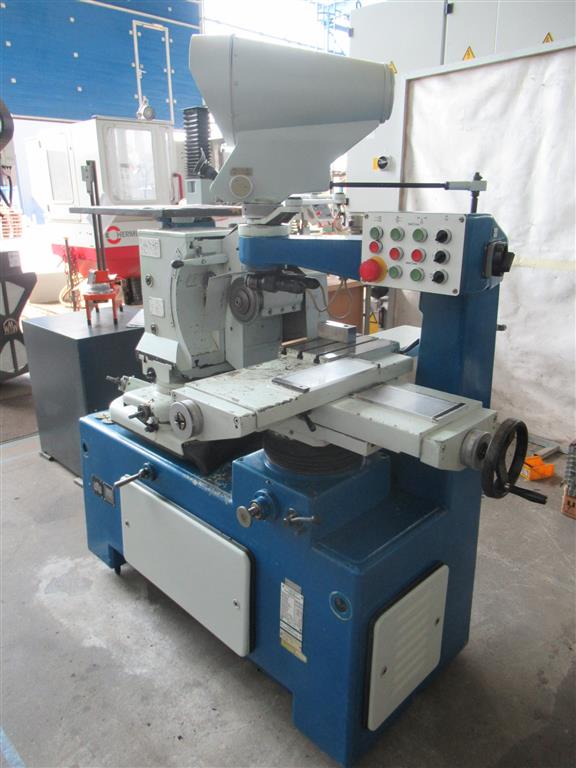

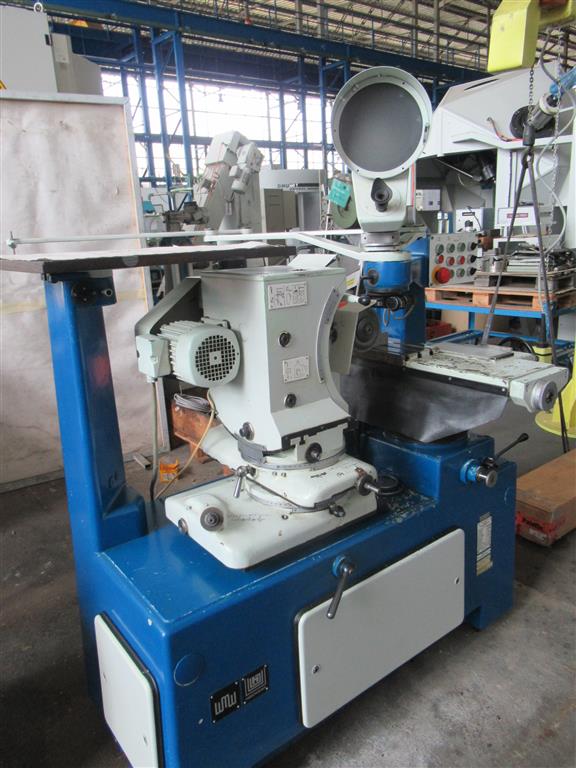

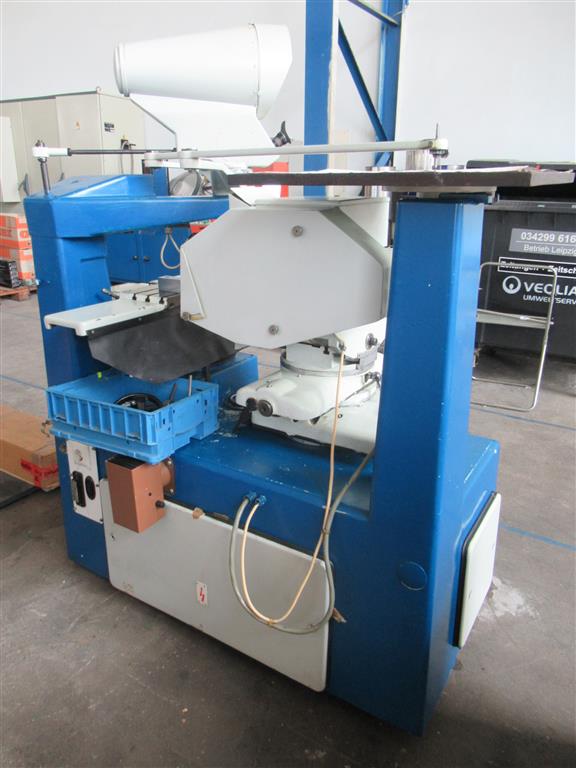

Optical Profile Grinding Machine WMW Mikromat SWPO 80

Offer

stock-no.:

0800312

type of machine:

Optical Profile Grinding Machine

make:

WMW Mikromat

model:

SWPO 80

year of manufacture:

-

type of control:

conventional

country of origin:

Germany

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 1

delivery time:

immediately

price:

on request

technical details

rotary table diameter:

mm

grinding height:

mm

grinding head - power requirement:

kW

height of profile:

78 mm

max. dia. of grinding wheel:

Ø 300 x 7 mm

grinding wheel hole diameter:

Ø 32

grinding spindle speed:

1500 und 3000 U/min

Table dimensions:

LxB: 260 x 190 mm

voltage:

380V V

total power requirement:

2,0 kW

weight of the machine ca.:

1,1 t

dimension machine approx.LxWxH:

1,4 x 1,1 x 1,8 m

transport dimensions LxWxH:

m

additional information

OPTICAL PROFILE GRINDING MACHINE
Application: grinding of tools and/or molded parts with profiles according to template
other features:

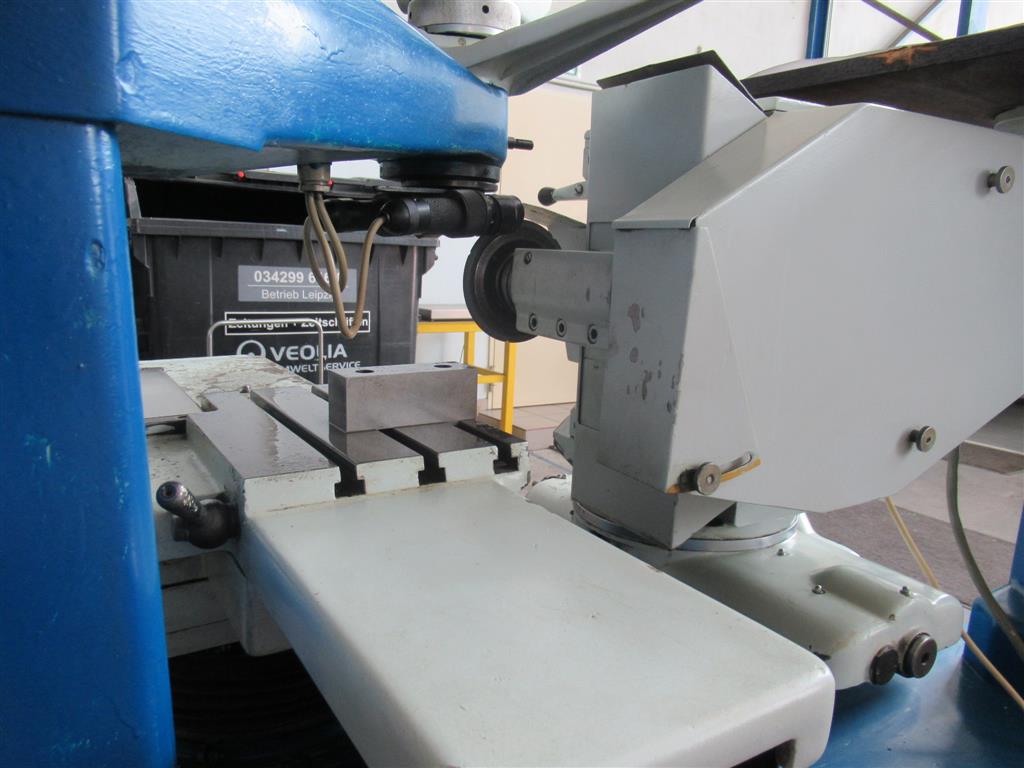

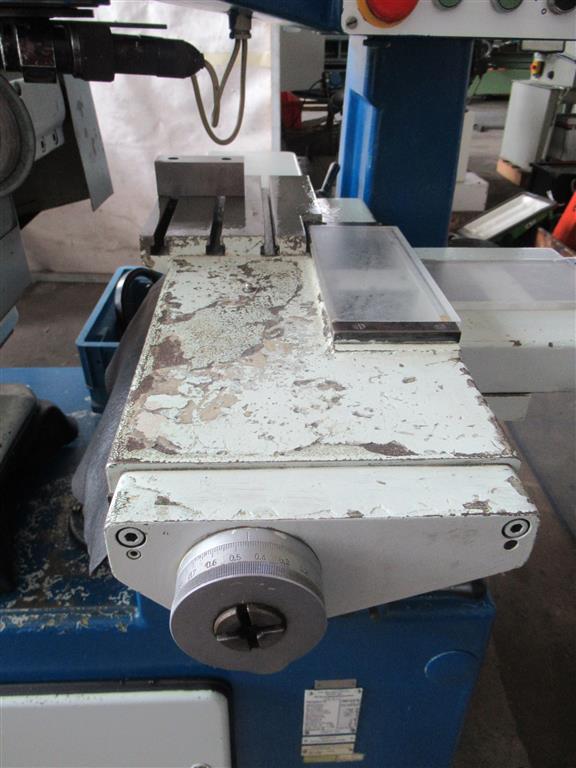

-Table slide stroke= X/Y axis: 140/70mm manual

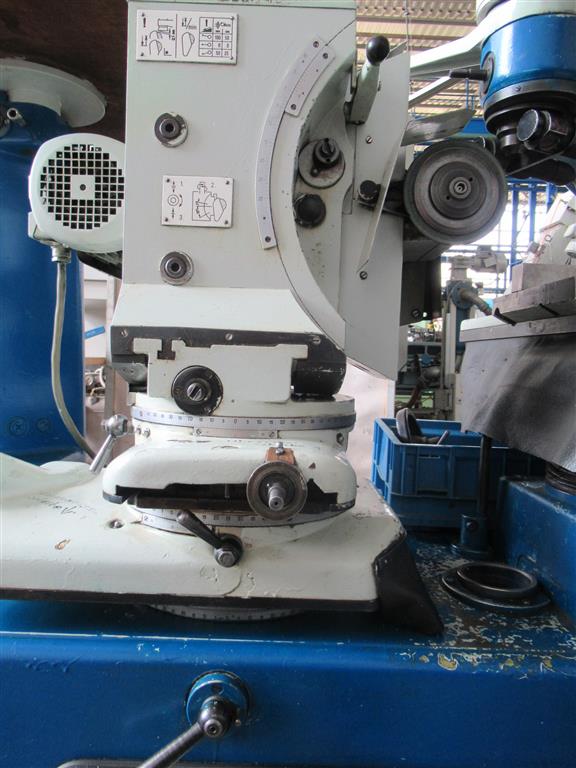

-grinding wheel support:

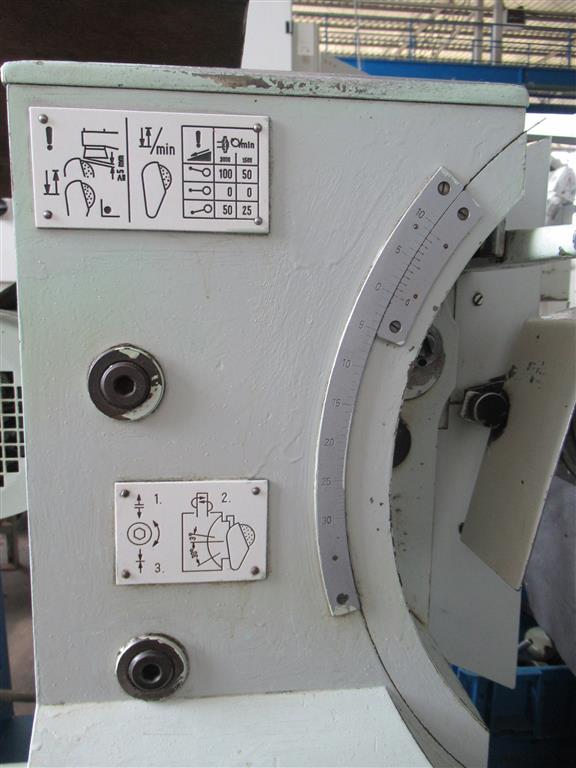

slide travel= X/Y-axis: 100/150mm; support: rotate= 45°right/left and swivel 10° right/left

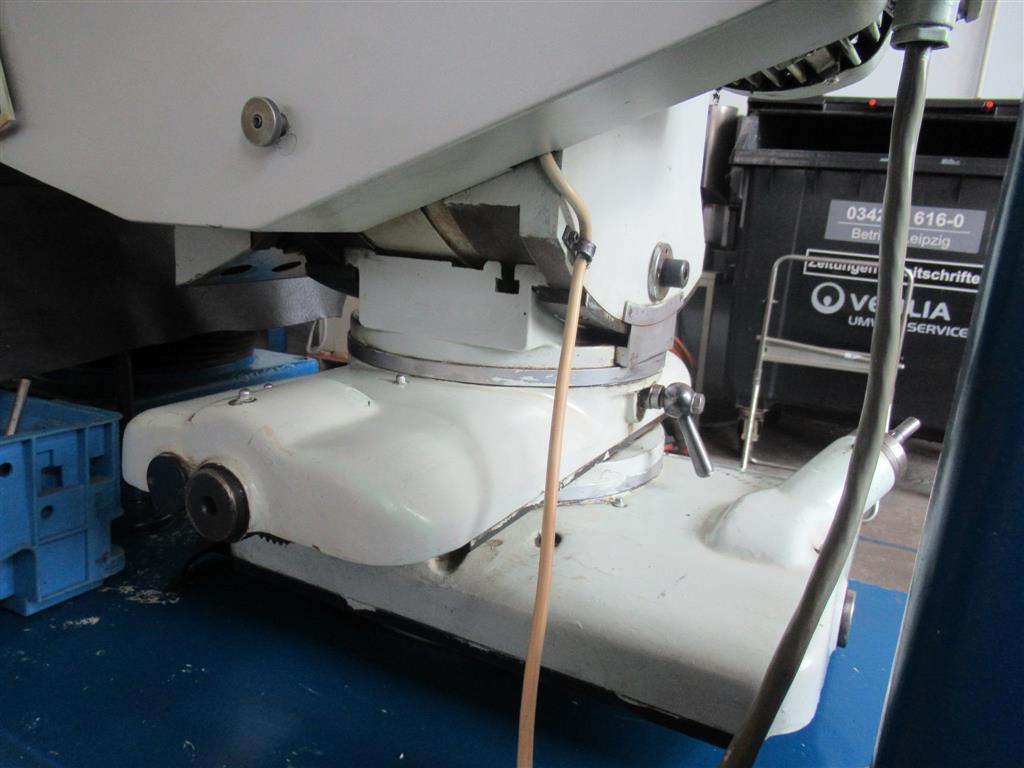

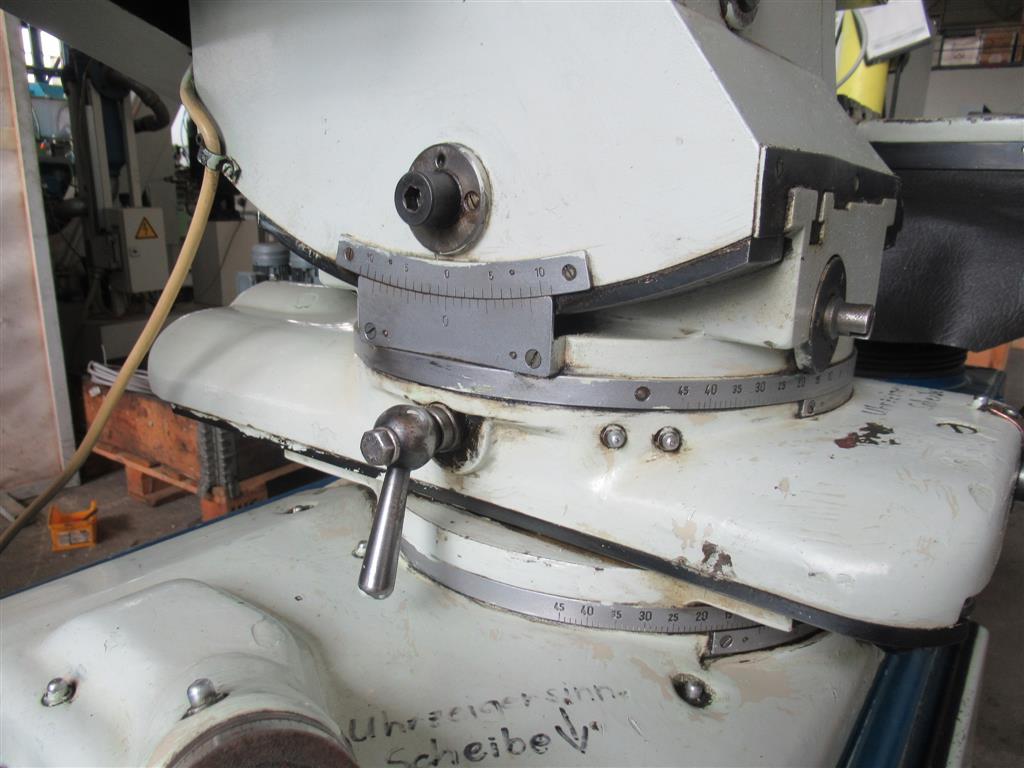

Grinding support: rotate= 45°right/left and swivel 30°/10°, speed = 25 / 50 / 100 rpm

Equipment:
Copying device
Projector

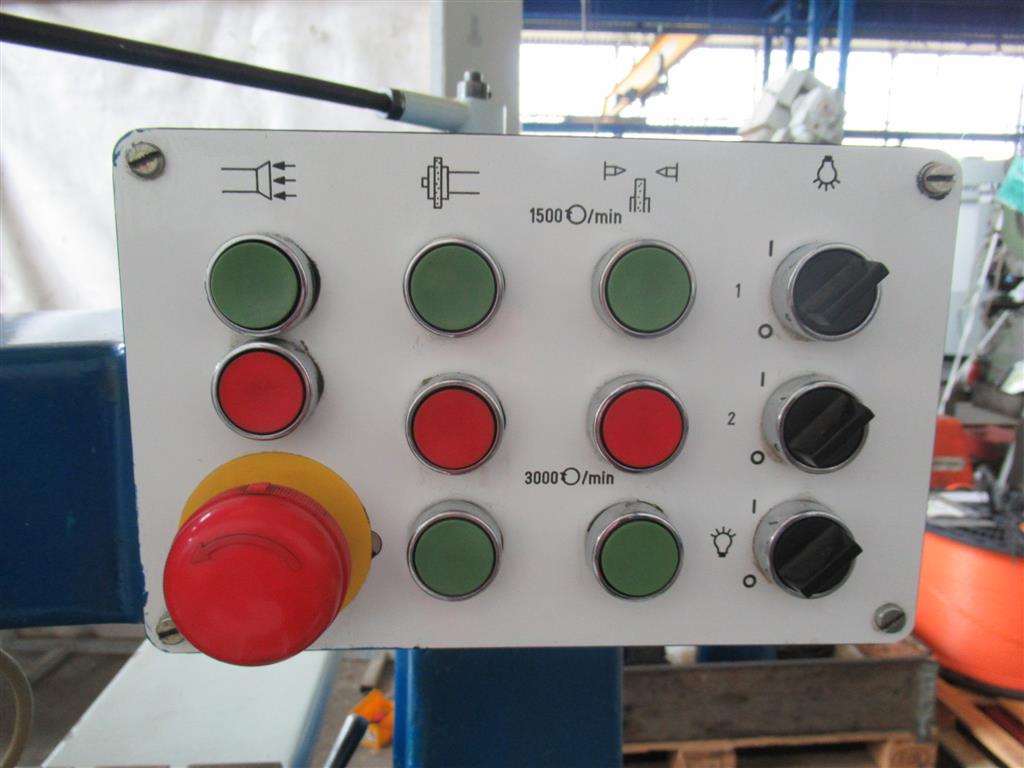

control panel
machine base stands
Suction is electrically pre-equipped

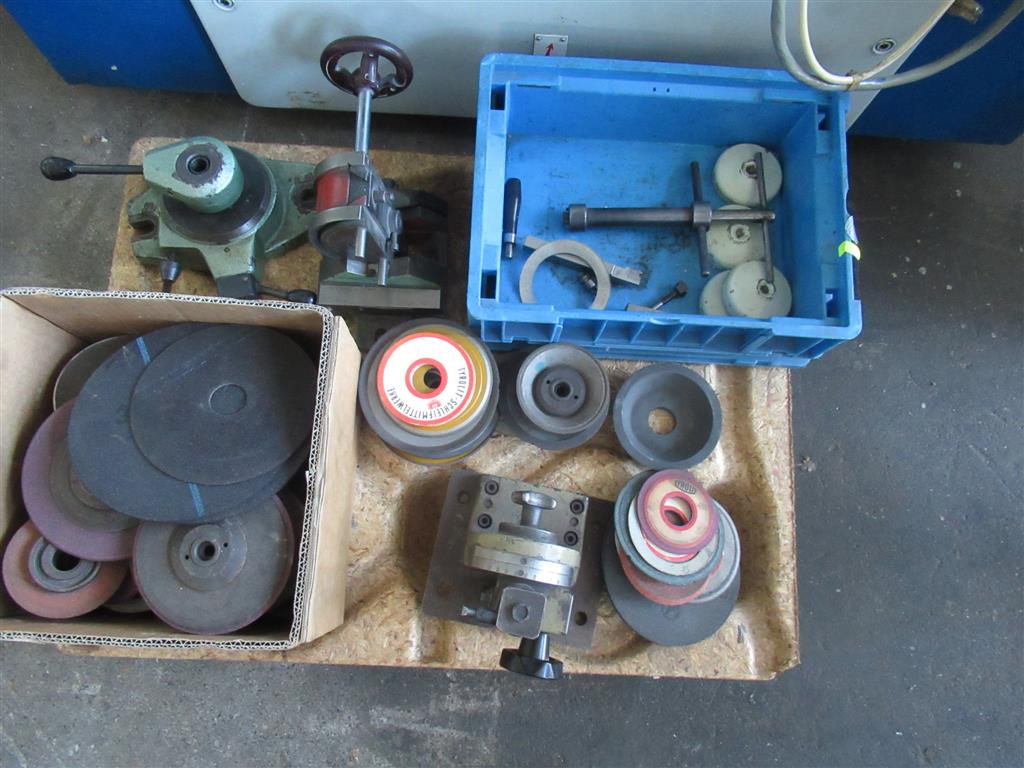

accessories:
various grinding wheels, attachments/devices, machine bases, comparable see photo
