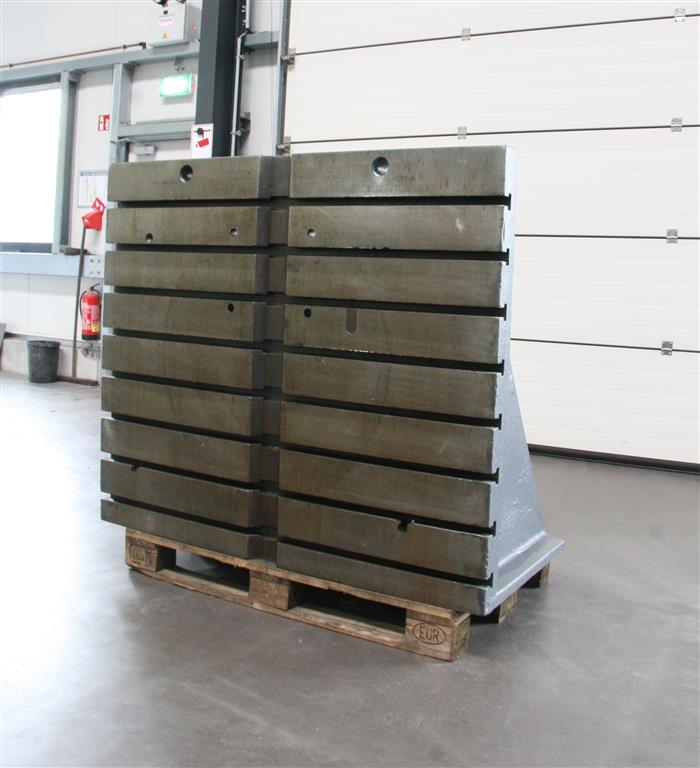

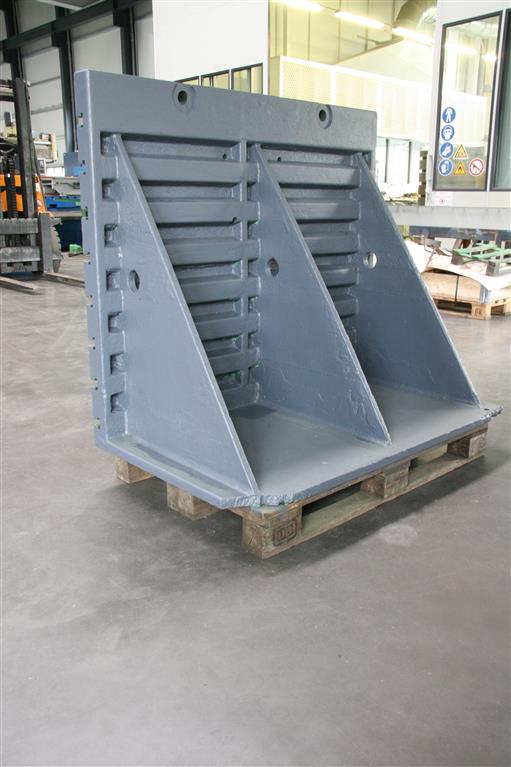

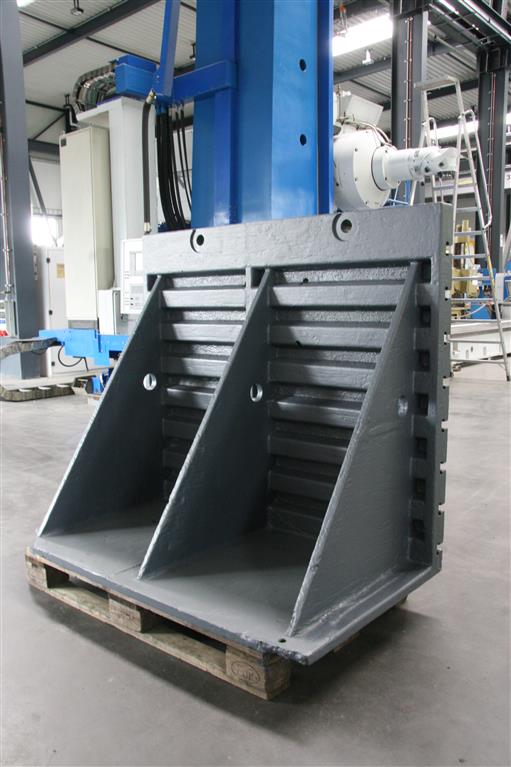

Angular Clamping DeviceAngular Clamping Device WMW AW 800x1400x1200

Angular Clamping Device WMW AW 800x1400x1200Angular Clamping Device WMW AW 800x1400x1200Angular Clamping Device WMW AW 800x1400x1200

Offer

stock-no.:
1101072
type of machine:
Angular Clamping Device
make:
WMW
type:
AW 800x1400x1200
year of manufacture:
-
type of control:
other
country of origin:
Germany
freight basis:
EXW, free on truck
storage location:
Leipzig 1
delivery time:
immediately
price:
on request

technical details

length:
800 mm
width:
1400 mm
height:
1200 mm
depth:
Tiefe/Länge: 800 mm
weight of the machine approx.:
1140 kg

additional information

The clamping surface is smoothed,
good used condition, slight signs of use
with 2x feed-through holes in the upper area Ø 44mm

T-slots according to DIN 650:
a=24; h=47; b=42; c=18 mm
center distance

base clamping surface:
depth: 800mm, width: 1400mm
