bolster plate UNBEKANNT / UNKNOWN AP 2000 x 1500 (Nr.1 - Nr.6)

Offer

stock-no.:

1101133

type of machine:

bolster plate

make:

UNBEKANNT / UNKNOWN

model:

AP 2000 x 1500 (Nr.1 - Nr.6)

year of manufacture:

-

type of control:

other

country of origin:

Germany

freight basis:

ex location Bitterfeld, free on truck

storage location:

GOG Bitterfeld

delivery time:

immediately

price:

on request

technical details

floor-plate length:

2000 mm

plate width:

1500 mm

plate height:

820 mm

Plate thickness:

185 mm

weight of the machine ca.:

ca. 2,1 / 2,2 pro Platte t

transport dimensions LxWxH:

ca. 2,0 x 1,5 / pro Platte m

additional information

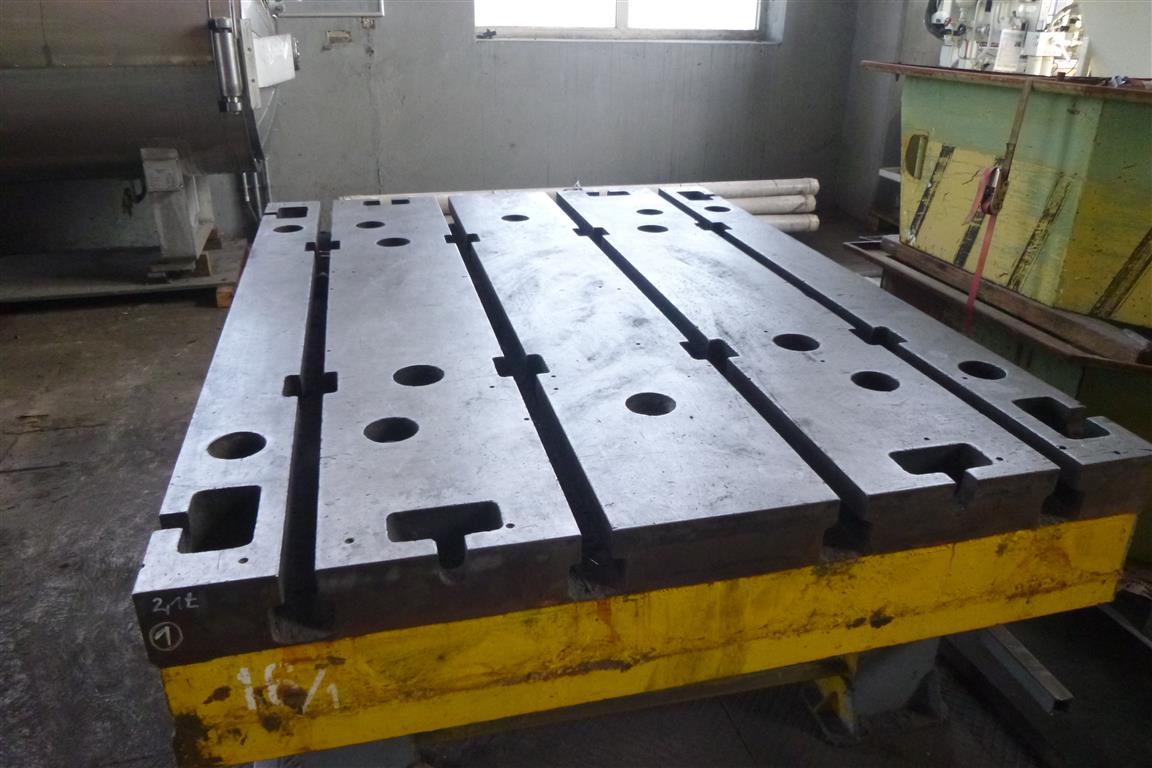

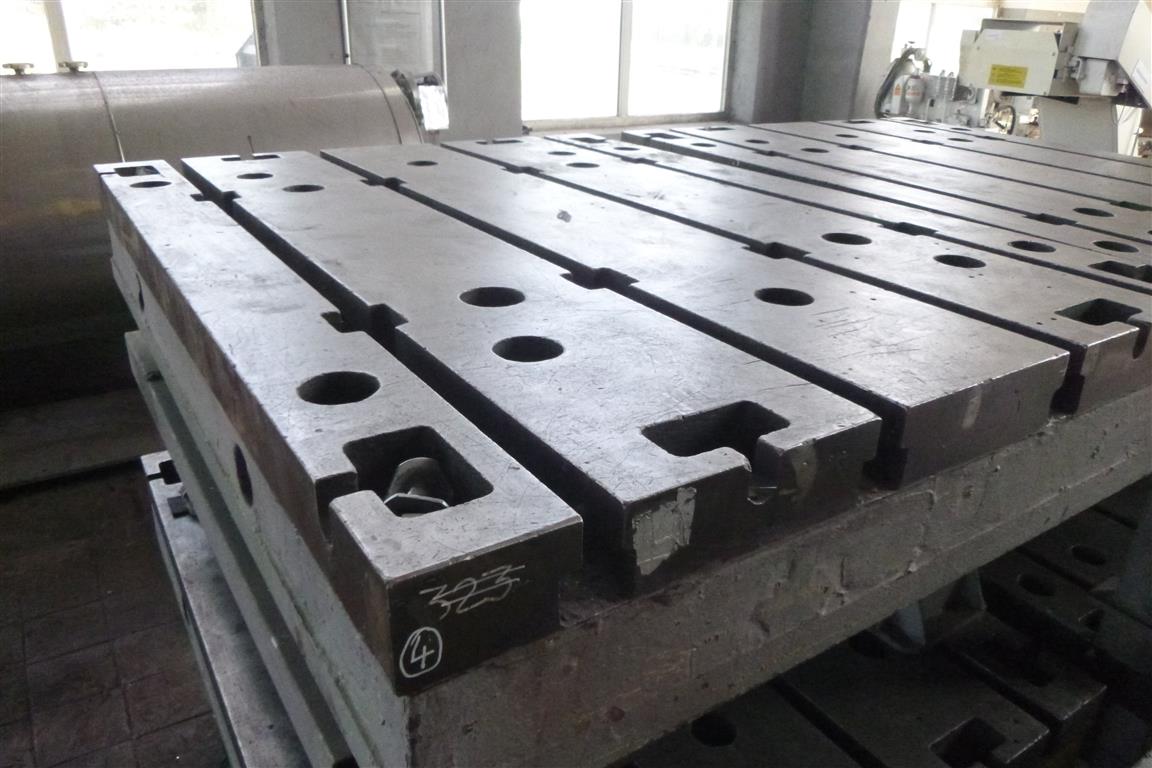

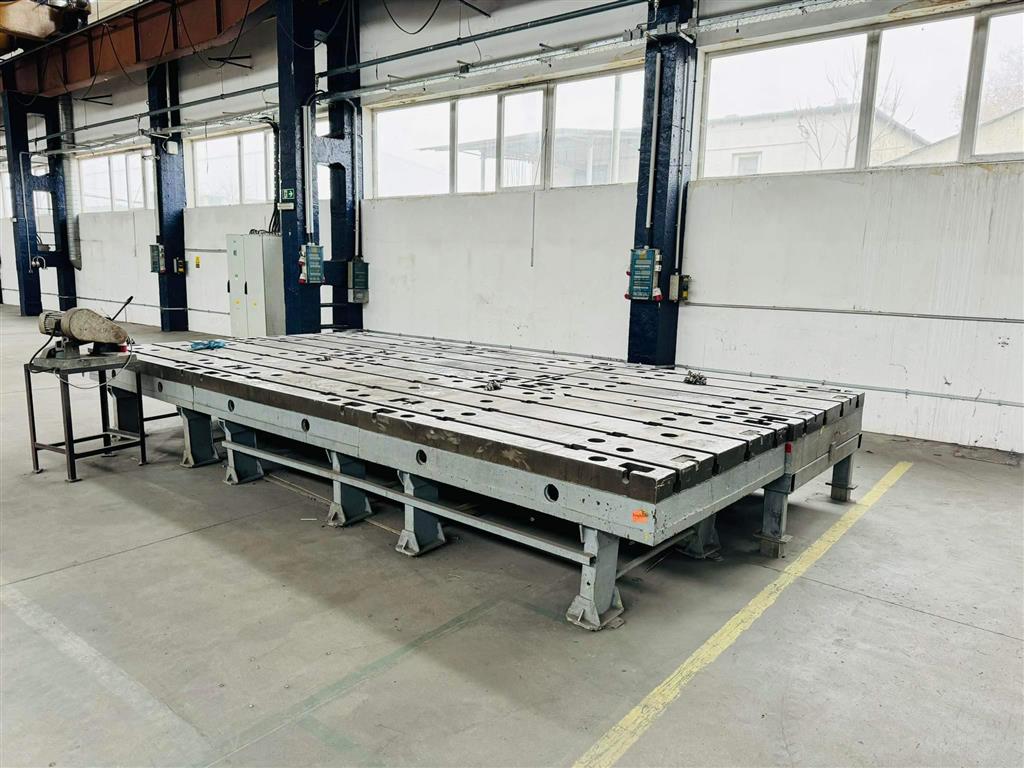

There are 6 of these clamping plates for sale. (price per piece)
Material cast steel/profile casting

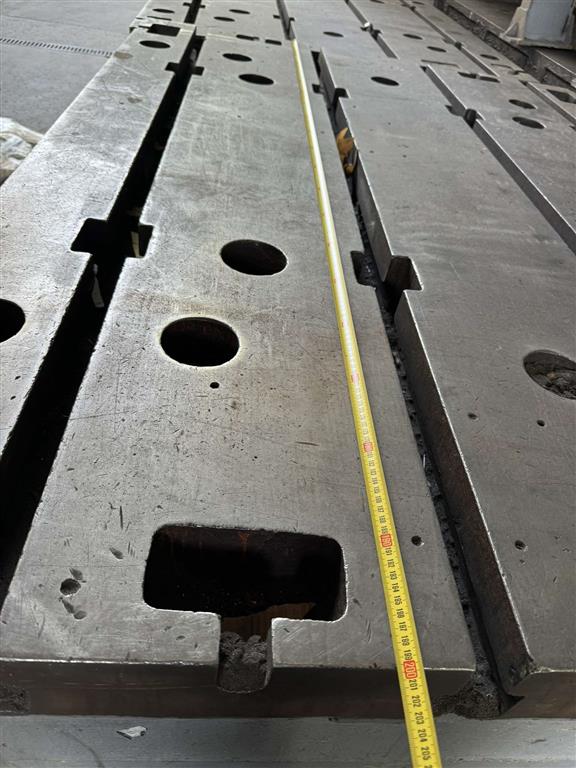

T-slots according to DIN 650: a=43; h=105; b=76; c=50 mm; center distance 375 mm
4x passage holes Ø 90 mm
10x fixing holes Ø 25 mm with countersink Ø 85 x 135 mm

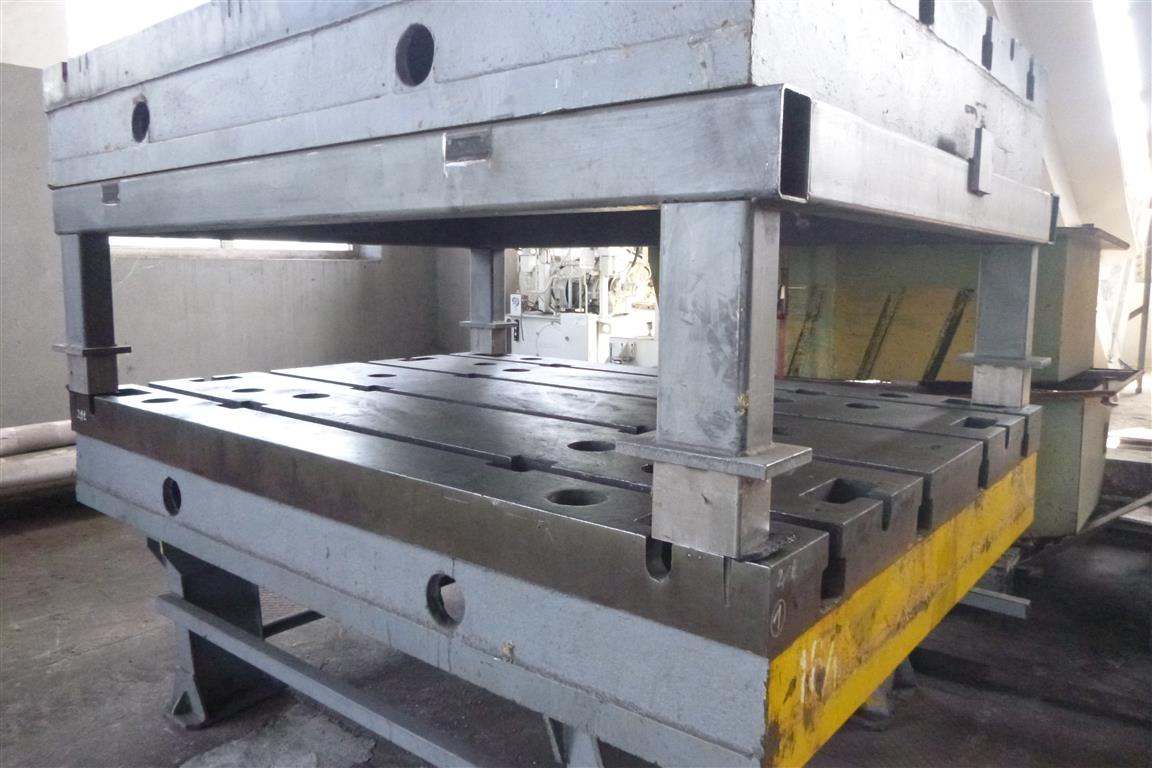

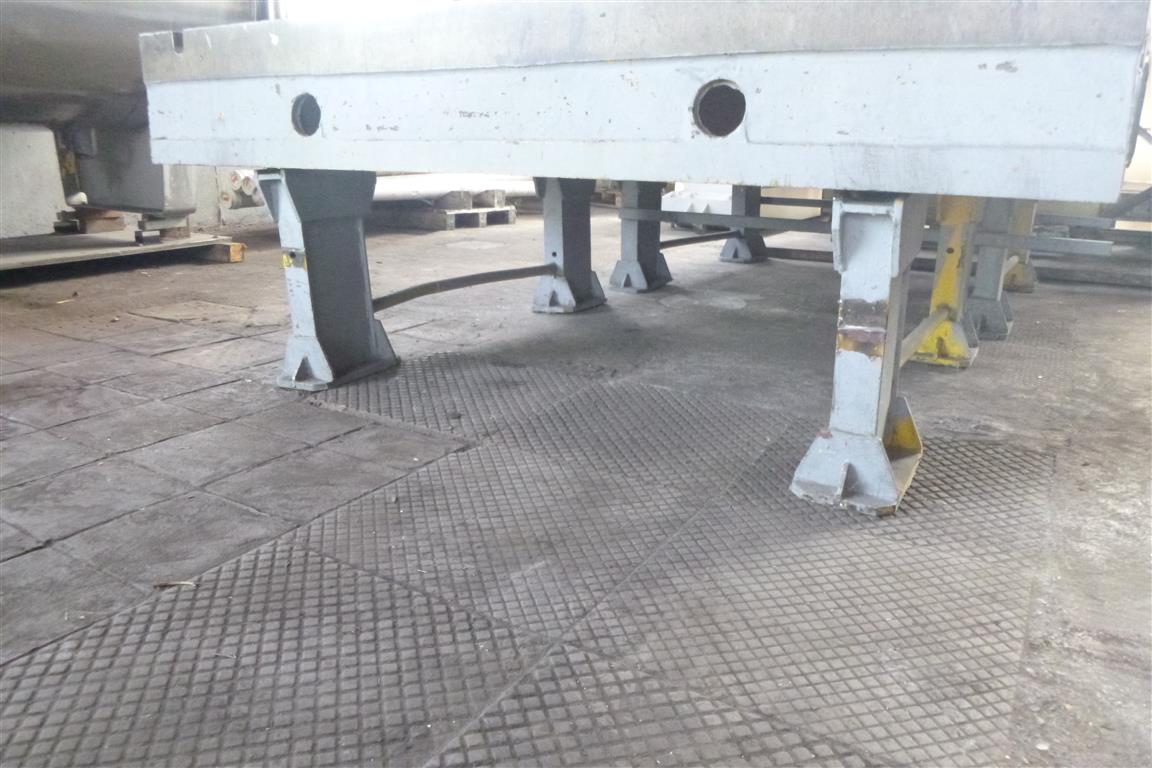

with base frame for shelf no. 1+3+4+5+6: L: 1990 mm x W: 1490 mm x H: 185 mm

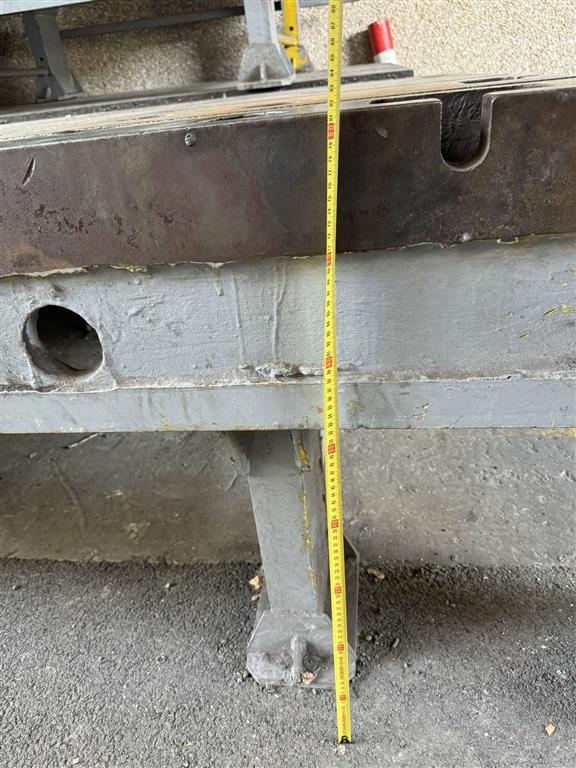

with base frame for panel no. 2: L: 2020 mm x W: 1515 mm x H: 520 mm
