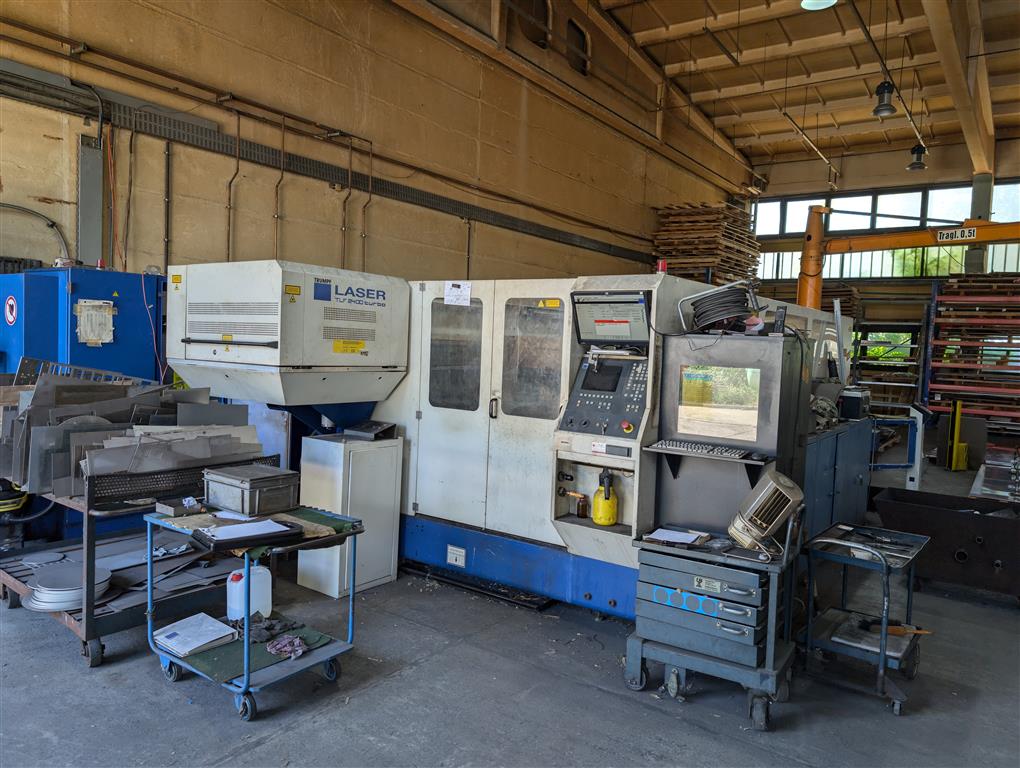

Laser Cutting Machine
Offer
- stock-no.:
- 1200735
- type of machine:
- Laser Cutting Machine
- make:
- TRUMPF
- model:
- L3030S
- year of manufacture:
- 1998

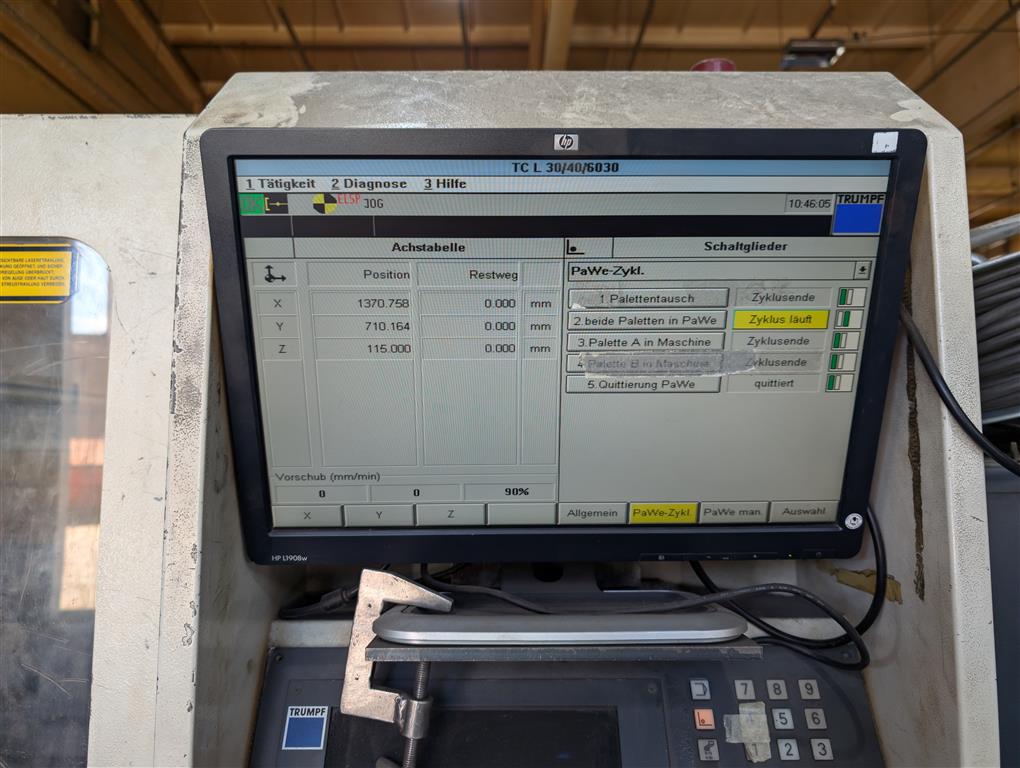

- type of control:
- CNC
- country of origin:
- Switzerland
- freight basis:
- Ex-Location
- storage location:
- near Leipzig
- delivery time:
- immediately
- price:
- on request
technical details
- x-travel:
- 1500 mm
- x-travel:
- mm
- y-travel:
- 1500 mm
- distance between columns:
- mm
- Beam Hour:
- h
- laser capacity:
- 2400 W
- control:
- weight of the machine ca.:
- t
- air-pressure connection:
- 6 bar
- Voltage:
- 400V / 3~ / 50 HZ V
- control voltage:
- 24 V
- connected load:
- 71 kVA
- total power requirement:
- 28 kVA
- dimension coolant device LxWxH:
- m
- space requirements of the machine approx.:
- m
additional information

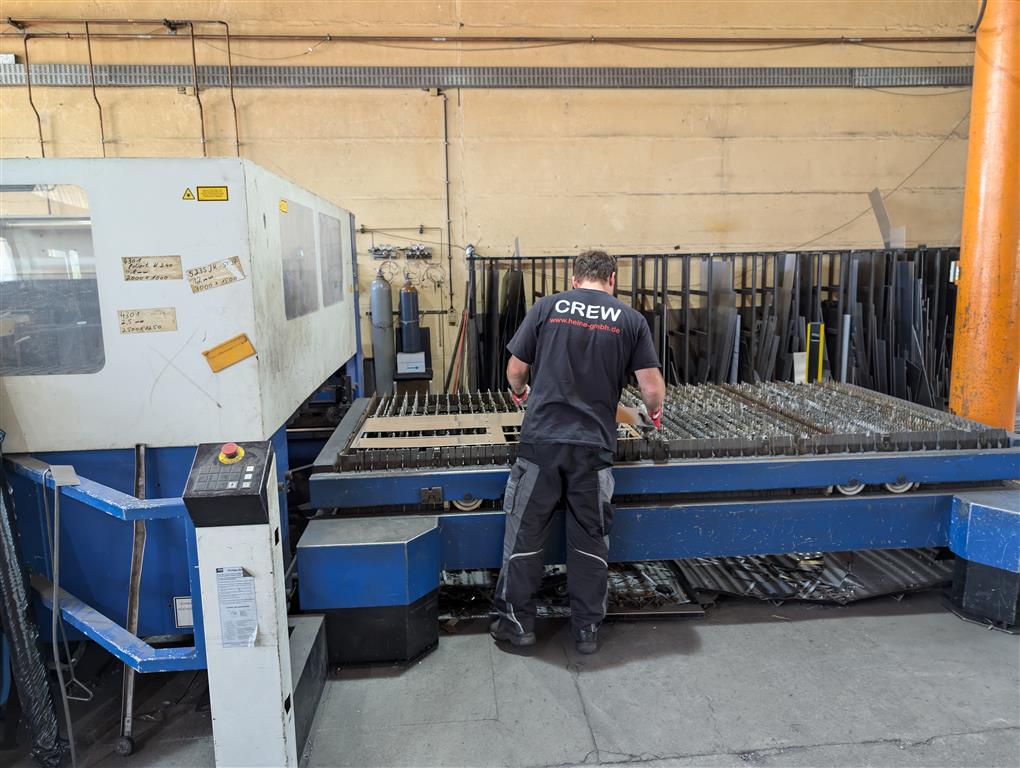

Insert for medium formats 1500 x 1500mm
Air conditioner Riedel L15/21 TR2 15.00; refrigerant R22
Panel filter VARIO T 1.5
Materials that can be processed:
Mild steel (1 - 20 mm material thickness), stainless steel (1-12 mm material thickness), aluminum alloys (1-8 mm material thickness)
Cutting speed generally 3 m/min.
Cutting gas: generally oxygen O2
Zubehör:
1 Laserkopf
Purchase condition:
The laser must be loaded and collected by 30.09.2024.
