Pillar Type Swivelling Crane
Offer
- stock-no.:
- 1202004
- type of machine:
- Pillar Type Swivelling Crane

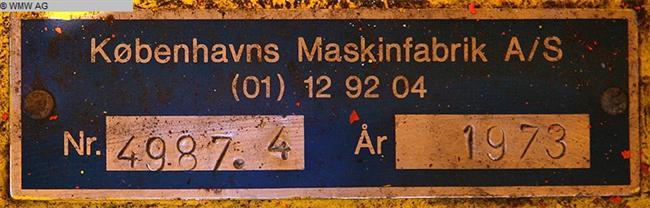

- make:
- KOBENHAVNS MASKINFABRIK
- model:
- Verlinde
- year of manufacture:
- 1973+2008
- type of control:
- conventional
- country of origin:
- Dänemark
- freight basis:
- EXW -free on truck
- storage location:
- Lager 1 Aussenbereich
- delivery time:
- immediately
- price:
- on request
technical details
- weight max. in kg:
- 1500 kg
- height lower edge beam:
- 5240 mm
- jib length end position:
- 7420 mm
- swivelling range:
- 360 Grad
- cantilever arm length from center column:
- 7620 mm
- lifting height max. hook position:
- 4570 mm

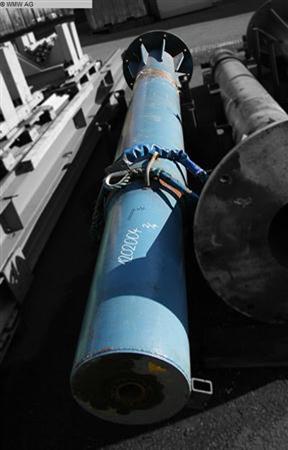

- column diameter:
- Ø 500 mm
- dimensions base plate:
- Ø 1000 mm
- total power requirement:
- 1,75 / 0,43 kW
additional information

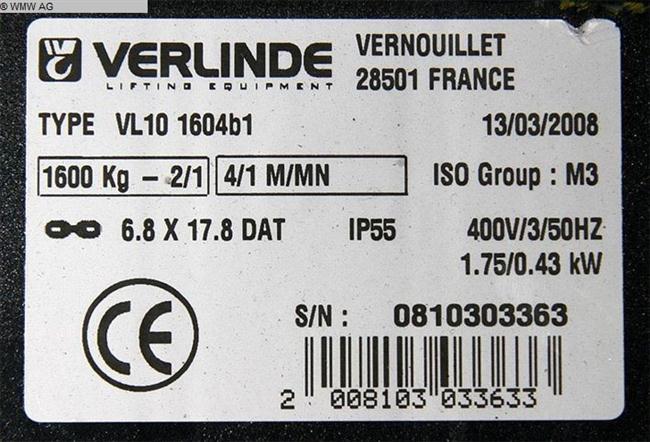

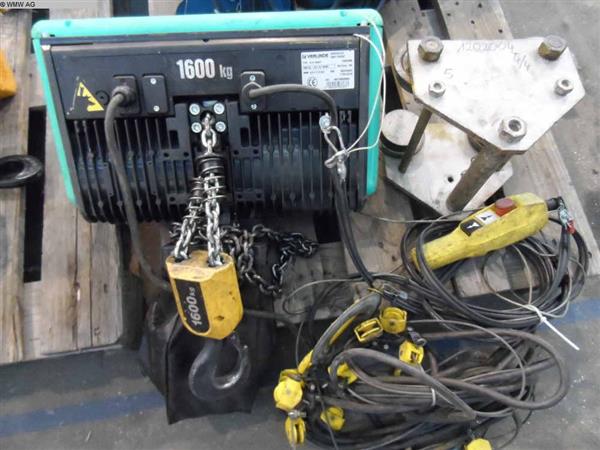

Hoist : Make VERLINDE
Type: VE10 1604b1
lifting capacity: 1600 kg
YOM: 2008
Sorry the machine has been sold already! Here you will find more machines referring to your required category.
