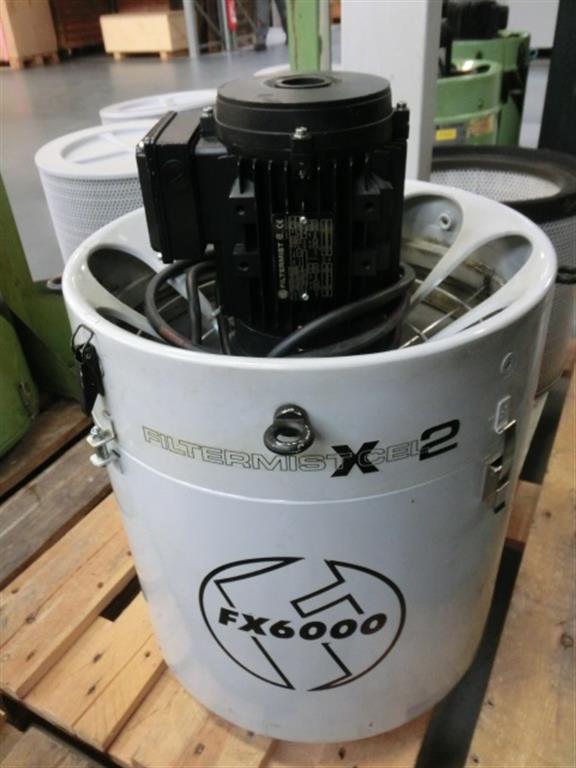

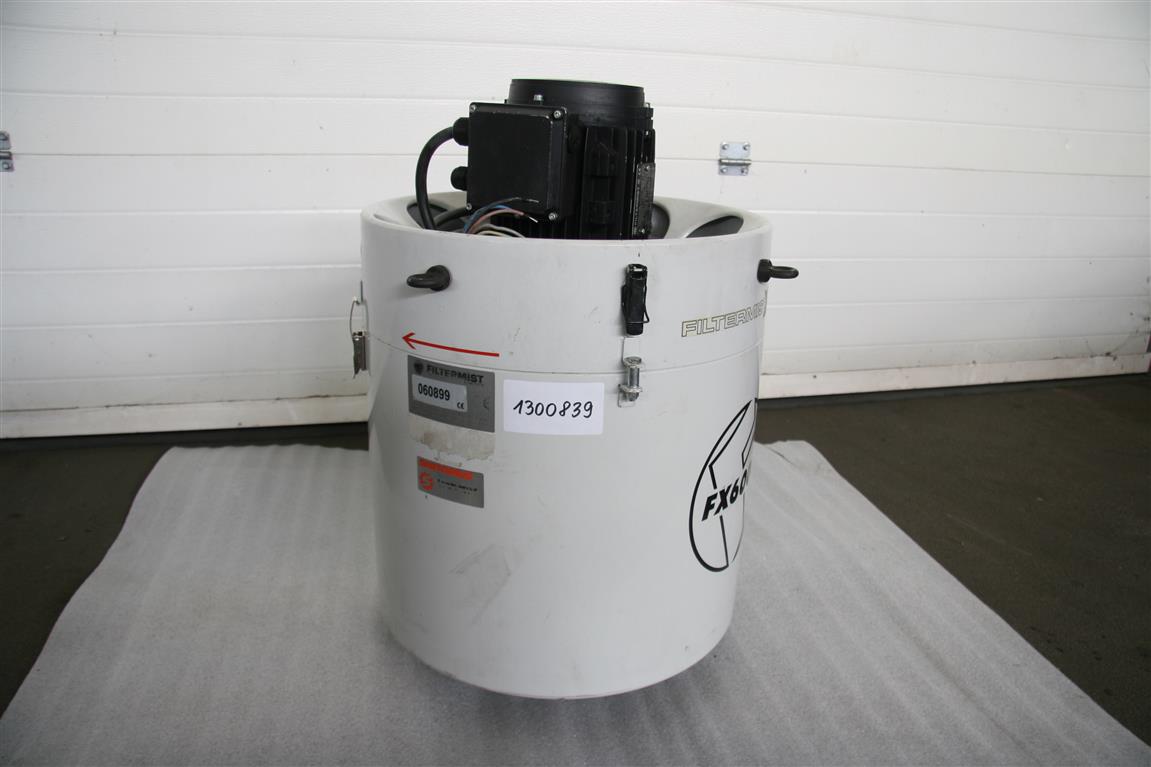

Oil- Fog- Separator FILTERMIST FX 6000

Offer

stock-no.:

1300839

type of machine:

Oil- Fog- Separator

make:

FILTERMIST

model:

FX 6000

year of manufacture:

ca. 2000

type of control:

conventional

country of origin:

UK

freight basis:

EXW, free on truck

storage location:

Leipzig 3

delivery time:

immediately

price:

on request

technical details

Suction- Tube:

Ø 200 x 40 mm

Oil- drain- Tube:

- mm

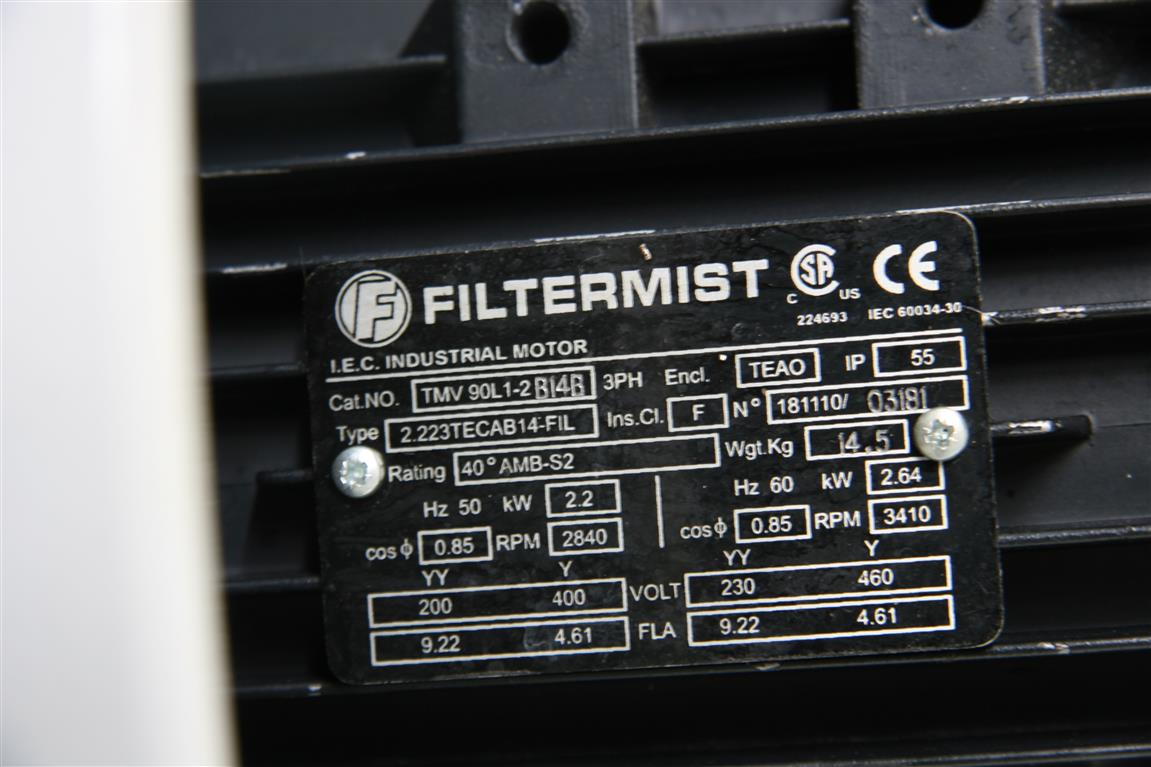

voltage:

200/400 V

power consumption:

2,2 / 2,64 kW

filter surface area:

Ø 450 x 400 mm

weight of the machine approx.:

ca. 45 kg

dimensions of machine:

Gerät: Ø 540 x H: 660 mm

additional information

oil- and emulsion mist separators with column
model: steel drum
support intake column (size L:0,8 x B: 0,52 x H: 4000mm)
The filter can be mounted via vertical column up to an height of 2450 - 4000mm. (adjustment travel = 1550mm)
dust separator
liquid separator : troughput= 28m³/min
exhaust opening vertical
extraction pipe Ø 19mm
troughput/ capacity: 34 m³/min (2040 m³/h)
entry speed approx. 1047 m/min
