Welding Beam Polysoude PS 406

Offer

stock-no.:

1300485

type of machine:

Welding Beam

make:

Polysoude

model:

PS 406

year of manufacture:

2002

type of control:

other

country of origin:

France

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 1

delivery time:

on request

price:

on request

technical details

Length:

mm

height:

mm

power consumption:

A

capacity at 100% ED:

300A bei 100% und bei 40% = 400A

welding current:

26V / 22V V

protection class:

IP 21

total power requirement:

kVA

weight of the machine approx.:

176 kg

dimensions of machine:

1,4 x 0,6 x 1,4 m

control for program:

additional information

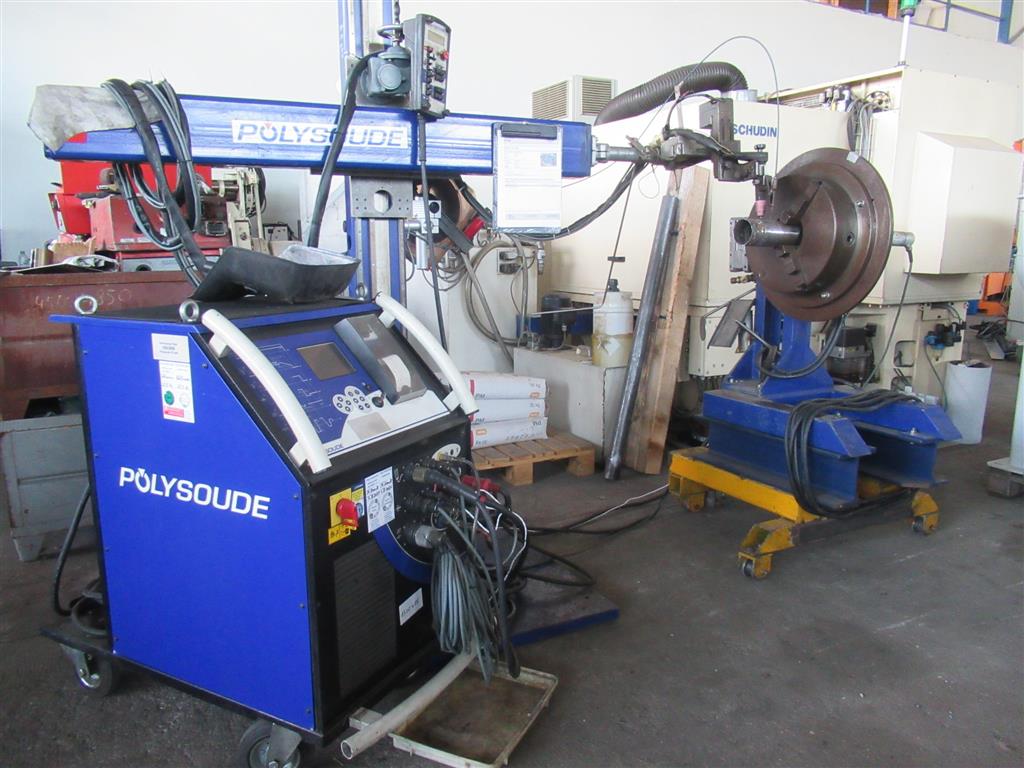

Orbital welding machine for circumferential welding and longitudinal seam welding

control with 30 - 150 programs (depending on program length), sectors depending on program = max. 24

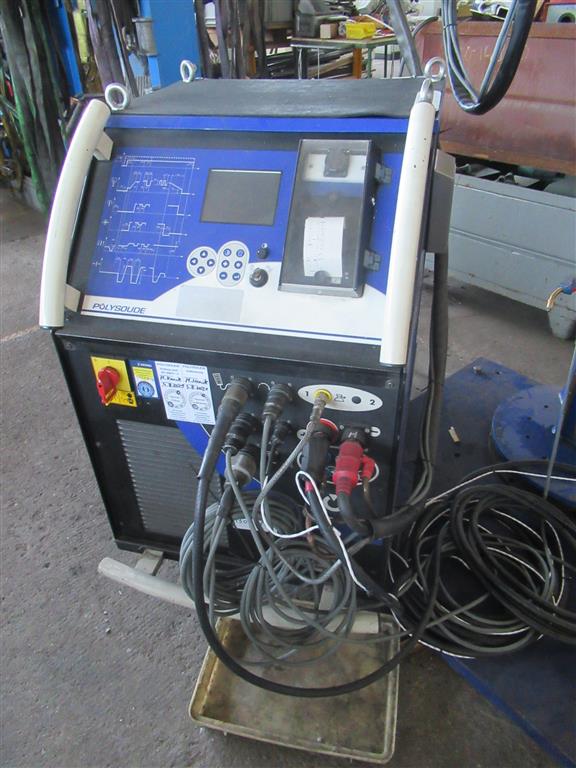

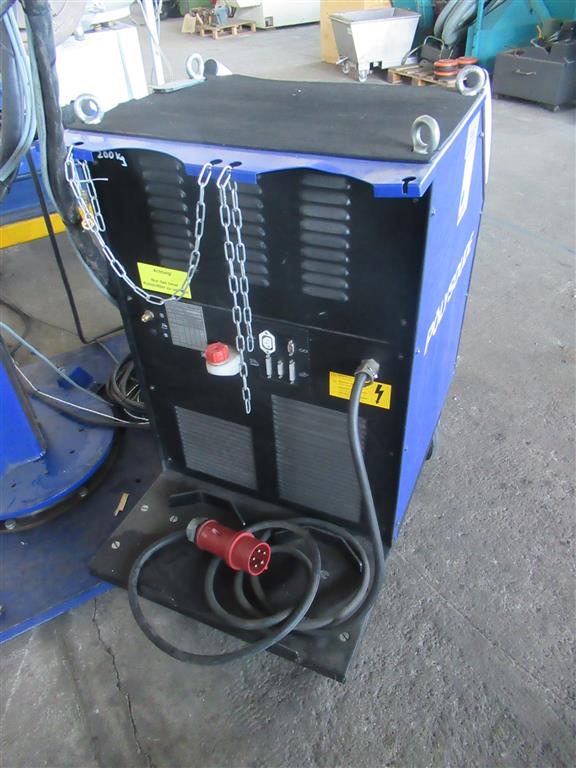

Welding power source PS 406 for automatic sequence of welding cycles for TIG,
cooling:
-Torch closed cooling circuit with quantity control.
-rectifier = liquid cooling
-power source = compulsory ventilation
Insulation class F

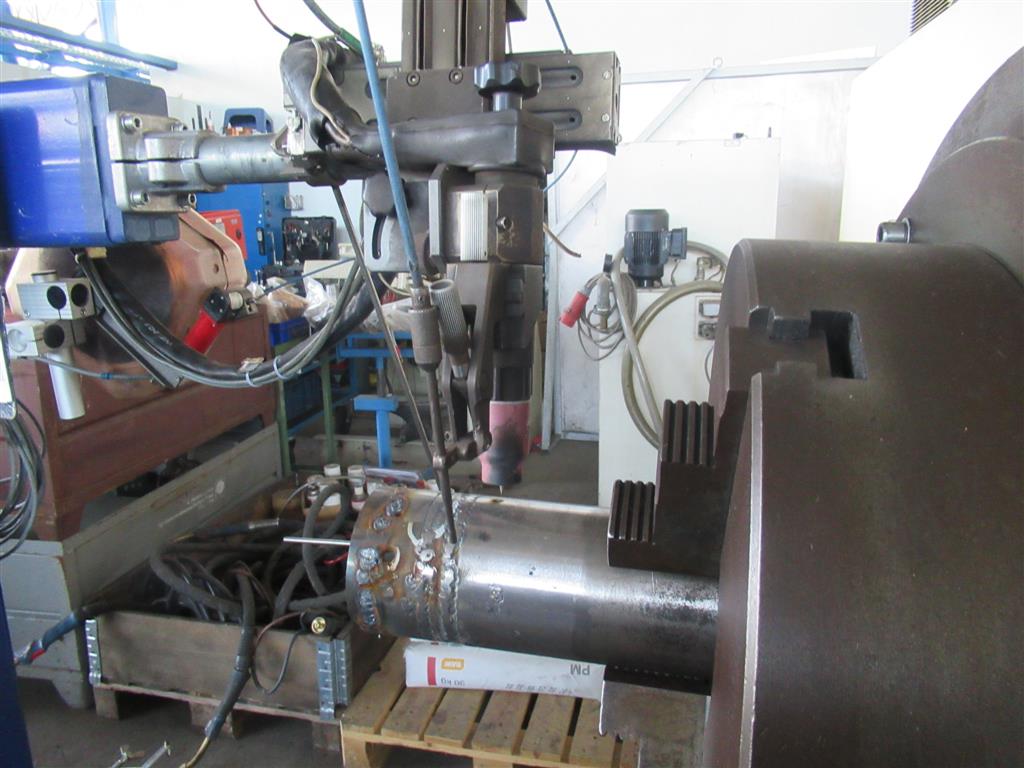

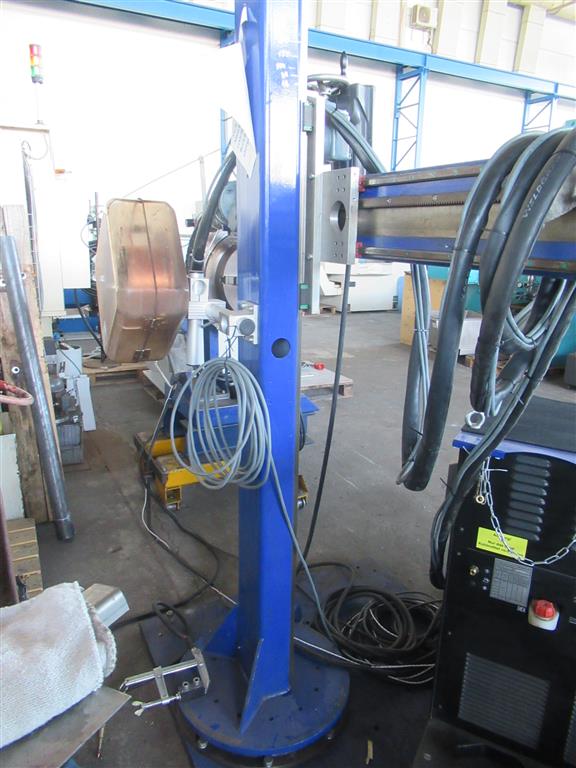

The welding torch sits on a beam. The beam column can be rotated by approx. 350°.
Travel of the torch support:
-vertical = 1600mm
-horizontal = 1050mm

Wire feeder Avesta type 316L-Si/SKR-Si

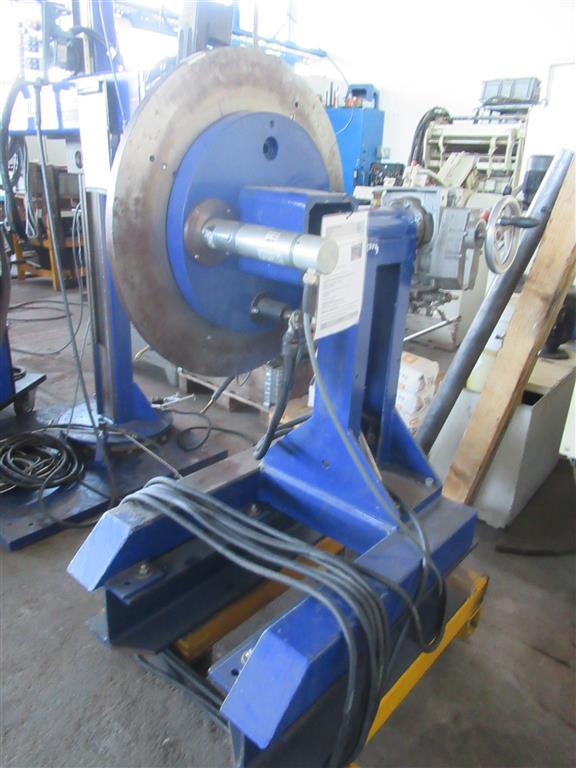

Rotary device/workpiece holder:
-consists of a steel structure, traversable linear longitudinal

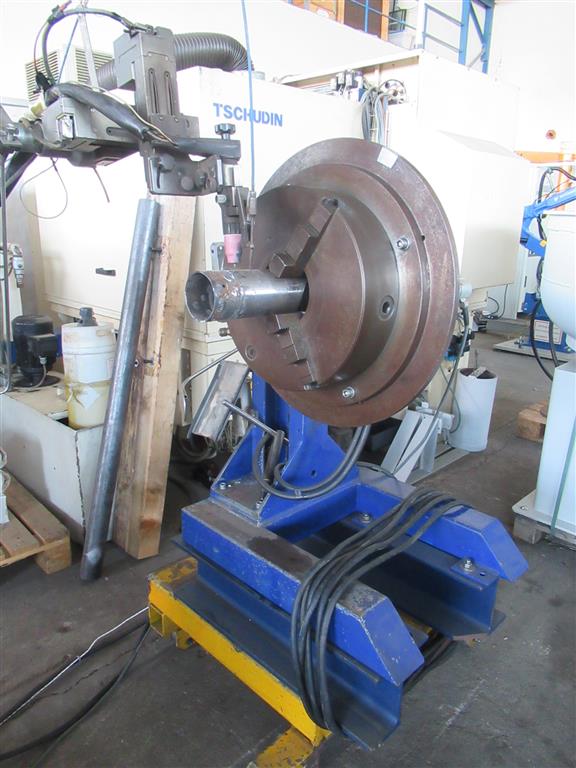

-three-jaw chuck with internal jaws; Ø 390mm; bore Ø 130mm
-tip height 1150mm
-Rotation possible manual and/or Mitor (Dunkermotor type GR 53x58)

operation via welding unit/hand control unit
This equipment has undergone a regular inspection. (next inspection/calibration 08/2022 according to plate)
