Welding Machine - Circular Seam Westfalen AG Panther

Offer

stock-no.:

1300488

type of machine:

Welding Machine - Circular Seam

make:

Westfalen AG

model:

Panther

year of manufacture:

2008

type of control:

conventional

country of origin:

Germany

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 1

delivery time:

on request

price:

on request

technical details

Length:

mm

height:

mm

power consumption:

A

welding current:

350A / 24V V

voltage:

230 / 50 V / Hz

total power requirement:

ca. 4,0 kVA

weight of the machine approx.:

kg

dimensions of machine:

3,3 x 1,3 x 1,7 m

dimension device 1:

Schweißgerät: 950 x 450 x 950mm

additional information

AUTOMATIC CIRCULAR SEAM WELDING MACHINE
Usage: for machine welding of flanged joints with various shaped parts.
Dimensions to the table = L: 3150 x W: 760mm;
with turning unit (axial / radial)
Turning unit mounting = quick change system DN25-DN200; drive with servo motor speed 12 min/rev; positioning accuracy +/- 0,1°.

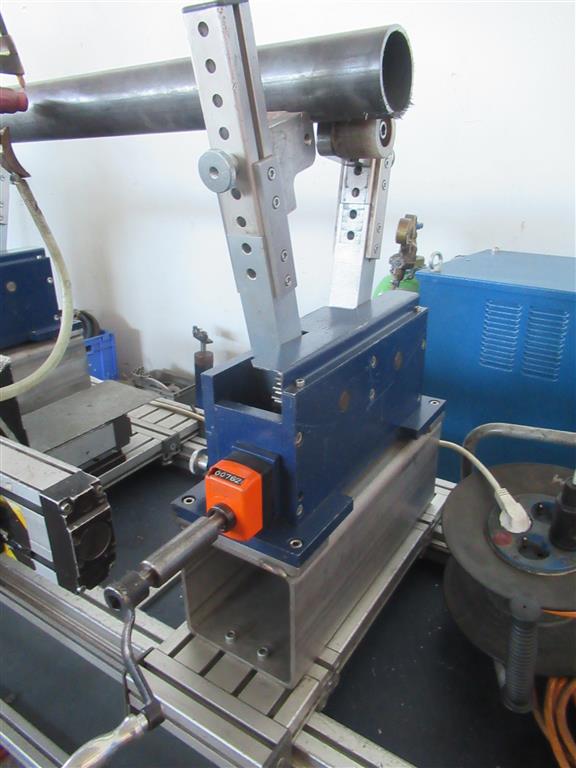

with clamping device clamping pressure 6 - 10 bar
with recooler; cooling capacity 1 kW; water tank 10l; connection 230V
with cold wire device (4-roller drive controlled) automatic operation
Torch height adjustment electronic
track length 2.500mm
with pendulum device
with welding device make ESS Schweißtechnik, type Transtig 276/356/506 DC,
TIG= 5A / 10V up to 350 A / 24 V
E= 5A / 20V up to 350 A / 34 V
protection class IP 23
water cooled
Switch cabinet cooling unit Rittal-SK 3303100
Operation SIMATIC MULTI PANEL; foot operation double pedal and welding support manual control operation

ALU welding not possible!
i.D.
