Offer

stock-no.:
1300438
type of machine:
Welding Robot
make:
Reis Robotics
model:
SPL 80
year of manufacture:
2000
type of control:
conventional
country of origin:
Germany
freight basis:
EXW, free on truck unpacked
storage location:
Leipzig 5
delivery time:
2 - 3 days
price:
on request

technical details

current capacity:
5 kVA
number of controlled axis:
6
workpiece weight:
0,1 - 0,5 t
x-travel:
3500 mm
y-travel:
1550 mm
z-travel:
1300 mm
control:
CNC Robot star V
total power requirement:
ca. 16 kW
space requirements of the machine approx.:
6,6 x 2,5 x 5,0 m

additional information

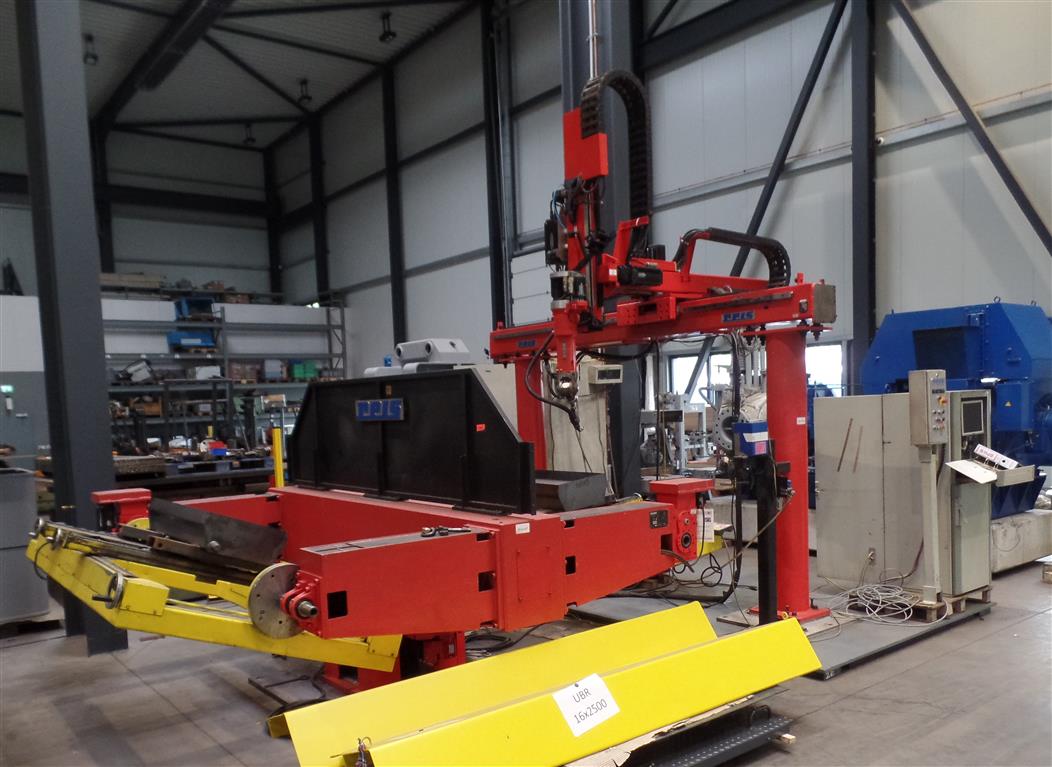

Welding robot system consists of:

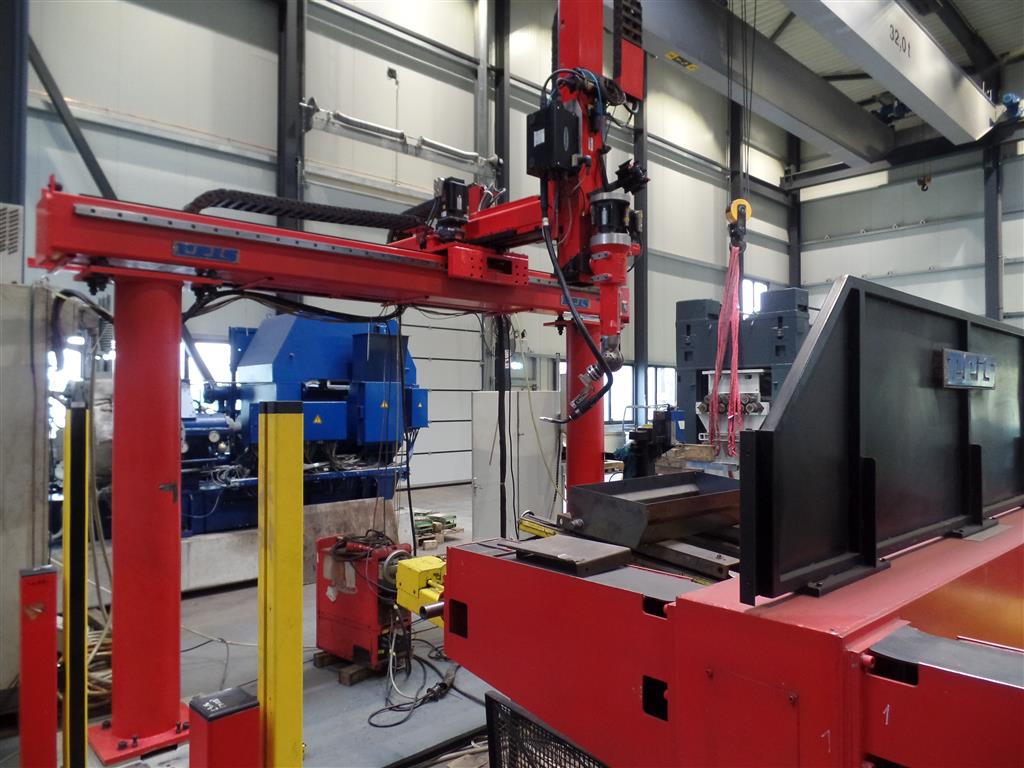

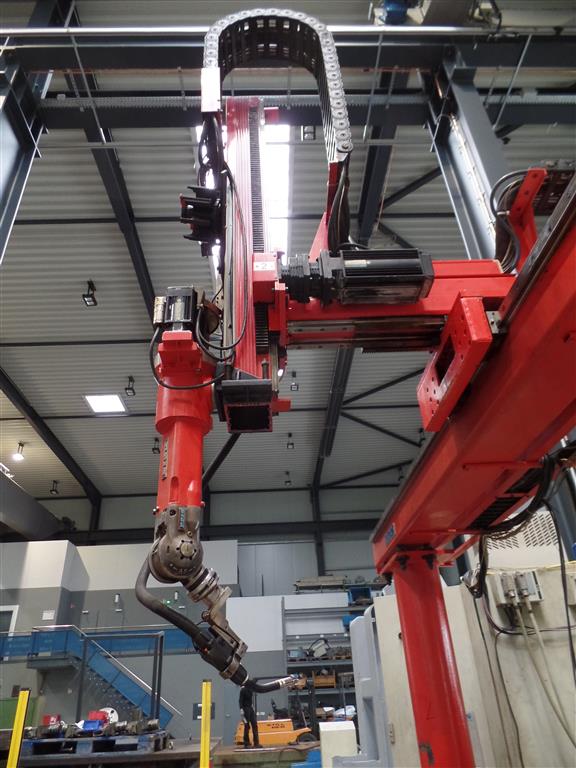

robot portal
Type SPL 80;
circular motion welding robot = swivel approx. 90° left/right, turn 360°, swivel radius 1000mm;

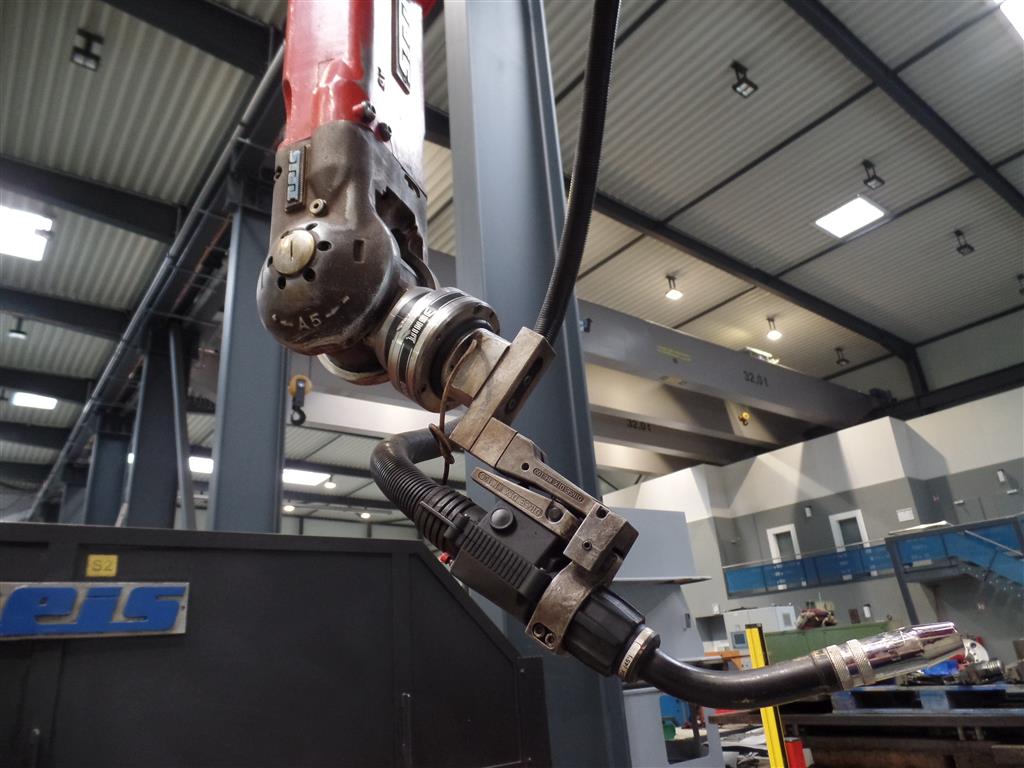

Circular movement welding gun = swivel approx. 90° left/right, turn 360°;
max. projection welding pistol/min.: 2000/500mm; cross beam height 2250mm; distance between columns 2900mm
Equipped with welding gun DINSE; wire feeder FroniusVR 1500 4R/W/D; cleaning station

welding equipment
MIG / MAG; type Transpuls Synergic 5000; 320-340A; IP23;

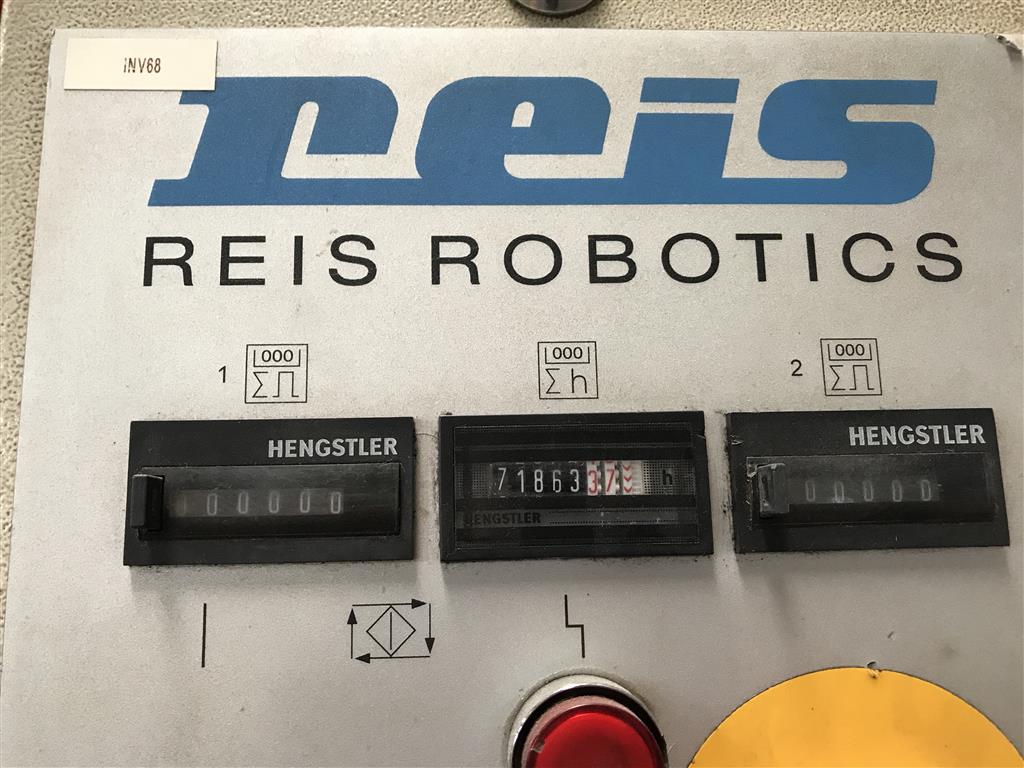

control cabinet
Type SRL 80; power requirement 5 kVA; cooling unit Rittal SK 3384100 year of construction 2007; cooling capacity 1.5 kW

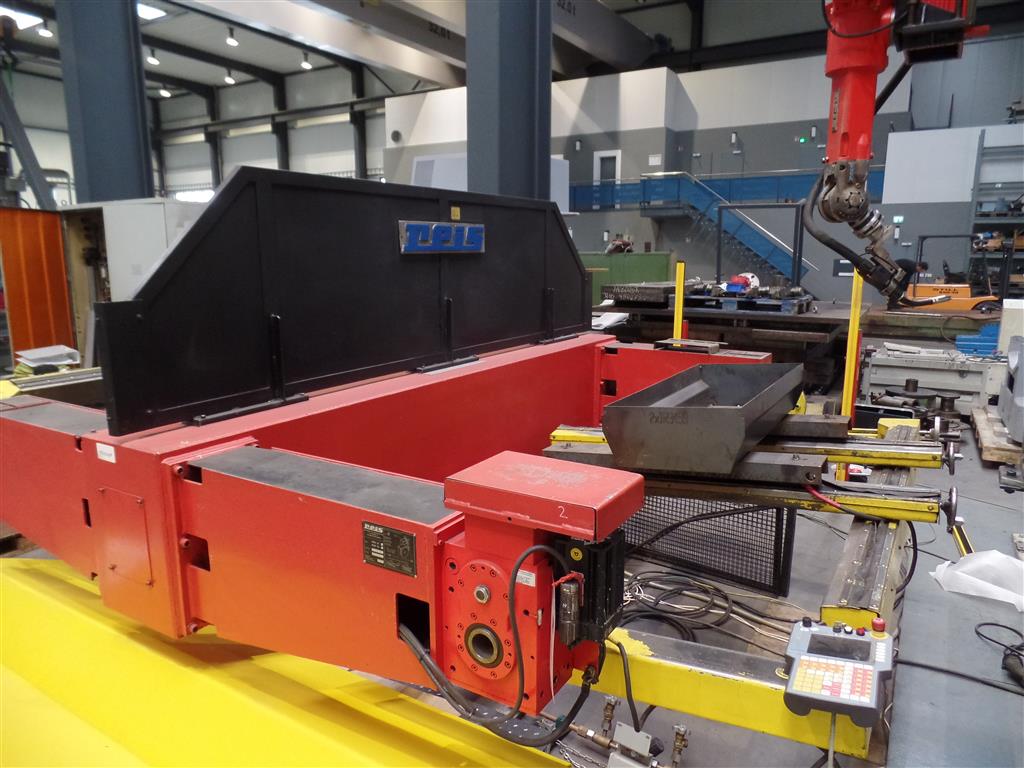

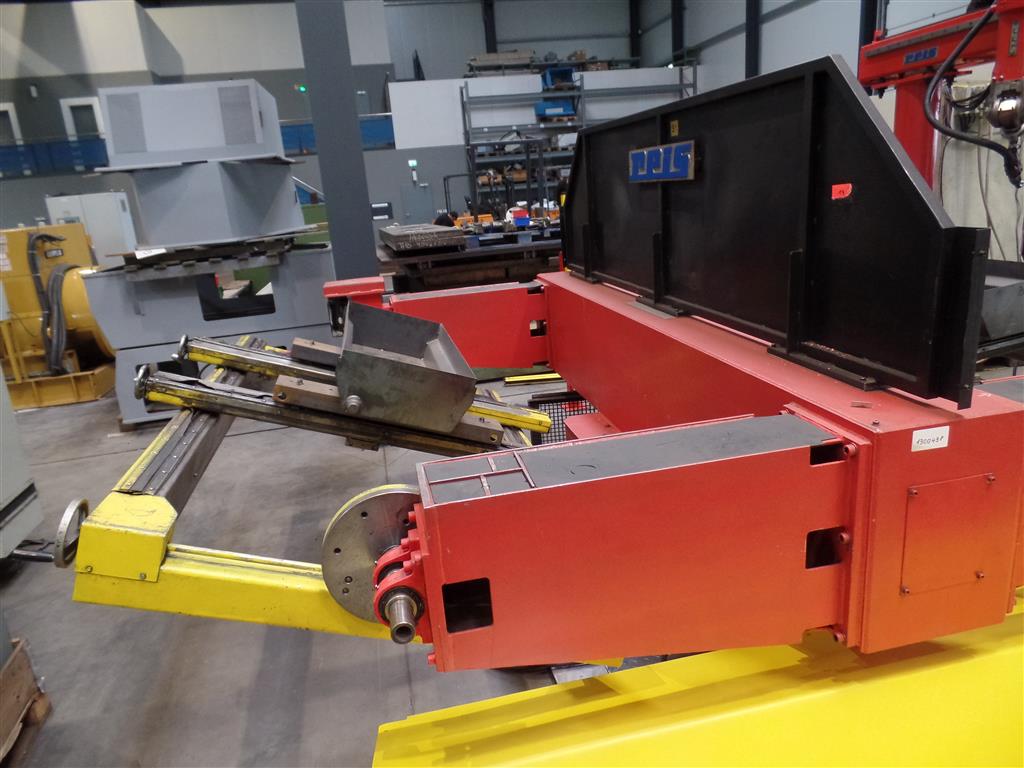

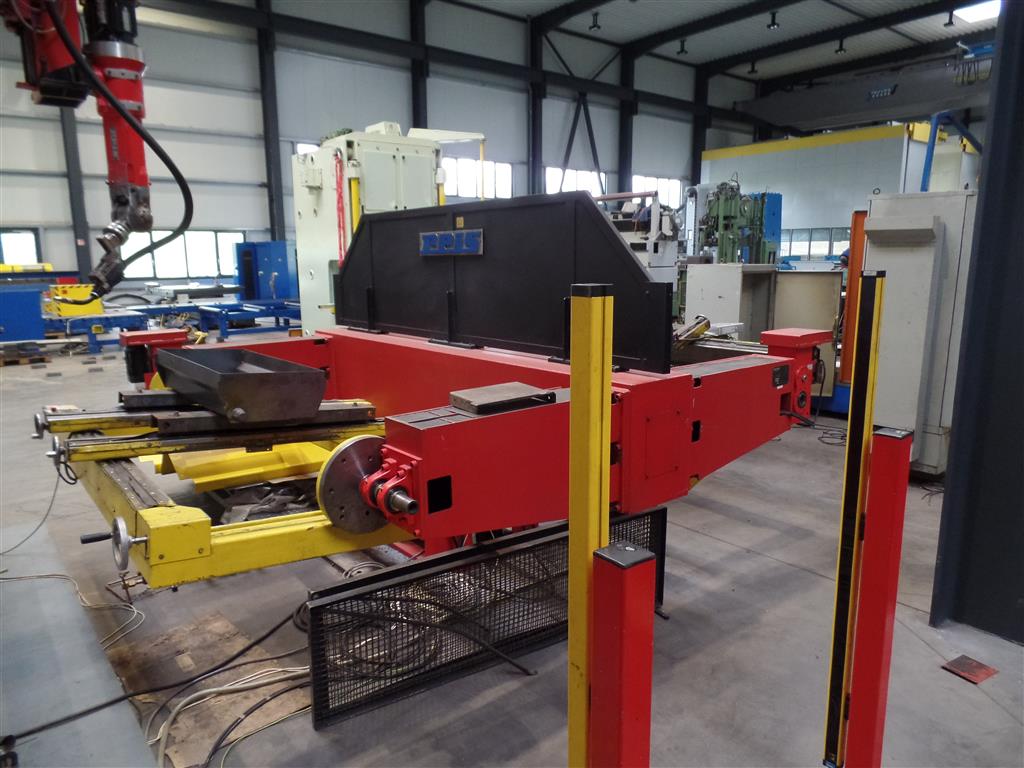

Turning device/turning table
Type RDM 05
2x workpiece fixtures/turning tables, opposite each other, 360° vertical rotation, motor driven,
max. workpiece size can be accommodated = 2200 x 2000mm
Mounting bar (yellow) can be moved on mounting frame: shifting lengthwise/crosswise 1600/2000mm by hand

Operation via PHG handheld programming device

Equipment:
- Base plate 5000x2500x25mm (robot portal)
- Base plate 1500x1500mm (workpiece turning device)
- welding set DINSE MIG/MA

accessories:
- various spare/wear parts
