KÜBA SGBE 33
Special Machine | Stock number: 1401026
Unfortunately, the machine has already been sold.
Machine data
- Machine type
- Special Machine
- Manufacturer
- KÜBA
- Type
- SGBE 33
- Year of manufacture
- ca. 2002
- Control type
- other
- Country of origin
- Germany
Technical data
- temperature
- -5 bis +12 °C
- wall thickness max.
- 80 mm
- dimension L-W-H
- m
- dimensions L x W x H
- ca. 14,3 x 4,4 x 3,6 m
Additional description

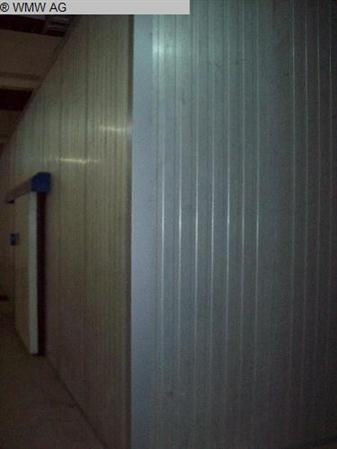

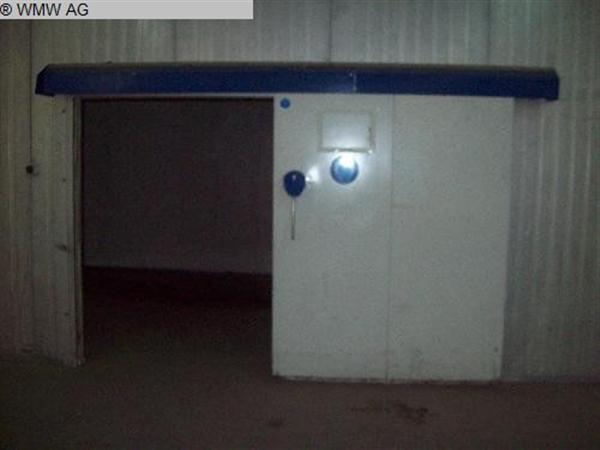

Cold Storage Plant with wall thickness of 80mm
- thermal insulation PU Foam, accurate dimensions and foamed without Chlorofluorocarbon / CFC
- thermal conductivity group 025 according DIN 4108
- K results 0,25 W/m² (Kelvin)

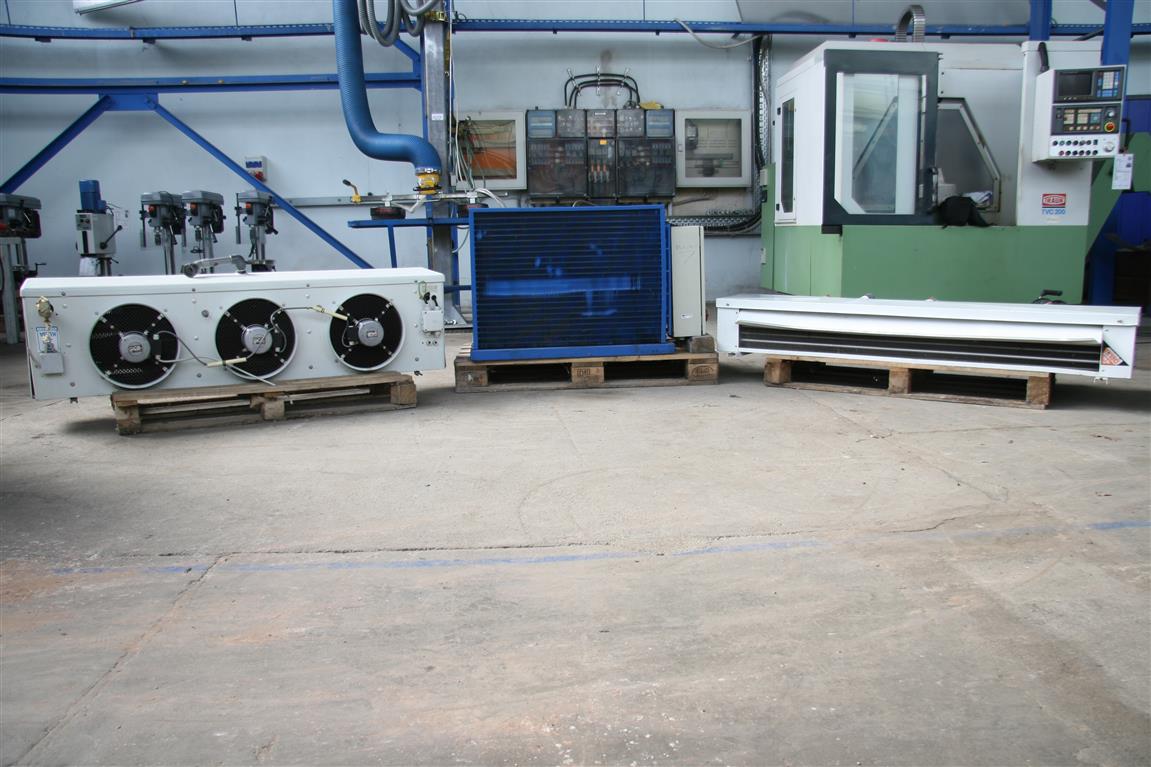

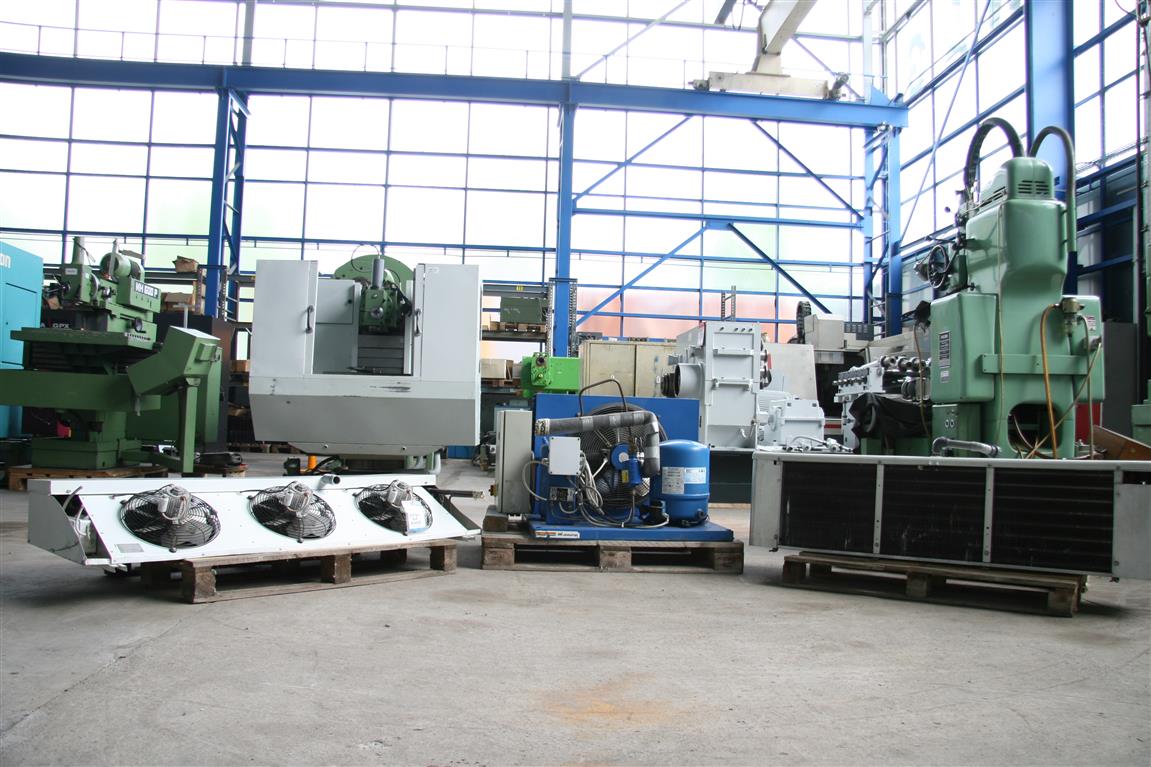

equipment:
- 2x vaporizer: 1x manufacturer: DELTA Technics / Typ: MCL-72E / Serial-Nr. 1000
1x manufacturer: KÜBA / Typ: SGBE 33 / Serial-Nr. 2015.33
- 2x thermostatic expansion valves
- 1x coolant aggregate:
manufacturer: Maneurop (France) / type: GM80-4ET / Serial-No: 81424
refrigerant: R404a / current: 380V - 50Hz
compressor type: MT81HP4AVE / Serial-Nr. NJ103638199
- electric cabinet
- internal illumination
A installation and dismantling of the cold storage is various times possible.
The cold storage is momentarily stored dismantled.
Terms of storage and delivery
- Freight base
- EXW, free on truck
- Storage location
- Leipzig 1 Außenbereich
- Delivery time
- on request
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
