Offer

stock-no.:
1500508
type of machine:
Coordinate Measuring Machine
make:
Werth
model:
Flatscope 400x200 2D
year of manufacture:
2007
type of control:
other
country of origin:
Germany
freight basis:
EXW, free on truck unpacked
storage location:
Leipzig 5
delivery time:
immediately
price:
on request

technical details

x-travel:
400 mm
y-travel:
200 mm
z-travel:
100 mm
table surface area:
410 x 300 mm
voltage:
230 / 50 V / Hz
total power requirement:
ca. 1 kVA
machine weight approx.:
t
dimension machine approx.LxWxH:
m

additional information

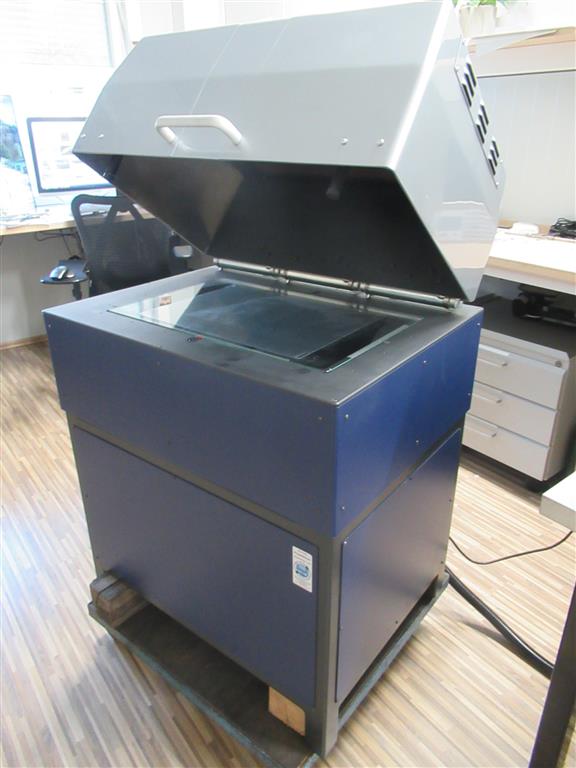

2D Scanner for flat materials

Application:
Measurement of basic geometric elements of workpieces, carryover for adjustment/alignment with CAD drawings.
The Z-axis is the max. height of the workpiece.
Drive of the X/X and Z axes via ball screw drive with servo motor
Measuring system X/XZ-axis: incremental measuring rods resolution 0,1µm
Optics: 0.6 - 6.8 zoom range
Camera: high resolution CCD-SW camera
Illumination: transmitted light and bright and dark field tube

Equipment:

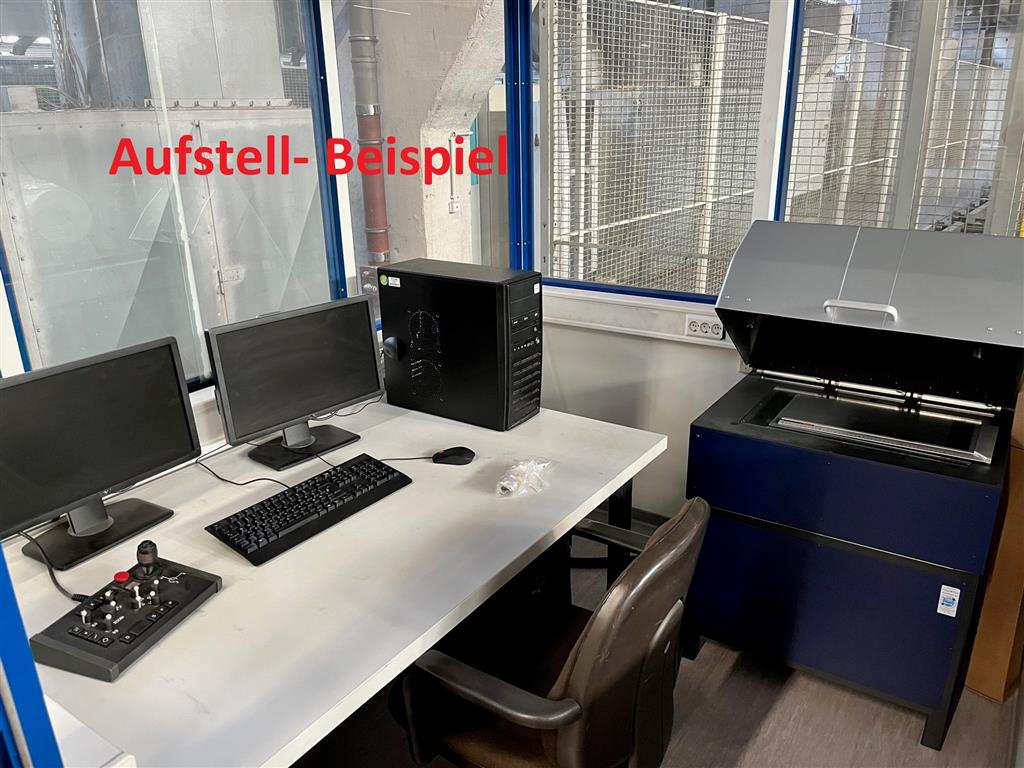

Hand control, keyboard, 2x monitors, computer "Werth".
