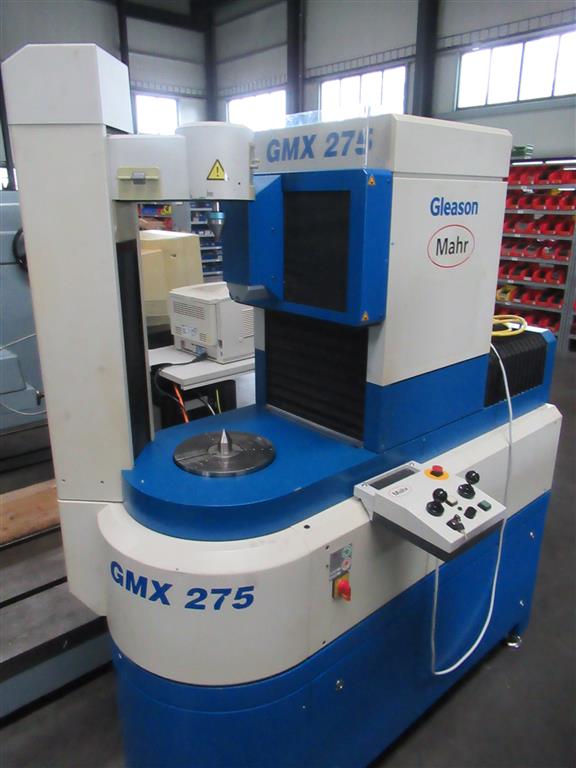

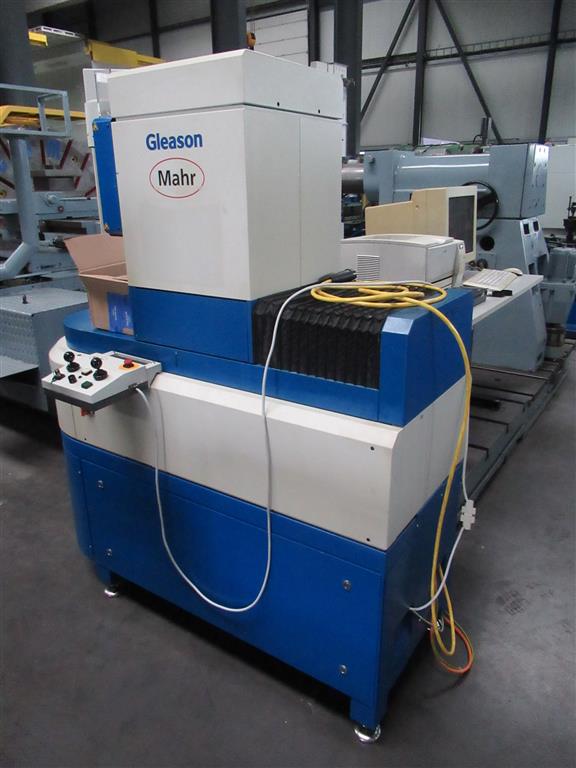

Gear Testing MachineGear Testing Machine Gleason-Mahr GMX 275

Gear Testing Machine Gleason-Mahr GMX 275Gear Testing Machine Gleason-Mahr GMX 275Gear Testing Machine Gleason-Mahr GMX 275Gear Testing Machine Gleason-Mahr GMX 275Gear Testing Machine Gleason-Mahr GMX 275Gear Testing Machine Gleason-Mahr GMX 275Gear Testing Machine Gleason-Mahr GMX 275Gear Testing Machine Gleason-Mahr GMX 275Gear Testing Machine Gleason-Mahr GMX 275

Offer

stock-no.:
1500073
type of machine:
Gear Testing Machine
make:
Gleason-Mahr
model:
GMX 275
year of manufacture:
2014
type of control:
other
country of origin:
Germany
freight basis:
EXW, free on truck
storage location:
Leipzig 5
delivery time:
on request
price:
on request

technical details

x-travel:
180 mm
y-travel:
150 mm
z-travel:
320 mm
c-axis:
360°
machine weight approx.:
0,6 t
dimension machine approx.LxWxH:
1,55 x 0,60 x 2,0 m

additional information

Application: fully automatic controlled measuring device for measuring cylindrical and bevel gears as well as gear cutting tools.

Inspection of gears e.g.:
- involute spur gears with straight, helical or conical teeth
- profile standards
- Flank line standard
- Worm and bevel gears
- Gear cutting tools such as shaving gears and helical cutters
max. length of test pieces 450mm; max. Ø 275mm; max. throat 137mm; max. weight 100kg

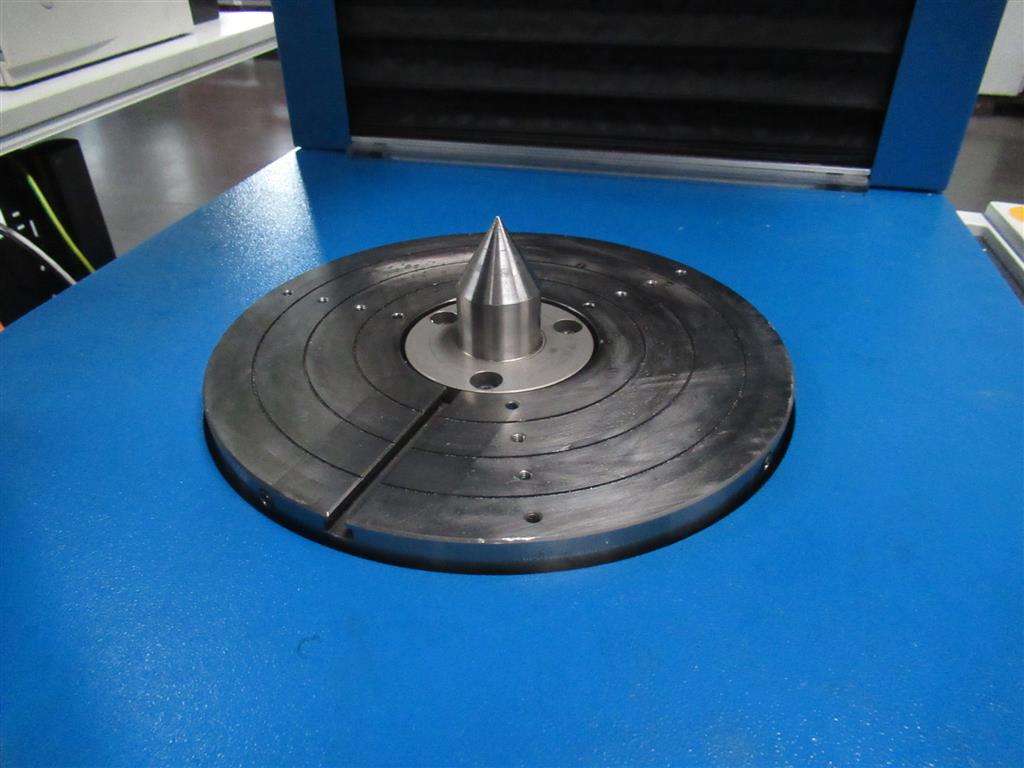

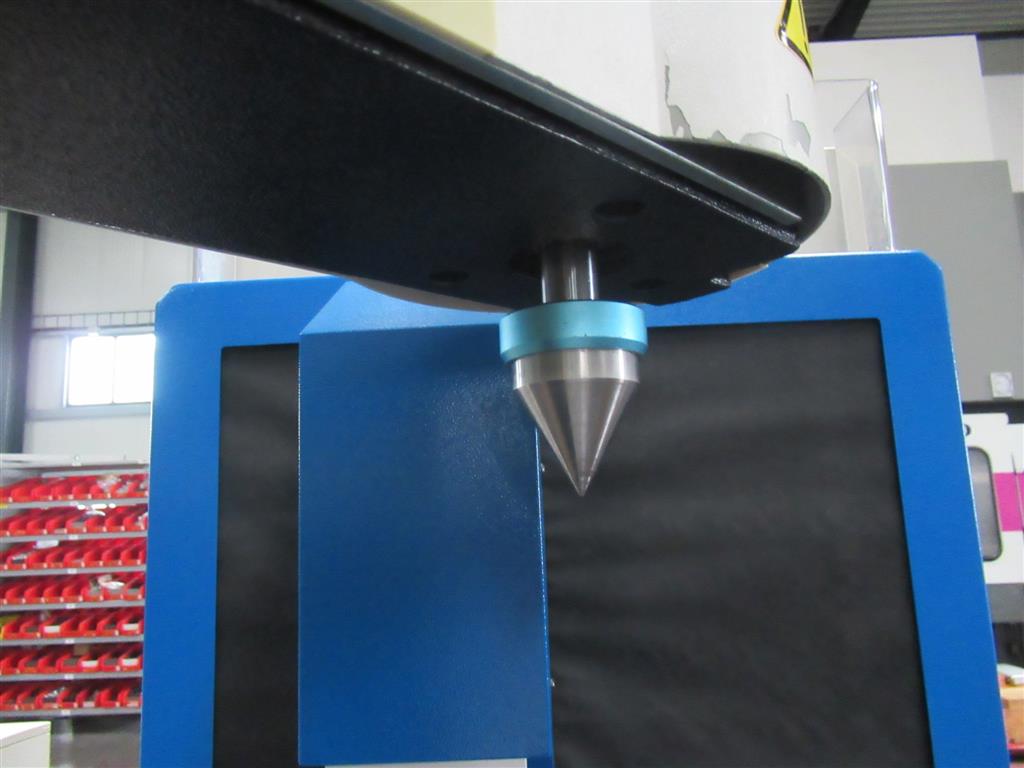

C-axis is the rotary table, Ø 240mm, fixed clamping tip, with T-slot according to DIN 650, speed measuring = 0,1 - 120°/sec and speed positioning = 0,1 - 180°/sec
Measuring is done with a 3D probe
Equipment:

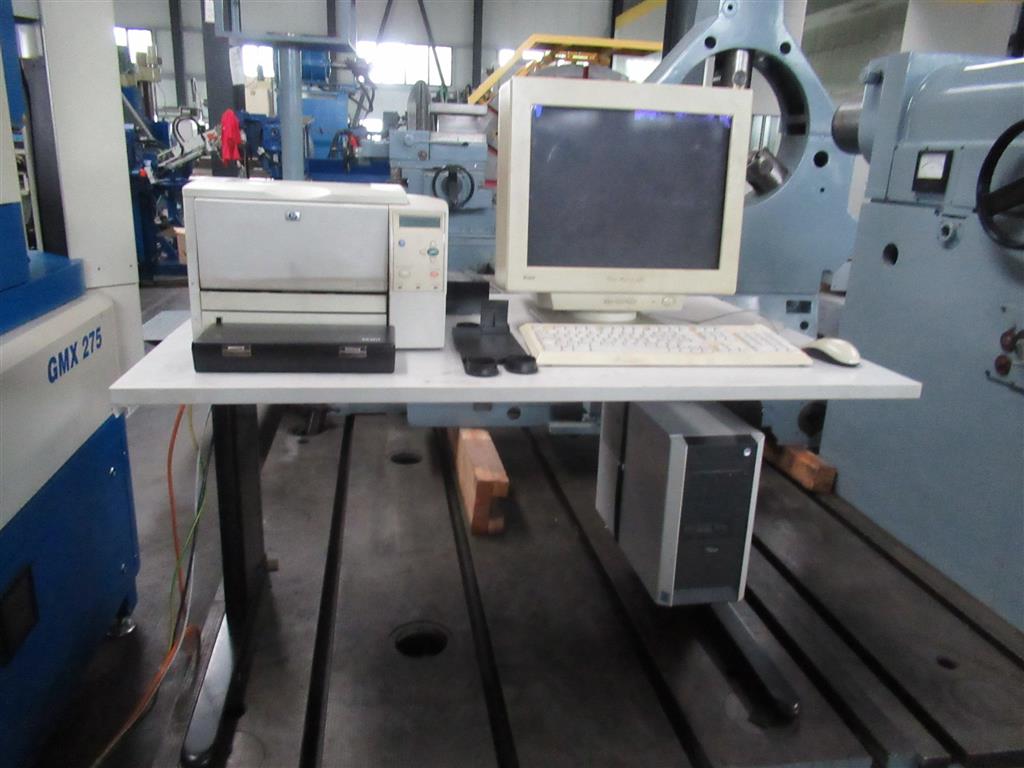

Computer Fijutsu-Siemens
monitor
Printer hp laserjet 2300d
accessories:

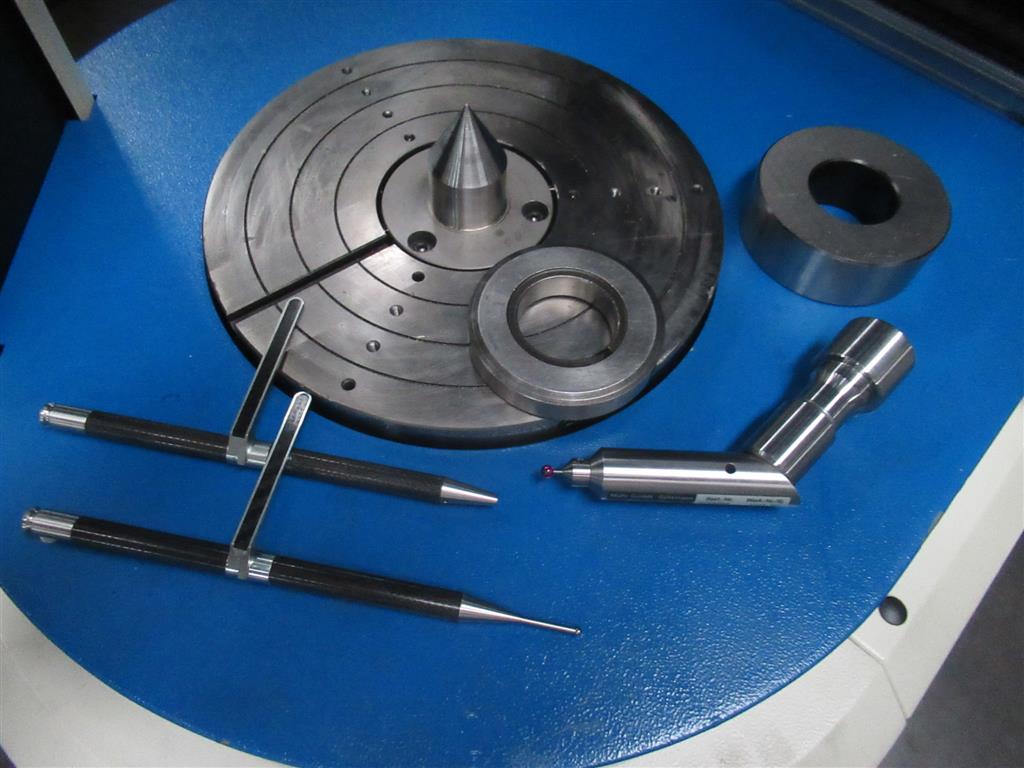

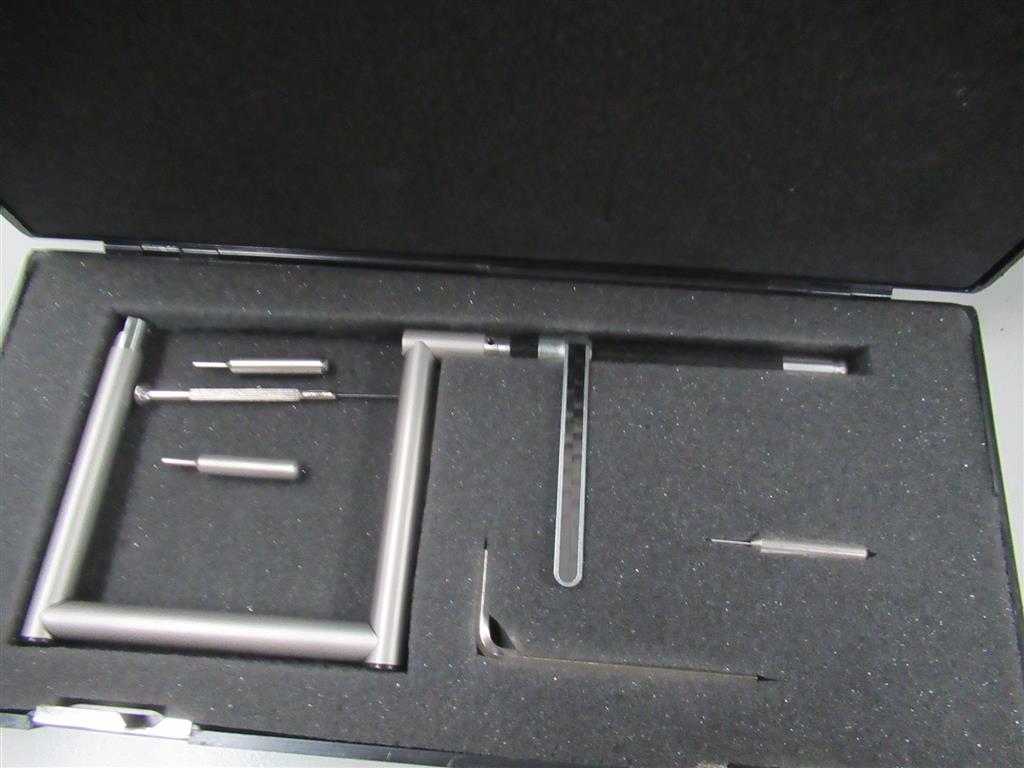

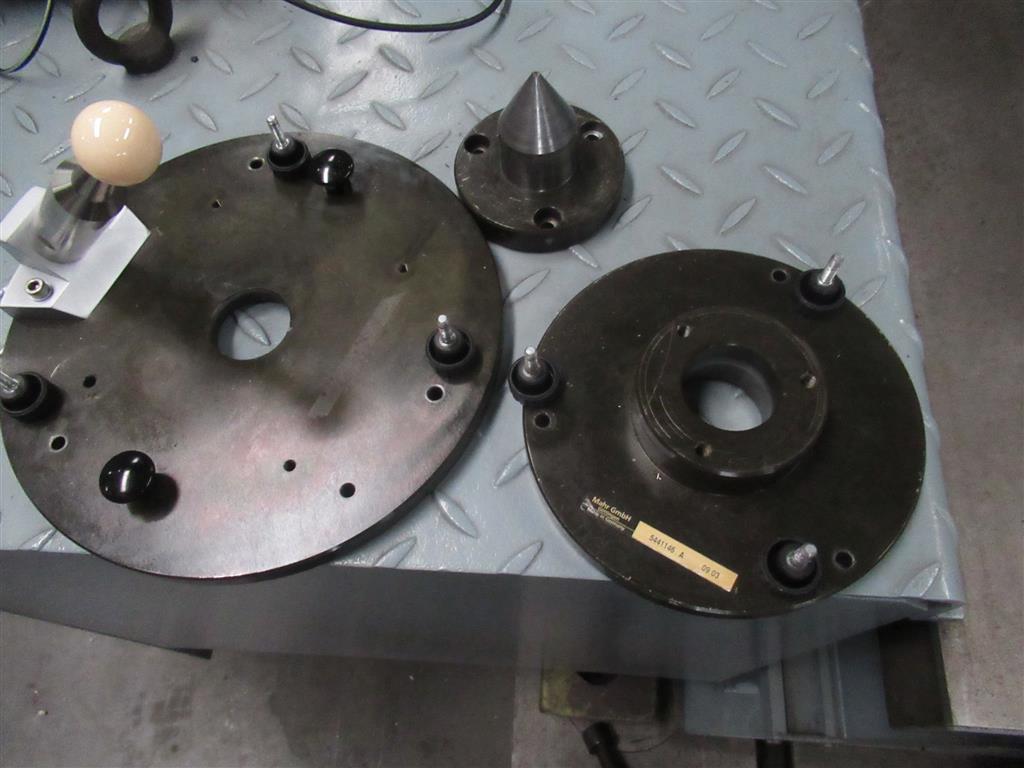

button set mahr and div. tools
