Emergency Generator (1201700)

description

1201700
Machine Type:
Emergency Generator
Make:
FG Wilson
Type:
P16.5-6S
YOM:
2013
Control:
conventional
Origin:
Ireland
freight basis:
EXW, FOT
Storage Location:
Leipzig 5
Delivery Time:
immediately
Price:
on request
Technical Details



technical details

Rated capacity:

16 kVA

Rated Current:
standby: 72 A
rated Voltage:
230 V
rated frequency:
50 Hz
Rpm:
Motor: 1500 rpm
weight approx..:
0,72 t
required space approx.:
1,7 x 0,9 x 1,3 m

Engine:

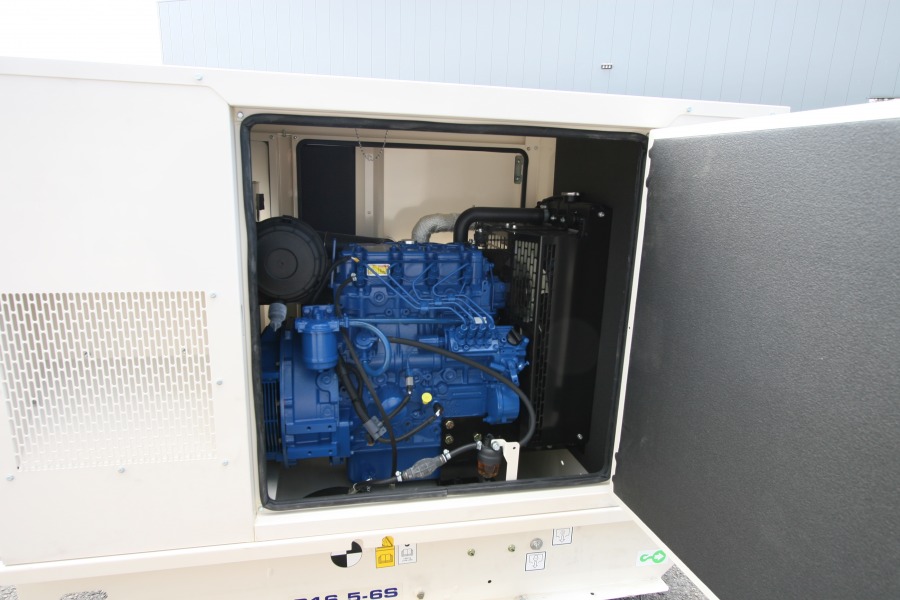

Perkins diesel; type 404D-22G; 4 cylinders; speed 3,000 rpm; water-cooled; battery 12 VDC-NEG
Generator:
230V, 1 phase; 72 A; protection class IP 23; speed 1.500 rpm; excitation voltage 20,6V and excitation current 1,68A; insulation class H
Ambient temperature: +25°C
