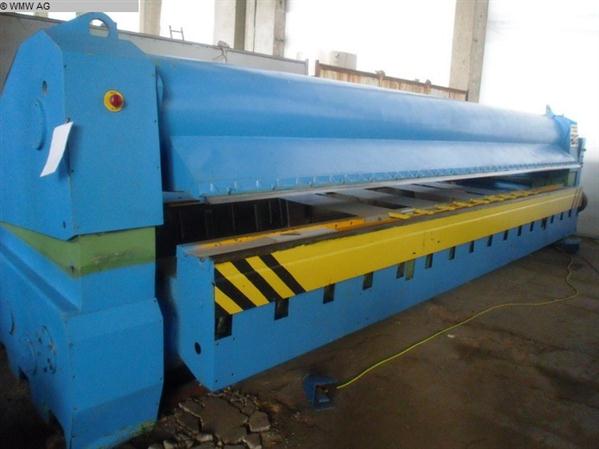

GRIEBEL SBS 6000 x 1,5
Folding Machine | Stock number: 0100119
Unfortunately, the machine has already been sold.
Machine data
- Machine type
- Folding Machine
- Manufacturer
- GRIEBEL
- Type
- SBS 6000 x 1,5
- Year of manufacture
- 1976
- Control type
- conventional
- Country of origin
- Germany
Technical data
- plate width
- 6000 mm
- plate thickness
- Alu 2 mm
- distance between columns
- 6530 mm
- plate thickness
- steel 1,5 mm
- stroke adjustment
- Oberwange:motorisch mm
- stroke adjustment
- Unterwange: nicht mögl. mm
- table height over floor
- 880 mm
- table width
- 290 mm
- bending angle max.
- Unterw. ca.0-230 °
- bending angle max.
- ca. 145 °
- back gauge - adjustable
- ca. 1100 mm
- total power requirement
- 10 kW
- weight of the machine ca.
- 9,6 t
- space requirements approx. LxWxH
- 8,0x2,1x2,0 m
Additional description
This machine is a combination of a folding machine and a plate shear.
The plate shear function is available on the machine, but has to be upgraded by the customer. (machine is pre-equipped for a plate shear function)
further technical details:
- back gauge adjustment travel approx. 1100mm, electromechanic
- According to the manufacturer's documentation, swing bending or shearing is possible of:
-steel sheets of tensile strength 45Kg/mm² up to a thickness of 1.5 mm
-steel sheets of tensile strength 60Kg/mm² up to a thickness of 1 mm
-Aluminium sheets of usual quality (semi-hard) up to a thickness of 2 mm.
Machine can be demonstrated!
i.D.
Terms of storage and delivery
- Freight base
- EXW, free on truck unpacked
- Storage location
- Leipzig 2
- Delivery time
- immediately
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
