Machine data
- Machine type

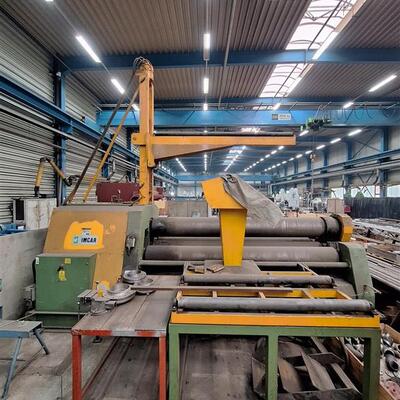

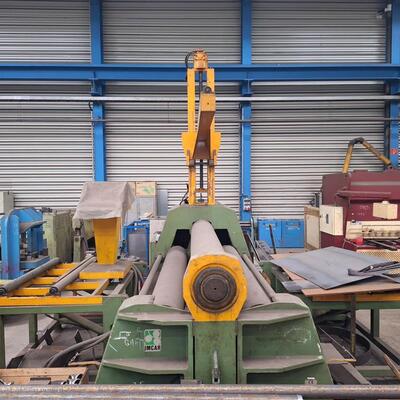

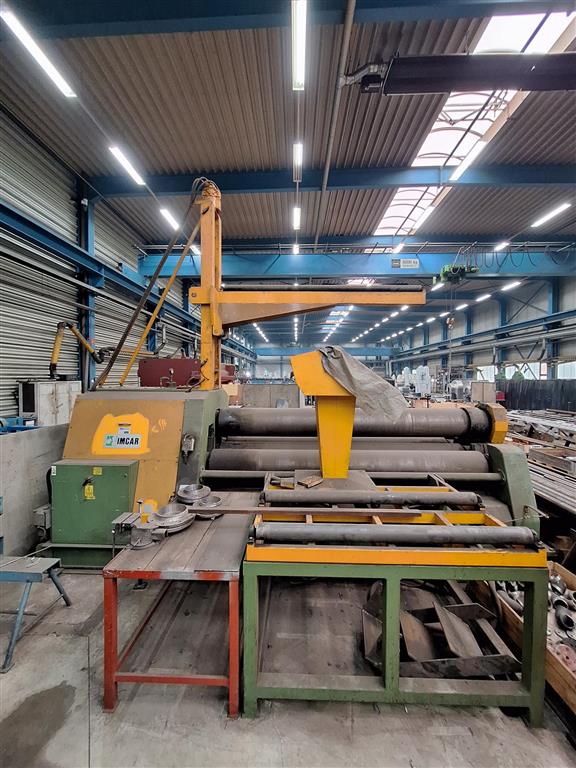

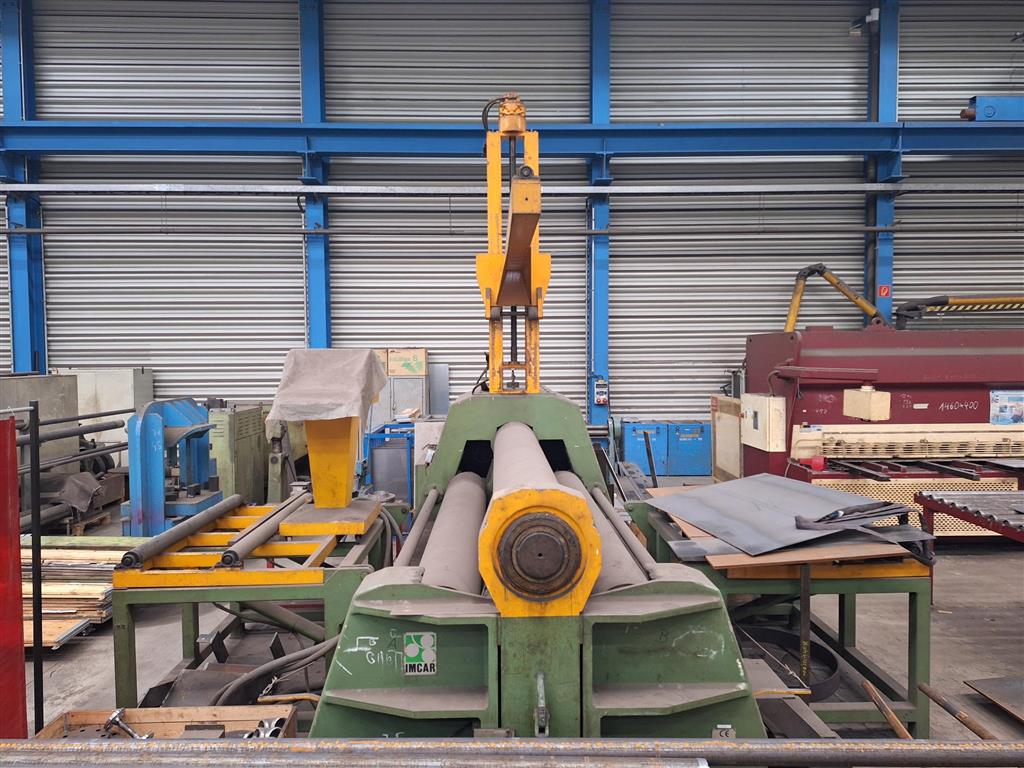

- Plate Bending Machine - 4 Rolls
- Manufacturer
- IMCAR
- Type
- 4RH 17/5
- Year of manufacture
- 1997
- Control type
- NC
- Country of origin
- Italy
Technical data
- sheet width
- 3050 mm
- plate thickness
- 16 mm
- pre-bending
- 12
- distance between columns
- 5200 mm
- roll dia. top roll
- 330 mm
- roll dia. bottom roll
- 360 mm
- Total power requirement
- 15 kW
- weight of the machine ca.
- 18,0 t
- dimension machine approx.LxWxH
- 5,3 x 2,4 x 2,0 m
Additional description
For cone bending, approximately 70% of the maximum plate thickness applicable to standard round rolling can be processed.
For truncated cone rolling, a maximum plate thickness of approx. 8 mm can be processed.
Terms of storage and delivery
- Freight base
- EXW, free on truck unpacked
- Storage location
- Leipzig 2
- Delivery time
- by arrangement
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
