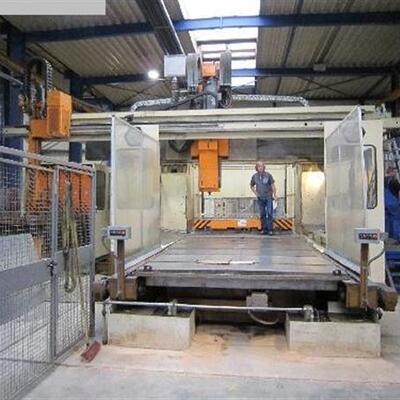

KOLB PFZ-2500
Portal - Machining Center | Stock number: 0200003
Unfortunately, the machine has already been sold.
Machine data
- Machine type
- Portal - Machining Center
- Manufacturer
- KOLB
- Type
- PFZ-2500
- Year of manufacture
- 2003
- Control type
- CNC
- Country of origin
- Germany
Technical data
- x-axis
- 5500 mm
- y-axis
- 4250 mm
- z-axis
- 1250 mm
- distance between columns
- 3300 mm
- spindle height over Table
- max. 1500 mm
- clamping surface area
- 4500x2500 mm
- T-slots
- 10 Stück H8
- T-slot - distance
- 200 mm
- workpiece weight
- 20 000 kg
- control
- Sinumeric 850 ME 150
- power capacity
- Hauptmotor:75 kW
- spindle turning speed range
- 5-2500 U/min
- spindle feeds - stepless
- 1-12000 mm/min
- tool taper
- ISO 50
- Tool changer
- ja
- toolpiece magazine: chain magazine
- 160+32 Stück
- rapid traverse in x-y-z axis
- 12 000 mm/min
- interface
- RS 232 C
- total power requirement
- kW
- weight of the machine ca.
- ca. 130 t
- space requirements approx. LxWxH
- 18,0x14,0x6,9 m
Additional description
Tool Taper with automatic tool retractable device & ejection device
equipment:
tool changer via casette magazine with tool double gripper (variable place coding)
1 palette / table
automatic milling head changer
vertical head 4x 90°
internal tool cooling (ITC)
swarf conveyor
linear measuring scale
electric hand wheel
Terms of storage and delivery
- Freight base
- From location
- Storage location
- Südharz-Thale
- Delivery time
- sofort
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
