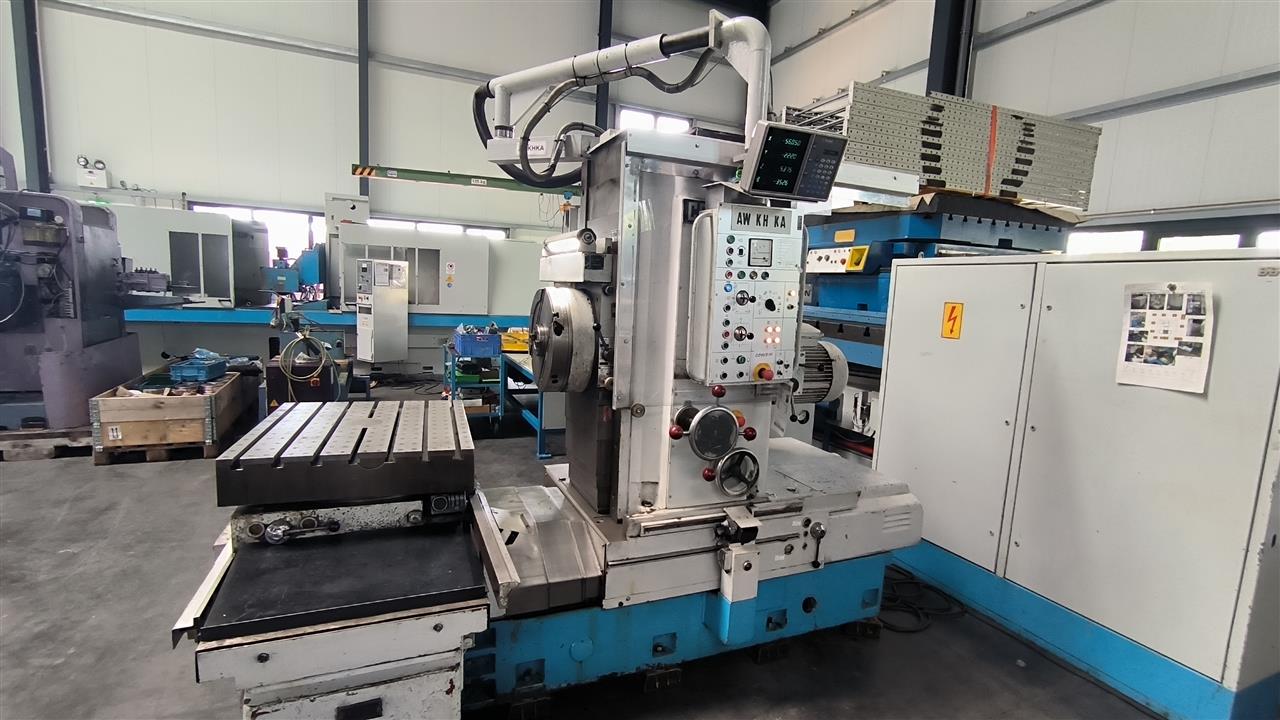

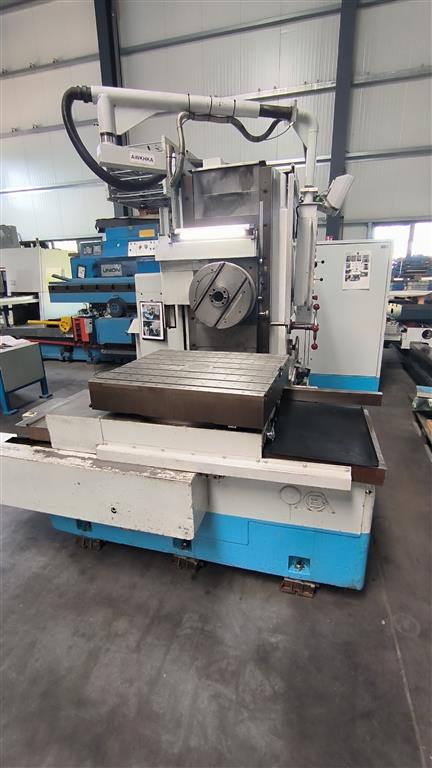

Machine data
- Machine type
- Drilling and Milling M/C
- Manufacturer
- COLLET-ENGELHARTD
- Type
- Minor
- Year of manufacture
- 1971
- Control type
- conventional
- Country of origin
- Germany
Technical data
- bore capacity in steel (diameter)
- mm
- x-travel
- mm
- y-travel
- mm
- max. diameter of face turning
- ca. Ø 900 mm
- revolution per minute
- Spindel: 12,5 - 1700 / 24 step U/min
- revolution per minute
- Planscheibe: 8 - 190 / 12 step U/min
- feed steps
- Planscheibe: 0,03 - 3 / 17 step
- rapid traverse
- alle Bewegungen: 2000 / 4000 m/min
- tool taper
- der Arbeitsspindel: ISO 50 / SK50
- table clamping surface:
- 700 x 800
- table rotating
- 360° Grad
- drill table adjustment
- quer: 800 mm
- max. table load
- 1500 kg
- total power requirement
- ca. 11,0 kW
- weight of the machine ca.
- 7800 kg
- dimension machine approx.LxWxH
- 3,0 x 2,0 x 2,6 m
- dimensions electric cabinet
- 1800 x 400 x 1950 mm
Additional description
Ø of the face plate 420mm
Movement of the face slide 180mm
largest Ø during facing approx. 900mm
Longitudinal movement of the column 700mm
Vertical movement of the headstock 700mm
Feed drive of column, headstock and clamping table:
-for spindle operation=0,20 - 10 mm/rev with 34 speeds
-for operation with faceplate= 0,16 - 16 mm/rev with 17 speeds
Equipment:
optical fine measuring device/measuring system Heidenhain for axes X/Y/Z/C-table
hydraulics
machine feet/footplates
control panel with boom
Terms of storage and delivery
- Freight base
- EXW, free on truck unpacked
- Storage location
- Leipzig 5
- Delivery time
- on request
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
