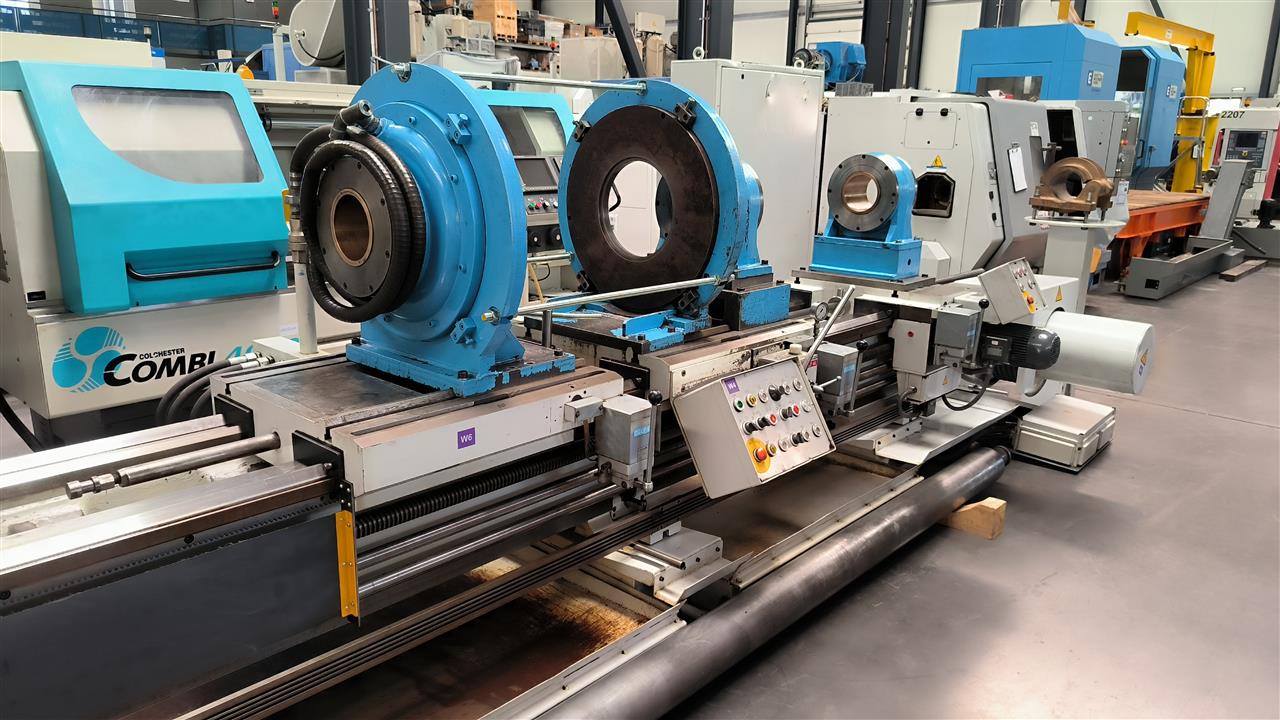

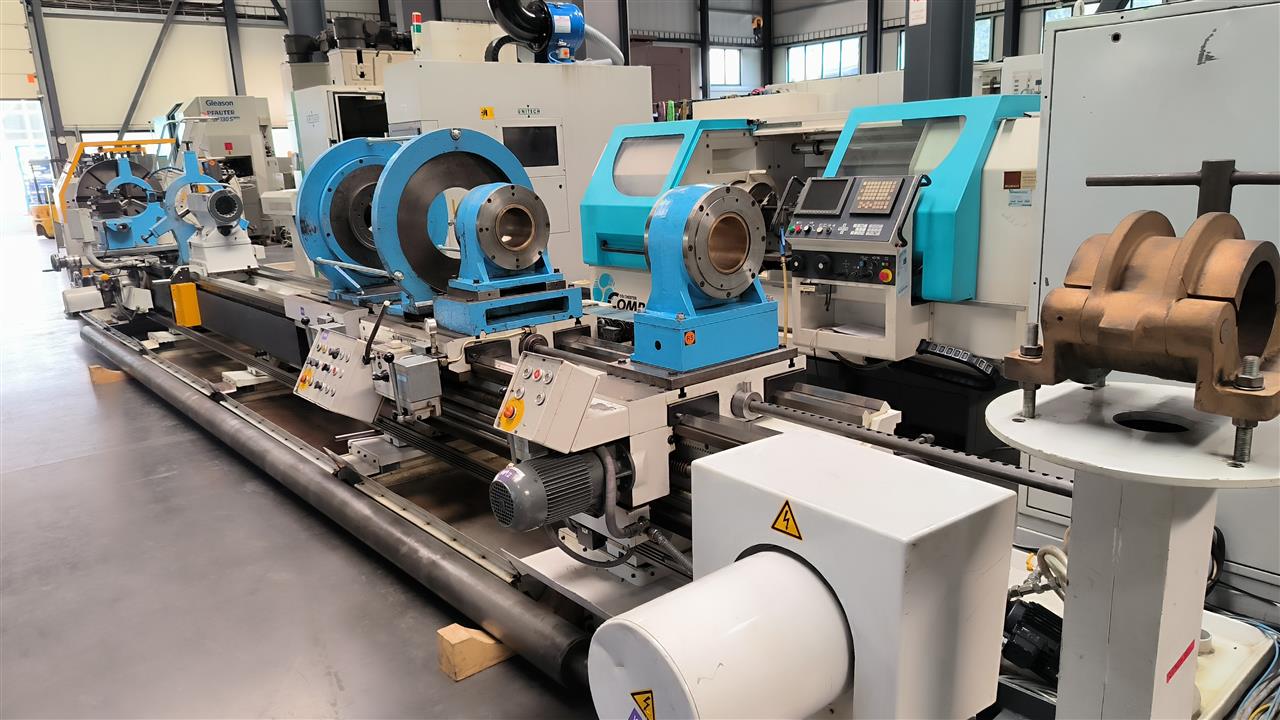

Machine data
- Machine type
- Deephole Boring Machine
- Manufacturer
- BOEHRINGER
- Type
- V 800 B
- Year of manufacture
- 1976/2007
- Control type
- conventional
- Country of origin
- Germany
Technical data
- x-Travel
- 530 mm
- table cross travel (Y-axis)
- 5200 mm
- w-axis
- - mm
- drilling depth in one stroke
- ca. 4000 mm
- metrical thread cutting
- 0,25 -560 M
- total power requirement
- 35 kW
- bed width
- 560 mm
- centre distance
- 5700 mm
- centre height
- 500 mm
- swing diameter over bed
- 1000 mm
- turning diameter over support
- 800 mm
- range of feed in x - axis
- 0,0063 - 4,0 mm/U
- range of feed in y - axis
- 0,0063 - 4,0 mm/U
- spindle bore
- 135 mm
- range drill spindle revolution per minute
- max.1400 U/min
- range drill spindle revolution per minute
- min. 7,1 U/min
- speed steps work spindle
- 24 steps
- tailstock taper MT
- MK 6
- tailstock quill stroke
- 300 mm
- dimension machine approx.LxWxH
- 12,0 x 2,5 x 2,0 m
Additional description

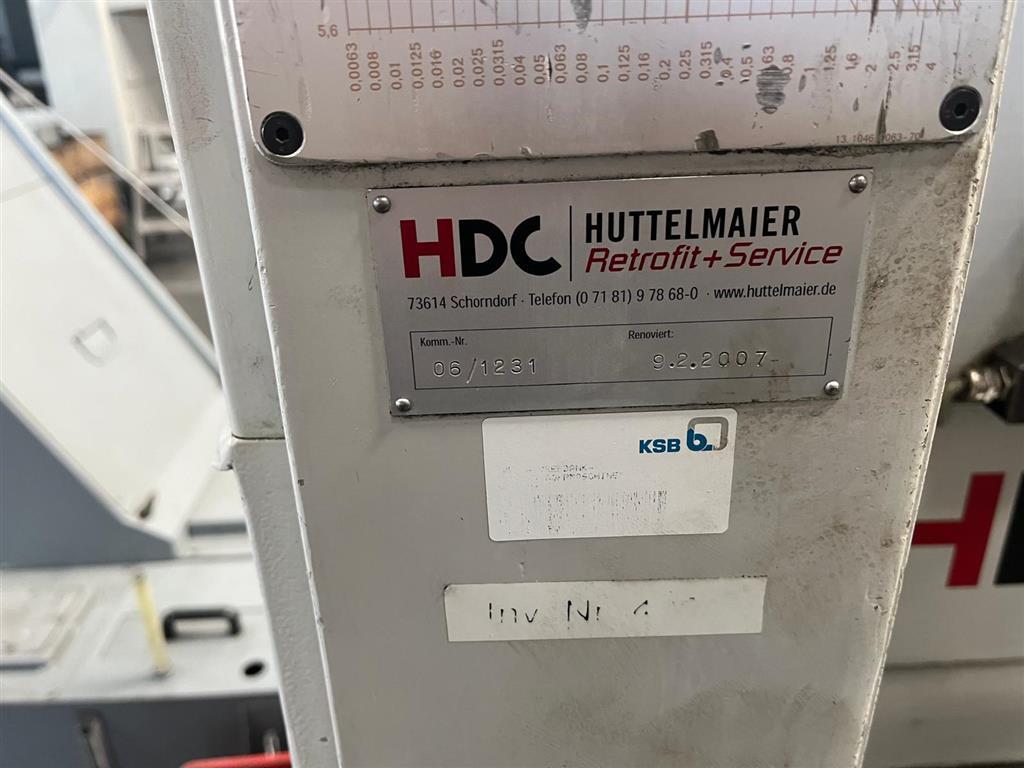

The machine was retrofitted/overhauled in 2007.
Special-purpose machine suitable for deep-hole drilling and/or heavy-duty turning operations.
Inch thread range: 1/16 – 80 TPI
3-jaw chuck, chuck diameter: Ø 315 mm
2 steady rests
Faceplate: Ø 800 mm without jaws
PARAT quick-change tool holder, Type 4 3 pices
Coolant system
HEIDENHAIN PT 880 4-axis DRO
Boring bar for deep-hole drilling
Drilling head for deep-hole drilling
Infinitely variable boring-bar feed
Various accessories
Terms of storage and delivery
- Freight base
- EXW, free on truck unpacked
- Storage location
- Leipzig 5
- Delivery time
- by arrangement
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
