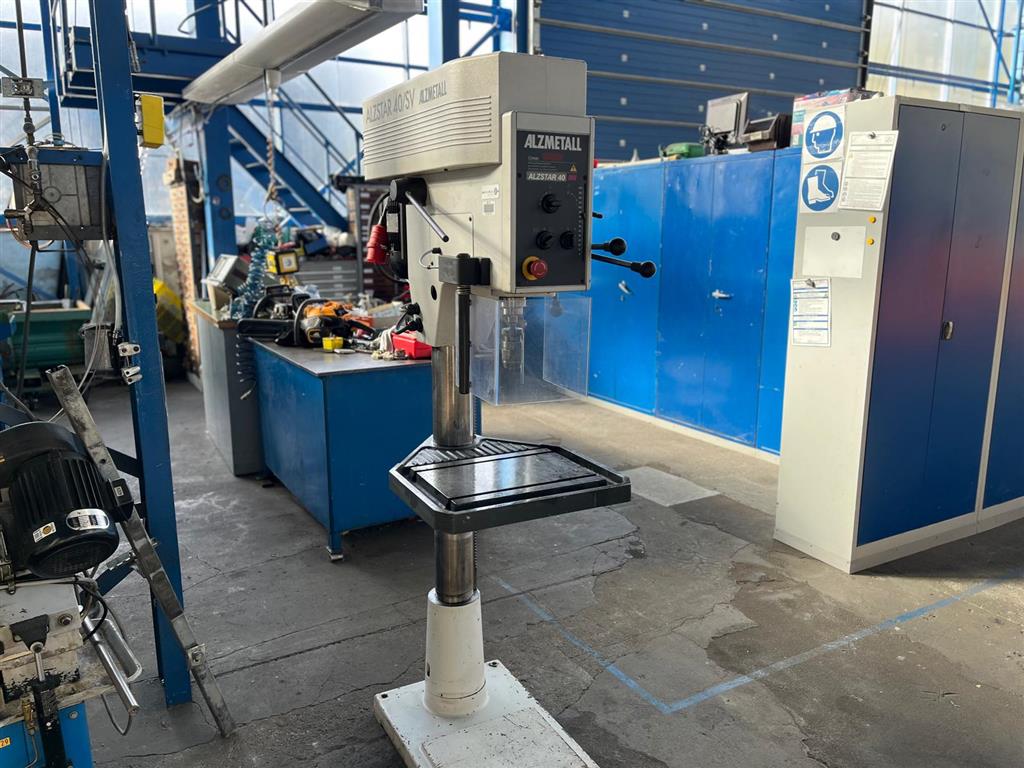

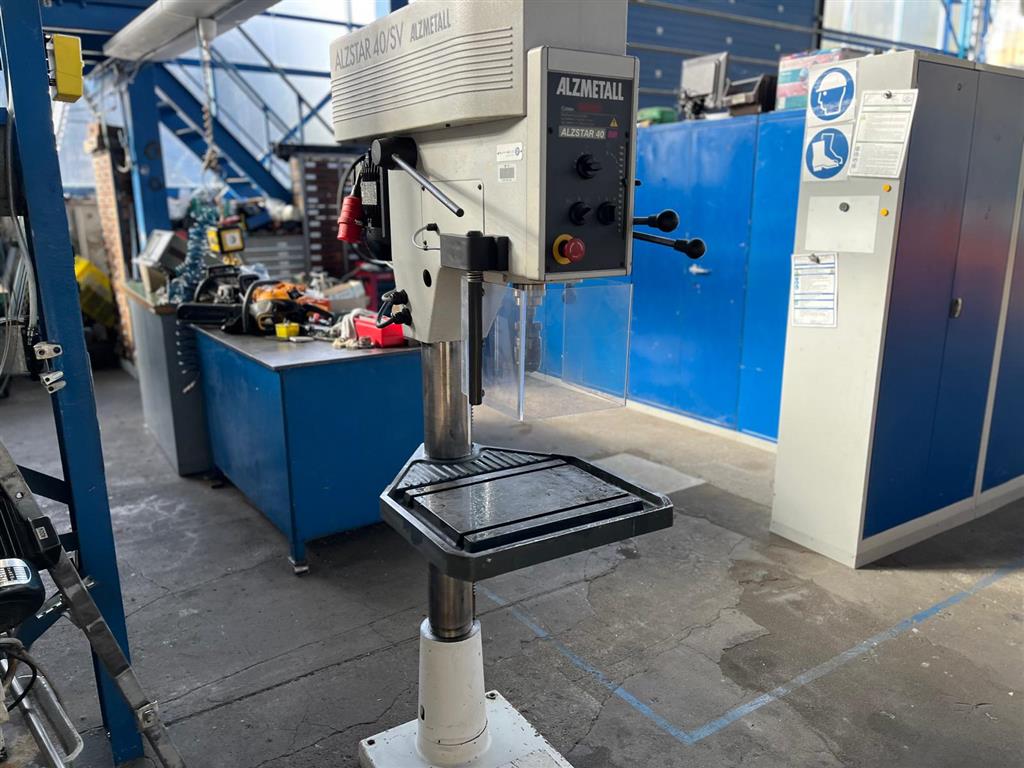

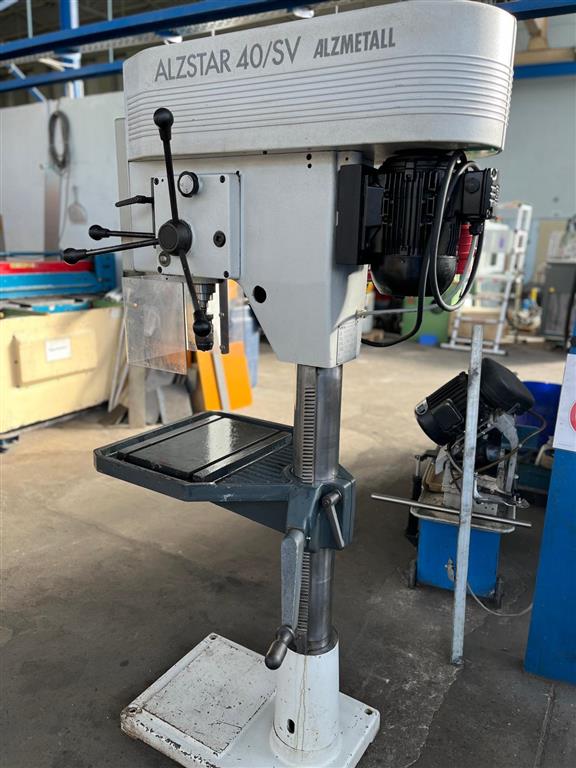

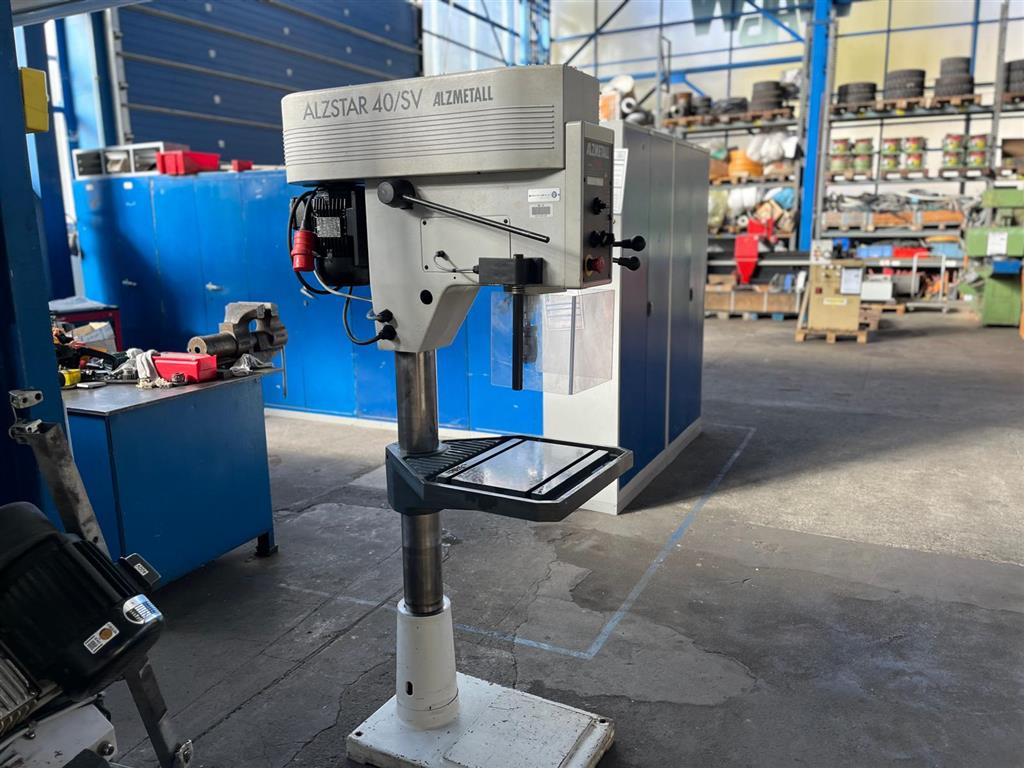

Machine data
- Machine type

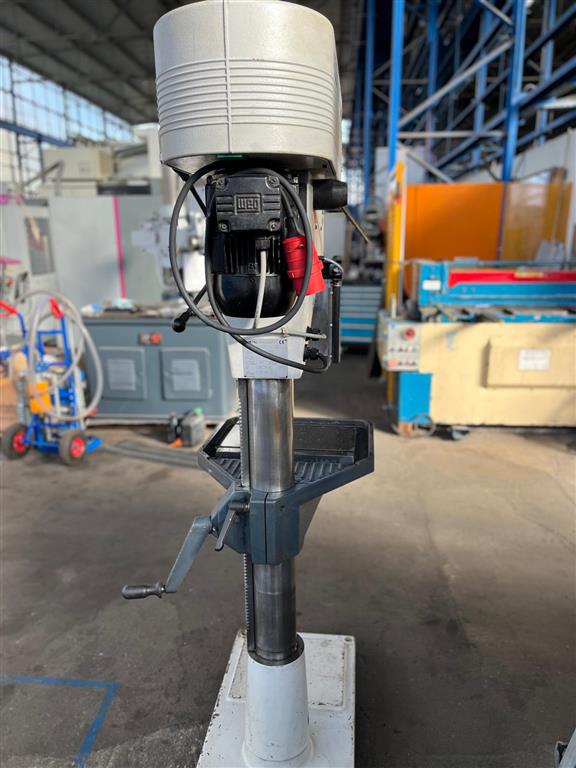

- Pillar Drilling Machine
- Manufacturer
- ALZMETALL
- Type
- Alzstar 40 SV
- Year of manufacture
- 2008
- Control type
- conventional
- Country of origin
- Germany
Technical data
- bore capacity in steel (diameter)
- 40 mm
- throat
- 293 mm
- bore stroke
- 120 mm
- thread cutting up to max.
- Stahl M24
- thread cutting up to max.
- Guss M30
- drill capacity in cast iron
- 45 mm
- spindle taper MT
- MK3
- spindle speed:
- 160-2250 Stepless U/min
- feed
- 0,10 +0,20 automatic mm/U
- Distance spindle/table max.
- 117/701 mm
- table clamping surface:
- 514 x 360 mm
- column diameter
- 115 mm
- total power requirement
- 1,9 kW
- weight of the machine ca.
- 285 kg
- dimension machine approx.LxWxH
- 0,7 x 1,8 x 1,8 m
Additional description
Terms of storage and delivery
- Freight base
- EXW, free on truck unpacked
- Storage location
- Leipzig 1
- Delivery time
- immediately
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
