Machine data
- Machine type
- Machining Center - Vertical
- Manufacturer
- DECKEL MAHO
- Type
- DMC 75 V linear
- Year of manufacture
- 2004
- Control type
- CNC
- Country of origin
- Germany
Technical data
- x-travel
- 750 mm
- y-travel
- 600 mm
- z-travel
- 560 mm

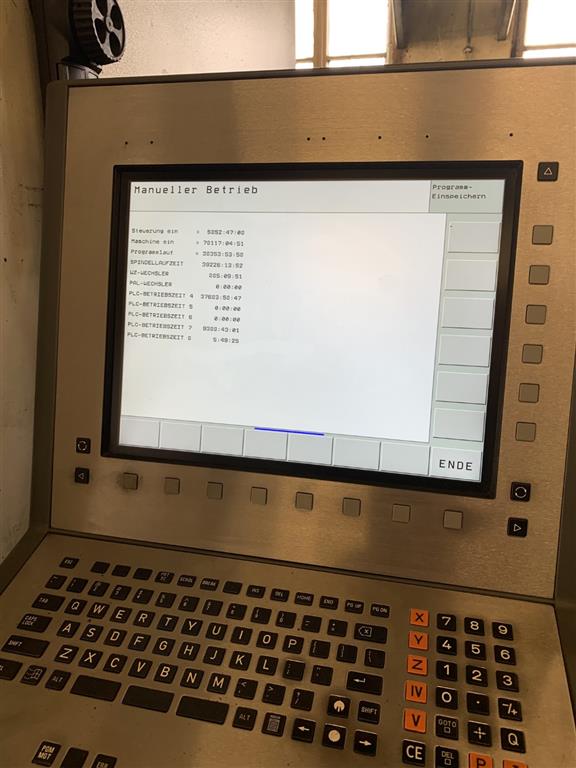

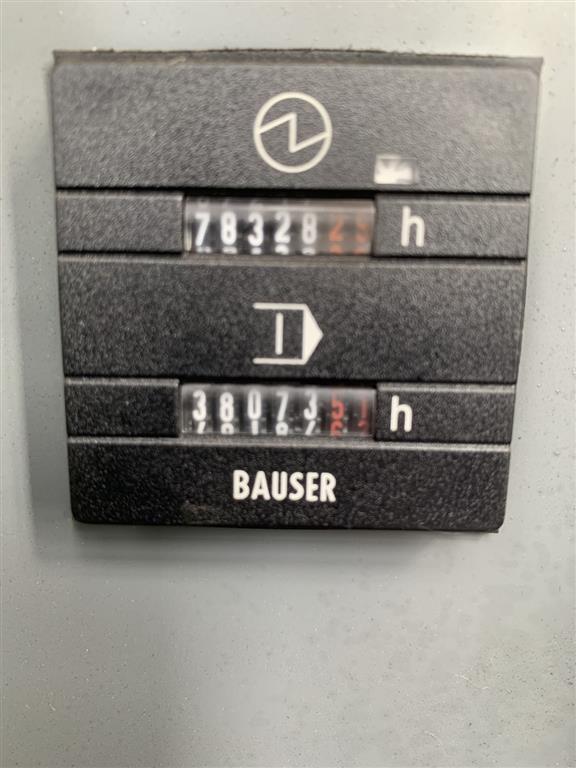

- switched on hours
- 78.145 h
- spindle hours
- 39228 h

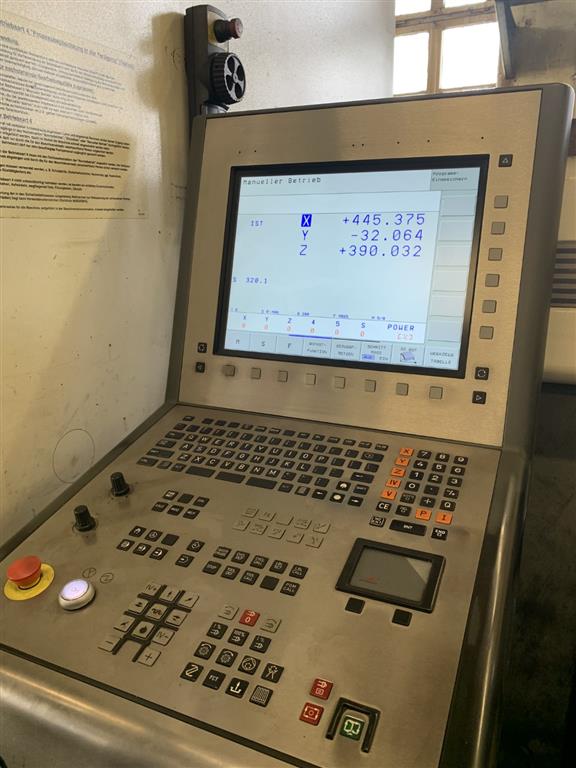

- control
- Heidenhain iTNC 530
- tool changer with
- 30 Plätze
- tool taper
- HSK-A 63
- Revolution per minute
- 1- 18.000 U/min.
- feed speeds infinitely variable
- 90 mm/min
- rapid traverse:
- 90 m/min

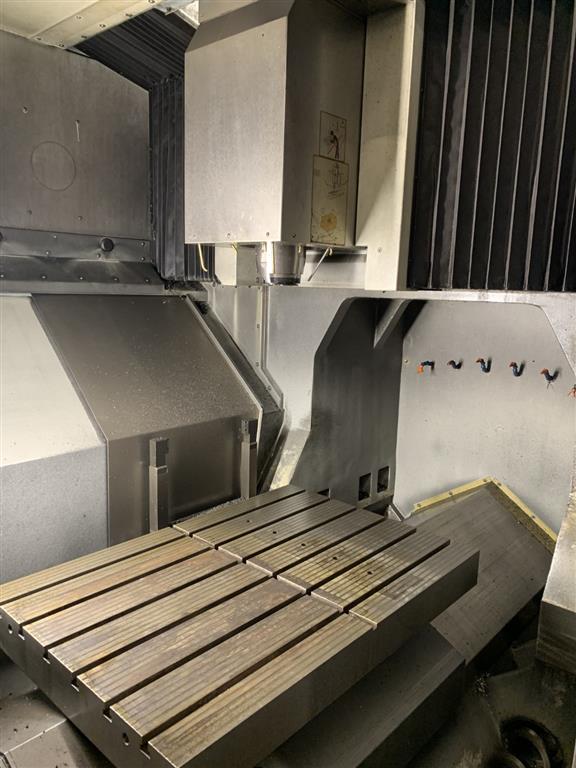

- table-size
- 950 x 650 mm
- table load capacity
- 1000 kg

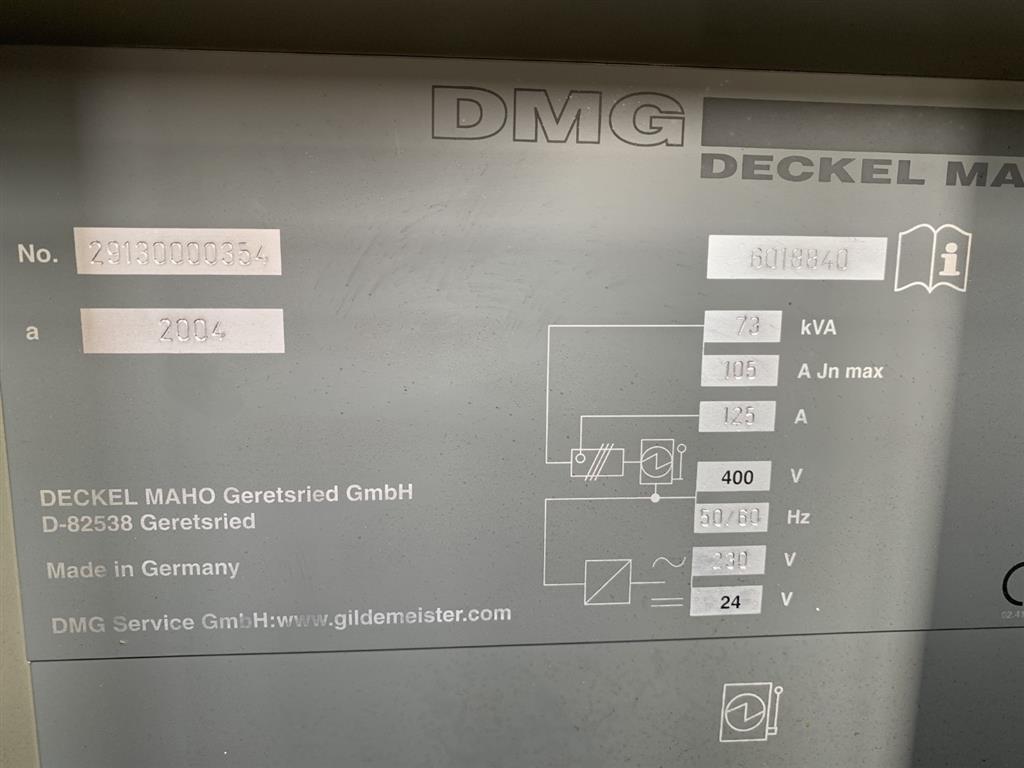

- total power requirement
- 73 kVA
- Weight approx.
- 11,0 t
- dimension machine approx.LxWxH
- 4,3 x 2,7 x 3,5 m
Additional description

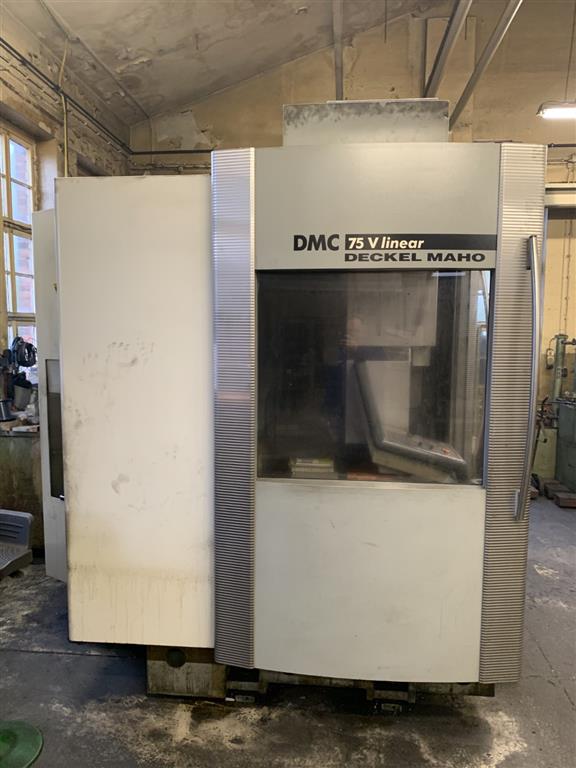

The DECKEL MAHO DMC 75 V linear is a highly precise vertical CNC machining center equipped with linear drive technology, making it ideal for 3-axis machining.
2x screw conveyors in combination with chip conveyor
BLUM tool measurement system
Handheld control panel
Terms of storage and delivery
- Freight base
- EXW, free on truck unpacked
- Storage location
- Leipzig 5
- Delivery time
- by arrangement
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
