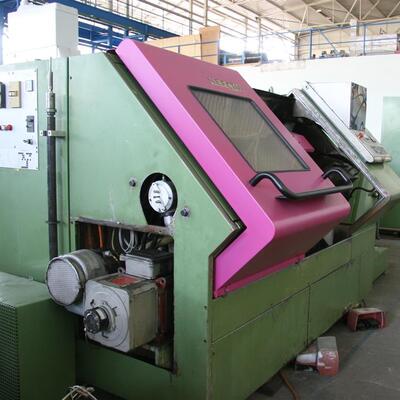

GILDEMEISTER N.E.F. CT 40
CNC Lathe - Inclined Bed Type | Stock number: 0300549
Unfortunately, the machine has already been sold.
Machine data
- Machine type
- CNC Lathe - Inclined Bed Type
- Manufacturer
- GILDEMEISTER
- Type
- N.E.F. CT 40
- Year of manufacture
- ca. 1986
- Control type
- CNC
- Country of origin
- Germany
Technical data
- turning diameter over bed
- 400 mm
- turning dia. over face-slide
- 225 mm
- turning length
- 600 mm
- center height over bed
- 260 mm
- cross movement
- x=260 mm
- longitudinal travel
- y=640 mm
- control
- EPL 1
- Number of working hours
- ca. 56.870 h
- spindle bore
- 38 mm
- tool turret
- 12-fach
- main spindle speeds:
- 20-4000 - stufenlos U/min
- total power requirement
- 22 kW
- weight of the machine ca.
- 3,4 t
- dimension machine approx.LxWxH
- 2,8x1,8x1,8 m
- dimension machine+swarf conveyor LxBxH
- 2,7x0,65x1,3 m
Additional description
equipment:
clamping chuck (dia.200mm)
tool holder manufacturer Sauter ( disc turret)
tailstock (MK4)
swarf conveyor manufacturer Allweiler AG
coolant device
6 pcs base plates
accessories: 2 foot control buttons for tailstock-and Chuck operating
copy of manual available
Machine can be demonstrated under power.
Terms of storage and delivery
- Freight base
- EXW -free on truck
- Storage location
- Leipzig 1
- Delivery time
- immediately
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
