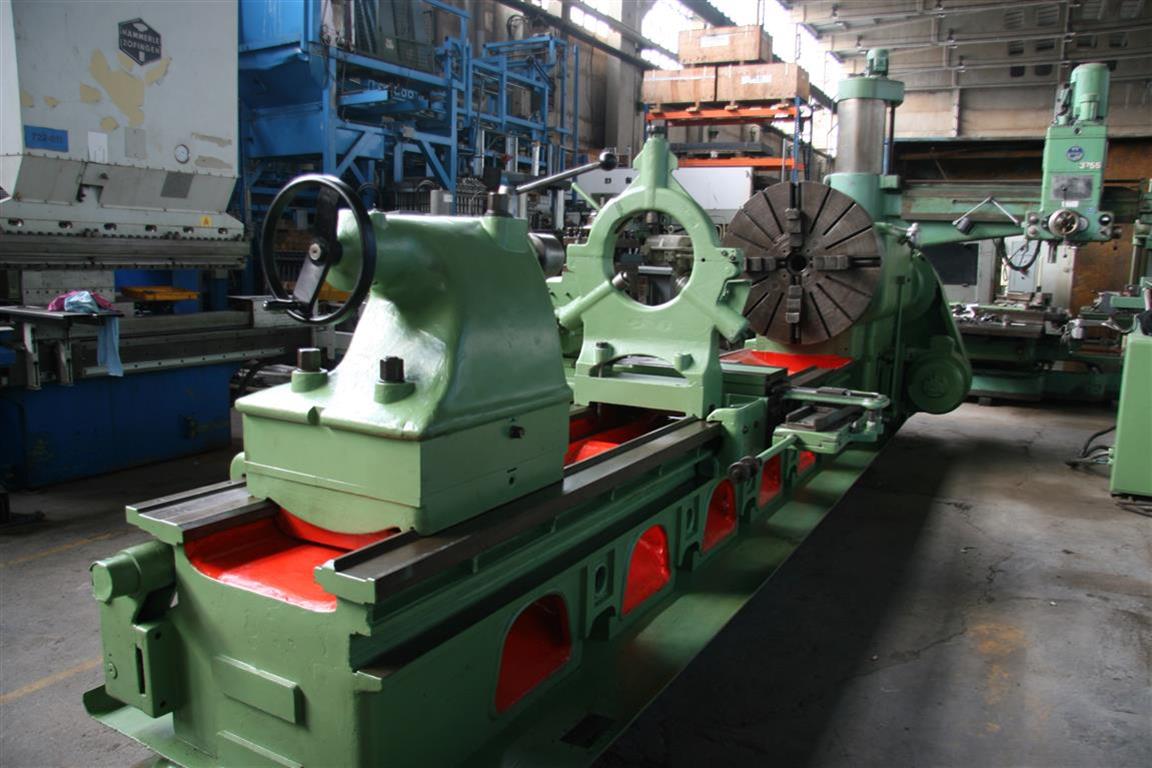

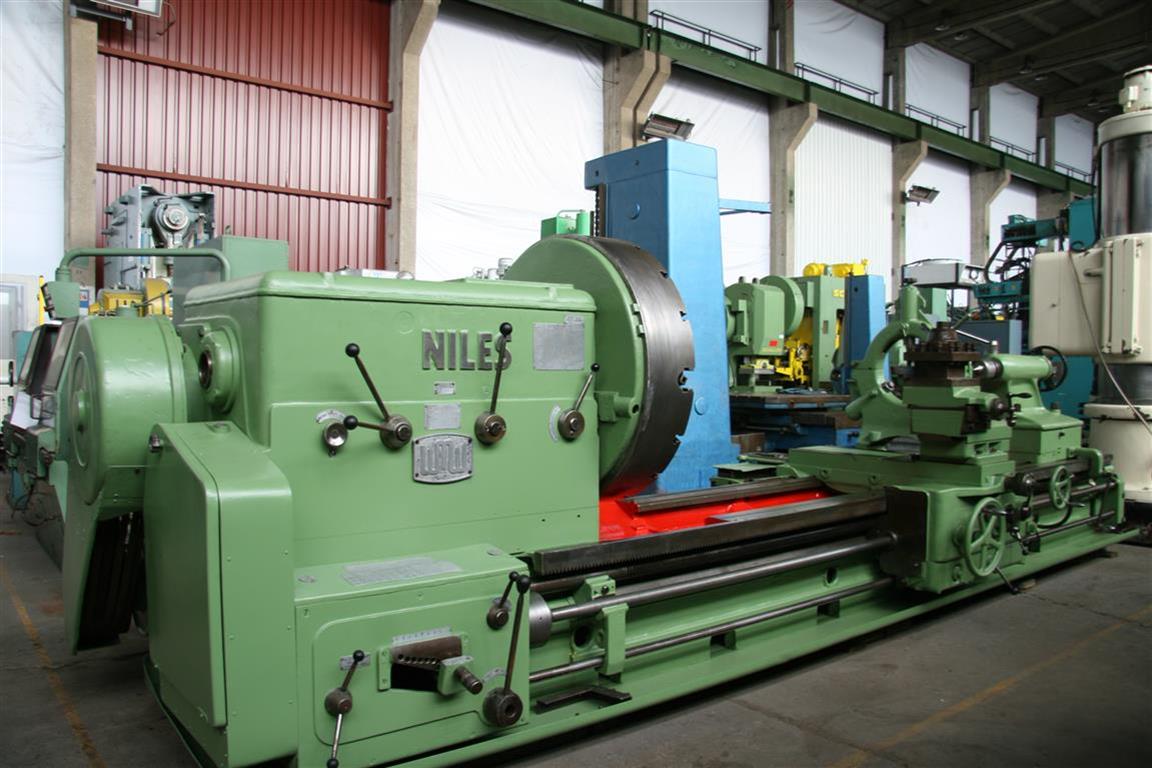

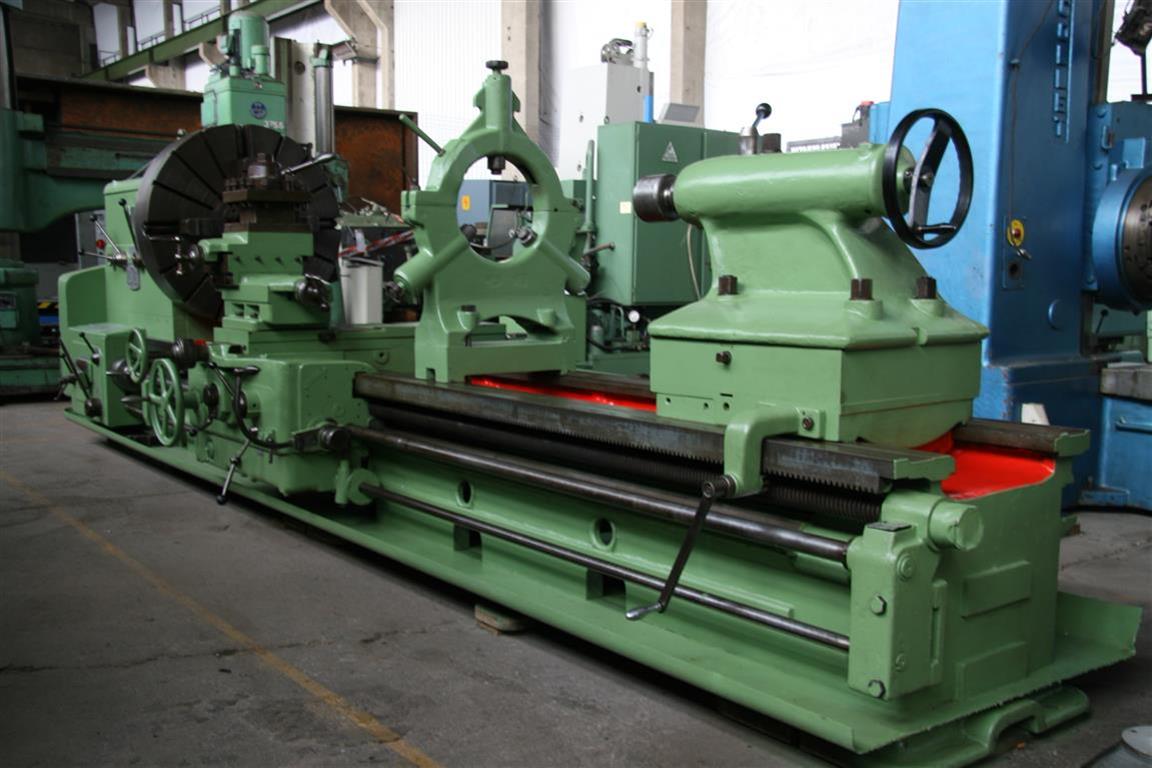

Machine data
- Machine type
- Center Lathe
- Manufacturer
- WMW-NILES
- Type
- DLZ 1200
- Year of manufacture
- 1952/2016
- Control type
- conventional
- Country of origin
- Germany
Technical data
- turning diameter over bed
- 1200 mm
- turning diameter over support
- 800 mm
- turning length
- 3200 mm
- length of gap
- 600 mm
- center height measured in bed
- 600 mm
- turning dia. in gap
- 600 mm
- spindle turning speed - continuous
- 4,6-545 / 22 steps U/min
- spindle passage
- 90 mm
- feed
- 1,4-510 m/min
- taper
- MK6
- total power requirement
- 15 kW
- weight of the machine ca.
- 10,0 t
- dimensions L x W x H
- 6,20x2,00x1,80 m
- dimensions electric cabinet LxWxH
- 0,55x0,33x1,0 m
Additional description
equipped with:

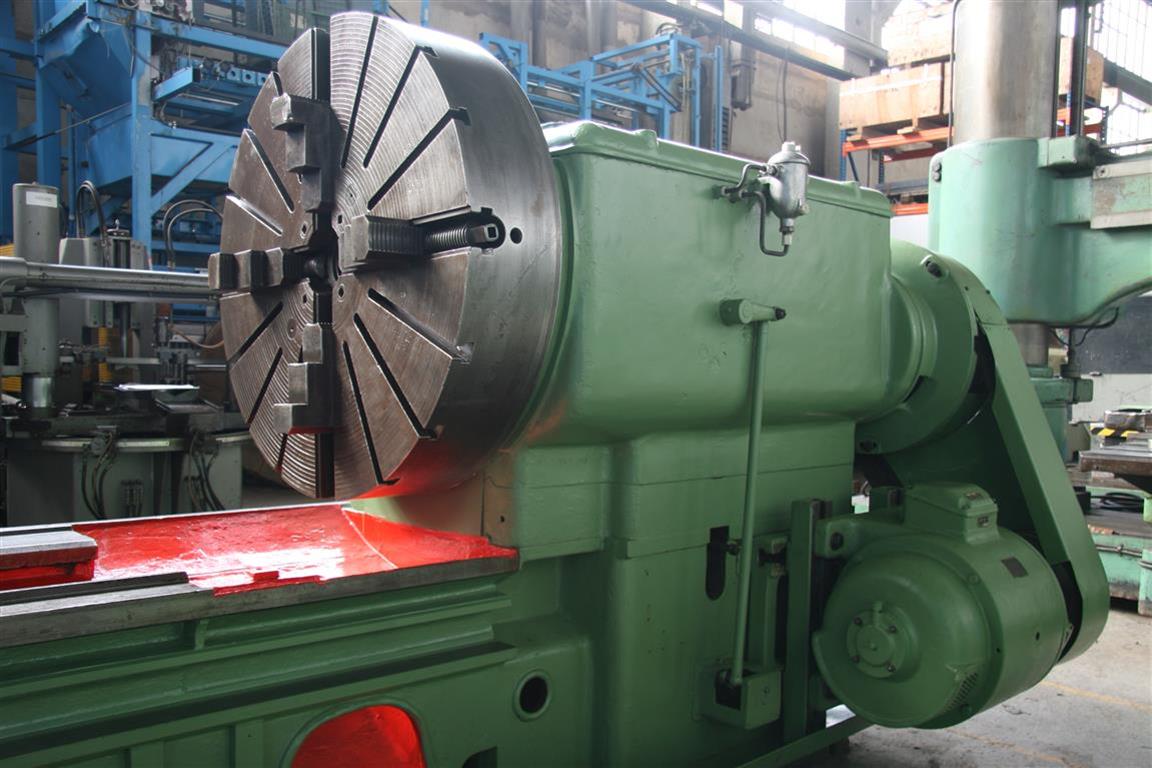

face chuck diameter 1000m (4 jaw chuck)
fourfold chisel taper
steady rest closed, inside diameter 250mm
revolving tail center
conical turning device
Terms of storage and delivery
- Freight base
- EXW, free on truck
- Storage location
- Leipzig 5
- Delivery time
- on request
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
