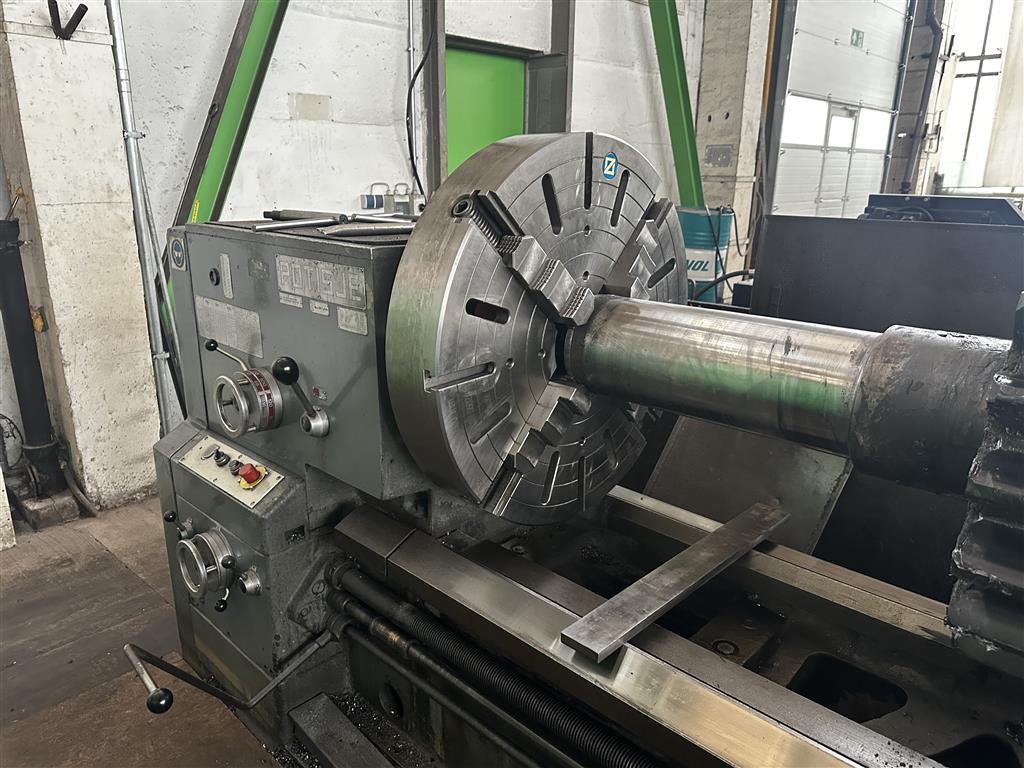

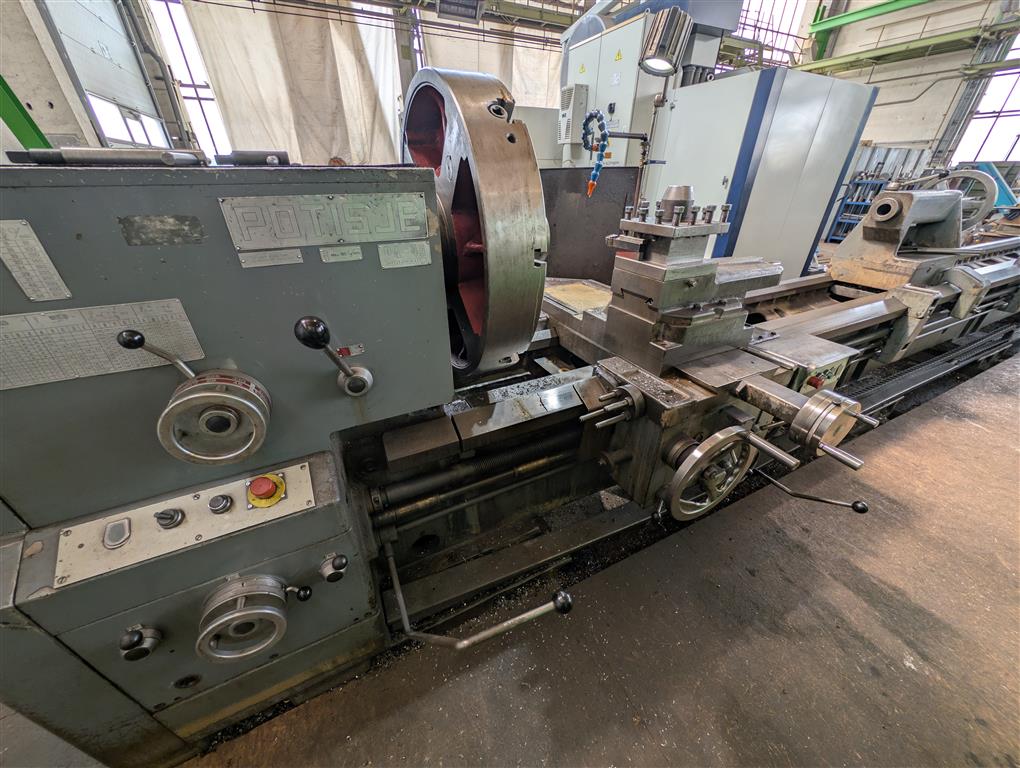

Machine data
- Machine type
- Center Lathe
- Manufacturer
- POTISJE
- Type

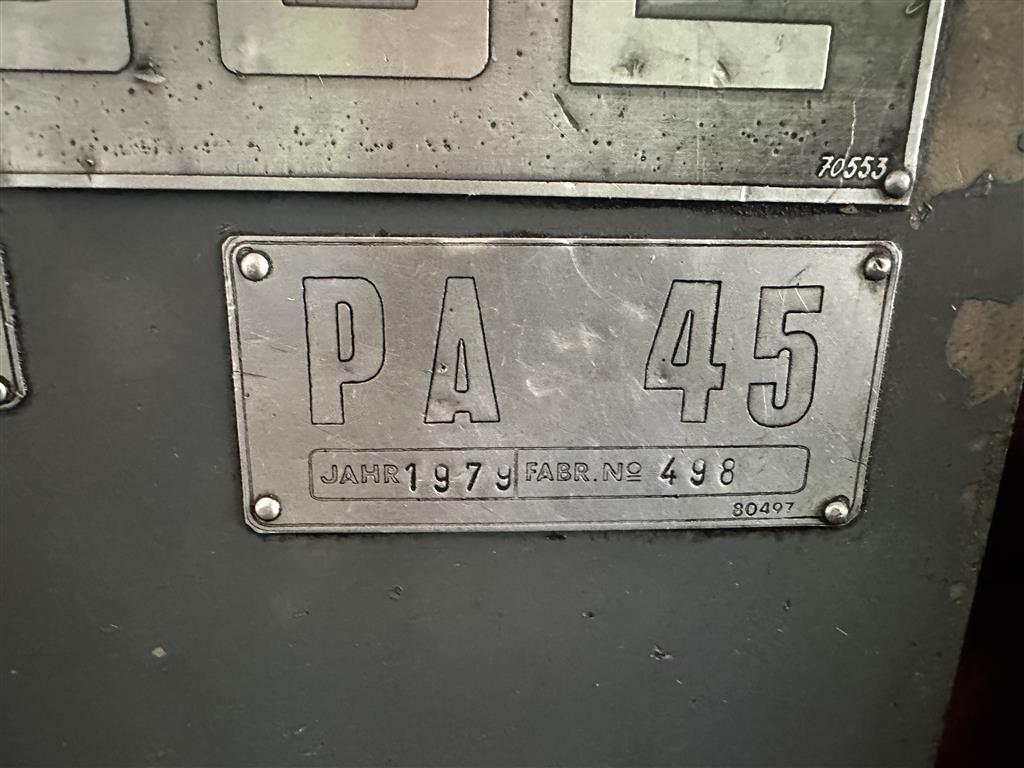

- PA-45
- Year of manufacture
- 1979
- Control type
- conventional
- Country of origin
- Yugoslavia
Technical data
- turning diameter over bed
- 910 mm
- turning diameter over support
- 630 mm

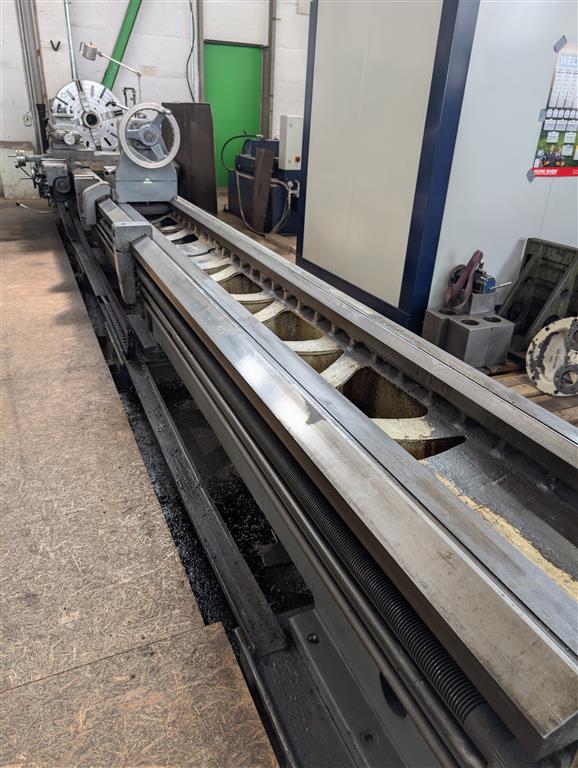

- turning length
- 6000 mm

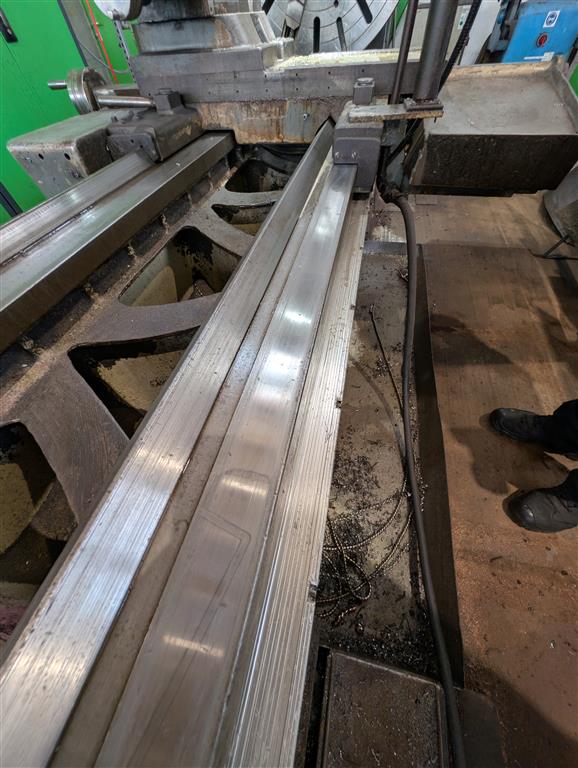

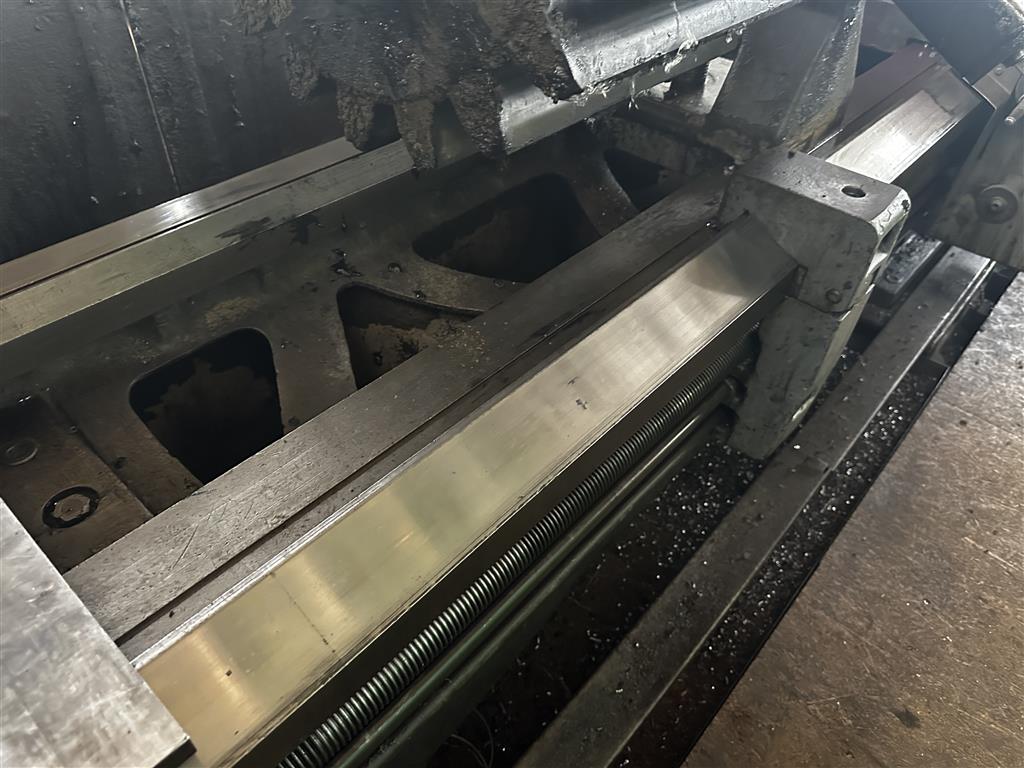

- bed width
- 660 mm
- turning diameter in the gap
- 1200 mm
- centre distance
- 6000 mm
- centre height
- 450 mm
- spindle bore
- 140 mm
- range of revolution per miute
- 11 - 500 U/min
- tailstock quill diameter
- 120 mm
- tailstock quill stroke
- 410 mm
- total power requirement
- 15,5 kW
- weight of the machine ca.
- 11,5 t
- tailstock quill taper MT
- 6
- dimension machine approx.LxWxH
- 9,0 x 1,8 x 1,7 m
Additional description
The POTISJE PA-45/6000 is a robust, conventional centre lathe / heavy-duty lathe, designed for machining large, heavy and long workpieces. Thanks to its solid machine construction and large distance between centres, it is particularly suitable for heavy engineering, plant construction, repair and maintenance work as well as single-part and small-batch production.

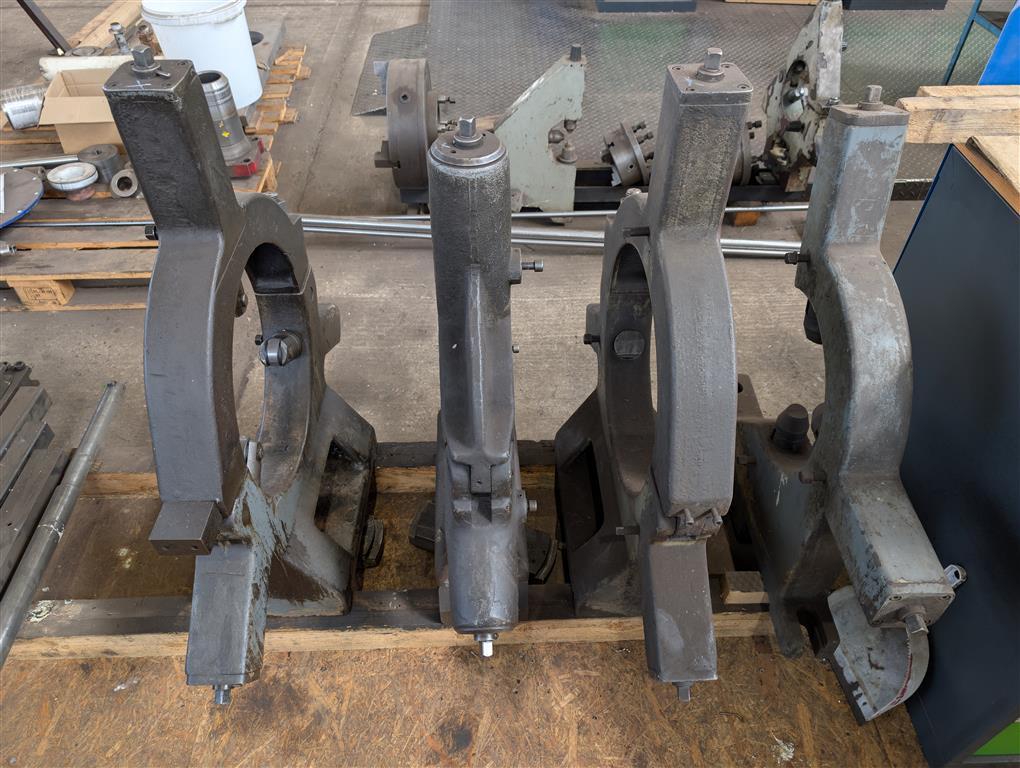

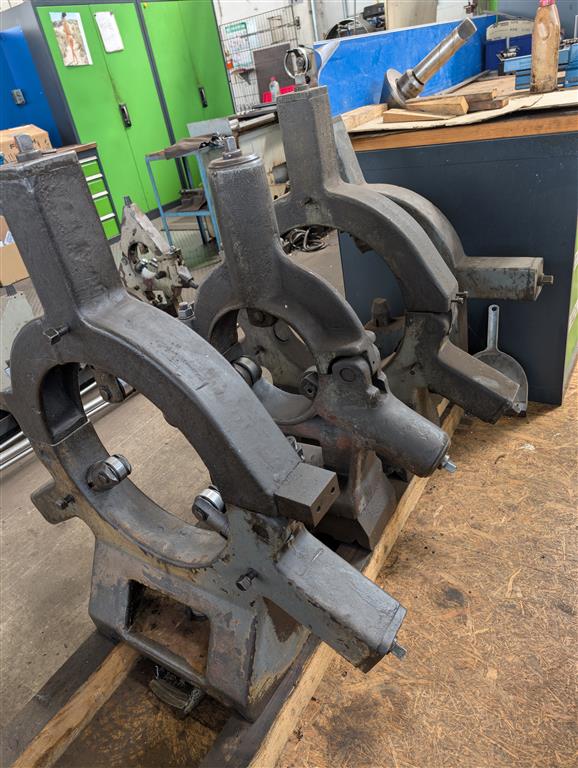

Various accessories included.
Terms of storage and delivery
- Freight base
- EXW, free on truck unpacked
- Storage location
- Leipzig 2
- Delivery time
- by arrangement
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
