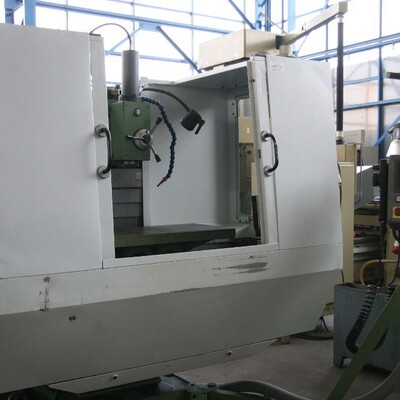

INTOS ZEBRAK FNG 40 CNC E
Universal Milling Machine | Stock number: 0400534
Unfortunately, the machine has already been sold.
Machine data
- Machine type
- Universal Milling Machine
- Manufacturer
- INTOS ZEBRAK
- Type
- FNG 40 CNC E
- Year of manufacture
- 2002
- Control type
- CNC
- Country of origin
- Czech Republic
Technical data
- x-travel
- 600 mm
- y-travel
- 400 mm
- z-travel
- 400 mm
- control
- Heidenhain TNC 310
- spindle taper
- ISO 40
- number of spindle speeds
- 10-3300/stufenlos U/min
- spindle drive motor
- 4,5 kW
- table surface area
- 800x400 mm
- table load capacity
- 300 kg
- feed in x - axis
- 1-5000 mm/min
- feed in y - axis
- 1-5000 mm/min
- feed range
- Z: 0,5-2500 mm/min
- rapid motion - x-axis
- 6000 mm/min
- rapid motion - y-axis
- 6000 mm/min
- rapid traverse
- Z: 3000 mm/min
- Number of working hours
- 4555 (abgelesen) h
- total power requirement
- 8 kVA
- weight of the machine ca.
- 2,5 t
- dimension machine approx.LxWxH
- 2,65x2,35x2,08 m
Additional description
coolant device
hydraulic aggregate
Machine can be demonstrated under power.
Terms of storage and delivery
- Freight base
- EXW -free on truck
- Storage location
- Leipzig 1
- Delivery time
- immediately
- Price
Subject to changes and errors in technical details and specifications, as well as prior sale.
