Balancing Machine Hofmann HL-400.1

Offer

stock-no.:

0100575

type of machine:

Balancing Machine

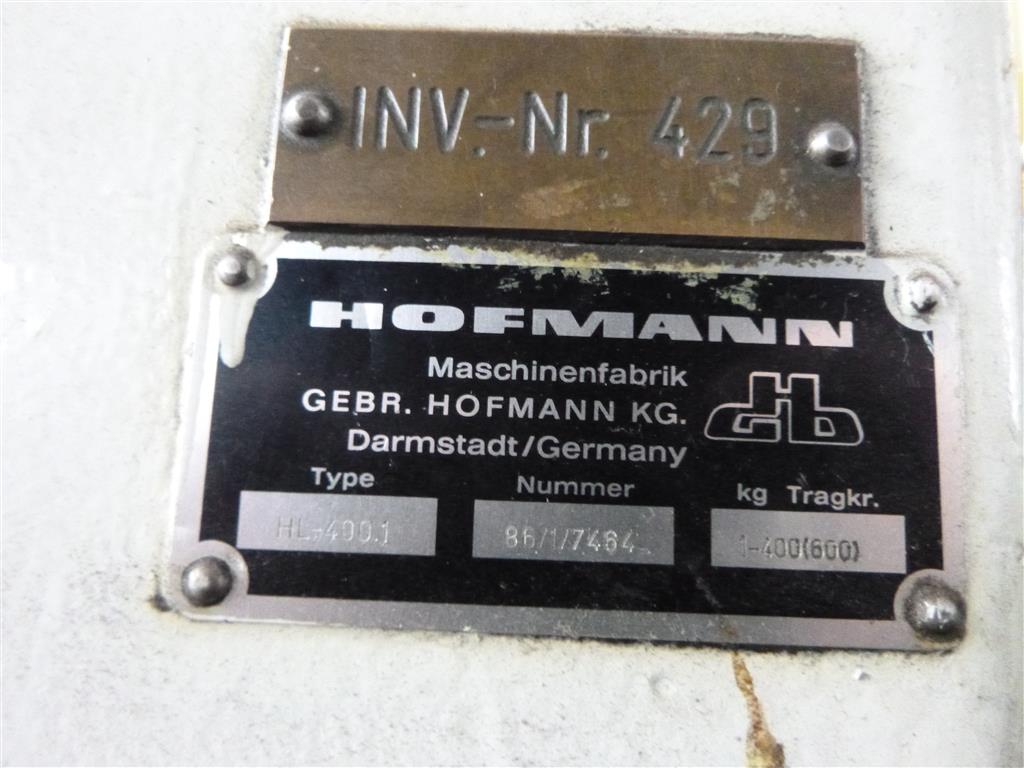

make:

Hofmann

model:

HL-400.1

year of manufacture:

ca. 1986

type of control:

other

country of origin:

Germany

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 1

delivery time:

on request

price:

on request

technical details

balancing body max.:

400 kg

balancing body diameter w/o machining unit:

mm

balancing body diameter with machining unit:

mnm

swing diameter:

600 mm

rotor-shaft:

Ø 20 x 100 mm

voltage:

220 / 380 V/Hz

total power requirement:

6,5 kW

Weight approx.:

2,05 t

dimension machine approx.LxWxH:

3,1 x 1,1 x 1,5 m

dimensions electric cabinet:

L: 500 x B: 900 x H: 2000 mm

additional information

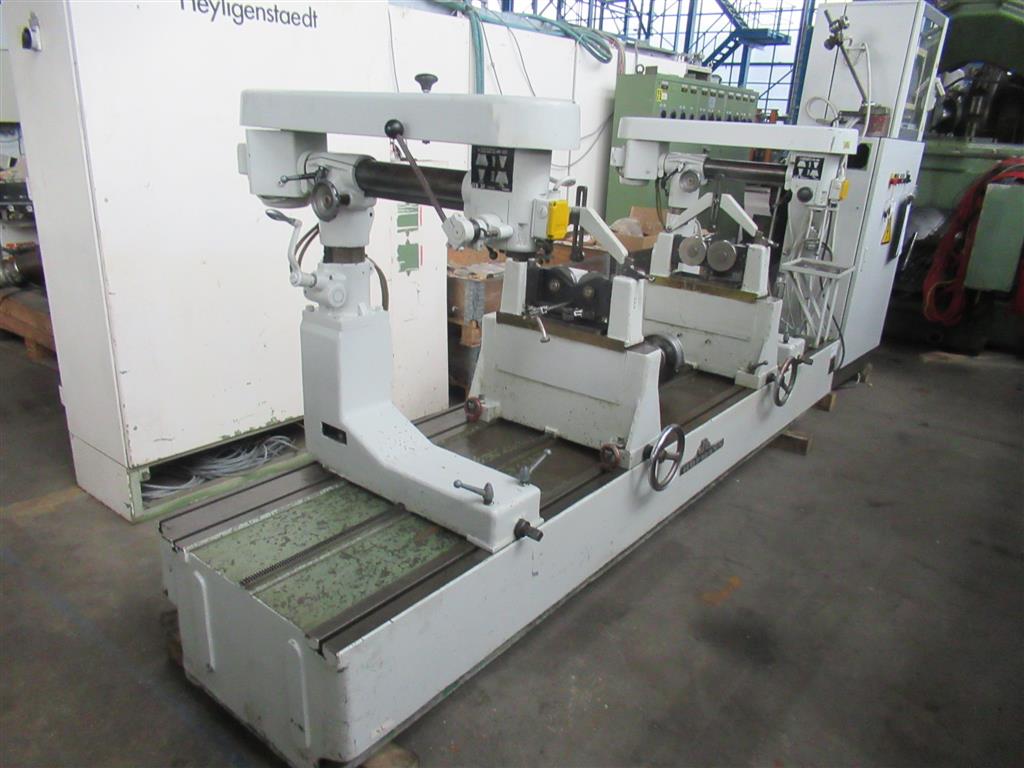

Universal Balancing Machine for Rotors

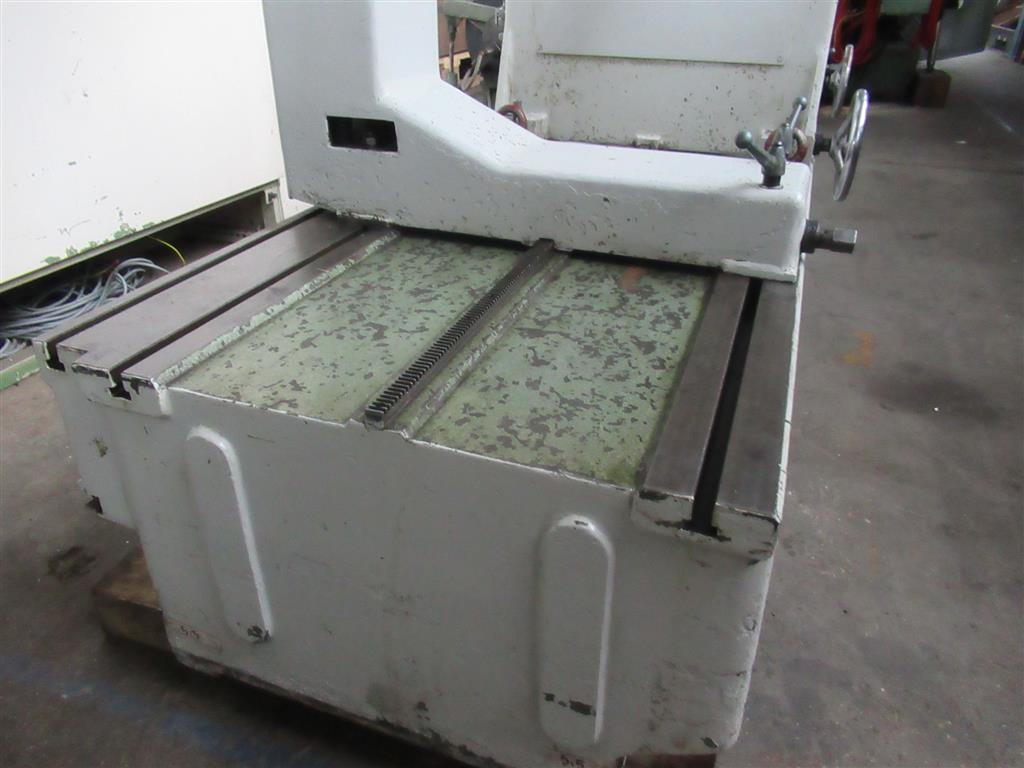

Consists of sturdy cast steel body (L:3000xW:690xH:400mm) with rack and pinion guide and 3piece T-slot.
Structure:

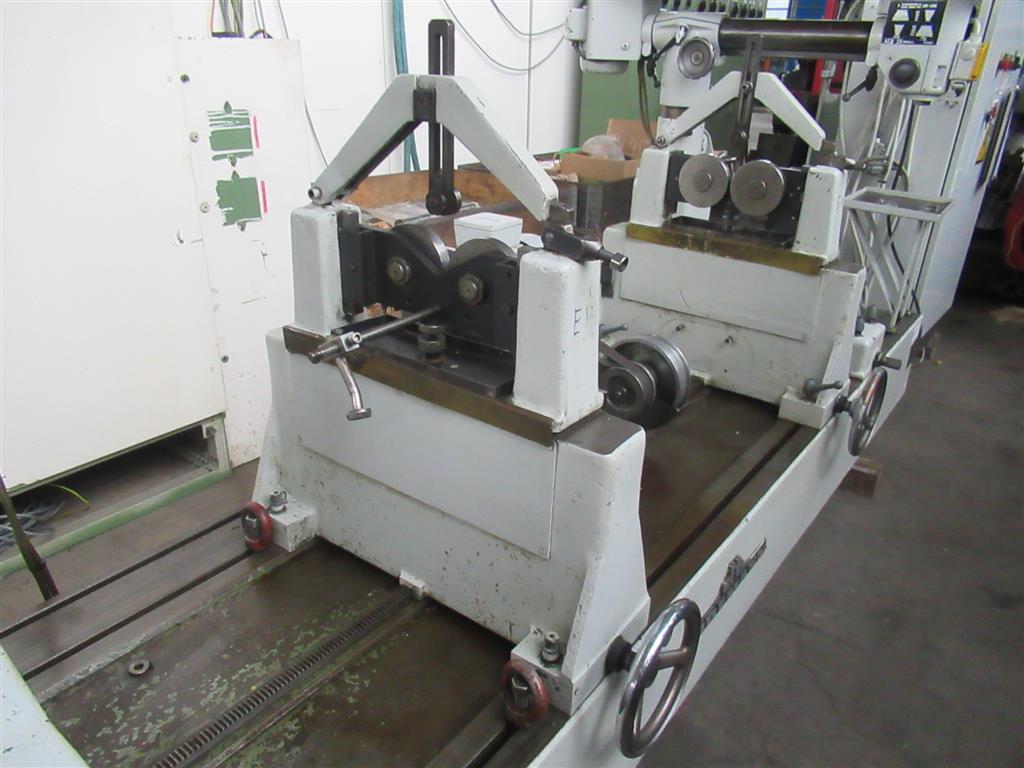

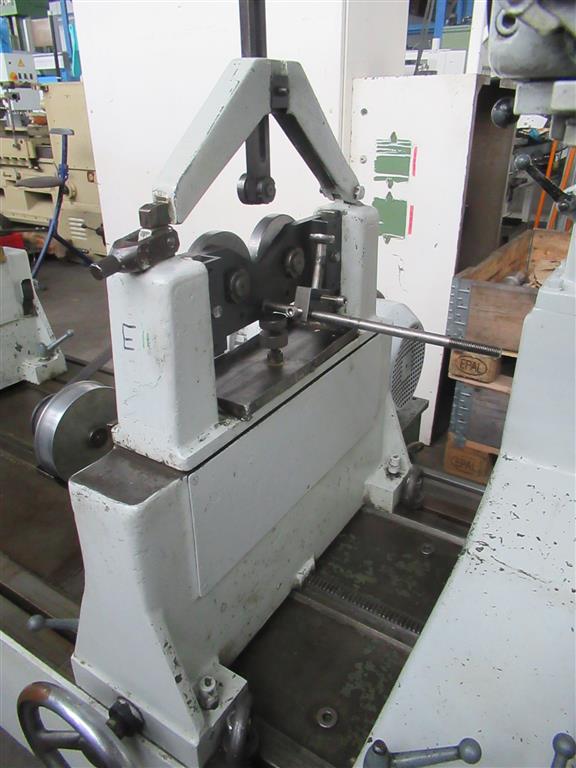

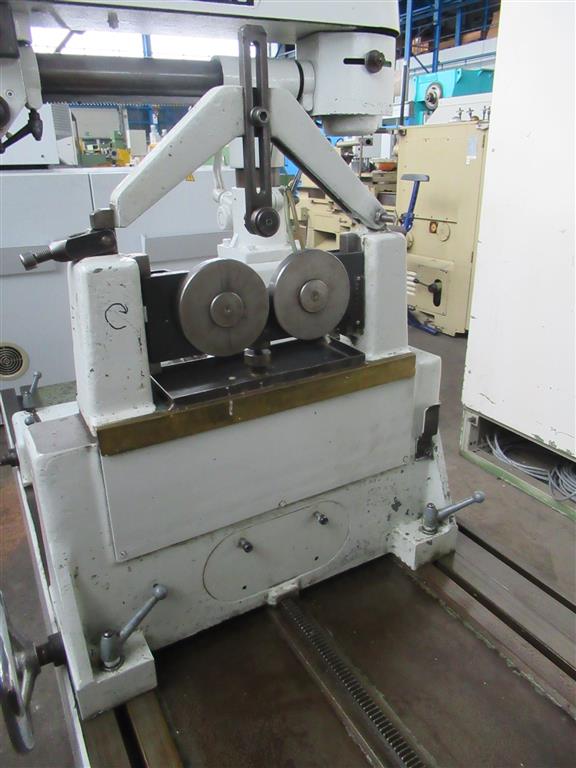

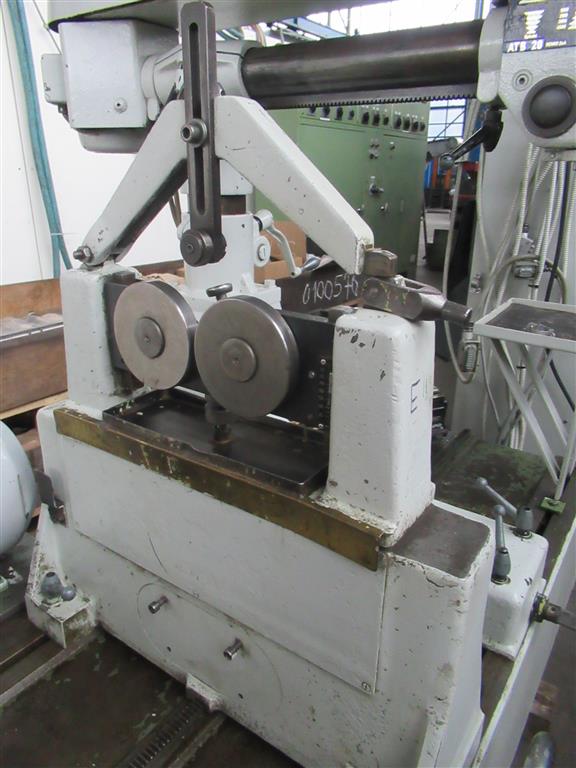

2 pcs. rotor support: movable by handwheel via rack; center position 970mm; center height = 500mm (measured in bed), rotor shaft max.ca. Ø 200mm

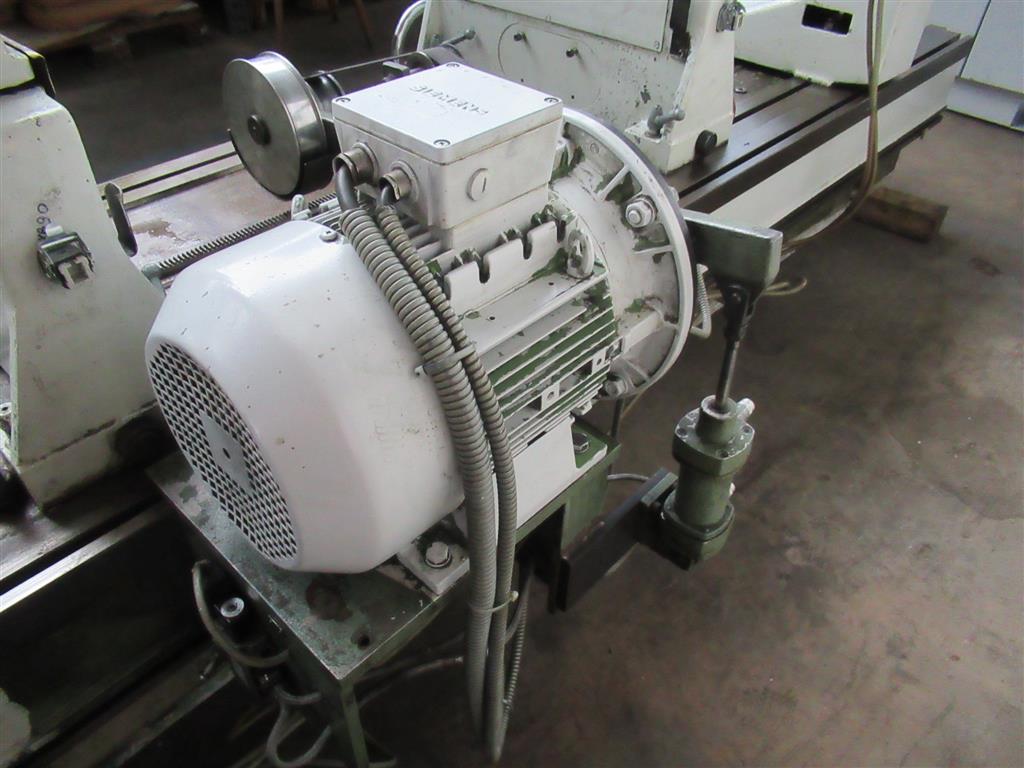

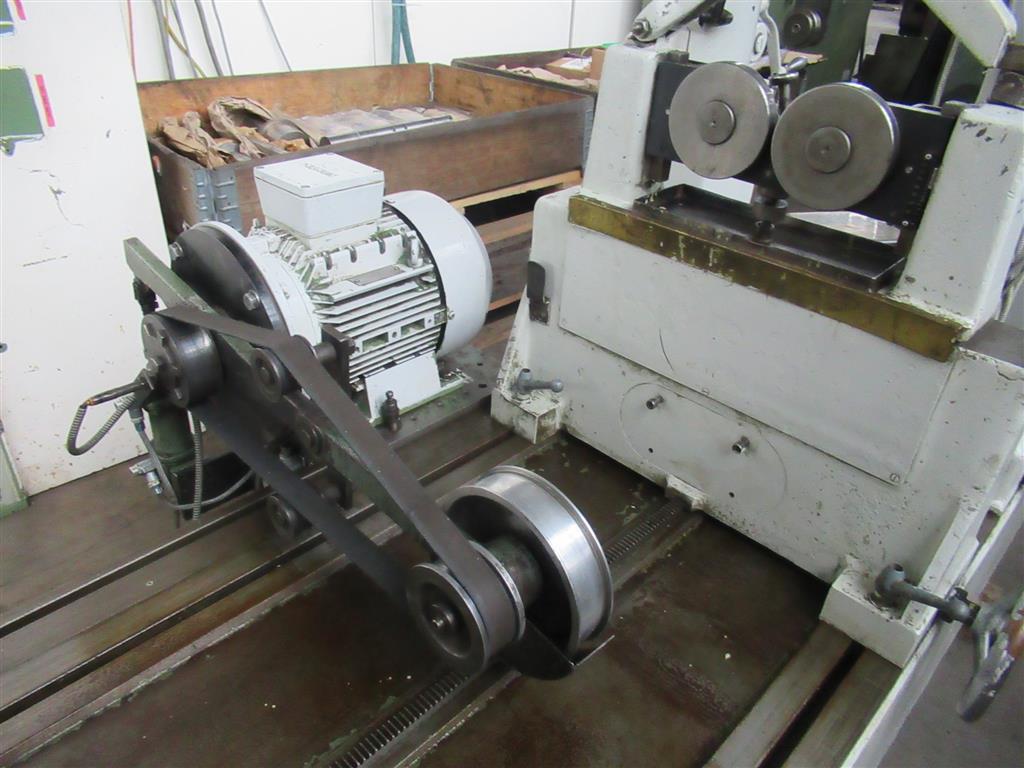

1 piece drive stand: motor speed 900 rpm, power 5,5 kW; power transmission via flat belt drive

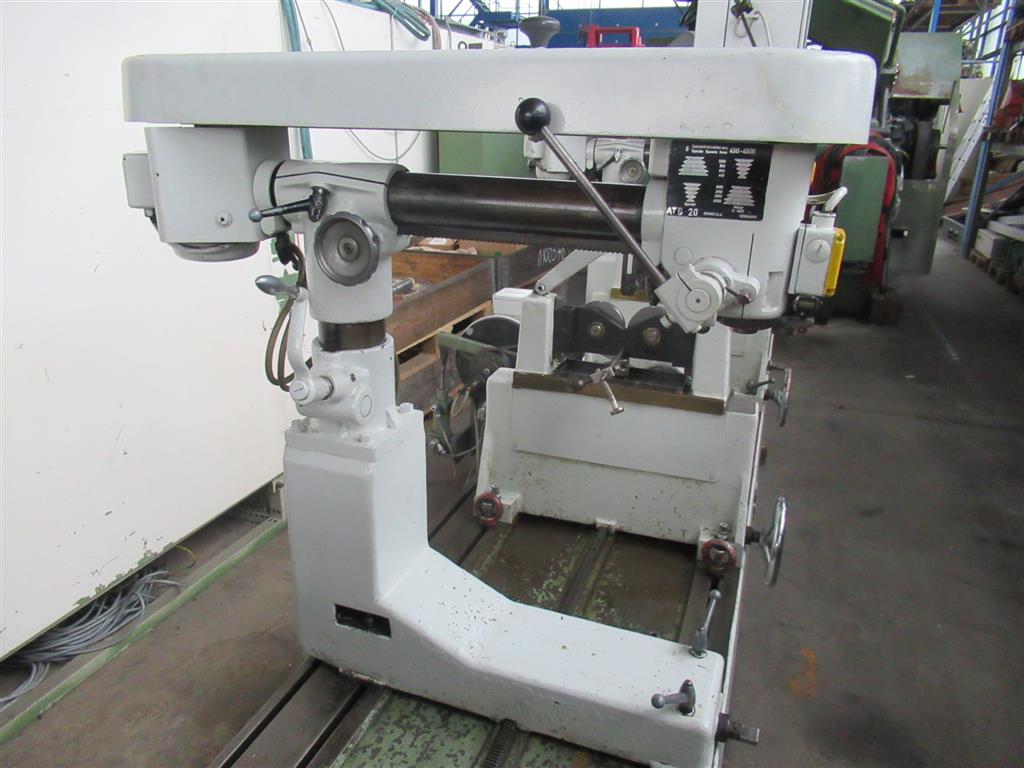

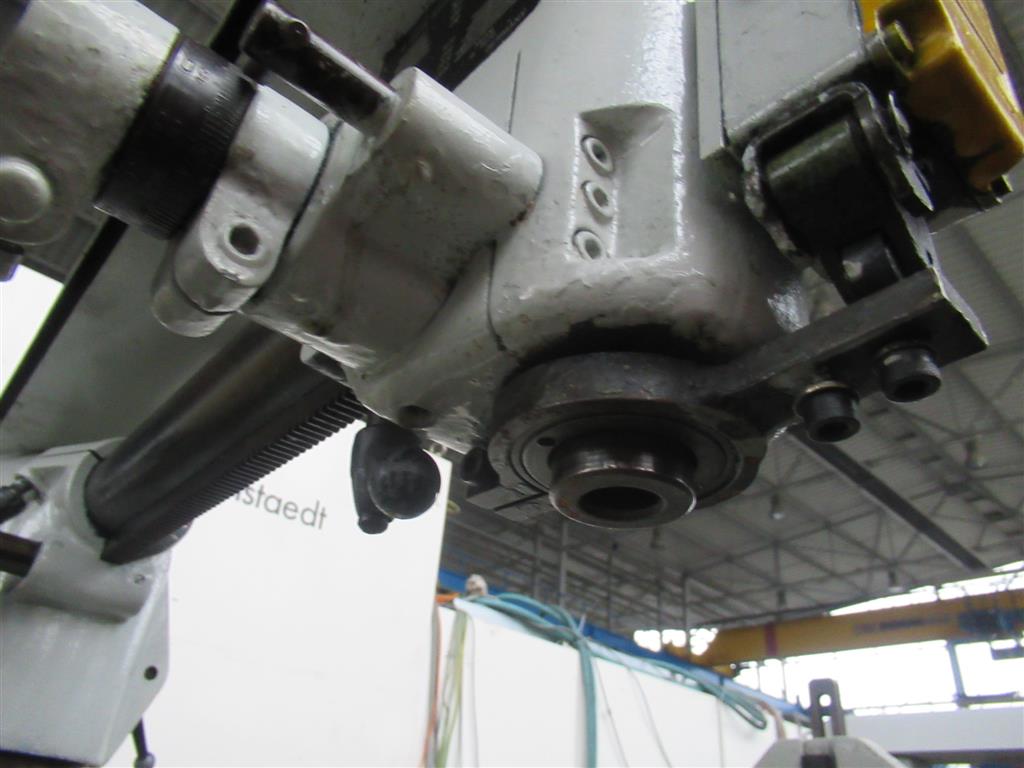

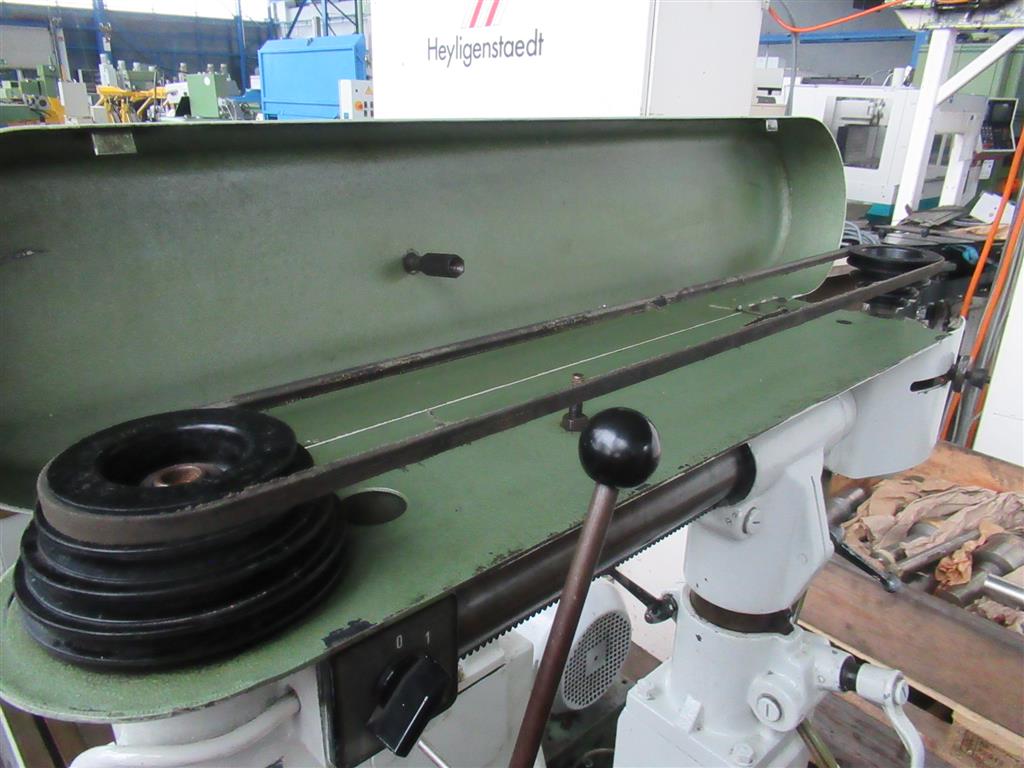

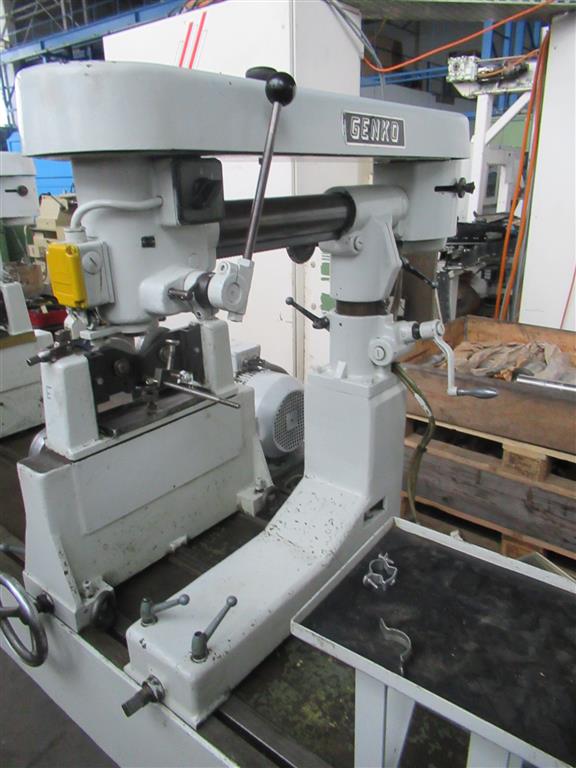

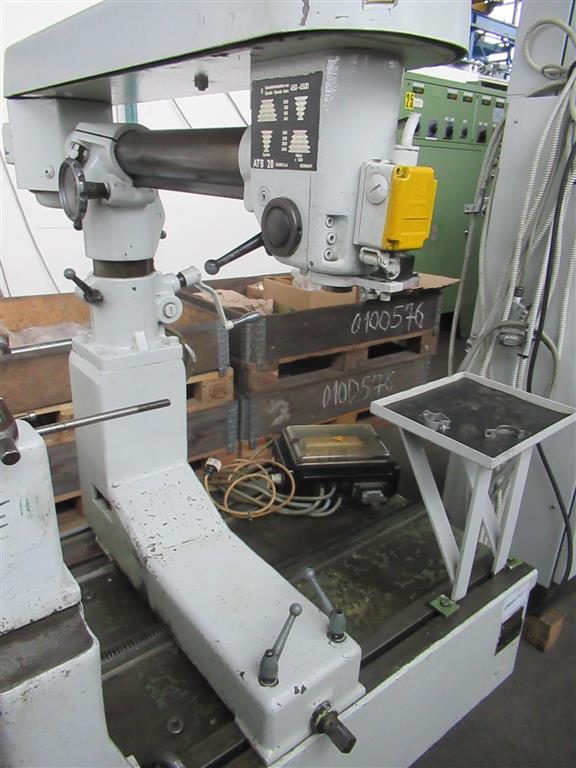

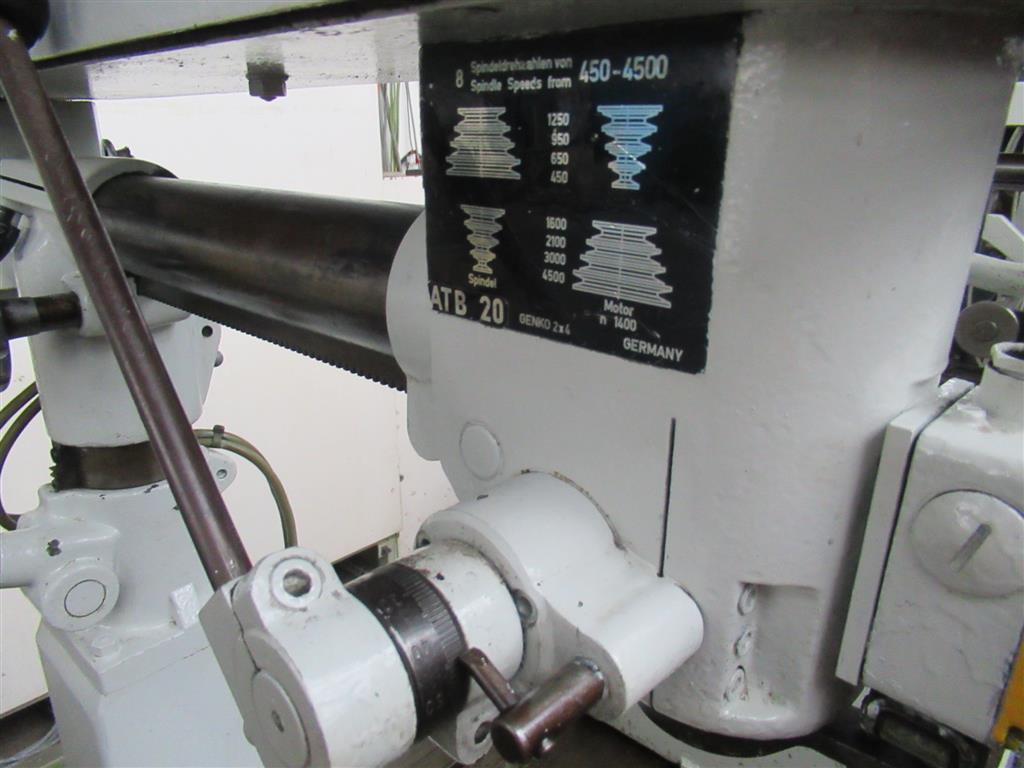

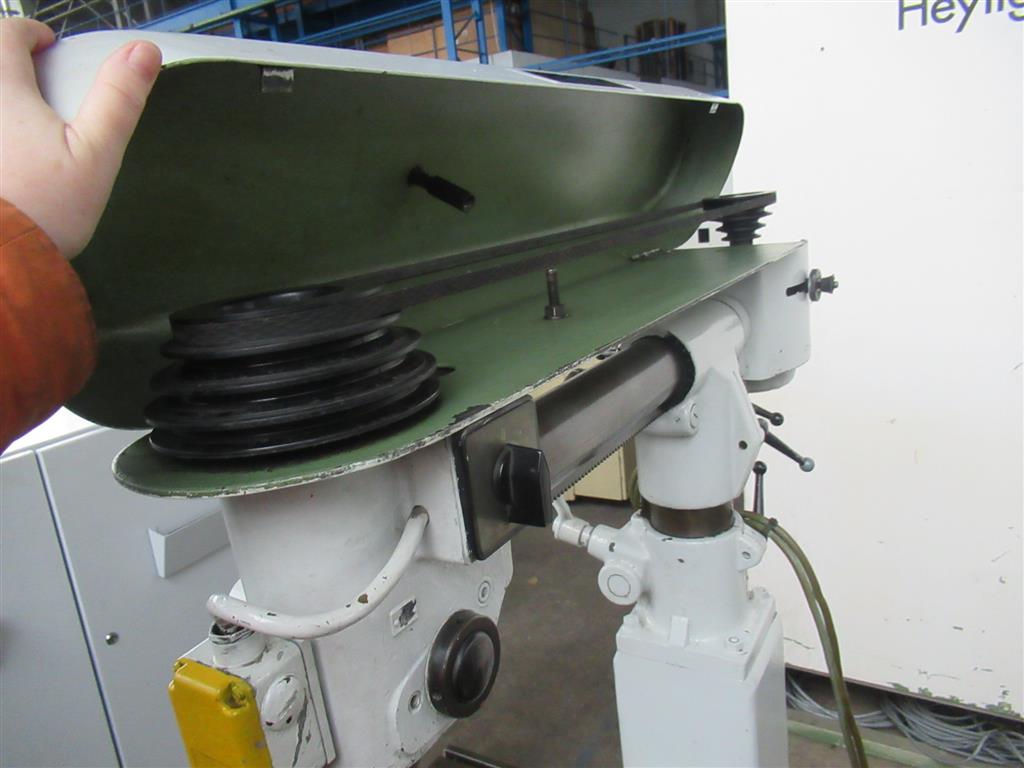

2 pcs. drill stand: movable by handwheel; rotatable, projection max. 520mm; adjustment travel vertical/transverse: 300mm/350mm manual; spindle unit swivels re/li=90° manual; speed 450 - 4.500 rpm. / 8 steps; quill MK2; stroke 90mm

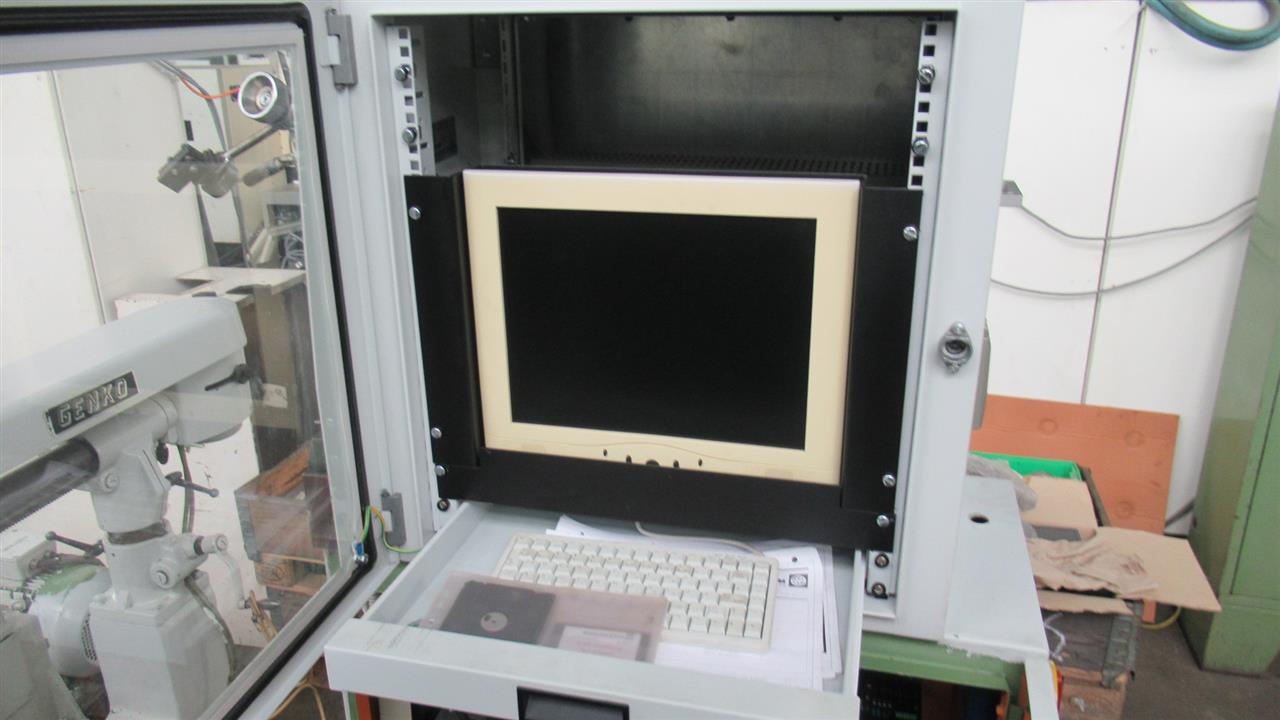

The control cabinet (year of construction 2010) is not built up and therefore incomplete. An evaluation unit with monitor and keyboard, as well as floppy disks are available.
The balancing machine is not connected and not ready for operation!
Accessories:

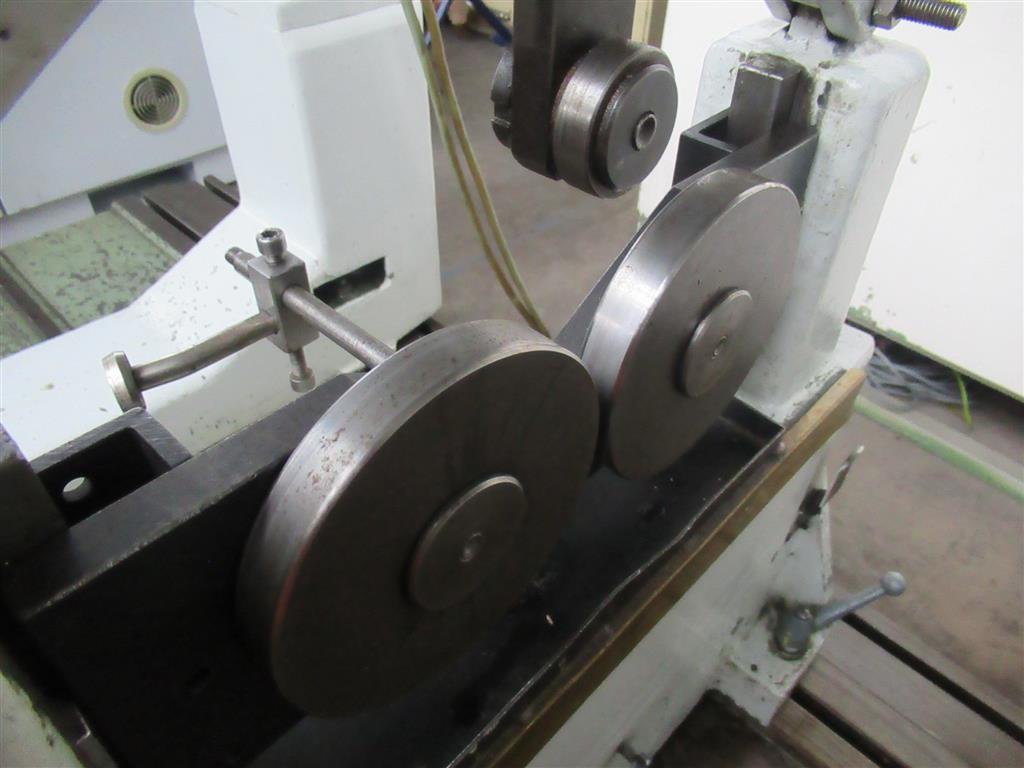

Various rotor supports, flat belts 30mm; rotor drive pulleys; rotor shafts; tensioning and auxiliary devices.
