Billet rolling mill WMW AUE UBSB 2,5

Offer

stock-no.:

0100711

type of machine:

Billet rolling mill

make:

WMW AUE

model:

UBSB 2,5

year of manufacture:

1964

type of control:

conventional

country of origin:

Germany

freight basis:

EXW -free on truck

storage location:

delivery time:

on demand

price:

on request

technical details

plate thickness:

2,5 mm

throat:

360 mm

distance betw. rolls:

126 mm

workpiece dia.:

min/max: 200/850 mm

work speed:

6+12 m/min

weight of the machine ca.:

1,2 to

total power requirement:

2,5 kW

dimension machine LxWxH:

1,55x0,6x1,76 m

measurements electric cabinet LxWxH:

0,6x0,32x0,84 m

additional information

description:
rolling direction clockwise/counter clockwise
upper roll 100mm vertical adjustable
stop plate vertical 510x400mm and 100mm extendable
incl. accessories
operation via double foot pedal
accessories:

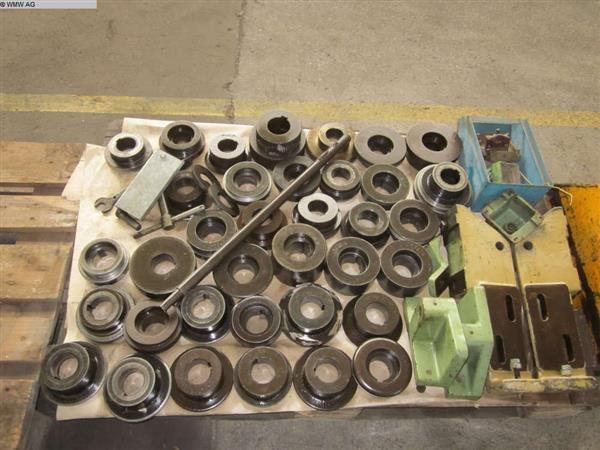

such as 11 sets diverse tool rolls and racks
Machine can be demonstrated under power.
