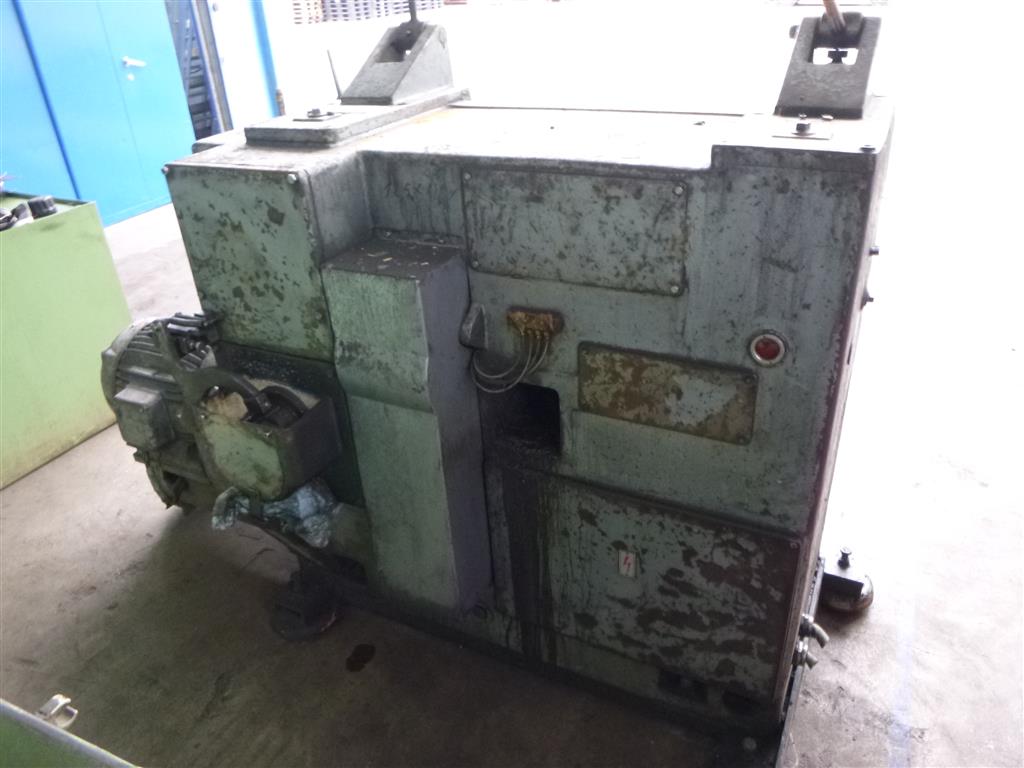

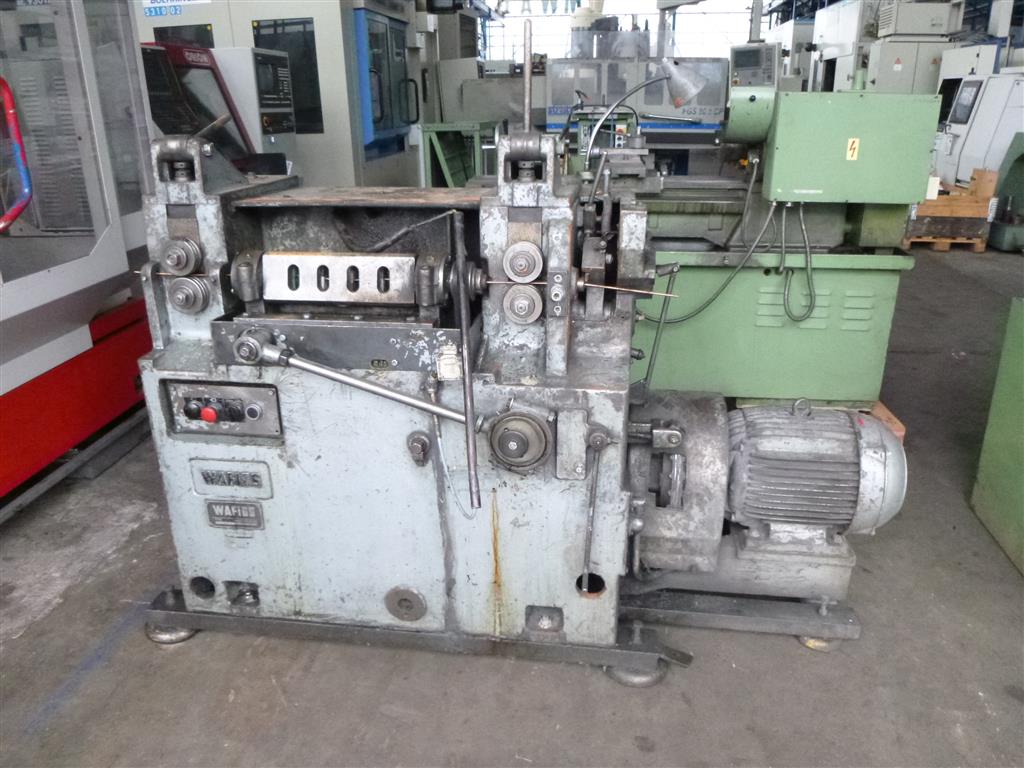

Wire Straightening and Cutting Machine
Offer
- stock-no.:
- 0100805
- type of machine:
- Wire Straightening and Cutting Machine
- make:

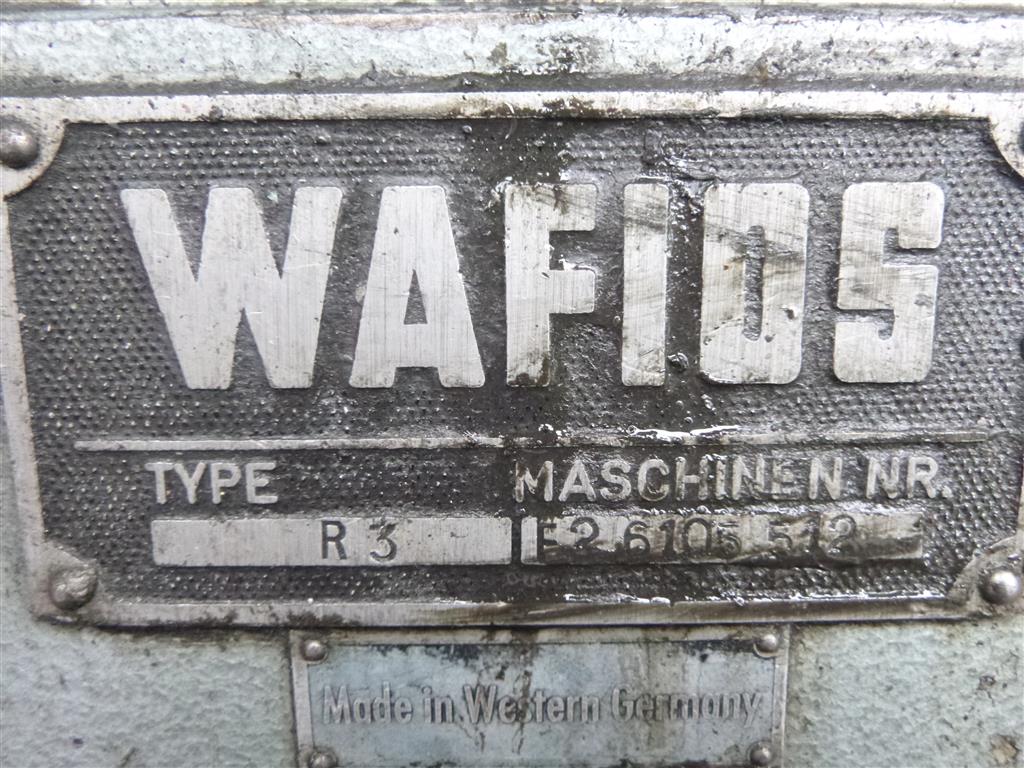

- WAFIOS
- model:
- R 3
- year of manufacture:
- -
- type of control:
- conventional
- country of origin:
- Germany
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 4
- delivery time:
- immediately
- price:
- on request
technical details
- wire diameter - max.:
- 7 mm
- wire diameter - min.:
- 1,5 mm
- wire length:
- mm
- total power requirement:
- kW
- weight of the machine ca.:
- 1,4 t
- dimension machine approx.LxWxH:
- 2,0 x 1,0 x 1,5 m
additional information
WIRE STRAIGHTENING AND CUTTING MACHINE
on Sale: with no control cabinet and no accessories as a spare parts dispenser.
feed speed 29 - 90 m/min infinitely variable, manually adjustable
cutting length max 2.000 mm manually adjustable
rotating straightening body 70 mm pitch
Push and pull rollers 1 pair each, clamping pressure manually adjustable
Cutting device via tool socket / knife
Sorry the machine has been sold already! Here you will find more machines referring to your required category.
