Faceplate
Offer
- stock-no.:
- 1100695
- type of machine:
- Faceplate
- make:
- WMW
- model:
- PS 1000
- year of manufacture:
- keine Angaben
- type of control:
- other
- country of origin:
- Germany
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 3
- delivery time:
- immediately
- price:
- on request
technical details
- faceplate diameter:
- 1000 mm
- total power requirement:
- kW
- weight of the machine ca.:
- t
- width:
- 150 mm
- boring diameter:
- mm
- max. passage:
- Ø 120 mm
- weight:
- 450 kg
- dimensions:
- Ø 1000 x 210 mm
additional information
Equipment:

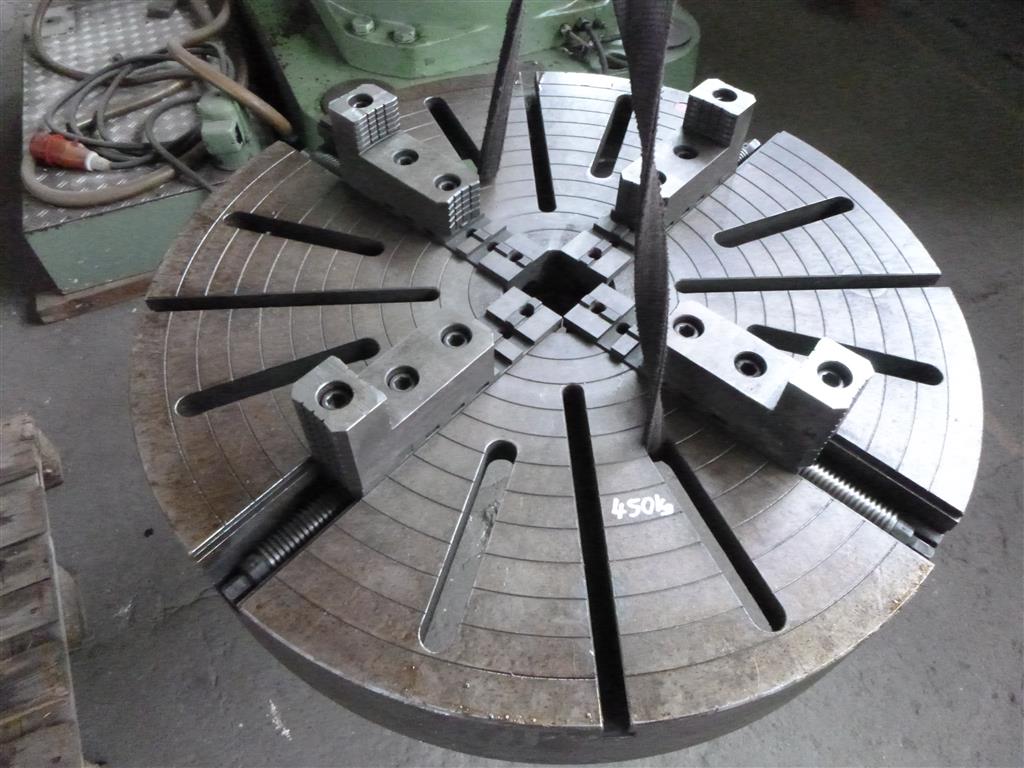

-4x external/internal jaws (clamping travel approx. 250mm); manual locking by means of socket wrench for internal and external square; clamping range min./max.: approx. Ø 320 / approx. Ø 900mm.
T-slots according to DiIN 650: a=22; h=40; b=38; c=17mm

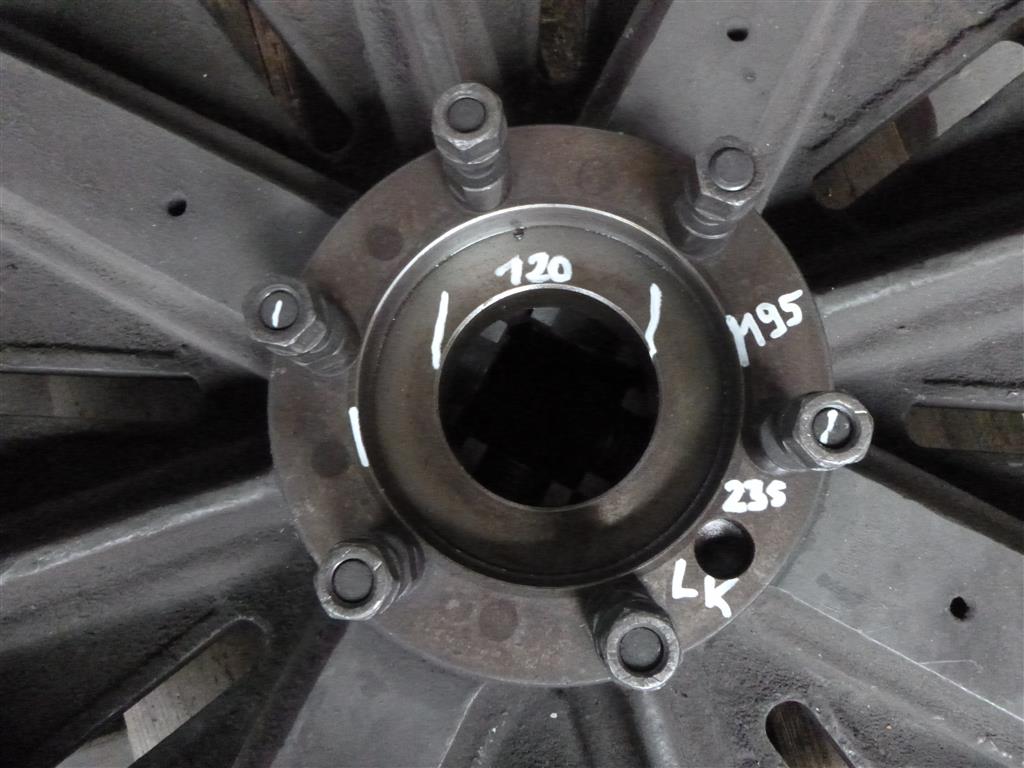

flange Ø outside = 230mm; inside = 195mm; depth = 23mm
6pcs clamping bolts size Ø 34mm / M20
pitch circle Ø 240mm
Sorry the machine has been sold already! Here you will find more machines referring to your required category.
