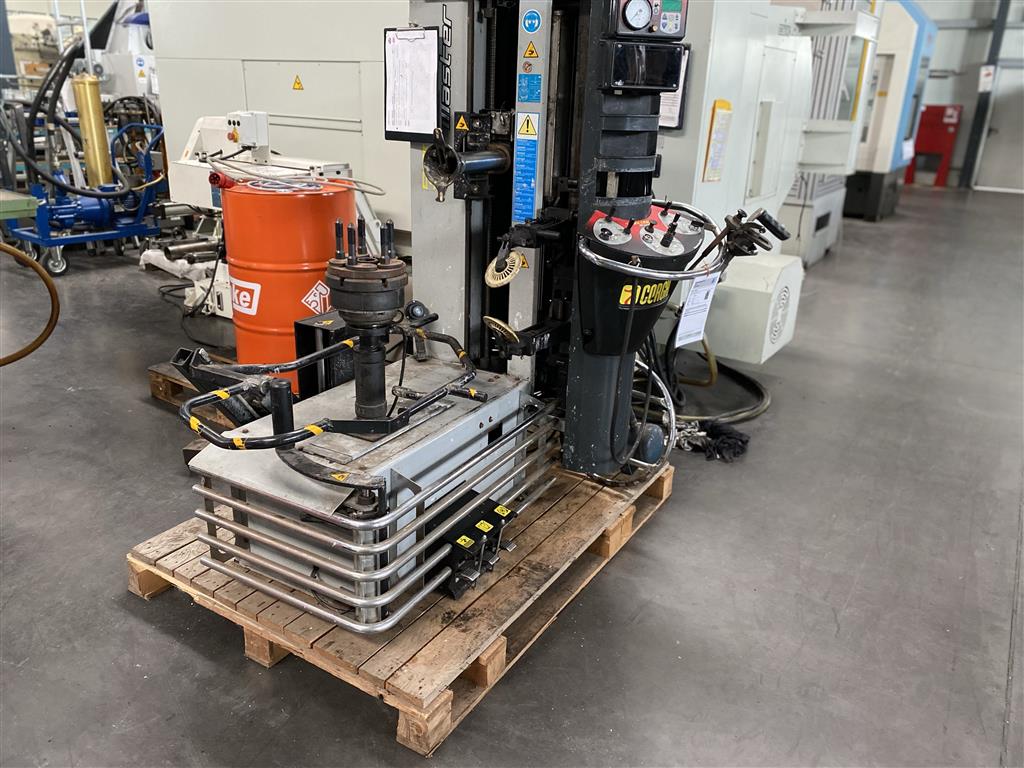

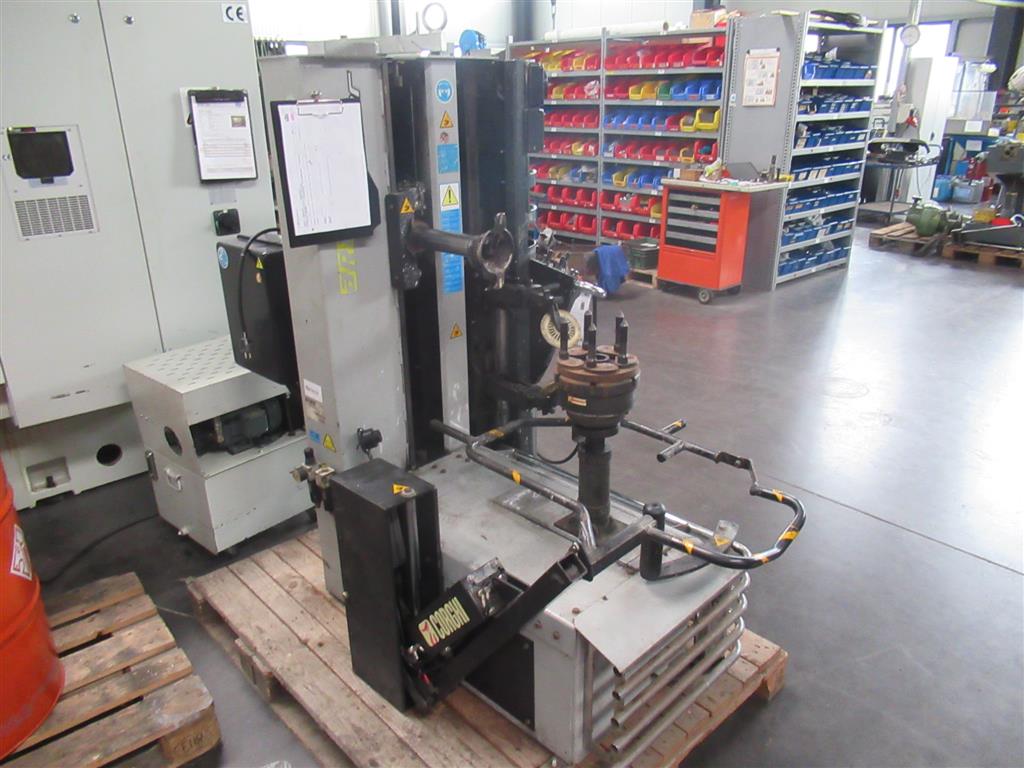

Tyre Mounting Machine Corghi Artiglio Master

Offer

stock-no.:

1300604

type of machine:

Tyre Mounting Machine

make:

Corghi

model:

Artiglio Master

year of manufacture:

2004

type of control:

conventional

country of origin:

Italy

freight basis:

EXW, free on truck unpacked

storage location:

Leipzig 5

delivery time:

immediately

price:

on request

technical details

water consumption:

total power requirement:

1,0 kW

weight of the machine ca.:

t

compressed air:

10 bar

dimensions L x W x H:

1,7 x 1,2 x 1,6 m

machine weight approx.:

500 kg

additional information

Tire changer for car tires e.g. (Normal - LOW PROFILE - RUN FLAT)
The following are according manufacturer.

Rims Ø 10" to 24
max. tire diameter 1100mm
max. tire width 360mm (14")

chuck:
Centering on taper
clamping automatic
torque 1100 Nm
Speed 7 - 18 rpm.

Tire impression assembly:
Tool = disc
rim is positioned automatically
the entry is controlled
bead breaking area max. 18"
travel of bead breaking disc 450mm lower/upper
Force of lower/upper bead breaking disc 7600 N

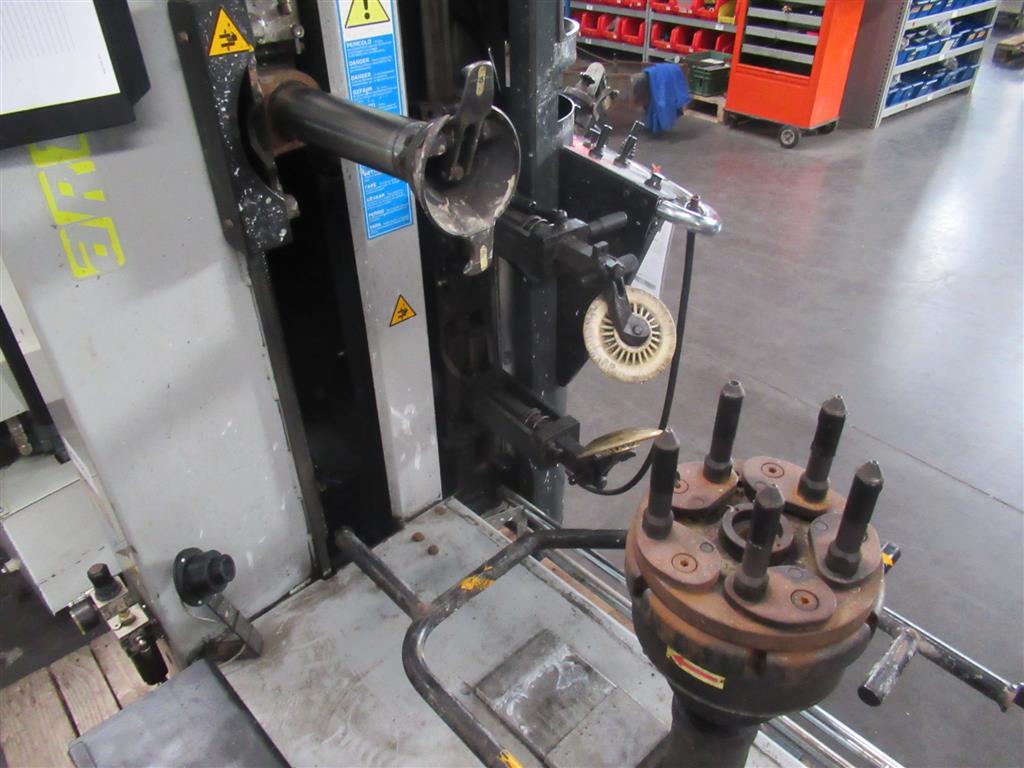

Mounting/dismounting head automatic:
Positioning with respect to rim
Tool change
Disassembly and assembly process

Wheel lift automatic:
pneumatic 10 bar
lifting force 65 kg
Operating pressure 8 - 9.5 bar
