Offer
- stock-no.:
- 1500070
- type of machine:
- Crack Detector
- make:
- Instron
- model:
- MPM Modell 1011
- year of manufacture:
- 1982
- type of control:
- other
- country of origin:
- UK
- freight basis:
- EXW, free on truck unpacked
- storage location:
- Leipzig 5
- delivery time:
- immediately
- price:
- on request
technical details
- kind of tests::
- current:
- A
- table surface area:
- mm
- machine weight ab.:
- 148 kg
- dimensions L x W x H:
- 0,42 x 0,815 x 1,5 m
additional information

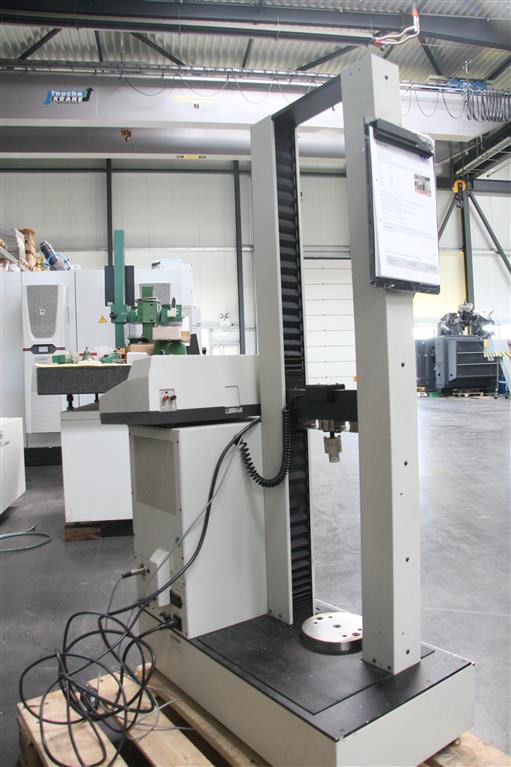

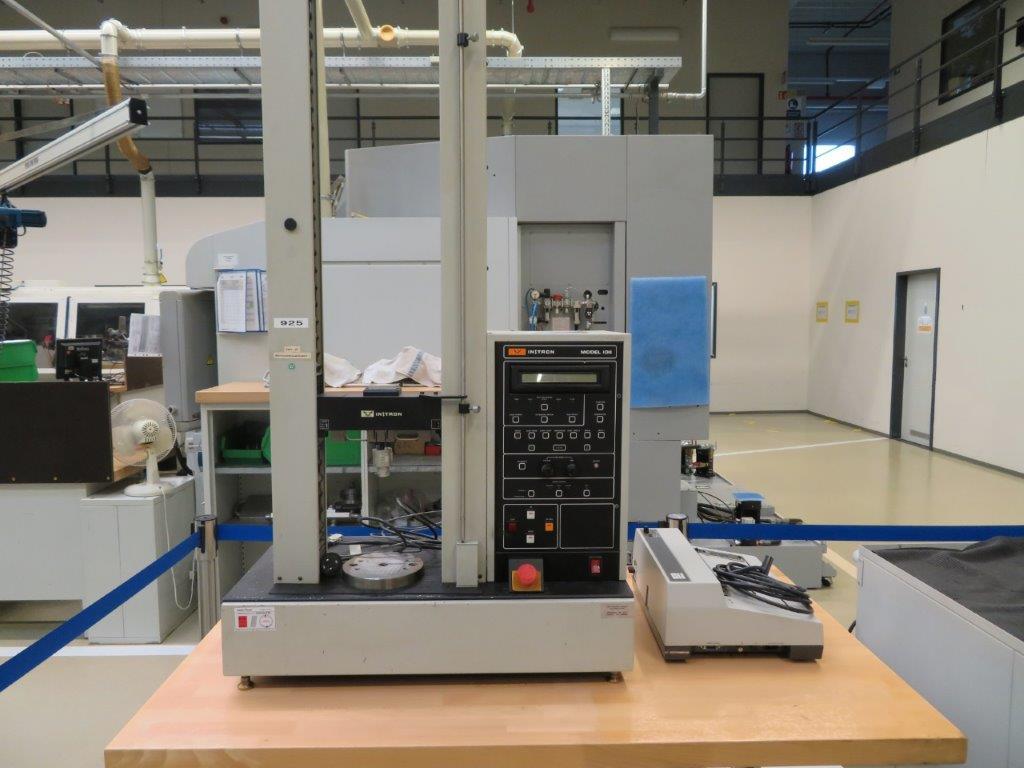

Universal materials testing machine for tensile and compression testing with speed controlled crosshead.
Test method: Tear-off machine
Load ranges: 0 - 5 N and 0 - 5000N
Accuracy force range: +/- 1% unloaded to +/- 2% at 5000N
Load/speed capacity: at +/- 5kN = speeds up to 500 mm/min.
Working width between columns: 250mm
Cross main travel: 1067mm, steps programmed=10; 20; 50; 100; 200; 300; 55mm/min; with adjustable limit switch
cross main functions: up; down; stop; back

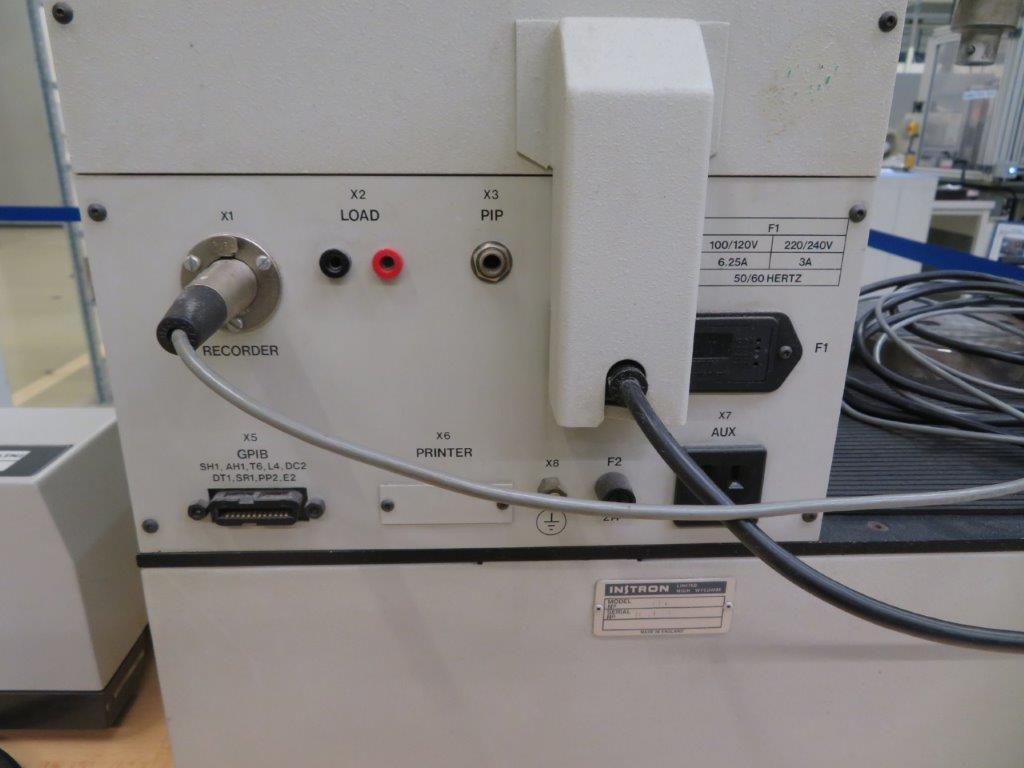

working voltages: 110, 120, 220 or 240 V alternating current at 50 / 60Hz

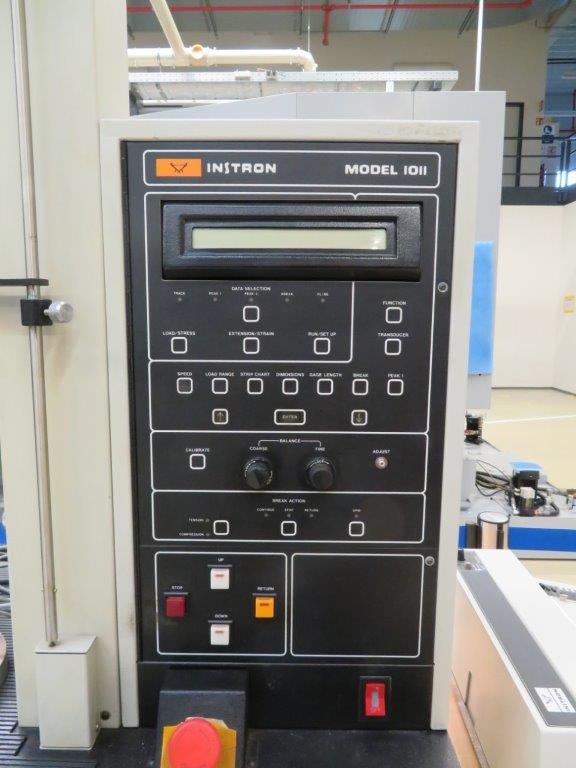

Digital display = display of force, tension, strain and travel
Calibration certificate available, valid until 10-2024
Equipment:

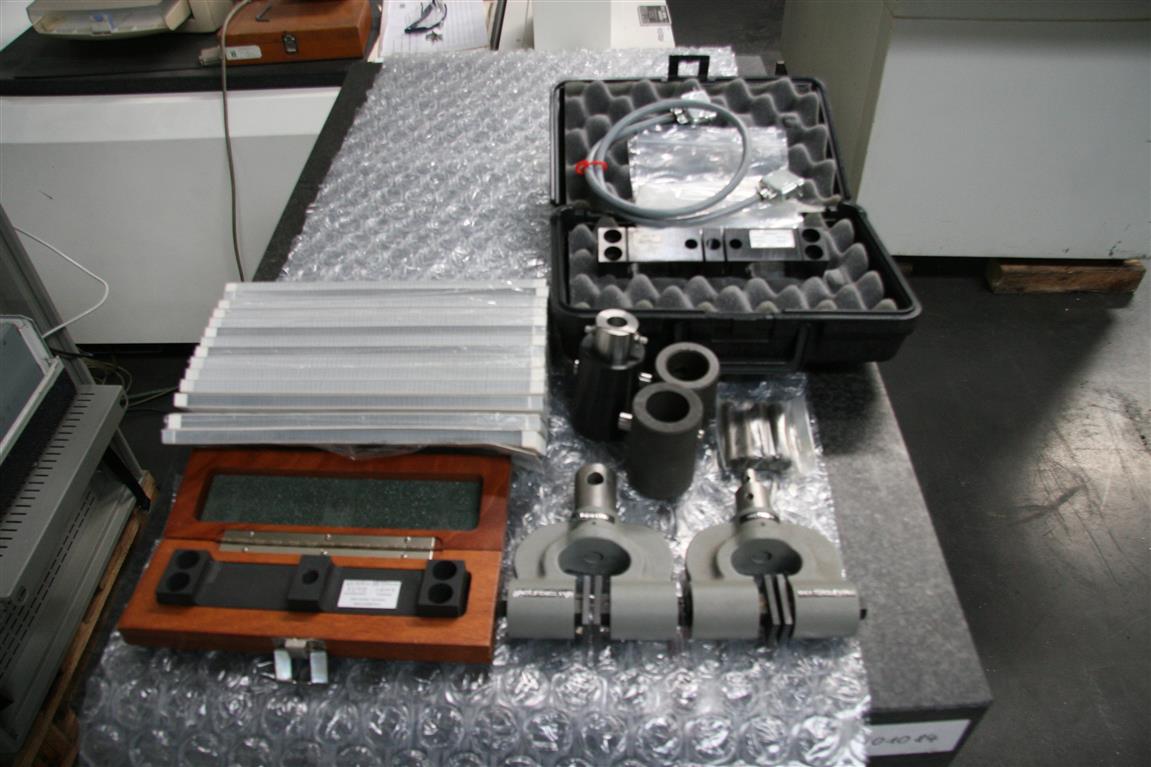

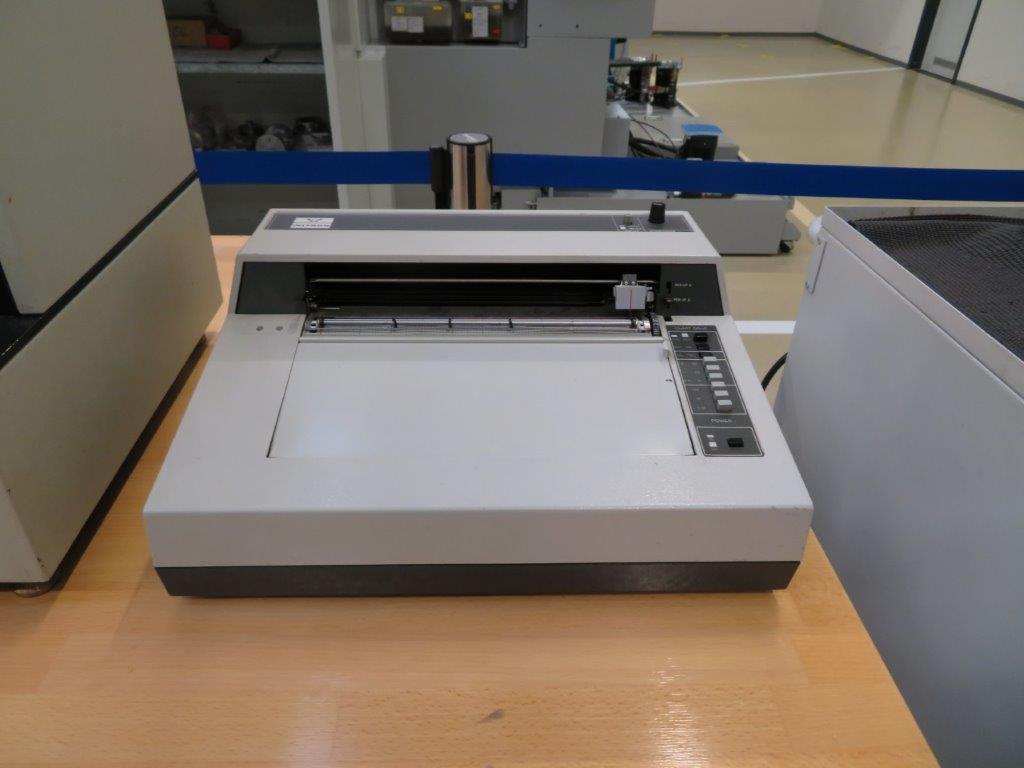

Adapter , accessories , analog recorder/diagram recorder.
Device for mounting the test specimen is not included.
i.D.
