Rottler ROD 250
Machining Center - Universal | Stock number: 0200906
Description

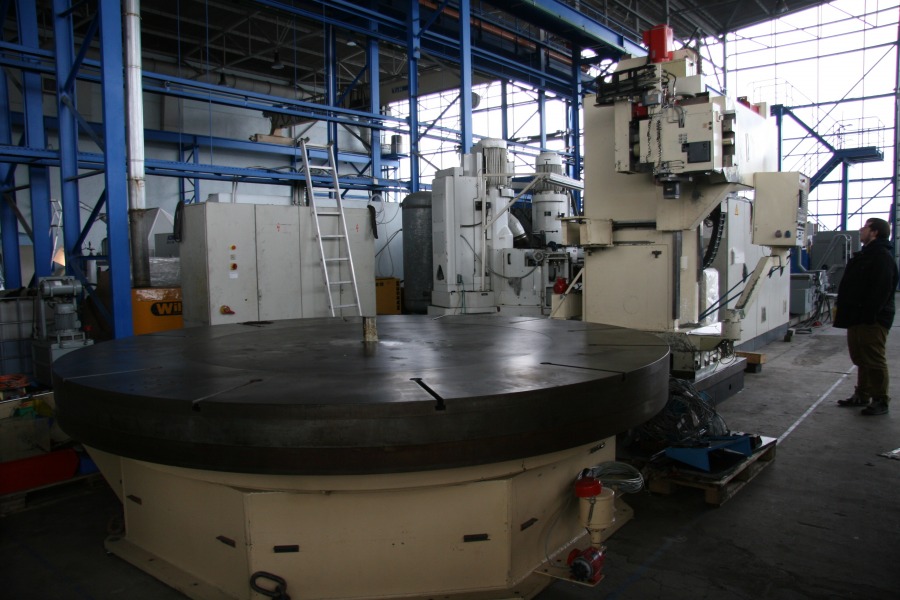

annular ring and cylinder machining center vertical
special CNC machining center
application:
for drilling, milling and turning of annular parts, grinding of annular üarts ( big rolling contact gears,
roller rotary connection, gear rims, special flanges and many more)

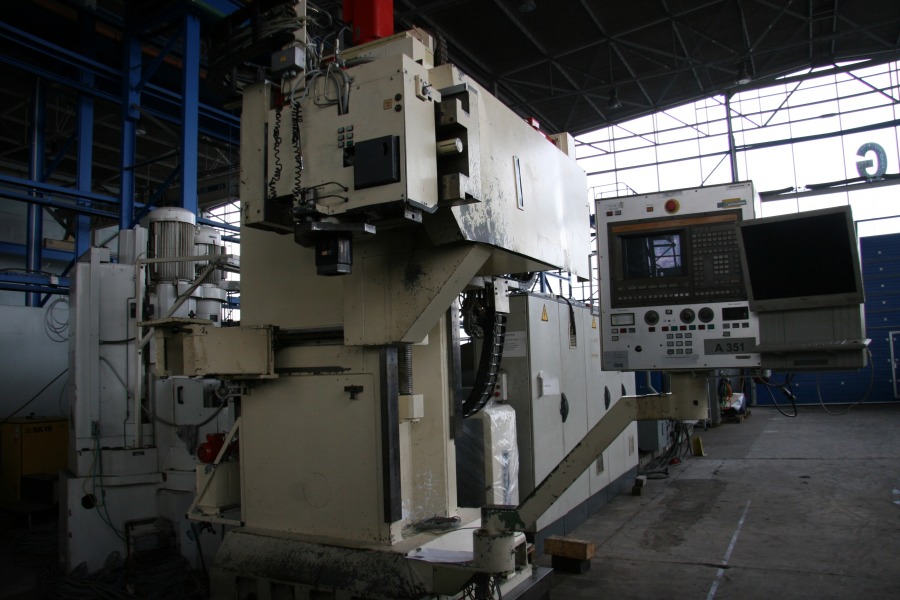

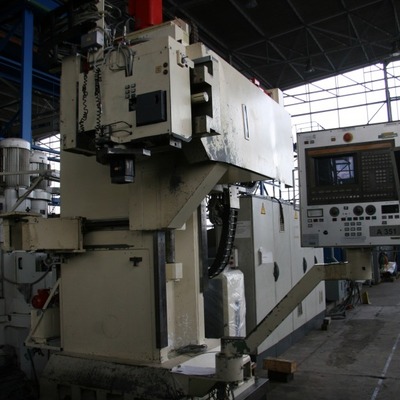

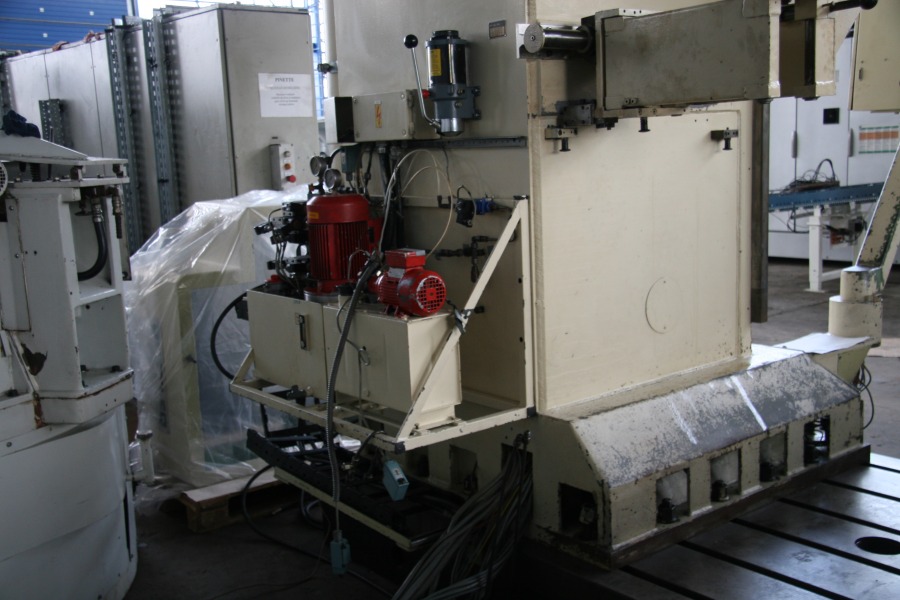

machine consists of two main groups, column unit and face slide-/ table unit , feed drives via AC server motors, transverse adjustment milling support W-axis 340mm
horiz. adjustment U-axis 1000mm
Details
x-travel 1650 mm
750 mm
y-travel Bed 3000 mm
z-travel 1850 mm
w-axis 340 mm
U-axis 1000 mm

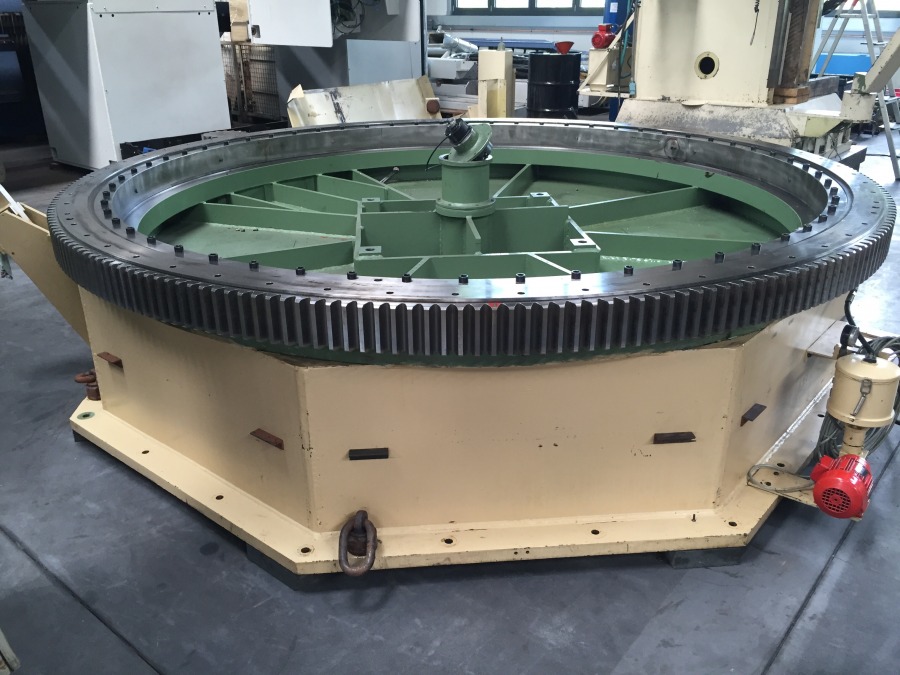

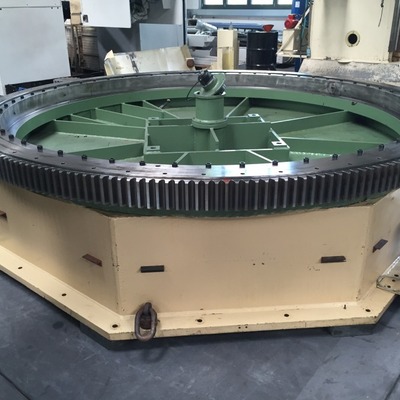

diameter of clamping surface 3000/5800 mm
turning diameter max.6000 mm
turning speeds 1000-6000 U/min

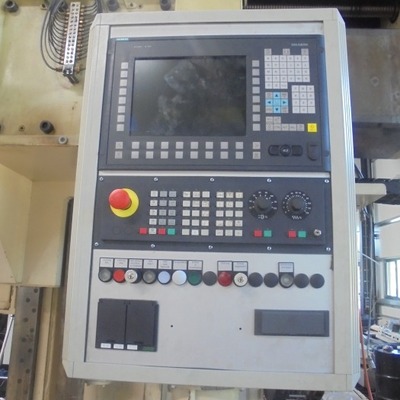

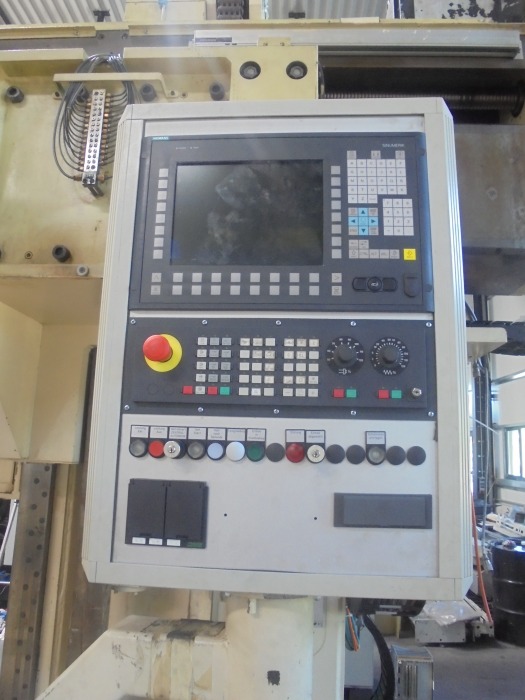

control Sinumerik 820M
workpiece weight 200/100 to
max. workpiece diameter on pallets 6000 mm

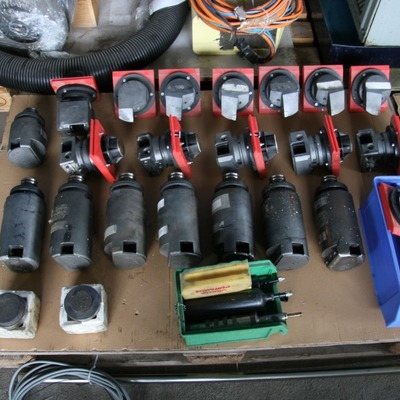

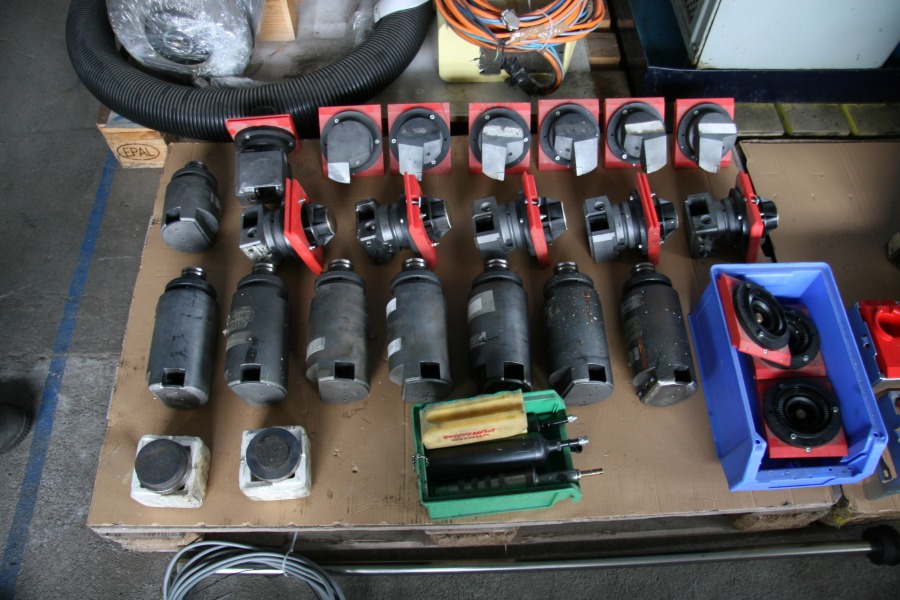

tool taper HSK-A-100
total power requirement 67kW
Subject to changes and errors in technical details and specifications, as well as prior sale.
