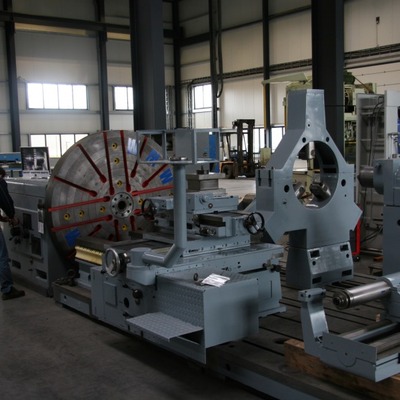

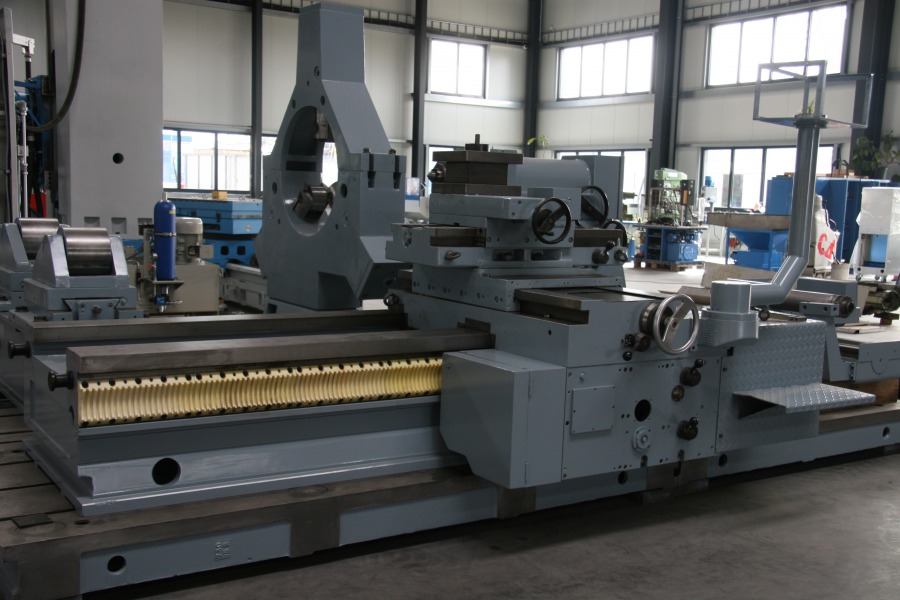

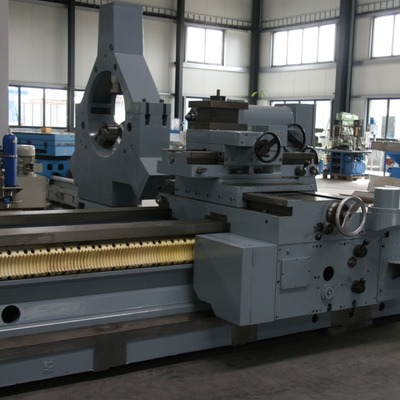

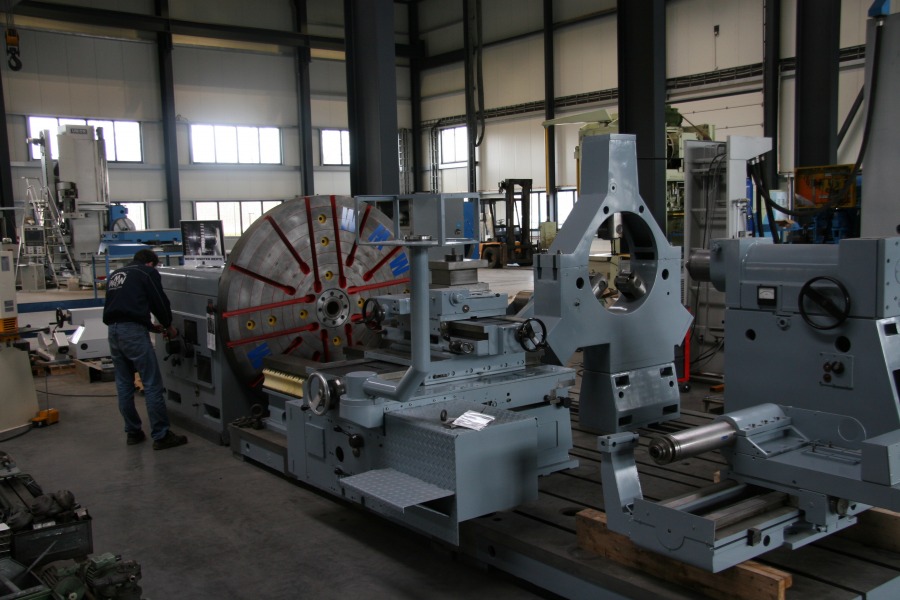

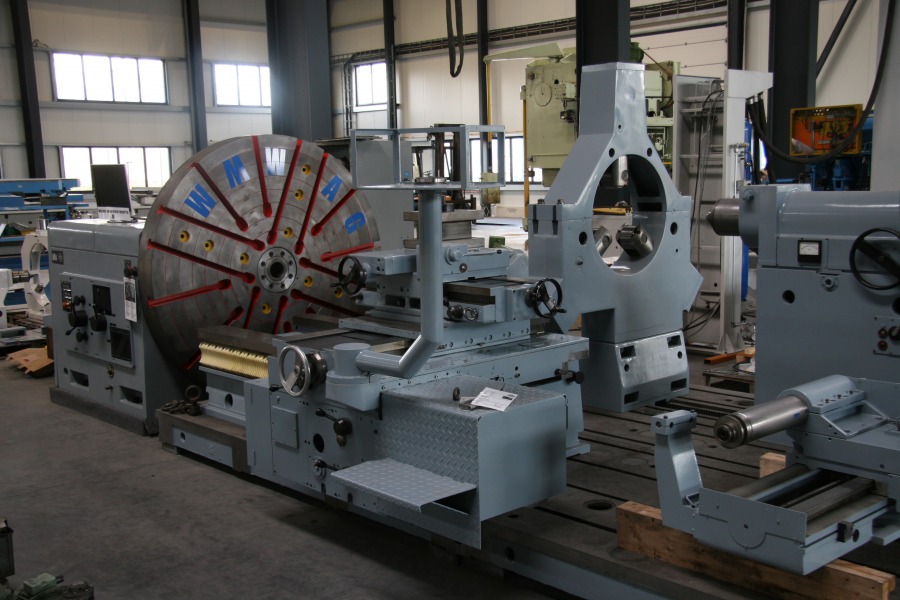

WMW Zerbst DP2-S
Facing Lathe | Stock number: 0300212
Description
The machine will be modernized. (electric, electric cabinet, main drive with frequency converter stepless adjustable and 4 axis digital readout system).
axis travel support stand:
bed slide 1700mm (longitudinal)
intermediate slider 780mm
cross slider 640mm
upper slider 120mm
equipment:
1x steady rest dia.740mm
1x roll attachment
1x grinding device
1x four times turning tool holder

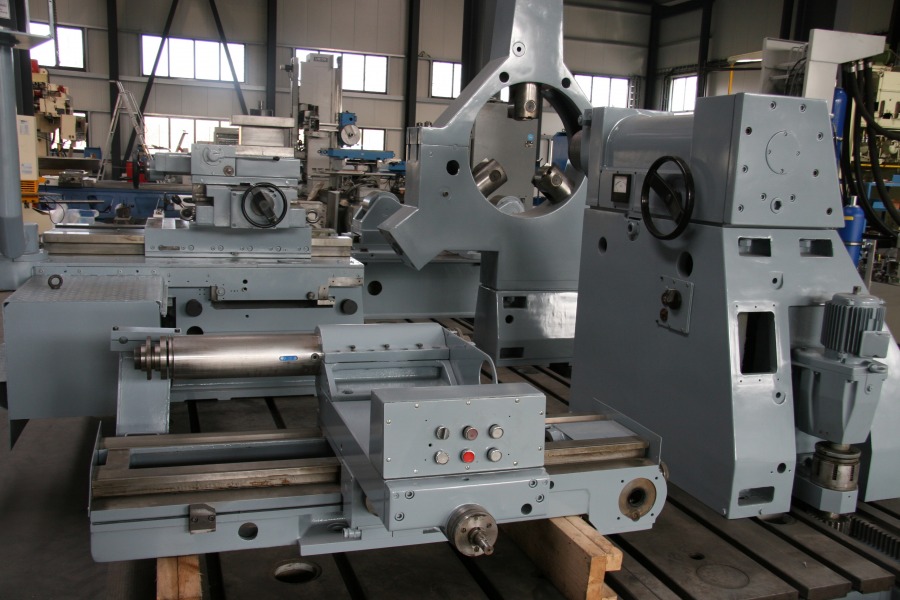

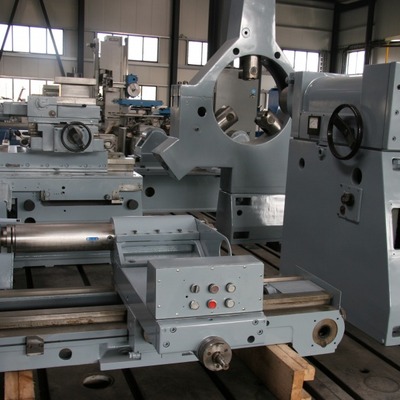

1x tailstock (can be moved electric)
4x floor plates
turning length of 4000mm via repositioning possible!
i.D.
Details
faceplate diameter 2000 mm
turning diameter over slide rest 2000 mm
turning length 2340 mm
Height of centres 1250 mm
spindle bore 98 mm
max. workpiece weight between centres 16 000kg
workpiece weight 3,8t bei 50mm distance
workpiece weight 2,0t bei 600mm distance
total power requirement 65kW
weight of the machine ca. 36t
equipment:
1x steady rest dia.740mm
1x roll attachment
1x grinding device
1x four times turning tool holder
1x tailstock (can be moved electric)
4x floor plates
turning length of 4000mm via repositioning possible!
i.D.
Planned measures
- replacement of the electric cabinets and the complete machine wiring,
- renewal of the drive motor for the main spindle
- main drive with frequency continuously variable
- renewal of the guideway covers (bellows)
- retrofitting of travel measuring system for Z, Z1, X and X1-axis
- retrofitting a DRO (travel)
- renewal of the operating elements
- renewal of the limit switches
- replace defective / or non-existent motors
work performed
- machine has been complete repainted
Subject to changes and errors in technical details and specifications, as well as prior sale.
