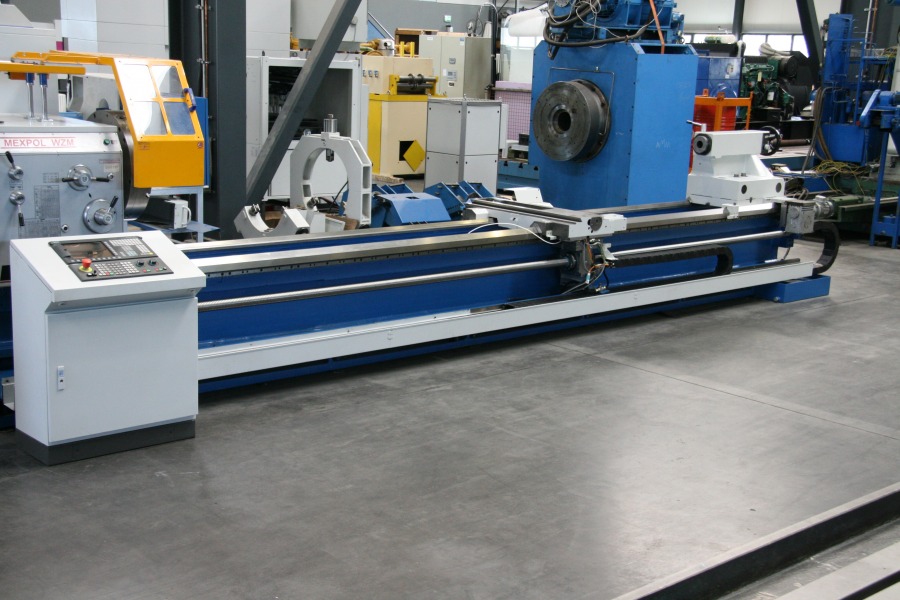

MEXPOL TUB 1030
Heavy Duty Lathe | Stock number: 0300250
Description
CNC Late with shop turn
Lathe has been 2017 geometric overhauled . Warranty for one year will be granted.
equipment:
headstock morse 6, travel of spindle sleeve 300mm
threadcutting possible ( metric threads, inch threads, modul threads)
multi quick steel holder swiveable 360°

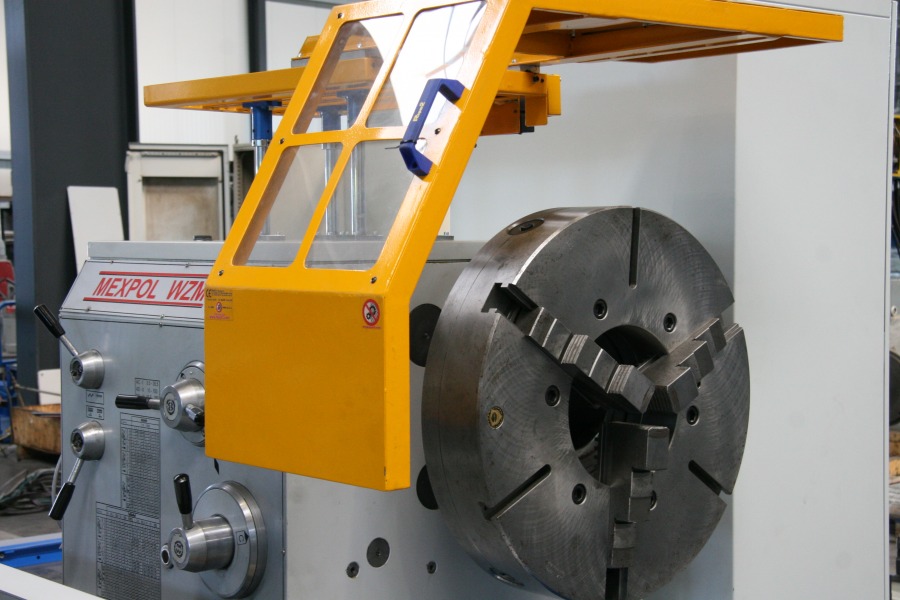

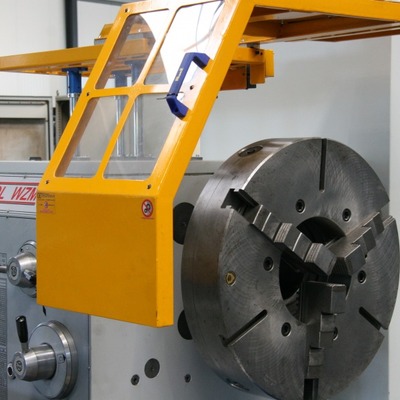

3 jaw chuck diameter 630mm
Details
- turning diameter over bed: 1040 mm
- turning diameter over slide rest: 720 mm
- centre distance: 5400 mm
- center height over bed: 540 mm
- turning dia. in gap: 1300 mm
- length of gap: 640 mm
- spindle bore: 152 mm
- turning speeds: 3,5...1000/ 4 step U/min
- feed: längs:0,06-17,56/ 96step mm/U
- control: Siemens 828D
- total power requirement: ca. 30 kW
- weight of the machine ca.: 14,1 t
- dimensions of the machine ca.: L:7,7xB:1,7xH:2,0 m
Planned measures
Optional:
Stronger drive with 90 KW motor! (stand-alone system is placed in front of the original drive)

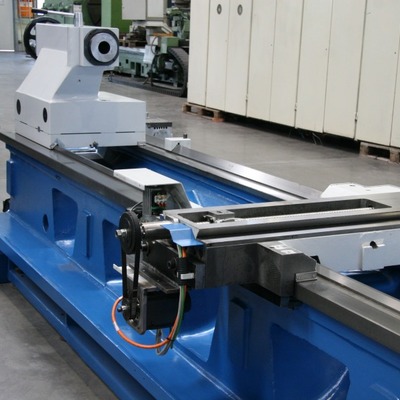

work performed

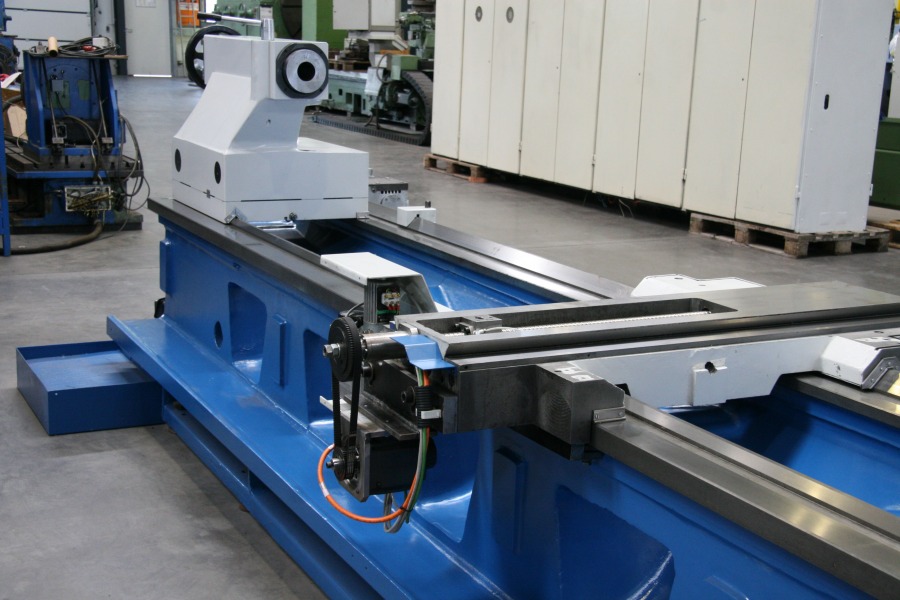

- drive has been redesigned
- guideways freshly new sharpened
- tool slide has been scraped
- reconstruction and new storage of the X-axis spindle
- Machine has been repainted
- protection devices has been renewed
- Retrofitted idle position for transmission
- renewal of cogged belts and pulleys

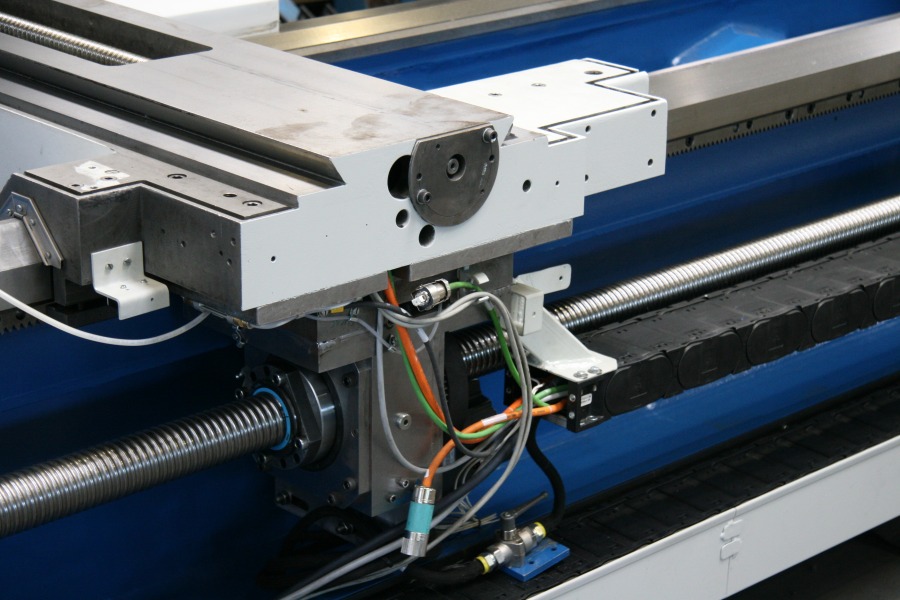

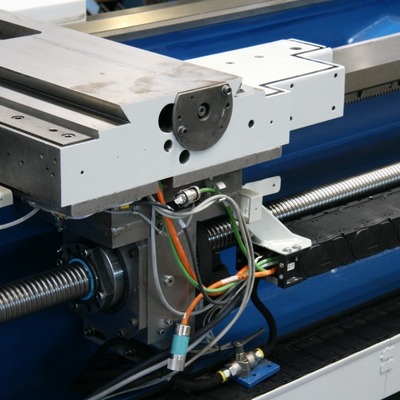

- reconstruction of the Z-axis drive to driven spindle nut (ball screw)
- renewal of the electric cabinet, the drives, machine wiring

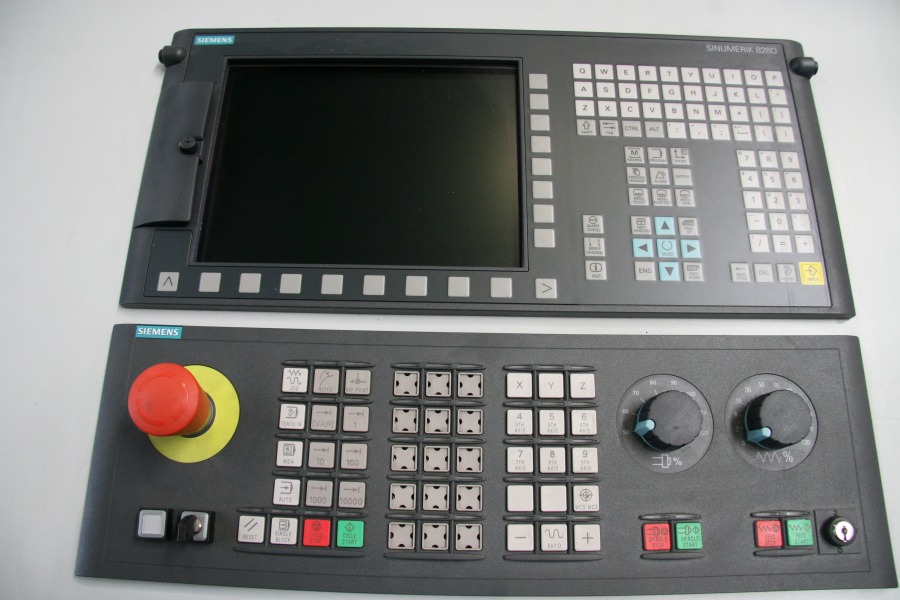

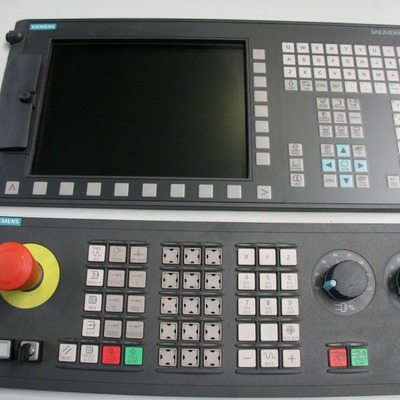

- renewal of the operating panel
- renewal of the drive motors by Siemens motors
- installation of a Siemens 828 D control
Subject to changes and errors in technical details and specifications, as well as prior sale.
