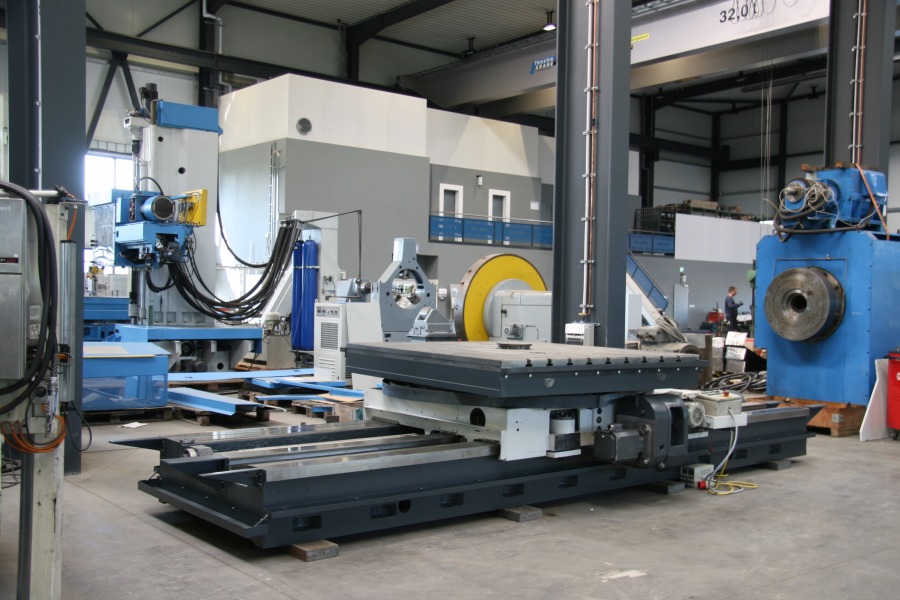

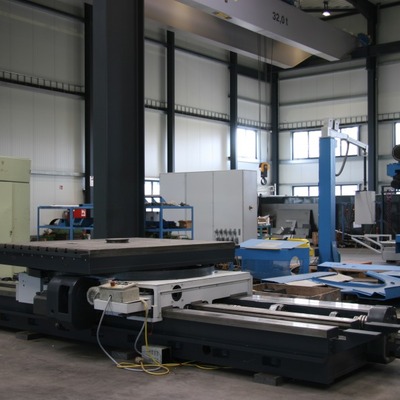

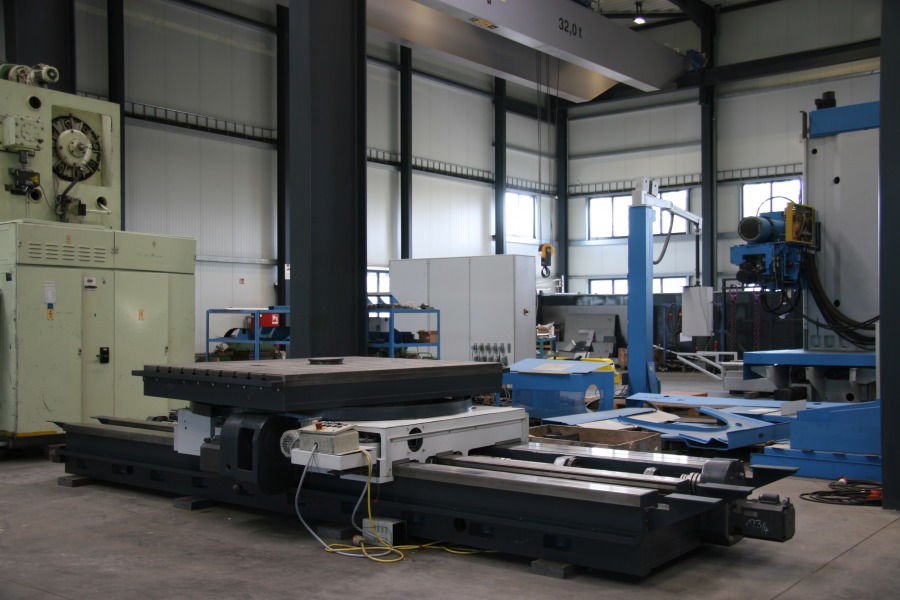

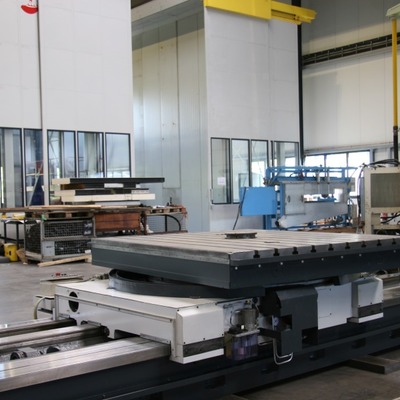

Infratirea MRD 1700x2000/3000

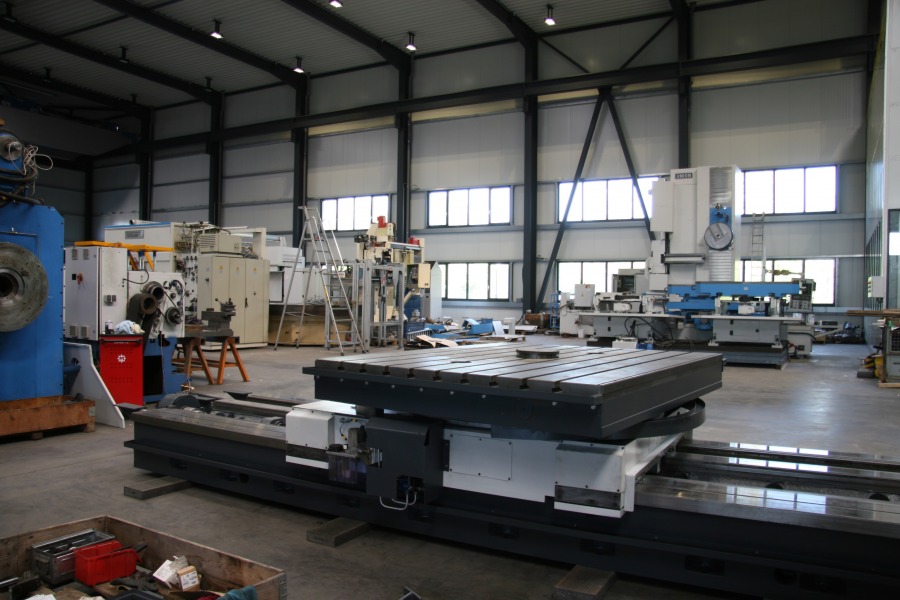

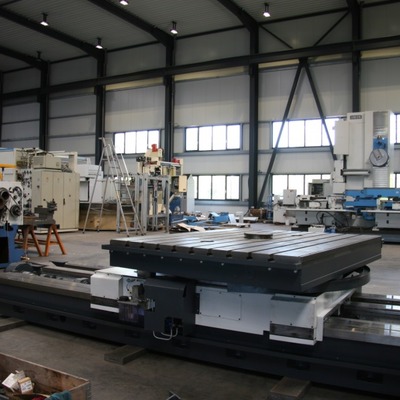

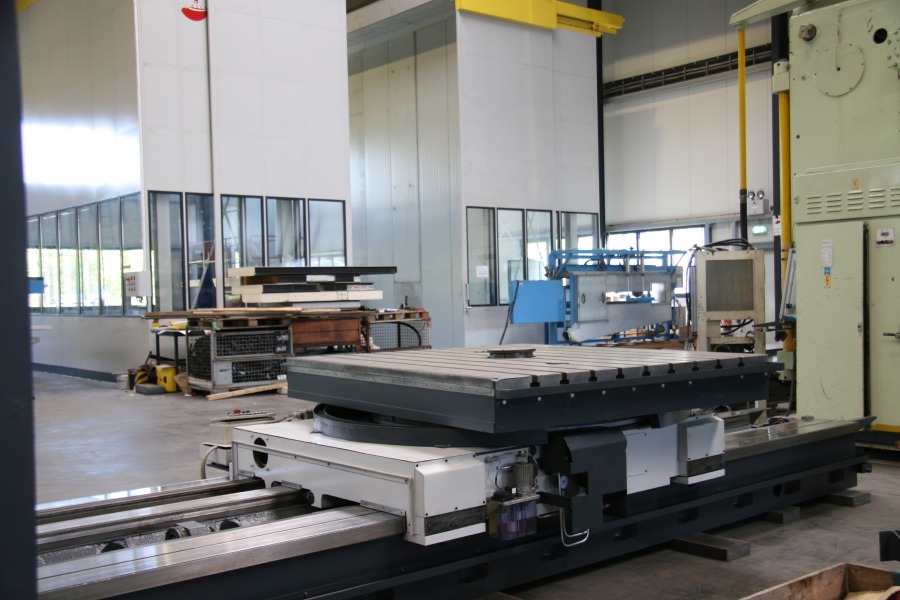

Rotary Table - Boring | Stock number: 1104003
Description
The table is beared on a flat bed guidance ( 5000x1380mm)
9 T-slots according DIN 650 and 508:
a=28mm
h=54mm
b=51mm
c=21mm
distance from center = 160mm
Details
table length 3000 mm
table width 1700 mm
table load 15 t
x-travel längs=3000 mm
height over floor 1020 mm
table rotating 360 motorisch °
total power requirement ca. 1,0 kW
weight of the machine ca. 14,2 t
dimensions 5,7x2,1x1,0 mm
Planned measures
- preparation of the required documentation (hydraulic diagrams, electrical wiring diagram, instructions)
- creating the necessary documentation
Optional:
- retrofitting a control panel with control
- cleaning and refurbishing the machine base
- retrofitting a control point for positioning the X-axis and B-axis
- retrofitting of new travel measuring systems
- retrofitting of a electric cabinet
work performed
- replacement of defective bearing of the worm wheel of the B-axis

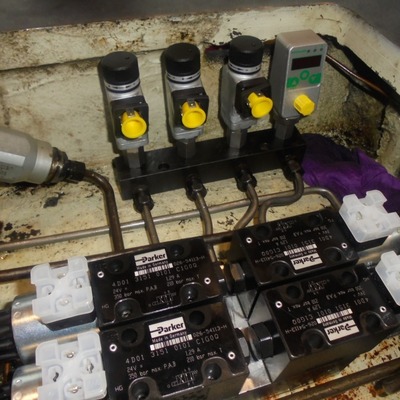

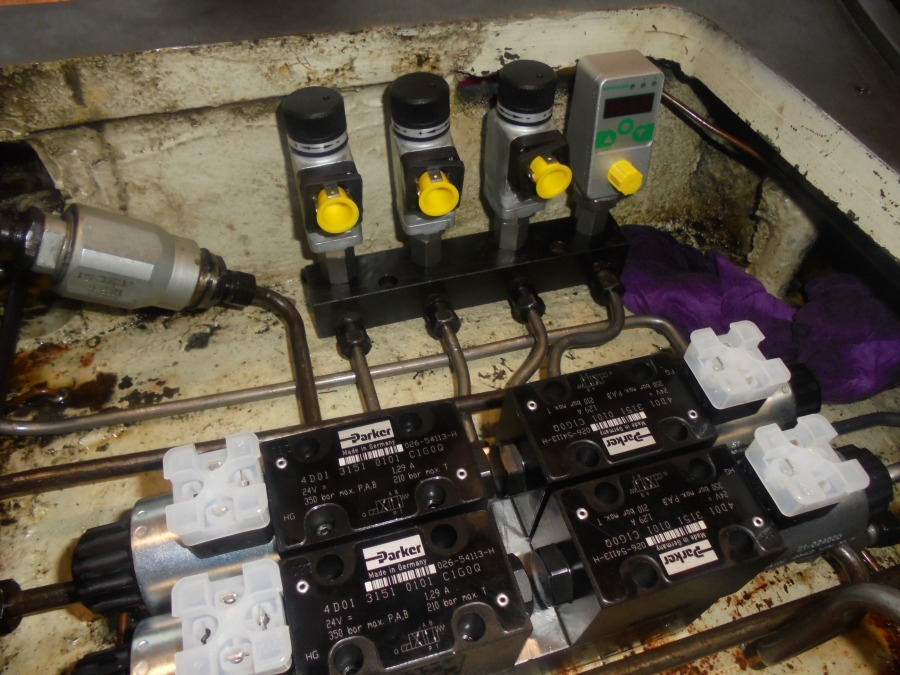

- renewal the following hydraulic components:
- pressure switches, pressure gauges, solenoid valves, bubble memory
- retrofitted safety shut off block for bubble memory
- retrofitted protective cover for bubble memory

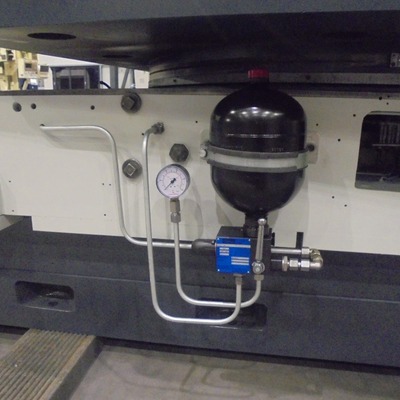

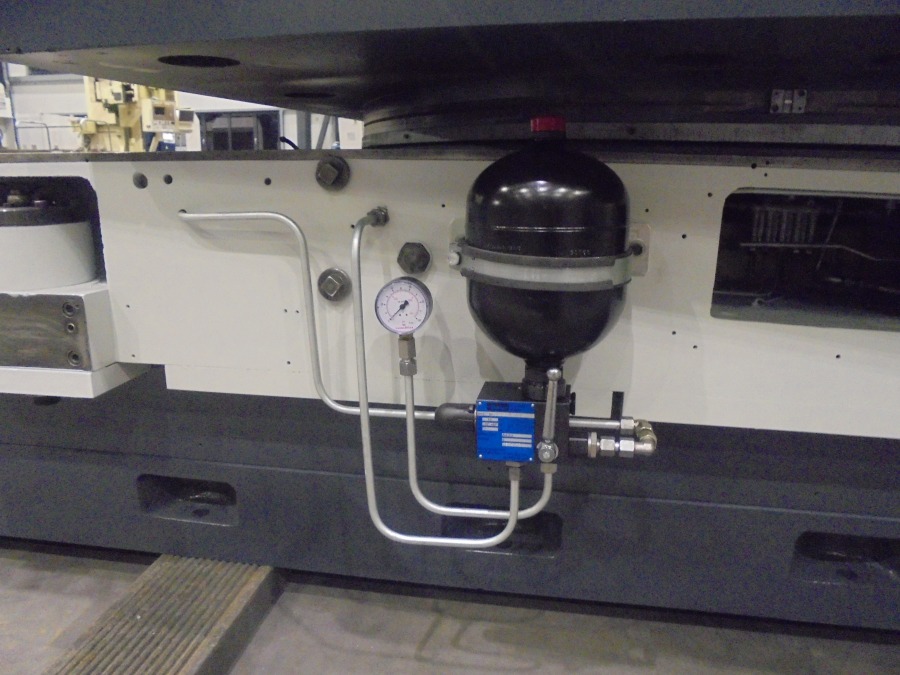

- replacement of the ball screw gear (disassemble the spindle nut, clean, new ball bearings installed)
- replace defective bearing of the worm shaft B axis
- new electric motor for the hydraulic pump has been installed
- Rotary Table was repainted
- replacement of the wiper for guideway and cover
- new wiring of the electrical hydraulic components
- reconditioning of the guideway covers
- renewal of machine wiring
- drive motors by Siemens motors will be renewed
