Description

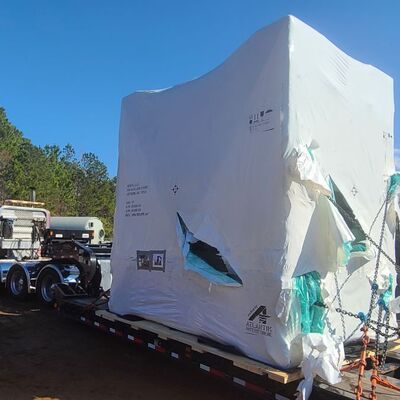

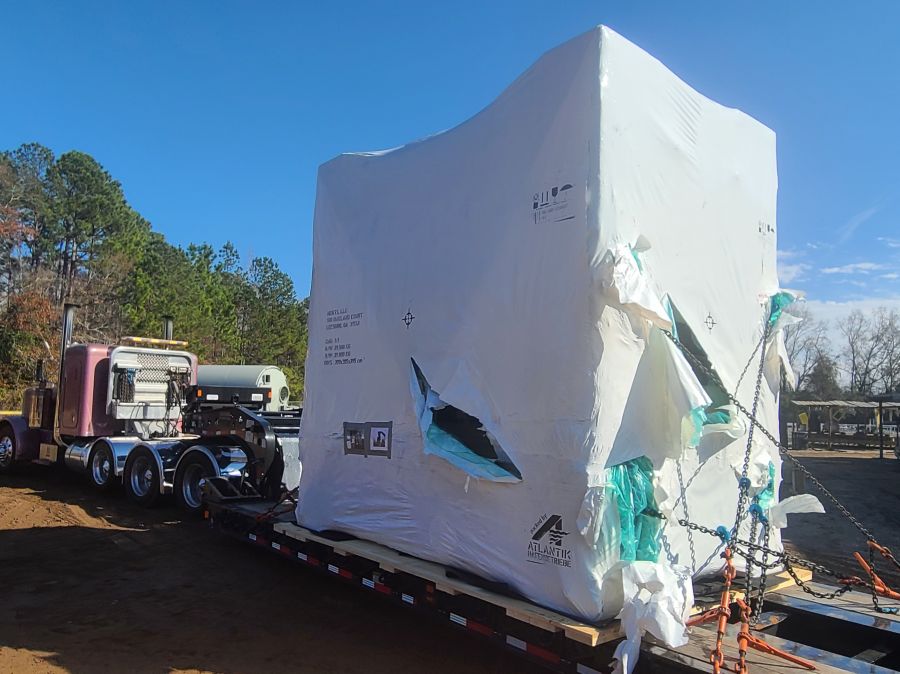

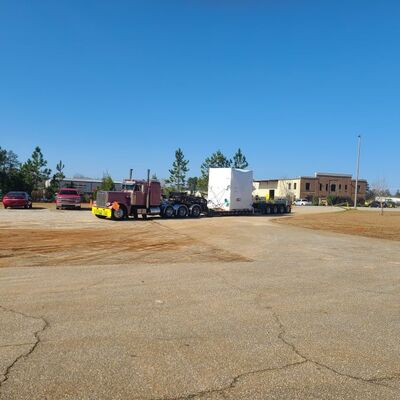

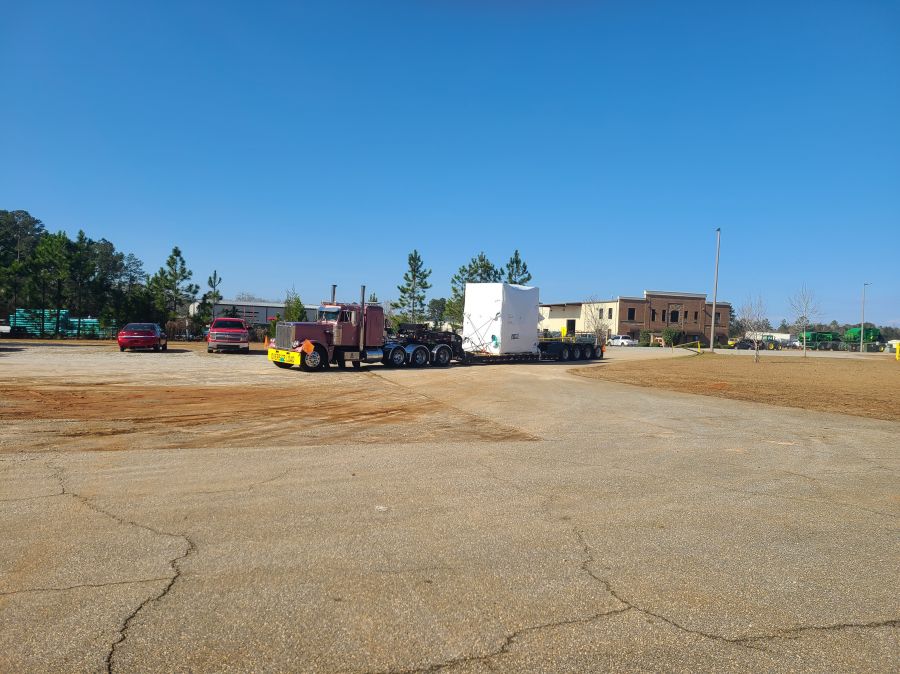

Machine was sold to America!

Customer: MERTS, LLC designs

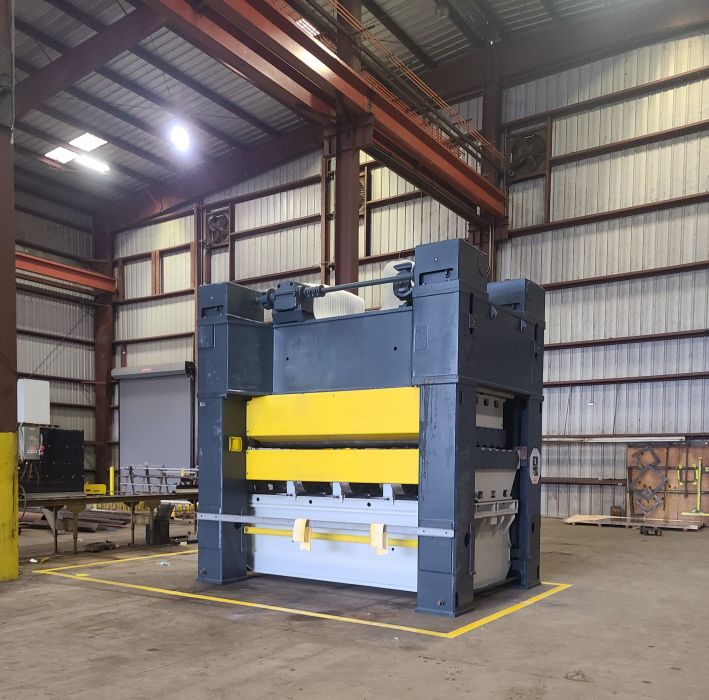

cold sheet metal levelling machine

techn. dimensions:

equipment:

6 pcs roller conveyors for intake/feed and outlet/ run-out, model U-beam construction with each 1 gear motor per roll conveyor band approx. 6,0 kW, chain drive for all rolls, rolls dia.= 190mm

roll conveyor description:

1 x roller conveyor: 2 pcs. rolls, 2500mm length, roller distance center 800mm, size (W:2,8xD:1,15xH:0,77m)

3x roller conveyor: 3 pcs rolls, 2500mm length,

roller distance center 800/800 mm

size W:2,8xD:1,85xH:0,75m

1x roller conveyor: 4 pcs rolls, 3x2800mm + 1x2330mm length, roller distance center 800/800/550 mm / size W:2,8xD:2,4xH:0.77m

1x roller conveyor: 6pcs rolls,5x2500mm+1x2330mm length,roller distance center 800/400/400/280/270mm, size W:2,8xD:2,4xH:0,77m

Details

plate width 2500 mm

plate thickness 16 mm

smallest sheet thickness 6 mm

Number of Straightening rolls 11 Stück

roll diameter 180 mm

straightening roll diameter 180 mm

straightening feed 10-16-20 m/min

bending speed 10 m/min

total power requirement 75 kW

Weight approx. 56 t

space requirements approx. LxWxH 5,0x2,5x4,0 m

revise of 39 support mounts
clean, inspect the bearings (replace if necessary), regrease
turning of the outer Diameter
check of the levelling rolls drive gear, cleaning, checking,
revision of 13 Cardan shafts
dismantling, cleaning, regrease, mounting
work up 11 piece straightening rolls
check for run-in points, hardness and diameter,
resurfacing via fine grinding
repainting the entire machine
replacement of defective oil seals and gaskets, replacing the bearings if necessary
check of the pre-transmission
cleaning, checking, replacement of defective oil seals and gaskets,
replacing the bearings as needed
verification of screw jack / cleaning, checking,
replacement of defective oil seals and gaskets, replacing the bearings if necessary
verification of the screw jack for height adjustment of the lower straightening rolls
cleaning, checking, replacement of defective oil seals and gaskets, replacing the bearings if necessary
check the main drive motor, hydraulic motor, 2x lift motors
check via measuring of all electric devices , test run, new bearings if needed
straightening rollers bearing cleaning, checking, possibly bearing replacement, regrease
lubrication of the main gearbox clean, if necessary exchange of filters, pipelines;
