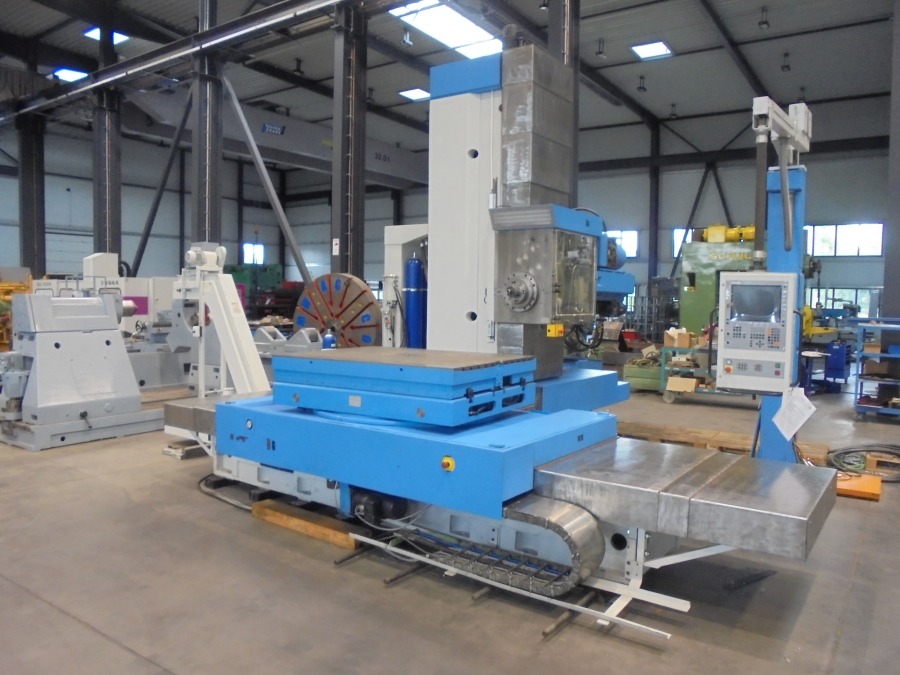

Union BFKF 110 Bohrwerk

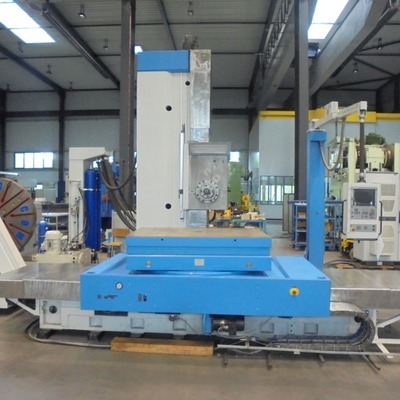

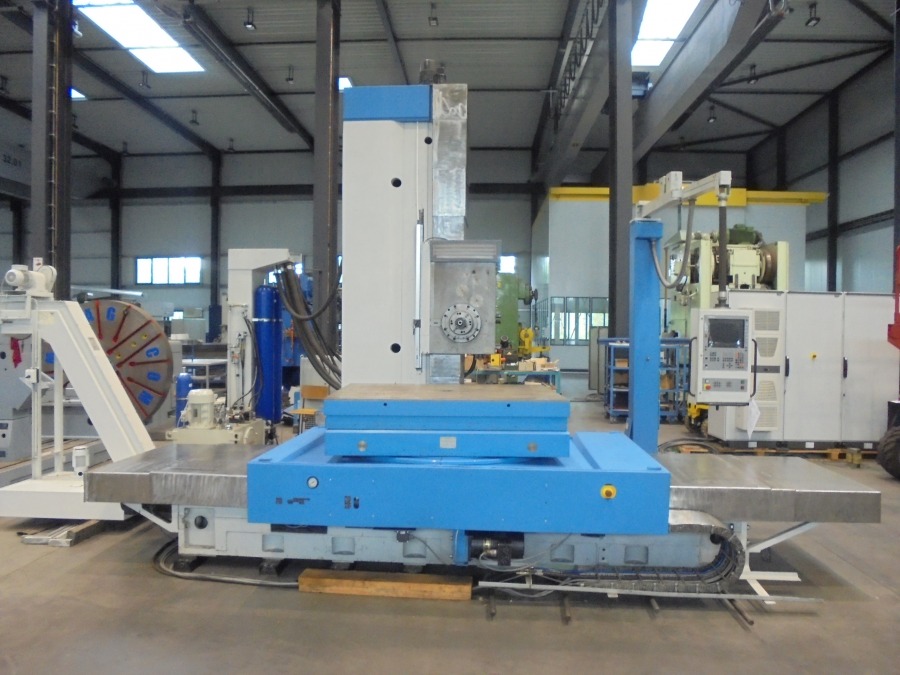

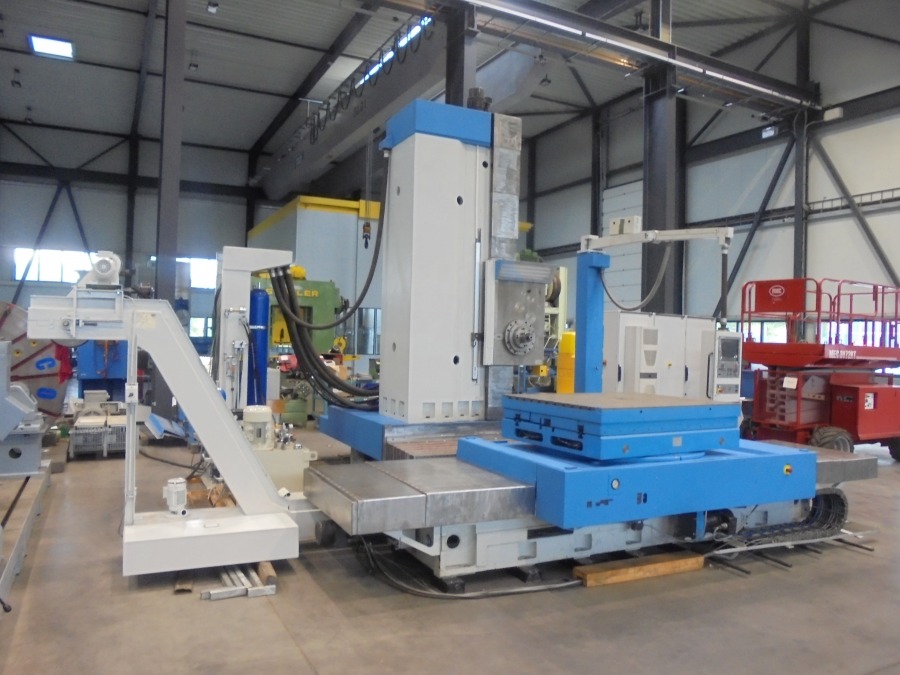

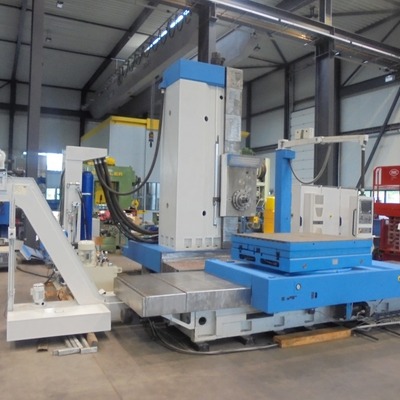

Table Type Boring and Milling Machine | Stock number: 0200733
Description
The Table Type Boring and Milling Machine has been modernized and overhauled 2018!
optional with palett changer
feed y7z-axis: stepless with 1-9999mm/min, graded with 1-9000mm/min
rapid adjustment x/y/z/w-axis: ...10 000mm/min
main spindle: tool taper with ISO taper SK50
copy of documentation available
Details
spindle diameter 110 mm
x-travel 2000 mm
y-travel 1250 mm
z-travel 880 mm
w-axis Bohrspindel 0-630 mm
B-axis (table) 360° mit 0,02° Teilg.
control Heidenhain TNC 320
table surface area 1250 x 1600 mm
table load 8 t
Tool taper ISO 50
speed of boring spindle: 5...1400/4Stufen-step U/min
turning speeds: Frässpindl 5-1400/4Stufen U/min
turning speeds: stufenlos
feed stepless siehe Anlagen Text
electrics - voltage/frequency 380/50 V/Hz
total power requirement 90 kW
weight of the machine ca. 22 t
dimensions of machine ca.T:7,5xB:6,0xH:4,4 m
dimensions electric cabinet LxWxH 3,0x0,8x1,4 m
work performed
- renewal of the guideways of X- and Y-axis, including new roller bearings
- cleaned ballscrews, checked and regreased worked up machine feet and painted
- renewal of the control cabinets and machine wiring

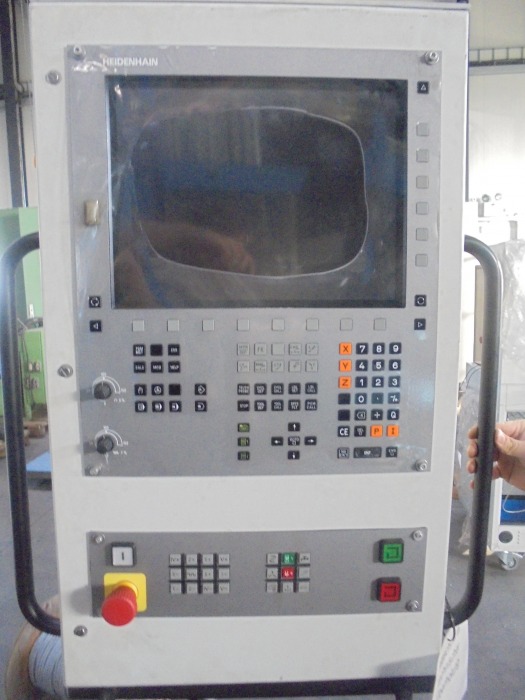

- renewal of the control and drive systems (Heidenhain TNC320)

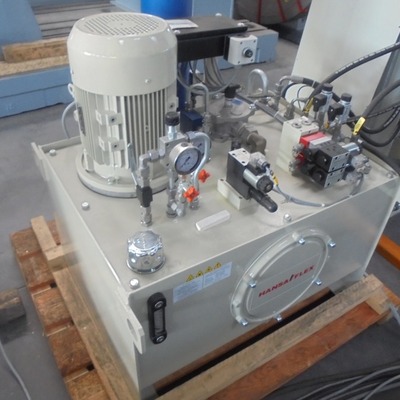

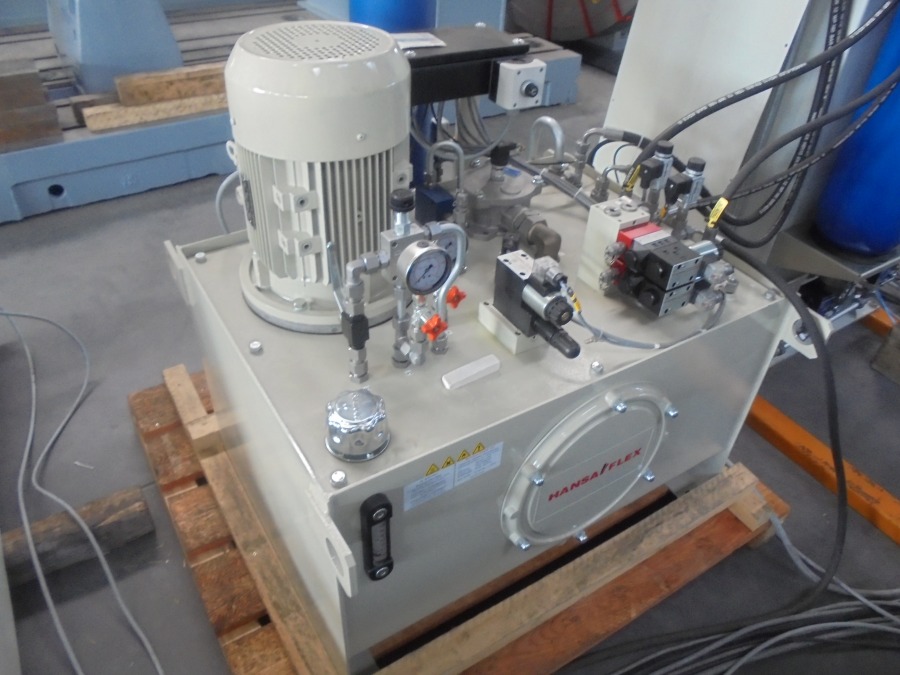

- installed new hydraulic unit
- switching- and compensating cylinder were regenerated (disassembled, cleaned, resealed, verified)

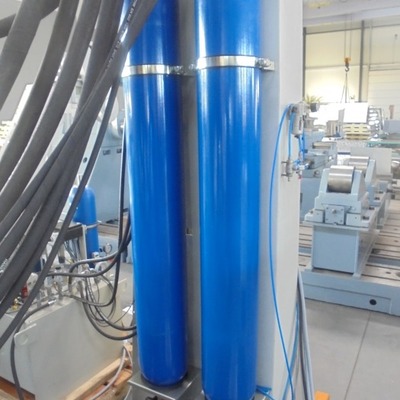

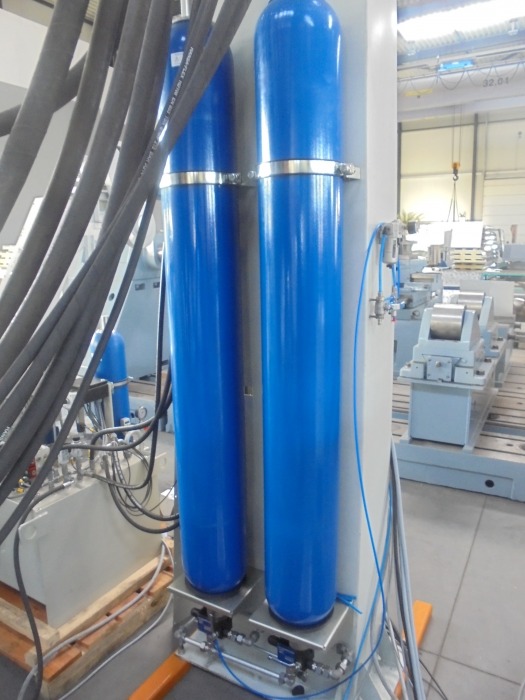

- renewal of the bubble memory and piping for the compensating cylinder
- renewal of the hydraulic filter
- installed safety shut off block for bubble memory
- renewal of the hydraulic clamping (brake linings and hydraulic hoses) of the B-axis
- retrofitting a pneumatic unit for the travel measuring system (prevents contamination of sensors
- replacement of all hydraulic hoses according to standard DIN 20 066
- new travel measuring systems for X, Z, Y, B and W-axis
- Machine has been repainted
- guideway covers has been worked up
- created an electrical diagram and hydraulic diagram
- replacement of the wipers for the guideway covers
- programming of the control system
Subject to changes and errors in technical details and specifications, as well as prior sale.
