WMW Zerbst DP3
surface lathe | Stock number: 0300004
Description

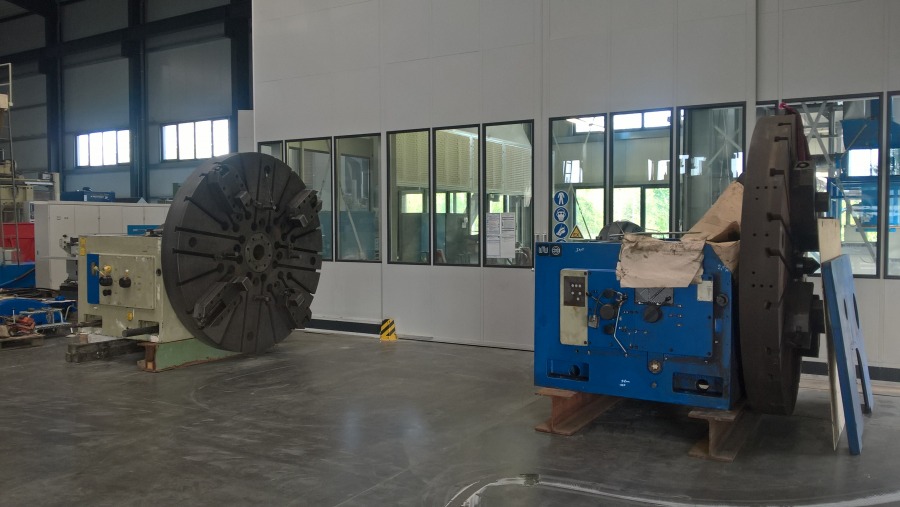

We modified our spindle box for a customer!
Details

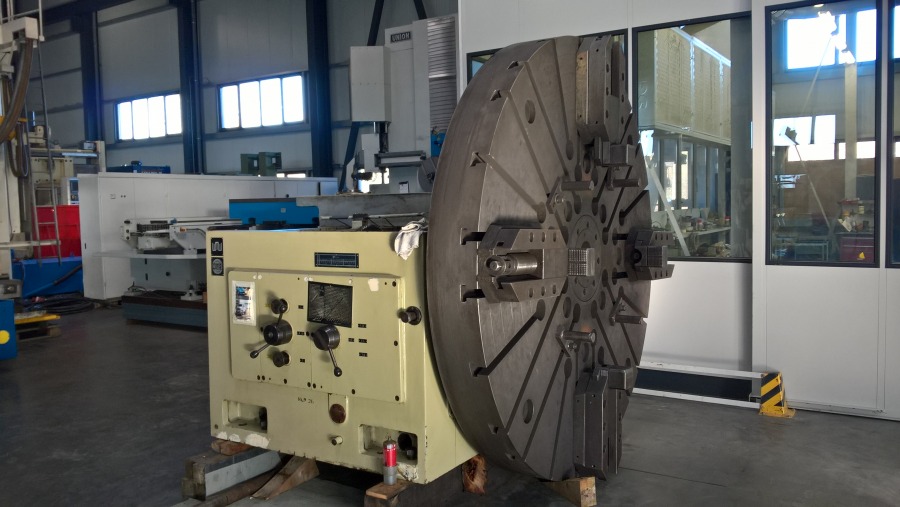

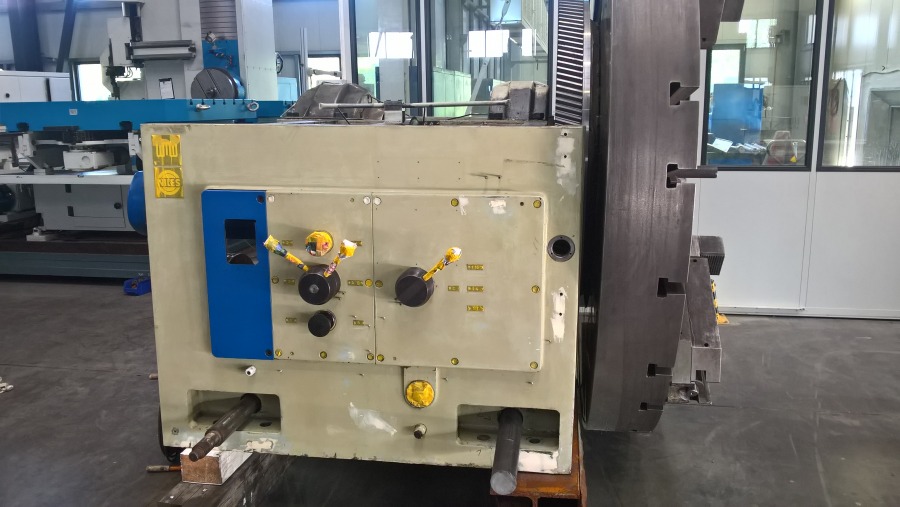

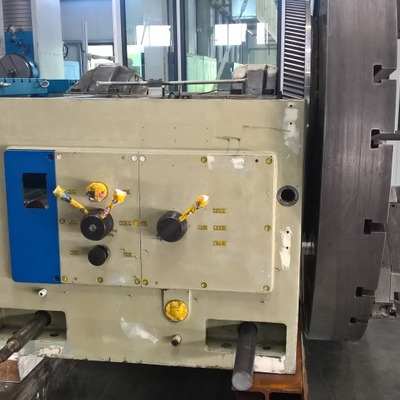

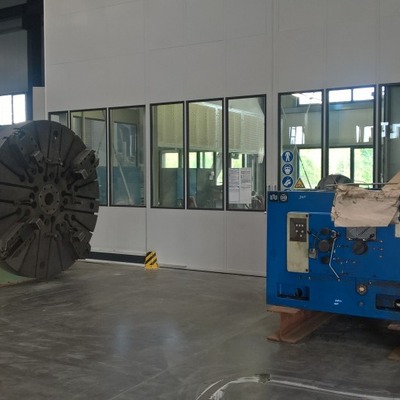

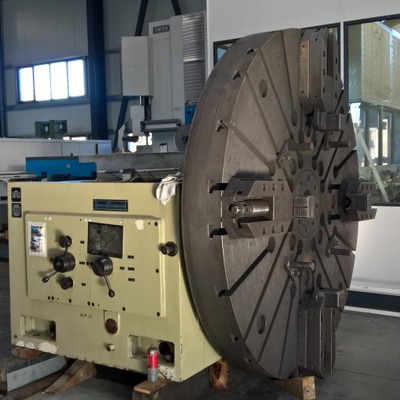

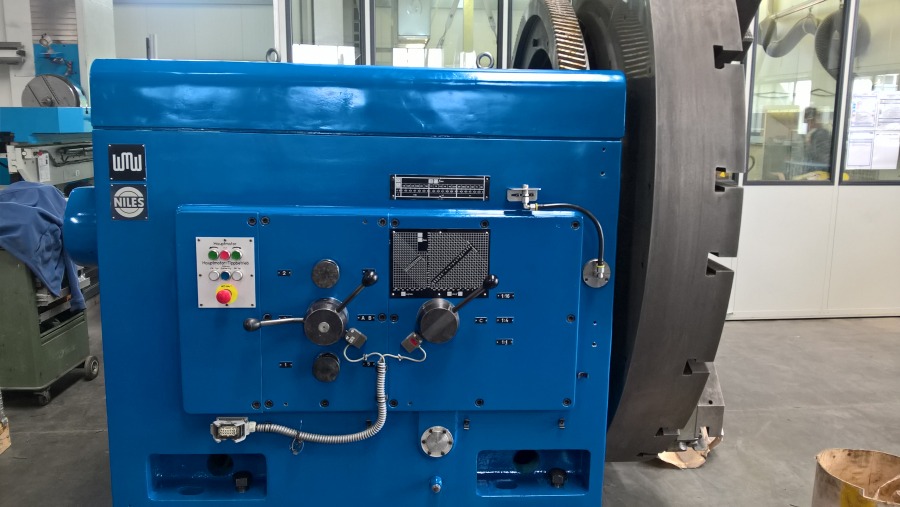

The customer's spindle housing was replaced with ours and modified!
work performed
- Cleaning of the entire machine (removal of chips, oils, and greases)
- Disassembly of the "electric shaft" (motor, drive shaft, covers, drive shaft)
- Aligning the "electric shaft" flange to the spindle housing (WMW), drilling new holes
- Replacement of the "electric shaft" seal on the motor
- Installation of the "electric shaft" + drive motor (motor, gear shaft, covers, drive shaft)
- Dismantling of the machine wiring, limit switches, terminal box, and control panel
- Conversion of the grease lubrication cartridge

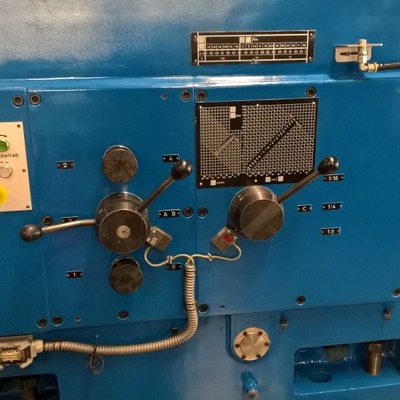

- Adapting the "door" control panel to a different spindle housing, fitting new holes for the hinge - Mounting holes for limit switches, cable routing, and cable protection installed

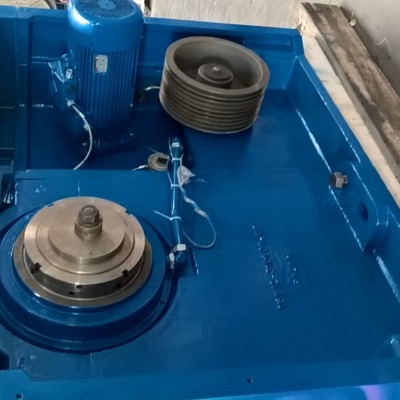

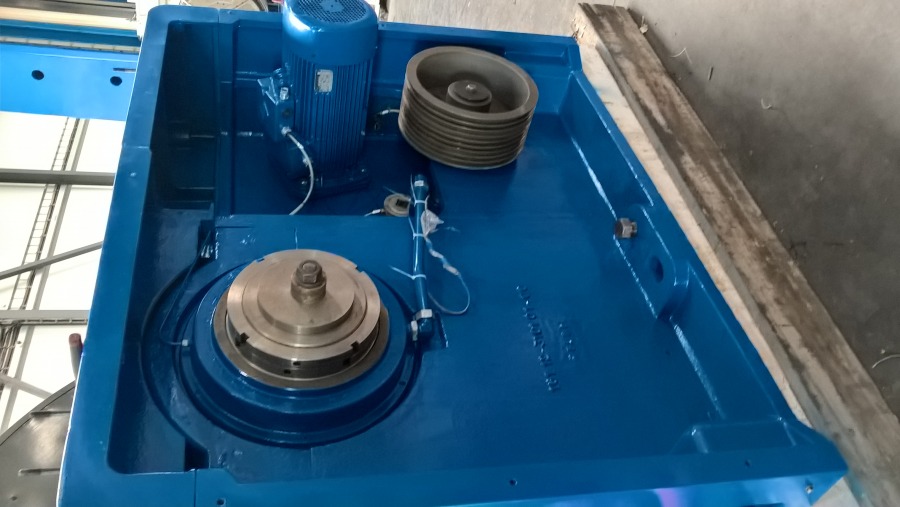

- Conversion of the pulley
- Repainting of the machine
- Removal of old paint, filling, sanding, priming, sanding, painting
- Assembly of the machine
- Laying machine cabling, securing and adjusting limit switches, installing the control panel
- Assembly and connection of the terminal box
- Plug retrofitted for easier removal and installation of the "feed protection" limit switches
- Spindle housing set up, aligned, and measured at the customer’s site
