Description

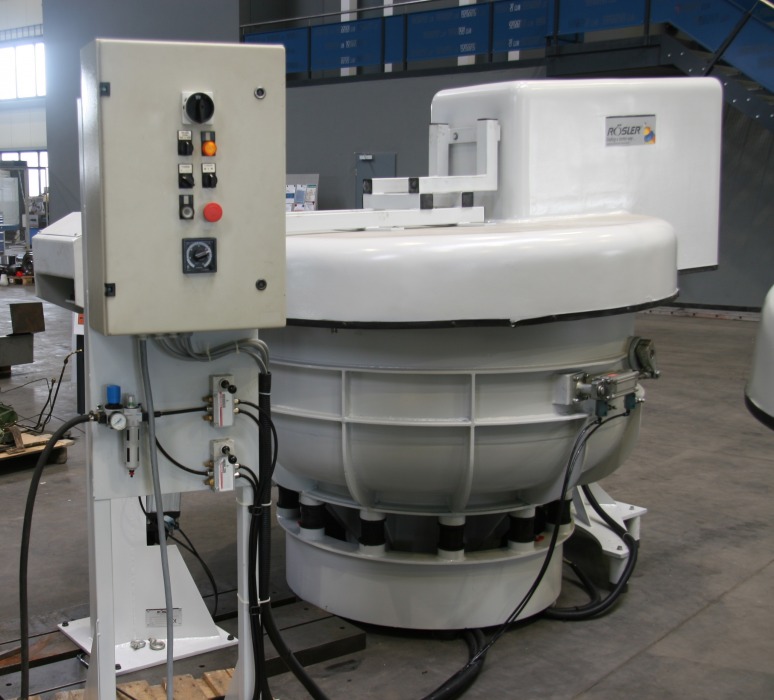

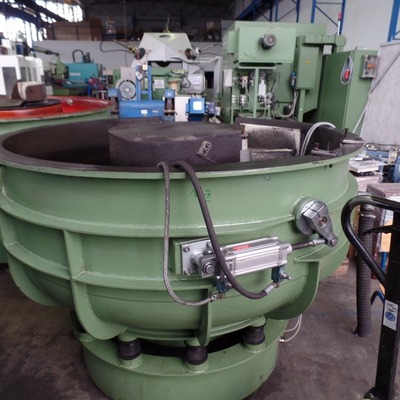

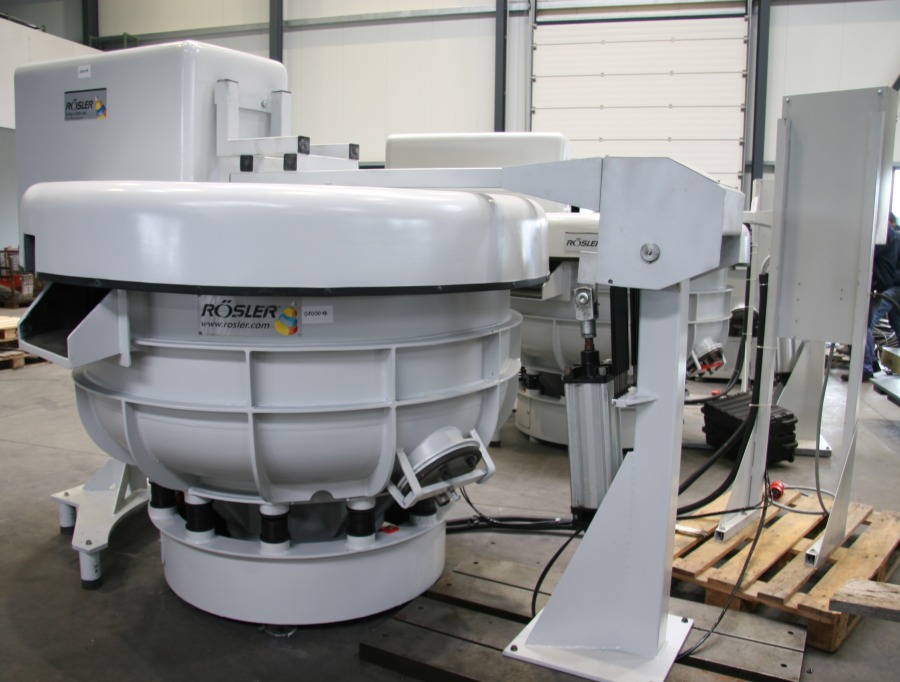

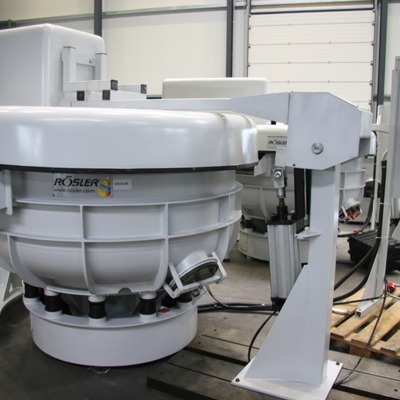

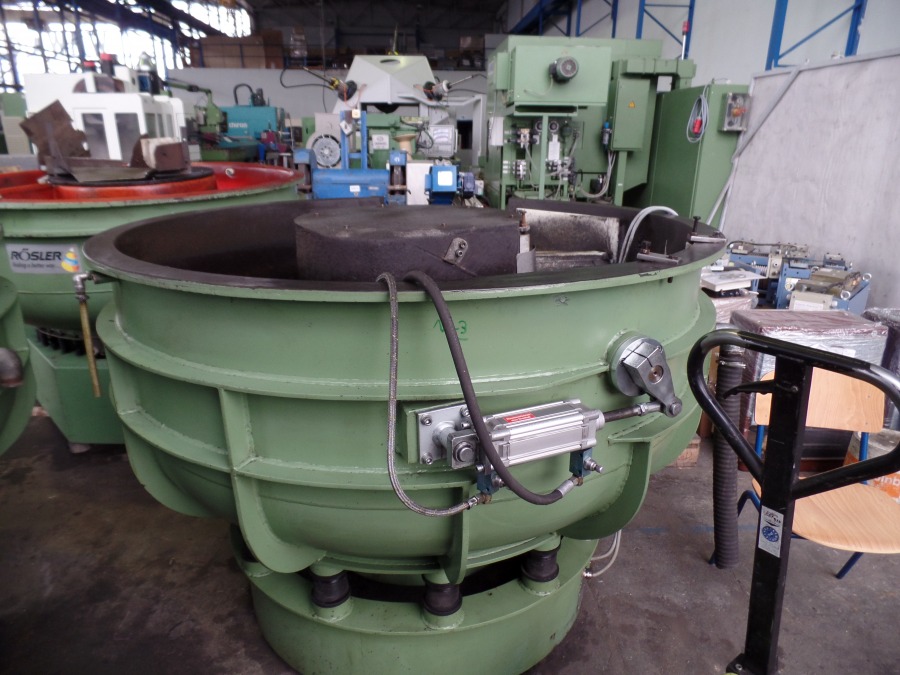

Overhauling of 2 Vibratory Process Bowls

Details

Including drum magnet separator

Technical information:

2 selectable speeds via timer

outer diameter 1695mm

-upper edge working container 1225mm

working width 430mm

Equipment:

-cover (Dm = 1900x290mm), boom length 2800mm, pneumatic opening / closing

control Panel Frame (size 400x550x2050mm)

water connection (connection height = 1000mm) 1 1/2 "with reduction angle to 1 1/4"

-pressure air connection 1/4 "for approx. 4 bar

-turning direction left and right

-abresive grinding body removal plug H: 500mm at Dm = 200mm

-incl. Transport safety device

replacement of the control cabinet including new machine wirings
overhaul of the pneumatic (hoses, valves, screw connections, cylinders)
complete repainting (removing the old painting, troweling, sanding, priming, sanding, painting

Subject to changes and errors in technical details and specifications, as well as prior sale.
