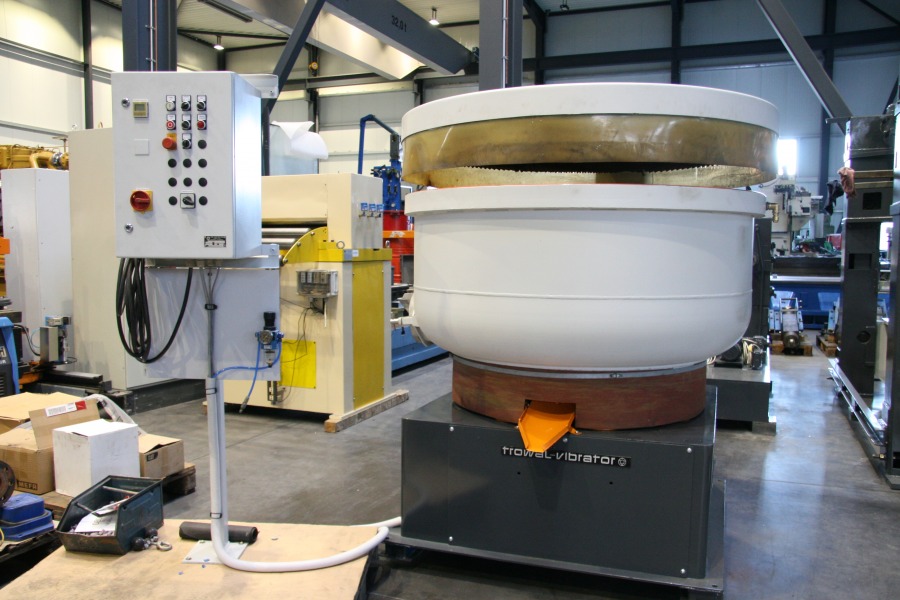

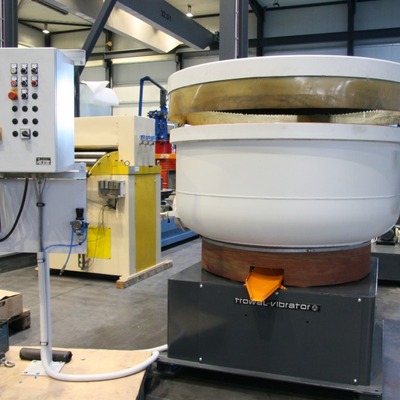

Walther-Trowal CM605

Description

application area: deburring, grinding,radiusing, general parts cleaning, de-scaling, de-greasing and polishing of punched, cast, forged, forged and sawn parts as well as machined (cutting operation milling, turning etc.) parts.

For the application of sensitive small parts up to massive , robust big parts.

technical details:

• working tank width / height : 440/600mm
• abrasive body removal plug Ø 200mm, height 500mm
• with waste water run out on the bottom
• Air pressure and water connection in the upper part of the tank 2x 3/8 " with hose connection

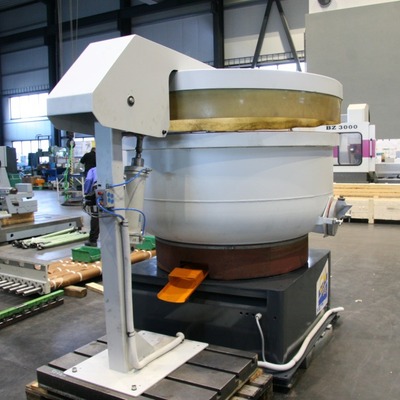

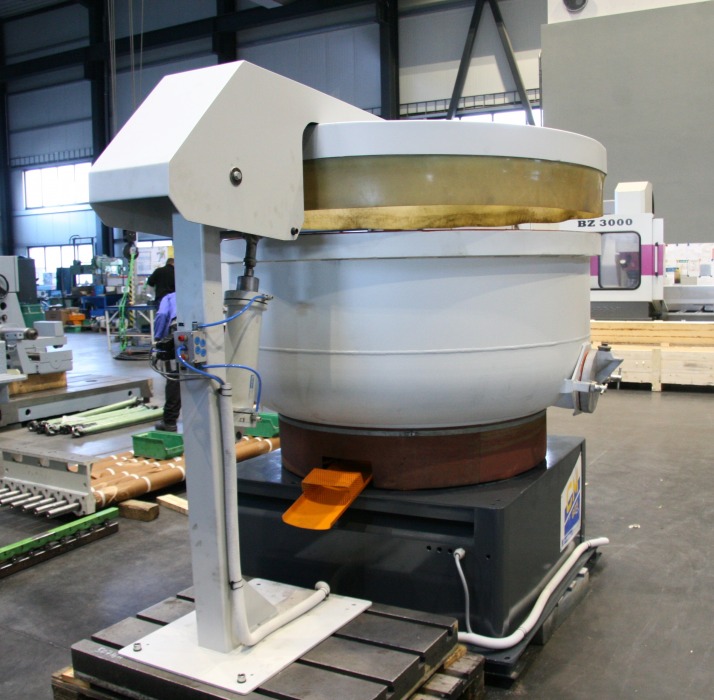

• cover : open/close hydraulic , jib length arm 1200mm, cover Ø 1700 x 250mm

Equipment:

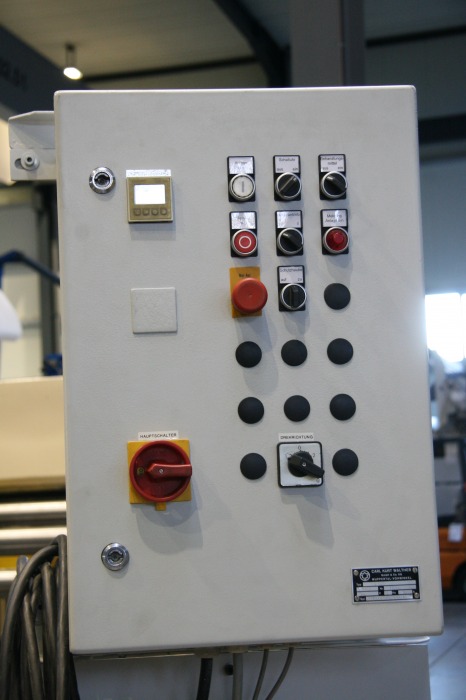

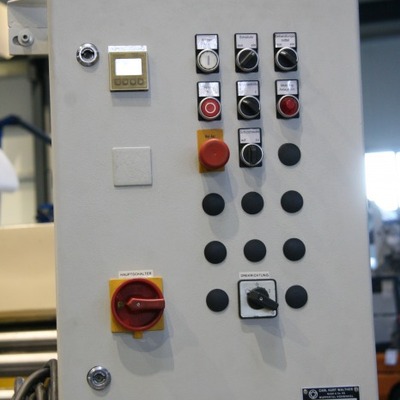

• control panel

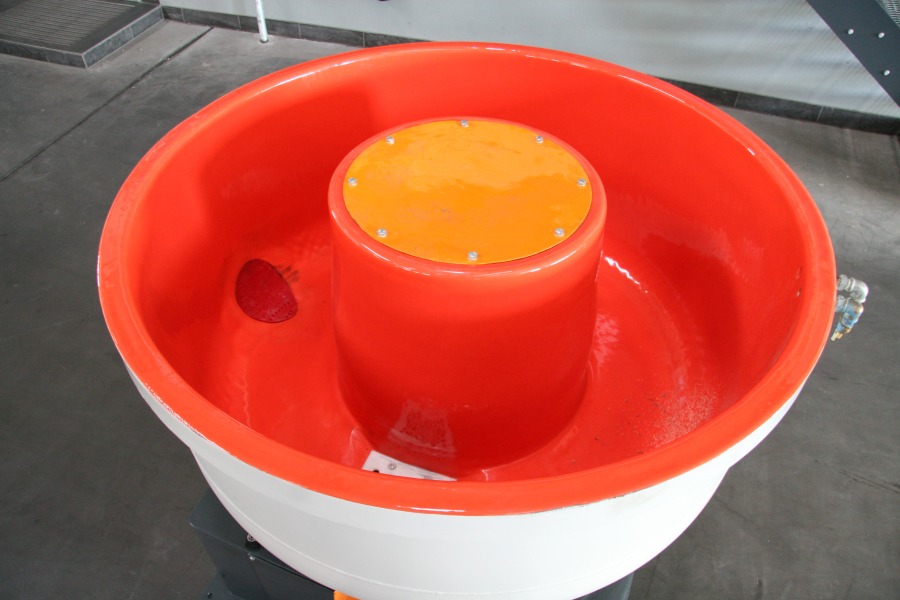

internal space has been new coated through a specialist.

clamping plate is not included in the delivery scope.

Details

total volume: 600 l

external diameter: 1600 mm

Work tank width: 400 mm

working tank upper edge: 1500 mm

revolution per minute: 1500 U/min

total power requirement: 4,0 kW

weight of the machine ca.: 1200 kg

dimension machine approx.LxWxH: 2,45 x 1,7 x 1,74 m

work performed

• Re-coated interior lining (thermal Decoating of the old coating, complete blasting, Primers, separating sieve and sieve stopper)
• Complete repainting (removing the old Paint, filling, sanding, priming, sanding, painting
• pneumatics renewed (treatment unit, hoses, valve)
• Renewal of the control cabinet and the machine wiring

Subject to changes and errors in technical details and specifications, as well as prior sale.
